        6ES5465-4UA12

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

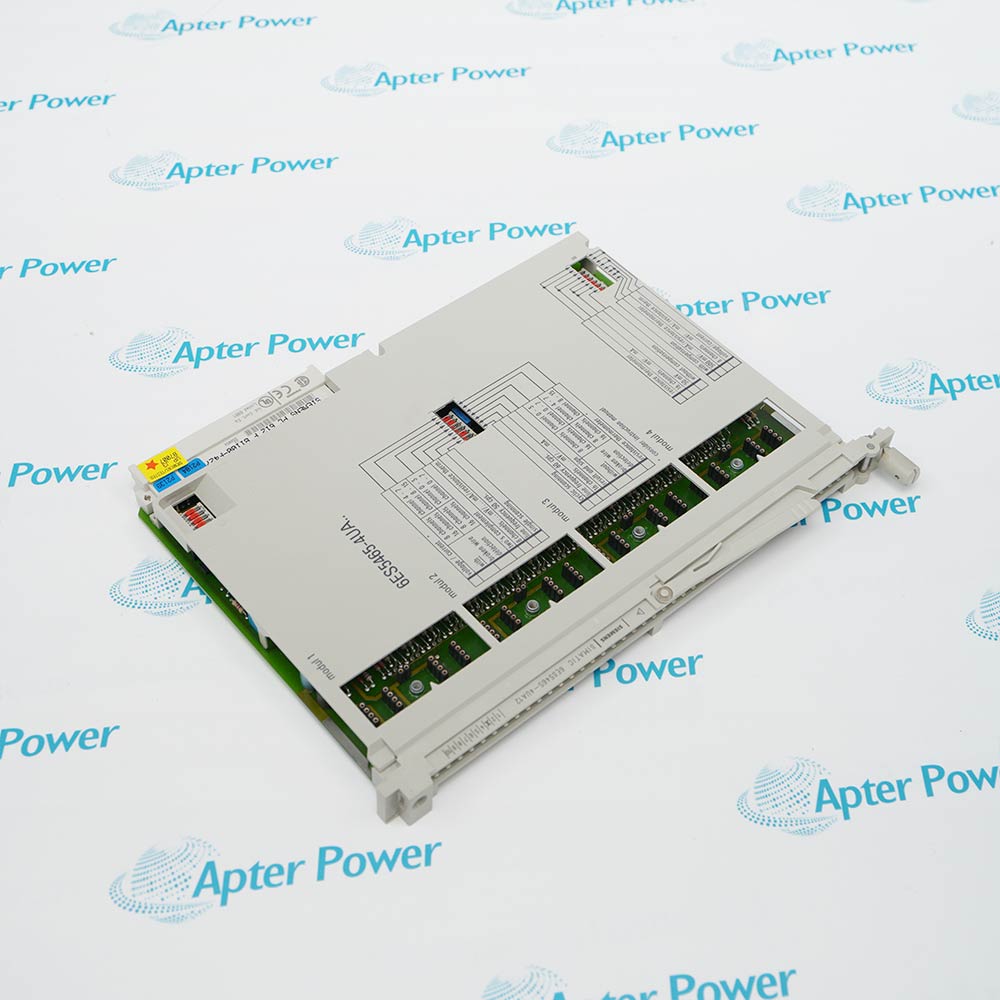

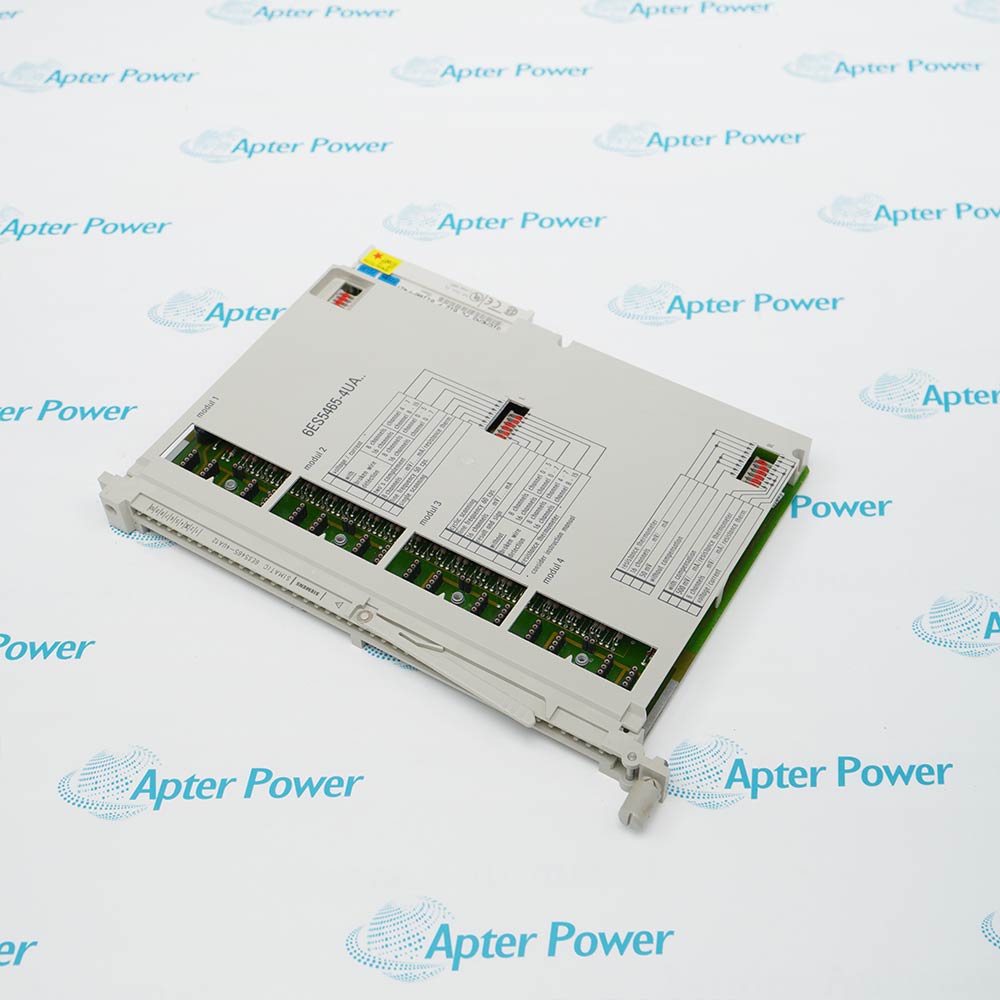

        Siemens 6ES5465-4UA12 is a potential-bound SIMATIC S5 analog input module for as many as sixteen voltage or current channels, or eight Pt100 resistance inputs. Plug-in range modules select the measurement type in groups of four channels.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for 6ES5465-4UA12
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 6ES5465-4UA12

        • Manufacturer:
          Siemens
        • Part Number:
          6ES5465-4UA12
        • Product Family:
          Siemens Simatic S5
        • Product Type:
          Analog Input Module
        • Stock:
          1
        • Voltage/current input channels:
          16
        • Resistance input channels:
          8 Pt100
        • Range grouping:
          4 channels per plug-in submodule
        • Measured-value representation:
          13 bit or 12 bit plus sign
        • Conversion principle:
          Integrating voltage/time, dual-slope
        • Supported low-voltage range:
          ±50 mV or ±500 mV with range module
        • Supported voltage ranges:
          ±1 V, ±5 V and ±10 V with range modules
        • Supported current ranges:
          ±20 mA; 4 to 20 mA for two-wire or four-wire transmitters
        • Current input resistance at ±20 mA:
          25 Ω
        • Current input resistance at 4 to 20 mA:
          31.25 Ω
        • Voltage input resistance at ±1 V:
          90 kΩ
        • Voltage input resistance at ±5/±10 V:
          50 kΩ
        • Electrical relationship:
          Potential-bound inputs
        • Channel diagnostics:
          Overflow and supported wire-break signaling
        • Digital-section supply:
          5 V DC ±5%, typically 150 mA from the system bus
        • Analog-section supply:
          24 V DC
        • Module-enable and test-current inputs:
          24 V DC, approximately 5 mA each
        • Pt100 constant-current source:
          Ic+ / Ic− terminals
        • Integration time at 50 Hz:
          20 ms
        • Integration time at 60 Hz:
          16.67 ms
        • Coding time per value at 50 Hz:
          60 ms
        • Coding time per value at 60 Hz:
          50 ms
        • Eight-value acquisition cycle:
          Approximately 0.48 s at 50 Hz
        • Sixteen-value acquisition cycle:
          Approximately 0.96 s at 50 Hz
        • Input resistance at ±50/±500 mV and Pt100:
          At least 10 MΩ
        • Maximum continuous input voltage:
          ±18 V without damage
        • Short-pulse input withstand:
          75 V for 1 ms maximum at 1:20 duty factor
        • Common-mode rejection:
          At least 86 dB; common-mode voltage limited to ±1 V
        • Differential-mode rejection:
          At least 40 dB
        • Linearity, tolerance and reversal errors:
          ±1 unit each
        • Configurable open-circuit signaling:
          Supported for ±50 mV, ±500 mV and Pt100 ranges
        • Scanning modes:
          Cyclic or single scan
        • Mains-frequency selection:
          50 or 60 Hz
        • Operating-mode controls:
          Two DIP-switch blocks
        • Unused-input treatment:
          Unused inputs do not require short-circuiting
        • Tariff Code:
          Please confirm the destination before shipping.
        • Country of origin:
          Germany
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Applications Monitoring Configuration Programming

        Features:

        • Accepts up to sixteen voltage or current inputs or eight Pt100 measurements.
        • Uses interchangeable four-channel range submodules to define signal type.
        • Converts measurements with an integrating dual-slope method.
        The UA12 module is the analog-input base card; its fitted range modules complete the channel identity.

        It digitizes sensor and transmitter signals for the SIMATIC S5 peripheral system.

        Range hardware, reference potential and mode-switch positions must be recorded before exchange.

        Apter Power can review sourcing, documentation and system matching for 6ES5465-4UA12.
        Verified resources for Siemens 6ES5465-4UA12: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Process transmitters can be grouped as voltage or current inputs on one S5 analog card.
        • Pt100 temperature sensors can be acquired when the dedicated resistance range hardware is installed.
        • Legacy skids can preserve established analog scaling through a like-for-like base card and range-module transfer.
        • The dual-slope converter integrates each selected analog range into the S5 process value.
        • Sixteen voltage/current channels or eight resistance channels are supported by the base module.
        • Overflow and supported wire-break states are reported at the affected measuring point.
        • Plug-in 6ES5498 submodules define each four-channel voltage or current group.
        • Mode switches select the documented operating behavior for the installed range hardware.
        • Existing submodule positions and software scaling should be photographed before removal.
        • Raw values use 13-bit representation or a 12-bit magnitude with sign.
        • The controller program must interpret engineering units using the configured range and scaling.
        • Alarm limits should be reviewed after any change to the range submodule or mode setting.
        Description
        6ES5465-4UA12 uses an integrating dual-slope converter to digitize process voltage, current or resistance signals. Depending on the installed range submodules, it handles sixteen conventional analog channels or eight Pt100 inputs.

        The converter represents measurements with 13-bit resolution or 12 bits plus sign and reports overflow and wire-break conditions for supported ranges. Grouped range hardware lets one S5 card cover several common transmitter and sensor standards.

        Selection must be based on the exact 6ES5498 range submodules already fitted, not on the base card alone. Because the input circuits are potential-bound, reference connections and allowable common-mode conditions need the same attention as signal polarity.
        Alternative Names
        6ES5465-4UA12 Siemens 6ES5465-4UA12 6ES5465 4UA12 6ES54654UA12 6ES5465-4UA12 Analog Input Module Siemens SIMATIC S5 U-Periphery Analog Input Modules Siemens 6ES5465-4UA12 Analog Input Module
        Technical notes
        Verify every installed 6ES5498 range submodule before wiring Siemens 6ES5465-4UA12; the base card number alone does not define channel range.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How many signals can Siemens 6ES5465-4UA12 acquire?
        It supports sixteen voltage/current inputs or eight Pt100 resistance inputs, depending on configuration.
        What hardware determines the range of Siemens 6ES5465-4UA12?
        Plug-in 6ES5498 submodules set the signal range for each group of four channels.
        Which measurement systems benefit from Siemens 6ES5465-4UA12?
        Legacy S5 process installations using standard analog transmitters or Pt100 sensors are the intended applications.
        How should a discontinued Siemens 6ES5465-4UA12 be ordered?
        Use the full base-module number and list every installed range submodule required for the replacement.
        What configuration must be copied from Siemens 6ES5465-4UA12 before removal?
        Record range-module locations, mode switches, reference wiring and software scaling for all active channels.
        Which files make a Siemens 6ES5465-4UA12 enquiry actionable?
        Provide clear card and submodule photographs, channel list, signal ranges, quantity and destination.
