    Apter Power coordinates 6ES7223-1BH32-0XB0 documentation, quotation and S7-1200 module sourcing.

6ES7223-1BH32-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

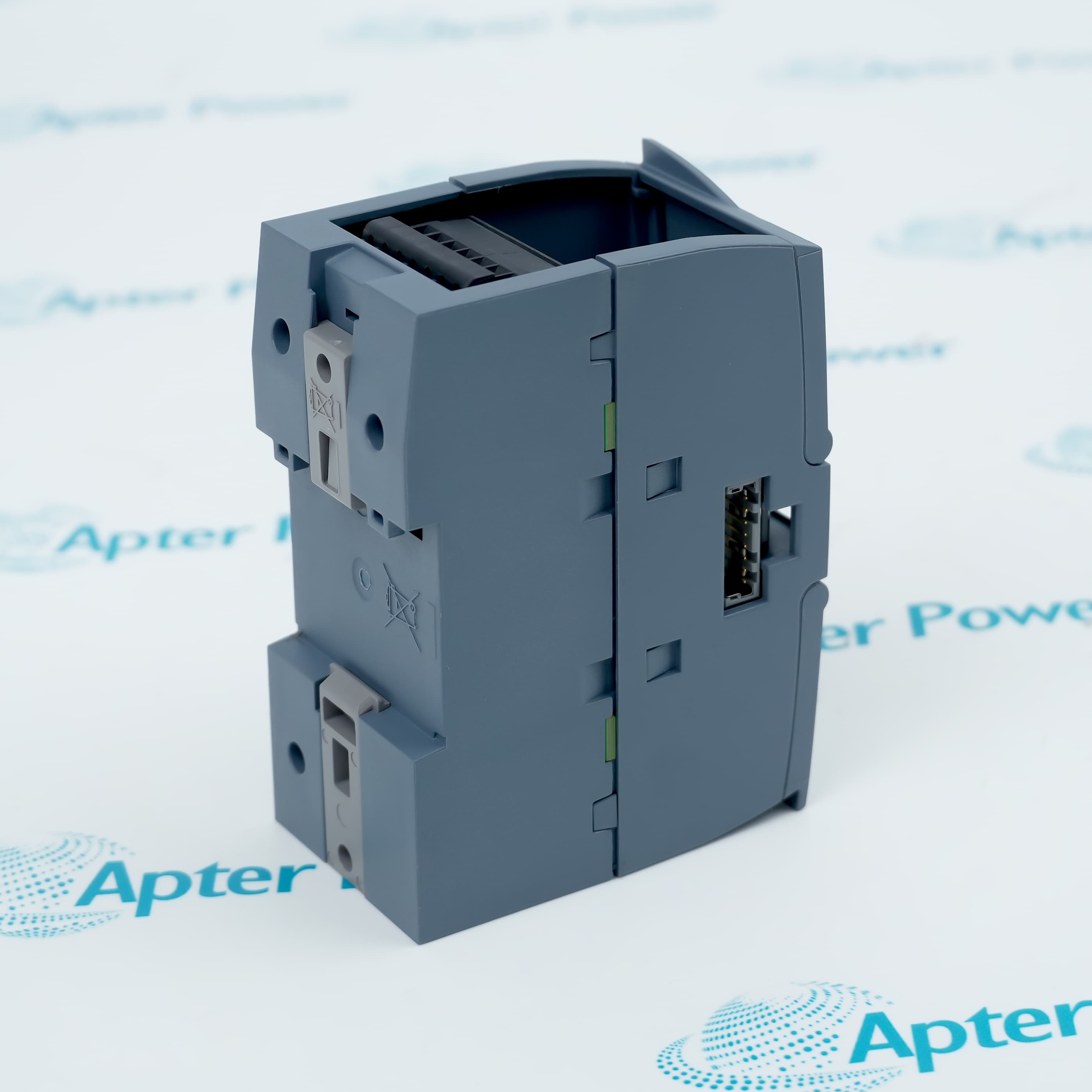

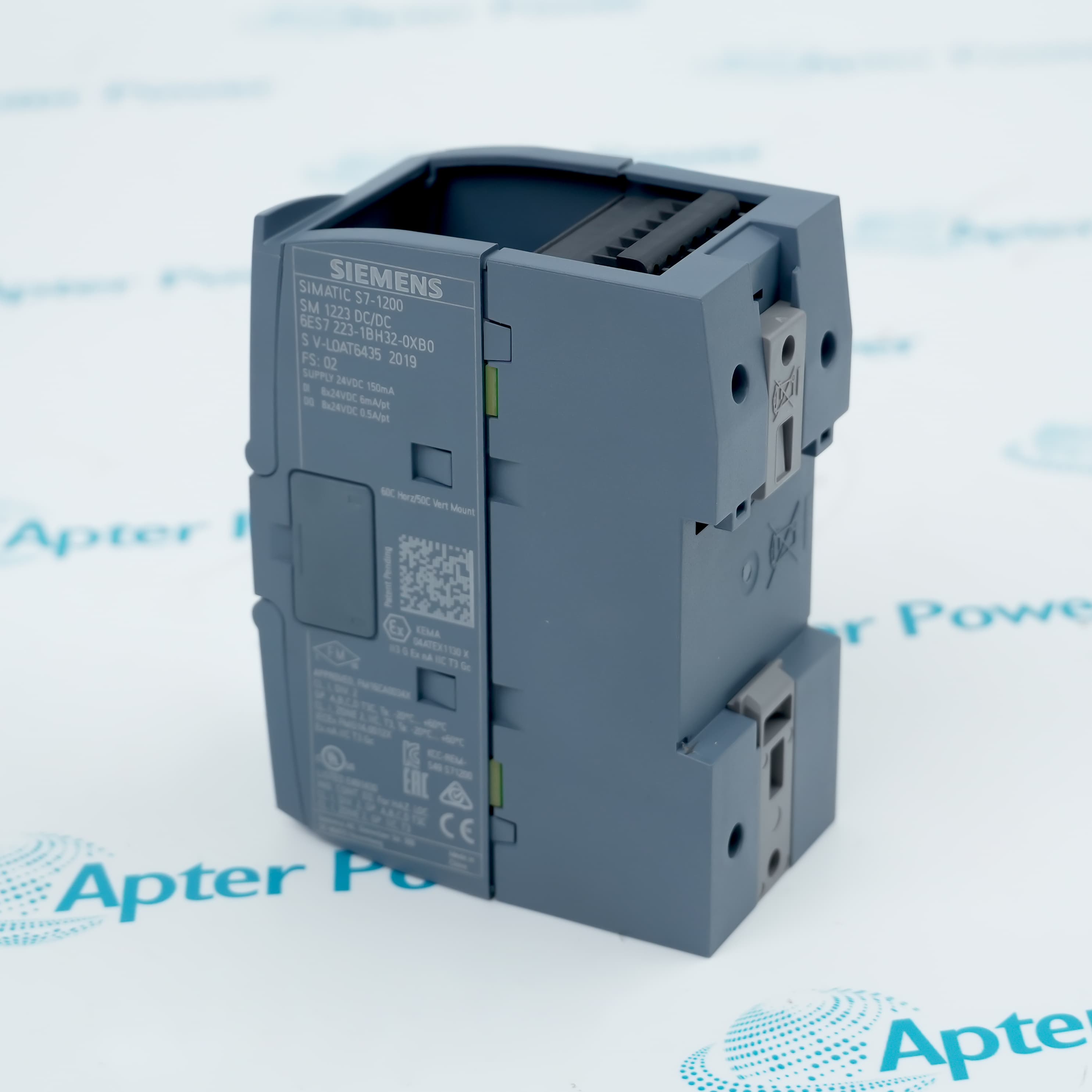

Siemens 6ES7223-1BH32-0XB0 is an active SIMATIC S7-1200 SM 1223 signal module with eight 24 VDC inputs and eight 0.5 A transistor outputs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7223-1BH32-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7223-1BH32-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7223-1BH32-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    SIMATIC S7-1200 SM 1223 8DI/8DO Digital I/O Module
  • Stock:
    1
  • Series:
    SIMATIC S7-1200
  • Module Type:
    SM 1223 digital input/output module
  • Digital Inputs:
    8
  • Input Voltage:
    24 VDC
  • Input Wiring:
    Sinking or sourcing
  • Digital Outputs:
    8 transistor outputs
  • Output Rating:
    24 VDC, 0.5 A per point
  • Output Protection:
    External short-circuit protection required
  • Hardware Revision:
    FS:02
  • Official Product Status:
    PM300 Active
  • Weight:
    0.196 kg
  • Estimated shipping dimensions:
    8.80 x 10.80 x 5.70 cm
  • Tariff Code:
    85389091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Input Handling Output Protection Hardware Revision Product Applications

Features:

  • Mixed digital expansion: Eight inputs and eight transistor outputs share one S7-1200 signal-module position.
  • Flexible input reference: The input circuits support qualified sinking or sourcing field arrangements.
  • Protected output planning: External fault protection and load grouping remain part of the cabinet design.
6ES7223-1BH32-0XB0 is used when an S7-1200 station needs both additional 24 VDC input states and transistor output commands.

The mixed format reduces module count, but input commons, output power, channel grouping and external protection must still be traced separately.

Commissioning should compare the configured hardware identity with the installed revision, then prove inputs and outputs under controlled field conditions.

Apter Power can help confirm the Siemens 6ES7223-1BH32-0XB0 SIMATIC S7-1200 SM 1223 module, FS:02 revision and field-wiring scope before quotation.
Siemens 6ES7223-1BH32-0XB0 SIMATIC S7-1200 SM 1223 8DI/8DO Digital I/O Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Reference selection: Match sinking or sourcing wiring to the approved field design.
  • Common continuity: Verify input reference conductors before diagnosing several simultaneous channel faults.
  • Signal quality: Review leakage and contact behavior when an input does not reach a stable state.
  • Address proof: Compare physical indication with the configured S7-1200 channel address.
  • Branch protection: Apply suitable external protection because the outputs are not universally short-circuit protected.
  • Load current: Check point and group demand under the worst simultaneous operating condition.
  • Coil suppression: Confirm inductive loads have an approved energy-suppression path.
  • Controlled test: Prove one output and its interlock chain before enabling a complete actuator group.
  • FS:02 record: Keep the installed hardware revision with the cabinet and spare-part documentation.
  • Project comparison: Verify the configured module identity before download or startup.
  • Connector retention: Preserve field-connector labels so mixed input and output wiring cannot be exchanged.
  • Acceptance evidence: Record channel tests, diagnostics and restored interlocks after replacement.
  • Compact machines: Adds mixed sensor and actuator points to a SIMATIC S7-1200 station.
  • Material handling: Connects presence inputs and qualified DC output loads in one module.
  • Utility skids: Expands discrete monitoring and command capacity in a small controller panel.
  • Service replacement: Restores the exact SM 1223 position while retaining hardware-revision evidence.
Description
6ES7223-1BH32-0XB0 expands a SIMATIC S7-1200 station with eight 24 VDC digital inputs and eight transistor outputs in one mixed signal module.

The input side of 6ES7223-1BH32-0XB0 supports sinking or sourcing field arrangements, while the output side switches qualified DC loads and requires external protection because its channels are not internally short-circuit protected.

For 6ES7223-1BH32-0XB0, the complete order number and hardware revision must be retained in service records so controller configuration, wiring, diagnostics and spare compatibility can be checked against the installed station.
Alternative Names
6ES72231BH320XB0 6ES7 223-1BH32-0XB0 SM 1223 DI 8x24VDC DQ 8x24VDC 0.5A
Technical notes
6ES7223-1BH32-0XB0 transistor outputs are not internally protected against every field short. Verify external branch protection, output-group loading and inductive-load suppression before energizing a replacement. During commissioning, prove input commons and one controlled output at a time with hazardous motion inhibited rather than forcing all channels from the engineering software.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Several inputs on 6ES7223-1BH32-0XB0 remain off after field work. Which shared condition should be checked first?
Check the input common and sinking-or-sourcing reference before replacing the module or changing the PLC program.
An output on 6ES7223-1BH32-0XB0 failed after a coil short. Is module replacement the complete remedy?
No. Remove the field fault and verify branch protection, wiring and suppression before energizing a replacement output.
Can 6ES7223-1BH32-0XB0 be configured from the label alone after a controller rebuild?
Use the exact order number and archived project, then compare the configured module and hardware revision before downloading to the station.
A channel LED on 6ES7223-1BH32-0XB0 changes but the actuator does not move. How should diagnosis proceed?
Trace the command through output voltage, common return, protective device, field cable and actuator while maintaining the machine in a safe state.
Why should FS:02 be retained when sourcing 6ES7223-1BH32-0XB0?
It records the installed hardware revision and helps engineering evaluate documented compatibility without turning the revision into a separate product page.
What should purchasing provide for a 6ES7223-1BH32-0XB0 replacement enquiry?
Provide the complete order number, FS:02 or other visible revision, controller context, connector condition, quantity and required delivery date.
