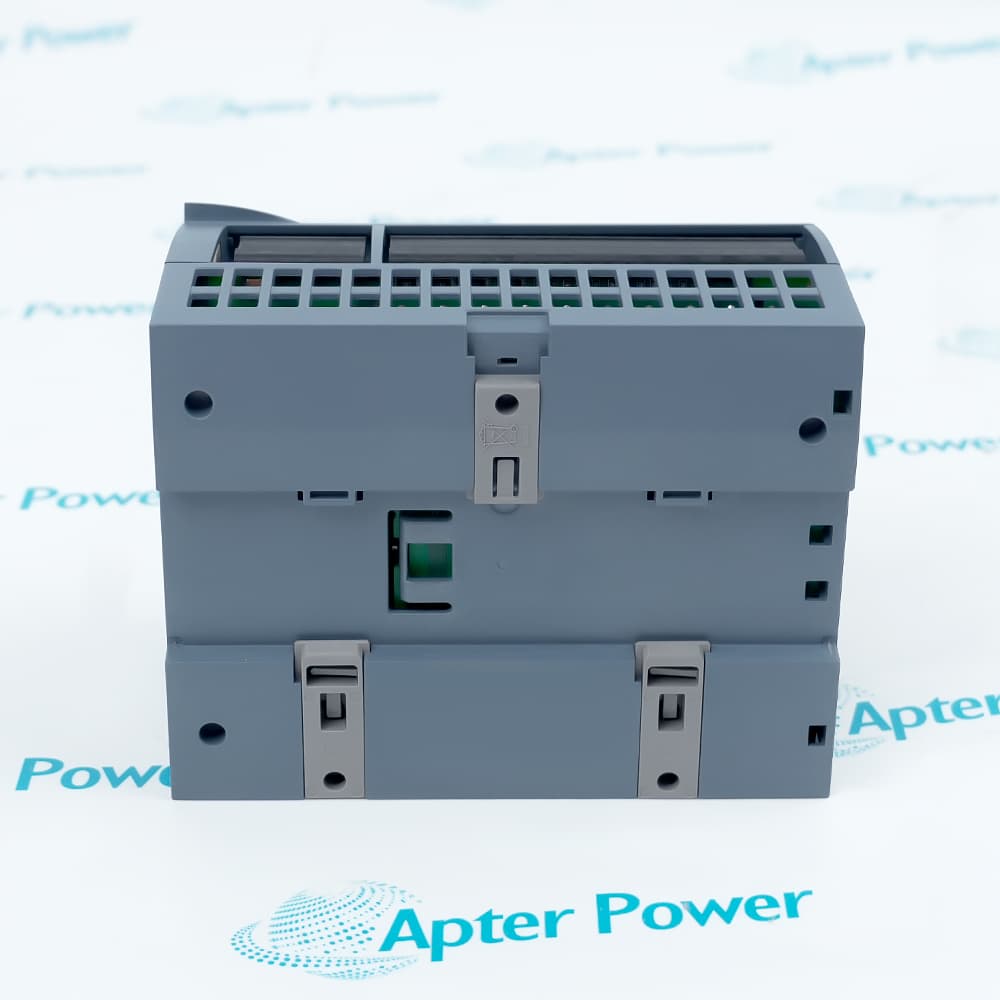

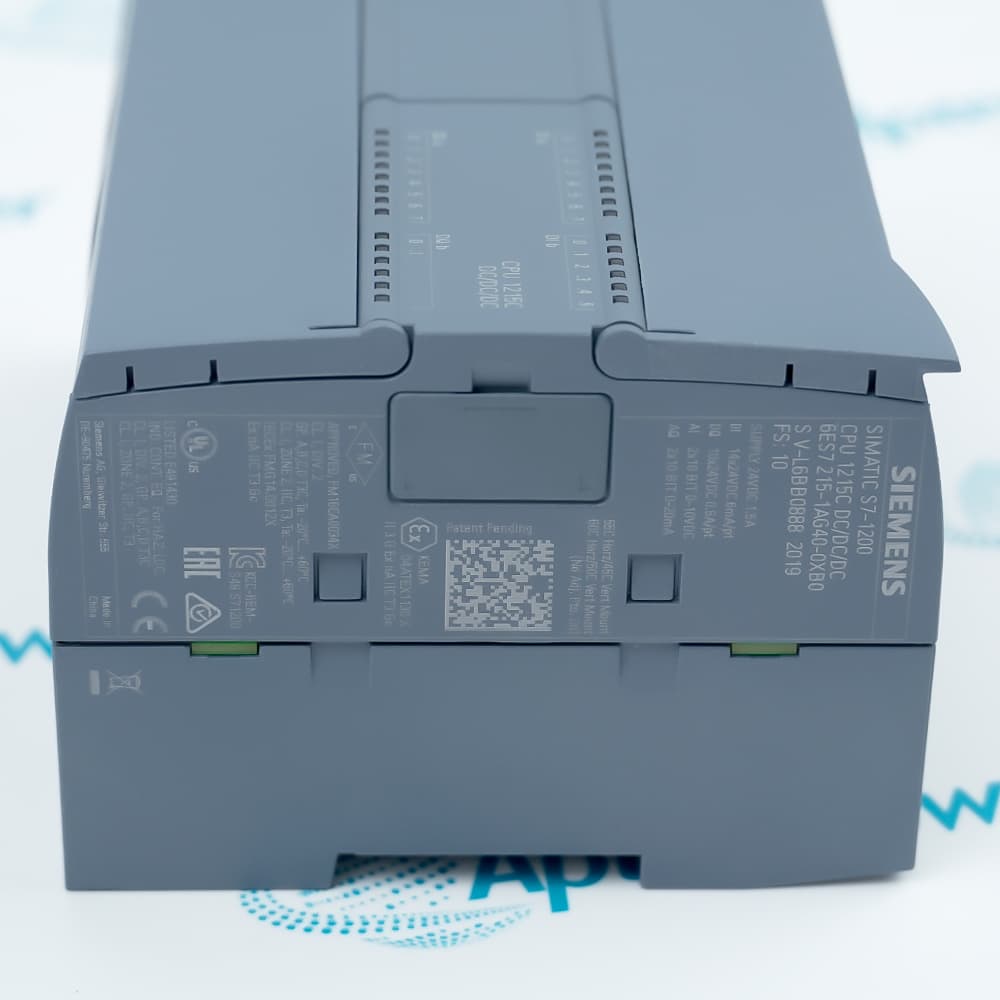

Siemens 6ES7215-1AG40-0XB0 is a SIMATIC S7-1200 CPU 1215C DC/DC/DC with integrated I/O, two PROFINET ports, and 200 KB program memory.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 6ES7215-1AG40-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7215-1AG40-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7215-1AG40-0XB0
  • Product Family:
    Siemens Simatic S7-1200
  • Product Type:
    SIMATIC S7-1200 CPU 1215C DC/DC/DC
  • Stock:
    1
  • Product line:
    SIMATIC S7-1200
  • CPU type:
    CPU 1215C DC/DC/DC
  • Program memory:
    200 KB
  • PROFINET ports:
    2
  • Digital inputs:
    14 x 24 V DC
  • Digital outputs:
    10 x 24 V DC, 0.5 A transistor
  • Analog inputs:
    2 x 0–10 V
  • Analog outputs:
    2 x 0–20 mA
  • Permitted supply range:
    20.4–28.8 V DC
  • Weight:
    0.405 kg
  • Estimated shipping dimensions:
    11.1x14x8.5cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Onboard I/O Plan Dual PROFINET Program Capacity Product Applications

Features:

  • Integrated control: CPU and mixed onboard I/O in one unit
  • Dual network ports: two PROFINET connections
  • Defined capacity: 200 KB program memory for the target project
CPU 1215C combines logic execution, Ethernet communication, and common field I/O in a compact controller.

The onboard analog and digital channels can reduce expansion hardware when their ranges match the application.

Service preparation should preserve the full TIA Portal project, firmware, network names, and module layout.

Apter Power can review the Siemens 6ES7215-1AG40-0XB0 SIMATIC S7-1200 CPU 1215C DC/DC/DC identity, project boundary, official logistics, condition, and sourcing evidence.
Siemens 6ES7215-1AG40-0XB0 SIMATIC S7-1200 CPU 1215C DC/DC/DC Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Channel map: reconcile fourteen DI, ten transistor DO, two voltage AI, and two current AO with the field wiring.
  • Expansion decision: add modules only where the onboard channel count or signal type is insufficient.
  • Topology record: save both port connections, device name, IP settings, and controller relationships.
  • Restart test: confirm every configured device returns without duplicate names or addressing conflicts.
  • Memory boundary: the CPU provides 200 KB of program memory for the loaded project.
  • Migration check: validate firmware, instructions, technology functions, and expansion modules before project transfer.
  • Compact machine control: combine logic, mixed onboard I/O, and PROFINET in one CPU.
  • Controller replacement: restore an exact CPU 1215C after project and wiring reconciliation.
Description
Siemens 6ES7215-1AG40-0XB0 integrates fourteen 24 VDC digital inputs, ten 24 VDC transistor outputs, two 0–10 V analog inputs, and two 0–20 mA analog outputs in one CPU.

Two PROFINET ports on 6ES7215-1AG40-0XB0 support local network integration without changing the controller identity. Network topology, device configuration, and program backup should be preserved before service.

With 200 KB of program memory, 6ES7215-1AG40-0XB0 provides a defined platform for compact automation. Expansion and replacement decisions still depend on the actual I/O load, firmware, project, and installed accessories.
Alternative Names
6ES72151AG400XB0 6ES7215 1AG40 0XB0 CPU 1215C DC/DC/DC
Technical notes
Before replacing 6ES7215-1AG40-0XB0, archive the TIA Portal project, record firmware and PROFINET names, and reconcile every onboard I/O channel and expansion module. Verify the 20.4–28.8 VDC supply and transistor-output loads before energizing. Two Ethernet ports simplify topology, but they do not remove the need to restore the exact controller configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can a 4–20 mA transmitter be wired directly to a 6ES7215-1AG40-0XB0 onboard analog input?
Not as a direct match: the onboard inputs are specified for 0–10 V. Use an approved signal-conditioning or input-module design and update the hardware configuration accordingly.
Can one 6ES7215-1AG40-0XB0 transistor output drive a 1 A load directly?
No. Each published onboard transistor output is rated 0.5 A. Use an approved interposing device or redesign the load circuit with the required protection.
A compiled project needs 220 KB. Can it be downloaded to 6ES7215-1AG40-0XB0?
No. It exceeds the published 200 KB program-memory capacity. Optimize the project or select an approved CPU with sufficient capacity before migration.
