Features:
- The CPU executes S7-1500 logic with separate program and data work-memory areas.
- A two-port PROFINET IRT switch connects distributed I/O and controller communication.
- The display, diagnostic buffer and clock expose controller state independently of field signals.
The required SIMATIC Memory Card provides load storage for the configured project.
Executable blocks and runtime data move into their assigned work-memory areas during operation.
Cyclic process values then pass between the program and PROFINET IO devices through the integrated switch.

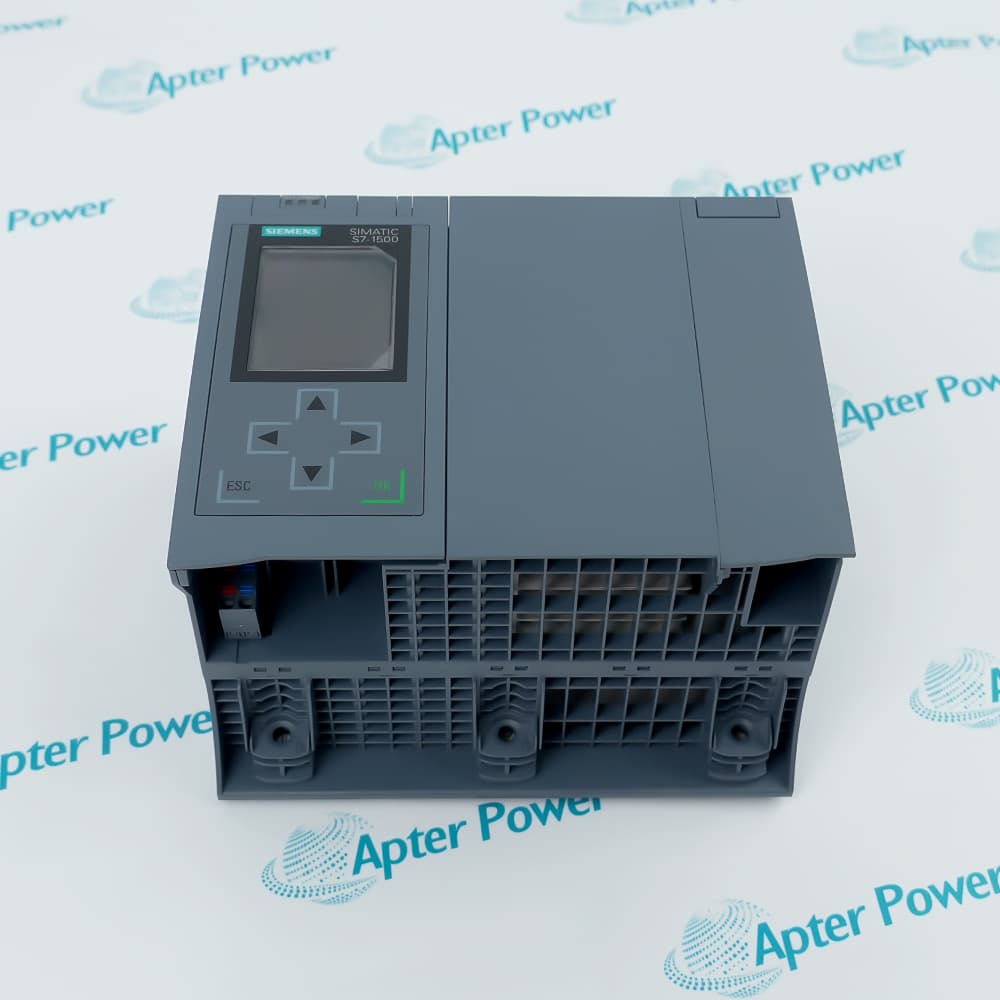

The Siemens 6ES7511-1AK01-0AB0 SIMATIC S7-1500 CPU 1511-1 PN may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7511-1AK01-0AB0 CPU 1511-1 PN Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Moving a downloaded project into the CPU execution areas
- Load storage: The required SIMATIC Memory Card holds the loadable project and supplies it to the CPU.
- Program execution: Executable blocks run from program work memory while the scan is active.
- Runtime data: Data work memory holds process values and block data read or changed by those instructions.
- Retention: Only the configured retentive portion survives the documented restart condition; the memory card does not replace runtime work memory.
Using one integrated interface for two configured controller roles
- IO controller: The CPU coordinates assigned PROFINET IO devices.
- IO device: Configured data can be exchanged under another controller.
- IRT capability: The interface supports isochronous real-time communication.
- Connections: The integrated interface supplies 64 of the CPU connection resources.
Moving process data through the S7-1500 scan
- Input image: Configured inputs enter a process image up to 32 KB.
- Execution: The CPU runs program logic against memory and input values.
- Output image: Calculated outputs move into a separate area up to 32 KB.
- Performance: Bit operations use the documented 60 ns execution time.
Separating local controller status from network and project information
- Local view: The front display and keys expose operating and diagnostic information without replacing the downloaded TIA Portal project.
- Network state: Port LEDs identify physical PROFINET link and traffic, while controller indications report the CPU operating state.
- Event timing: The hardware clock supplies timestamps used with diagnostic events and retains time for the documented backup period.
- Engineering context: TIA Portal assigns hardware, addresses, device names and program blocks needed to interpret the states shown locally.
