6ES7392-1AJ00-0AA0

/ 4.9
1001 reviews | Need a Specific Revision?

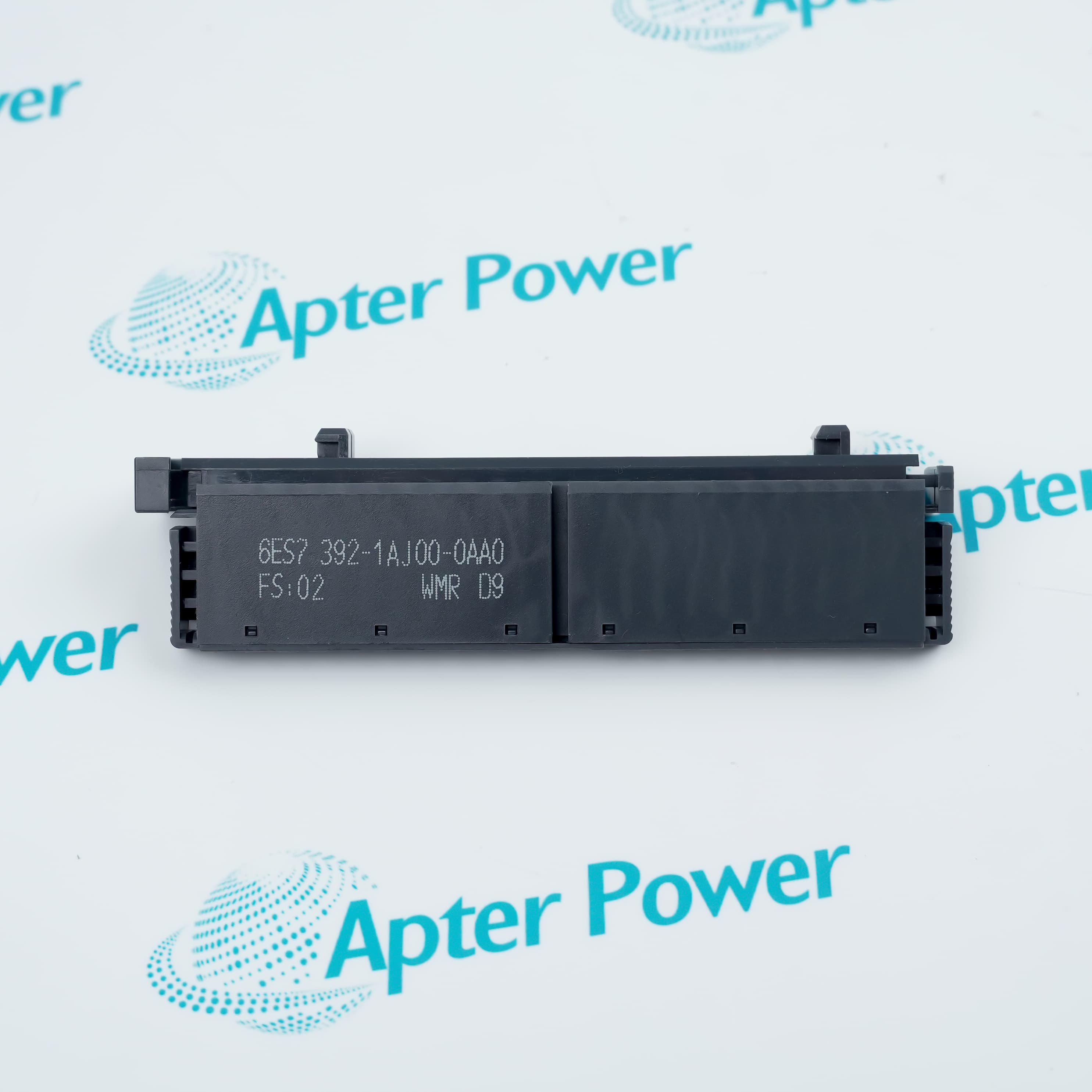

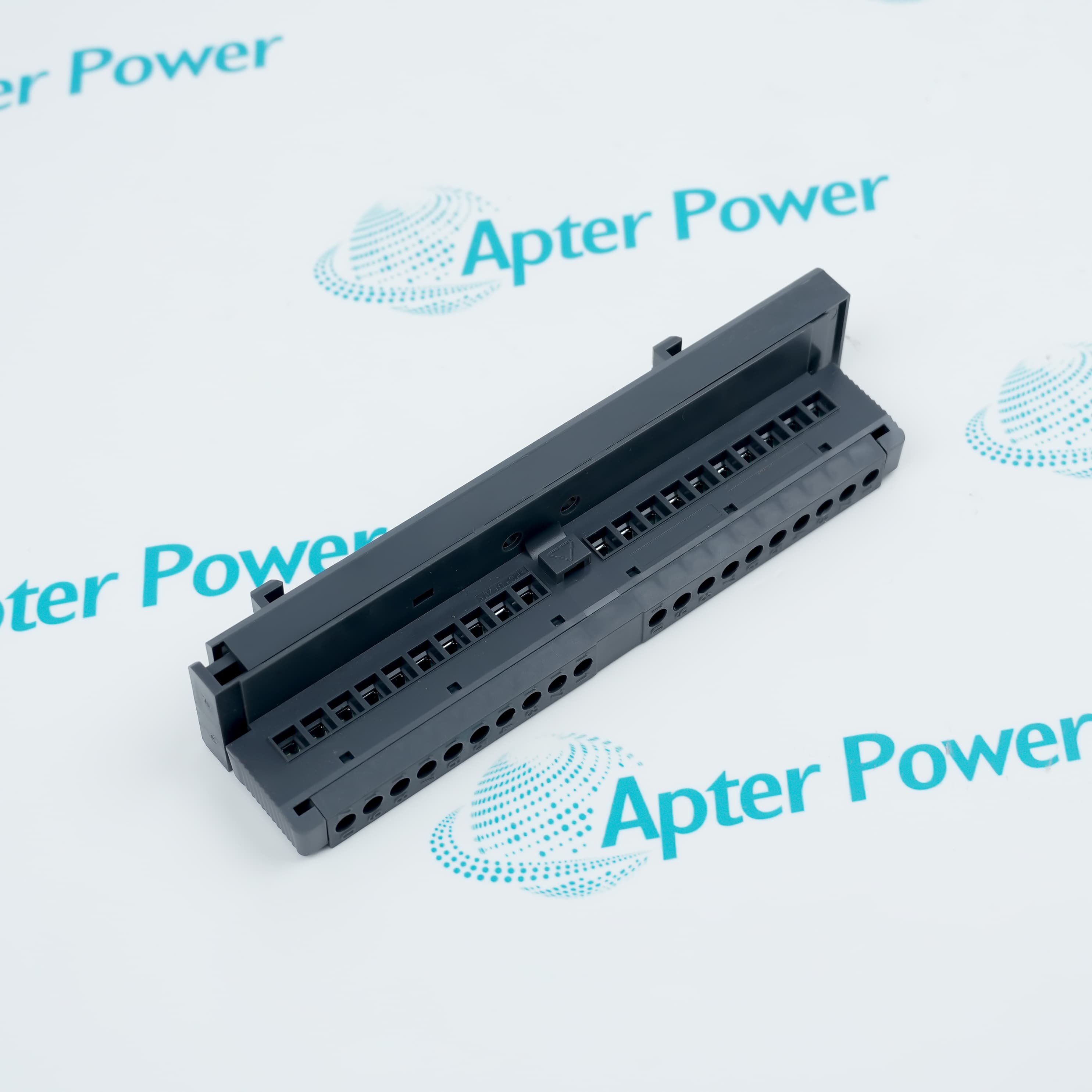

Siemens 6ES7392-1AJ00-0AA0 is a 20-pole screw-terminal front connector for wiring SIMATIC S7-300 signal modules.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7392-1AJ00-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7392-1AJ00-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7392-1AJ00-0AA0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    SIMATIC S7-300 20-Pole Screw-Terminal Front Connector
  • Stock:
    1
  • Pole count:
    20
  • Connection method:
    Screw terminals
  • Conductor range:
    0.25 to 1.5 mm²
  • Shared ferrule:
    Two conductors, 1.5 mm² total maximum
  • Strip length:
    6 mm
  • Tightening torque:
    0.4 to 0.7 N·m
  • Operating temperature:
    0 to 60 °C
  • Weight:
    0.07 kg
  • Estimated shipping dimensions:
    2.3 x 13.1 x 3.6 cm
  • Tariff Code:
    85369010
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Screw-Terminal Wiring Conductor Preparation S7-300 Fit Product Applications

Features:

  • Twenty field terminals: removable screw connection for S7-300 signal modules
  • Defined conductor range: 0.25–1.5 mm² solid or flexible wiring
  • Repeatable termination: 6 mm strip length and 0.4–0.7 N·m torque
6ES7392-1AJ00-0AA0 is the wiring interface, not the S7-300 electronics module itself.

Its removable 20-pole format supports field-cable retention during compatible module service.

Correct strip length, ferrule selection and terminal torque determine connection quality.
Apter Power can review 6ES7392-1AJ00-0AA0 pole count, wiring method, condition and quotation requirements.
Siemens 6ES7392-1AJ00-0AA0 SIMATIC S7-300 20-Pole Screw-Terminal Front Connector Manuals,Datasheets,Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Pole count: twenty screw-contact positions are provided.
  • Tool: use a conical 3–3.5 mm screwdriver.
  • Strip length: prepare each conductor to 6 mm.
  • Torque: tighten terminals within 0.4–0.7 N·m.
  • Cross-section: 0.25–1.5 mm² solid or flexible conductors are supported.
  • Single conductor: one wire can be landed at each connection.
  • Shared ferrule: two conductors may total no more than 1.5 mm².
  • Ferrule length: follow the specified DIN 46228 sleeve dimensions.
  • Platform: the connector belongs to SIMATIC S7-300.
  • Module match: the receiving signal module must use a 20-pole front connector.
  • Contact style: screw and spring-contact versions are separate articles.
  • Service check: inspect housing, latch and terminal condition before reuse.
  • S7-300 control panels: terminate field conductors at compatible 20-pole signal modules.
  • Module replacement: retain an existing field cable set through a removable front connector.
  • Panel rewiring: standardize conductor preparation and terminal torque during cabinet service.
Description
6ES7392-1AJ00-0AA0 provides twenty screw-terminal positions between field conductors and a compatible SIMATIC S7-300 signal module. The removable connector keeps the field-wiring interface with the cable set rather than forcing every conductor to be landed directly on the electronics module.

6ES7392-1AJ00-0AA0 accepts solid or flexible conductors from 0.25 to 1.5 mm² and uses a 6 mm strip length. One conductor, or two conductors totaling no more than 1.5 mm² in a shared ferrule, can be prepared within the stated termination boundary.

6ES7392-1AJ00-0AA0 uses a specified tightening torque of 0.4–0.7 N·m. This range is the installation boundary for each screw terminal, giving technicians a defined mechanical value for connector preparation and inspection during repeatable S7-300 module replacement.
Alternative Names
6ES73921AJ000AA0 Siemens S7-300 20-pole screw front connector SIMATIC S7-300 screw-terminal connector
Technical notes
6ES7392-1AJ00-0AA0 is the 20-pole screw-contact front connector, not a signal module or prewired connector assembly. Strip conductors to 6 mm, keep the total shared-ferrule cross-section within 1.5 mm², and tighten each terminal to 0.4–0.7 N·m. A different pole count or contact method identifies another article and requires receiving-module verification.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is 6ES7392-1AJ00-0AA0 used for?
It is the removable 20-pole screw-terminal field connector for compatible SIMATIC S7-300 signal modules.
Which conductor sizes fit 6ES7392-1AJ00-0AA0?
Use solid or flexible conductors from 0.25 to 1.5 mm². If two conductors share one ferrule, their total cross-section must not exceed 1.5 mm².
How should conductors be prepared for 6ES7392-1AJ00-0AA0?
Strip each conductor to 6 mm and use a ferrule that meets the specified DIN 46228 length for its sleeve style.
What tightening torque applies to 6ES7392-1AJ00-0AA0?
Tighten each screw terminal within 0.4–0.7 N·m using a conical 3–3.5 mm screwdriver.
Can a spring-contact connector replace 6ES7392-1AJ00-0AA0?
This article is the 20-pole screw-contact version. A spring-contact article changes the connection method, so proceed only when the receiving signal module explicitly accepts the selected connector.
What should be checked when receiving 6ES7392-1AJ00-0AA0?
Verify the full order code, 20-pole housing, screw contacts, latch condition, uncracked plastic, complete terminal hardware, quantity and required delivery date.
