6ES7400-1JA01-0AA0

/ 4.9
1001 reviews | Need a Specific Revision?

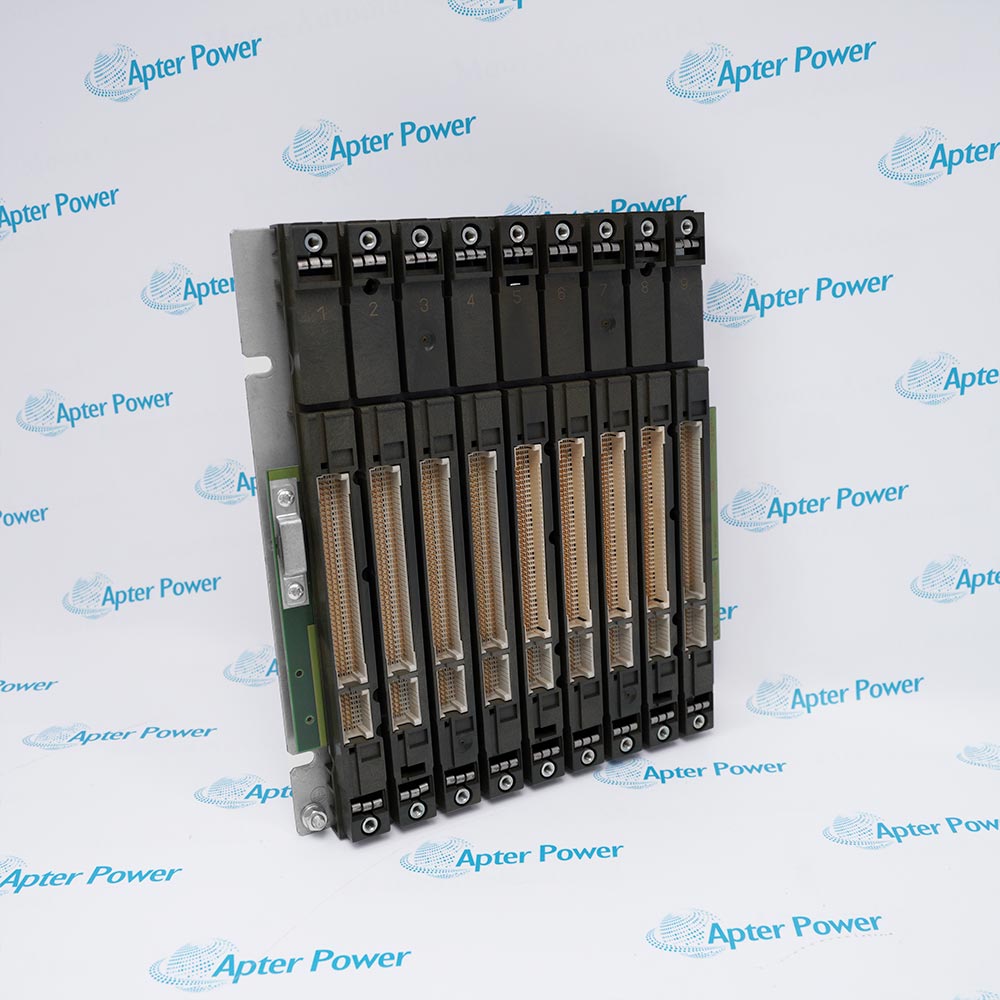

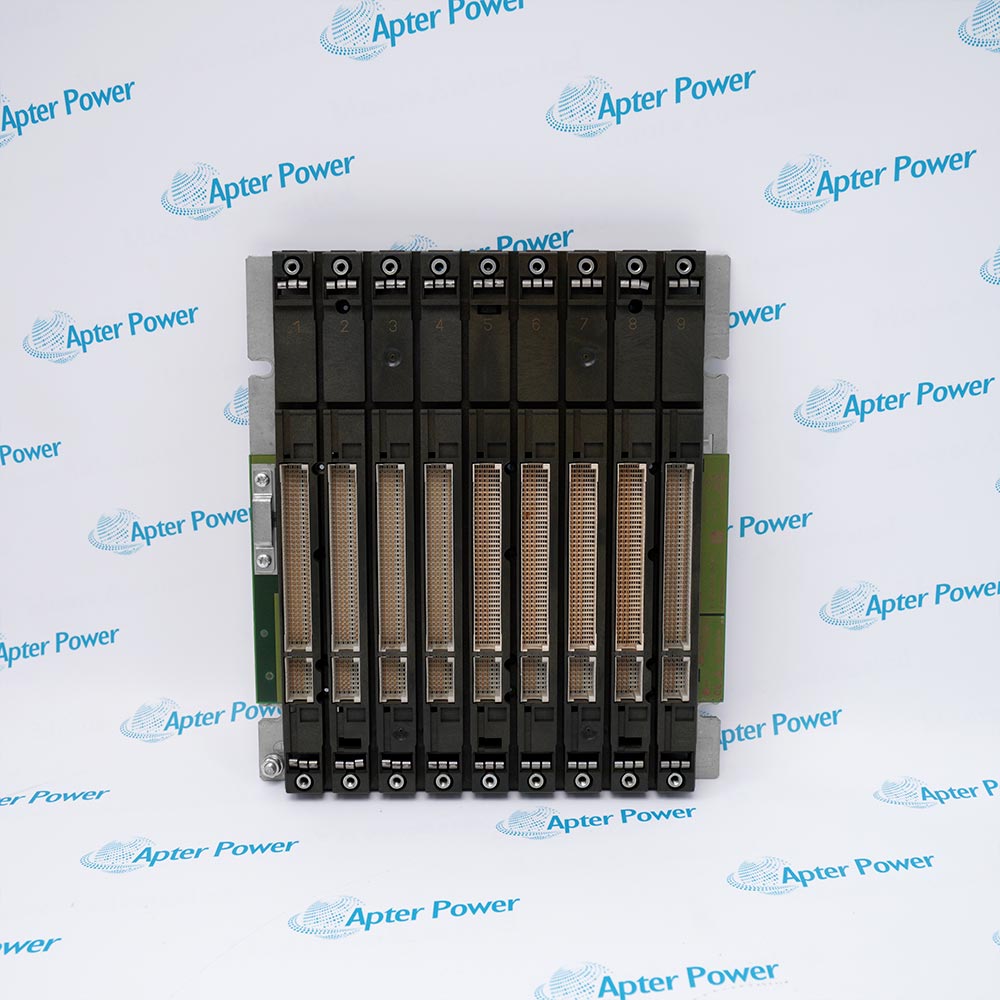

The 6ES7400-1JA01-0AA0 is a UR2 rack for SIMATIC S7‑400 systems. It features 9 slots for installing power supplies, CPUs, communication processors, I/O modules, and function modules.
Get a quick price for 6ES7400-1JA01-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7400-1JA01-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7400-1JA01-0AA0
  • Product Family:
    Siemens Simatic S7-400
  • Product Type:
    UR2 rack for SIMATIC S7‑400
  • Number of Slots:
    9
  • Operating Temperature:
    0°C to 60°C
  • Storage/Transport Temperature:
    0°C to 70°C
  • Approvals:
    CE, UKCA, UL, FM, RCM, KC, EAC, CCC
  • Pain Point Solved:
    Solves the need for a standardized, globally approved (CE, UL, FM, CCC, etc.) 9‑slot backplane rack for S7‑400 systems – providing mechanical support, power distribution, and bus communication for up to 9 modules in a compact 257.5 mm width, suitable for medium‑sized automation applications.
  • Weight:
    1.52 kg
  • Estimated shipping dimensions:
    28.8x25.7x2.8cm
  • Tariff Code:
    8517795000
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Communication and Connectivity Safety

Features:

  • Medium‑sized rack for S7‑400 systems
  • Communication bus + P bus for full module interoperability.
  • CE, UKCA, UL, FM, RCM, KC, EAC, CCC – suitable for worldwide deployment.
The 6ES7400-1JA01-0AA0 is a UR2 rack offering 9 slots for S7‑400 modules. This slot count is ideal for medium‑sized automation applications that require a mix of power supplies, CPUs, communication processors, and I/O modules.For system integrators, the UR2 provides a balance between expandability and physical footprint. It can accommodate a redundant power supply setup, a single CPU, and up to 7 additional modules. When replacing an older UR2 rack, the 6ES7400-1JA01-0AA0 is a drop‑in replacement with the same slot positions and mounting holes. This minimizes mechanical redesign during legacy system upgrades or repairs.

The 6ES7400-1JA01-0AA0 includes both a communication bus (for CPU‑to‑CPU and CP communication) and a P bus (peripheral bus for I/O access). This dual‑bus architecture is fundamental to S7‑400 performance. The communication bus handles high‑speed data exchange between multiple CPUs and communication processors, enabling distributed processing. The P bus provides direct access to I/O modules from the CPU. Together, they allow the rack to support mixed configurations – for example, a CPU in slot 2 communicating with a CP in slot 4 while simultaneously reading inputs from an I/O module in slot 6.

The 6ES7400-1JA01-0AA0 carries an extensive list of international approvals: CE (Europe), UKCA (United Kingdom), UL (United States), FM (hazardous locations), RCM (Australia/New Zealand), KC (South Korea), EAC (Russia/Customs Union), and CCC (China). This allows the same rack to be used in machinery exported worldwide without re‑certification. For OEMs building equipment for global markets, this reduces engineering effort and speeds up time‑to‑market.

The 6ES7400-1JA01-0AA0 Siemens Rack may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

Siemens 6ES7400-1JA01-0AA0 Rack Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6ES7400-1JA01-0AA0 Rack Specs

General

  • Manufacturer Siemens
  • Model 6ES7400-1JA01-0AA0
  • Condition New Original ready stock
  • Product Family 6ES7400-1JA00-0AA0,6ES7400-1JA01-0AA1,6ES7400-1TA01-0AA0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Medium-to-large process control: Central control systems for large chemical plants, oil refineries, and power plants.
  • Manufacturing and motion control: Suitable for complex machinery and automotive production lines requiring the handling of a large number of I/O points.
  • Distributed automation: Can be used as a central controller or a distributed expansion rack, flexibly expanding the production environment.
  • Backplane Bus System: Integrates a P-bus for I/O signal communication and a Communication bus for high-speed data synchronization between modules.
  • Flexible Slot Structure: Features 9 slots for various types of communication modules, supporting PROFIBUS DP, PROFINET/Industrial Ethernet, and robust point-to-point connections.
  • Multicomputing: Supports multiple CPUs running simultaneously in a single rack, distributing complex control, calculation, and communication tasks.
  • Globally Recognized Certifications: CE, UL, cULus, and UKCA certified.
  • Explosion-Proof Safety Certifications: FM and CCC (NEPSI) certified, meeting application standards for specific hazardous areas (such as explosion protection).
  • Environmental Compliance: Compliant with China RoHS standards and provides an Environmental Product Declaration (EPD).
  • Operating Safety Instructions: This product should only be installed and operated by qualified professionals with trained experience, and only Siemens-recommended or authorized components should be used.
Description
The 6ES7400-1JA01-0AA0 is a UR2 rack for SIMATIC S7‑400 systems. It features 9 slots for installing power supplies, CPUs, communication processors, I/O modules, and function modules. The rack includes both a communication bus and a P bus (peripheral bus). It is designed for horizontal mounting in standard control cabinets.

When using the 6ES7400-1JA01-0AA0, engineers can build medium‑sized S7‑400 configurations. The 9 slots provide flexibility for mixed module types. The rack supports all S7‑400 series modules. It operates from 0°C to 60°C and can be stored/transported from 0°C to 70°C. Dimensions are 257.5 mm wide, 290 mm high, and 27.5 mm deep.

For legacy S7‑400 system expansions or replacements, the 6ES7400-1JA01-0AA0 provides a direct, compatible rack. It replaces older UR2 racks (e.g., 6ES7400-1JA00-0AA0) with the same mechanical footprint.
Alternative Names
6ES7400-1JA00-0AA0 6ES7400-1JA01-0AA1 6ES7400-1TA01-0AA0 6ES7400-1GA01-0AA0
Technical notes
The 6ES7400-1JA01-0AA0 includes both a communication bus and a P bus (peripheral bus), supporting full S7‑400 communication between modules. Some older racks may lack one bus – verify before mixing module types.The 6ES7400-1JA01-0AA0 has a minimum operating temperature of 0°C – it is not rated for freezing environments.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How many modules can I install in the 6ES7400-1JA01-0AA0?
The 6ES7400-1JA01-0AA0 has 9 slots. You can install power supplies, CPUs, communication processors, I/O modules, and function modules in any combination, as long as total power consumption and bus load are within limits.
Is the 6ES7400-1JA01-0AA0 approved for global use?
Yes. The 6ES7400-1JA01-0AA0 carries CE, UKCA, UL, FM, RCM, KC, EAC, and CCC approvals – suitable for Europe, North America, Australia, South Korea, Russia, and China. Always verify local requirements before installation.
What is the operating temperature of the 6ES7400-1JA01-0AA0?
The 6ES7400-1JA01-0AA0 operates from 0°C to 60°C. Storage and transport temperature range is 0°C to 70°C. It is not rated for sub‑zero operation. For cold environments, use additional cabinet heating.
Will my existing S7‑400 modules fit the 6ES7400-1JA01-0AA0?
Yes. The 6ES7400-1JA01-0AA0 is a standard UR2 rack compatible with all S7‑400 modules. It replaces older UR2 racks (e.g., 6ES7400-1JA00-0AA0) without modification. Use the same mounting holes and front connectors.
