6EC1001-0A

/ 4.9
1001 reviews | Need a Specific Revision?

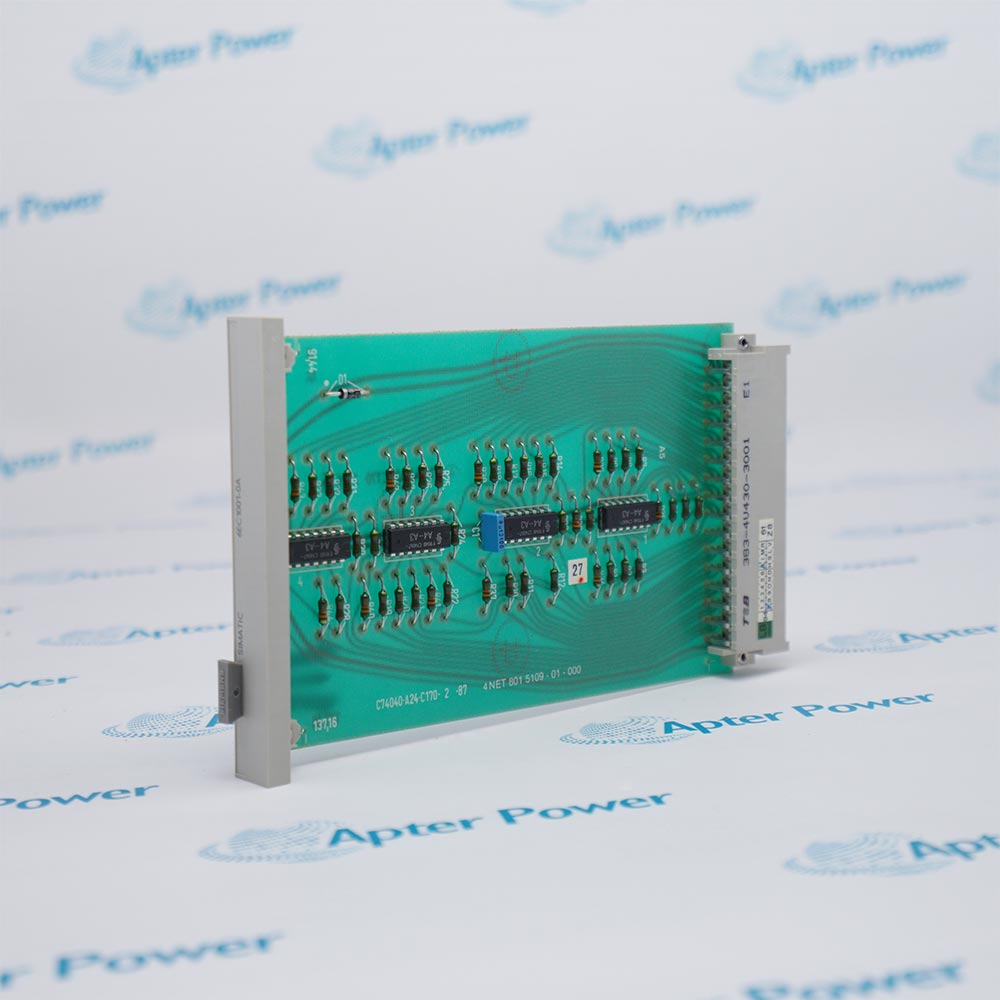

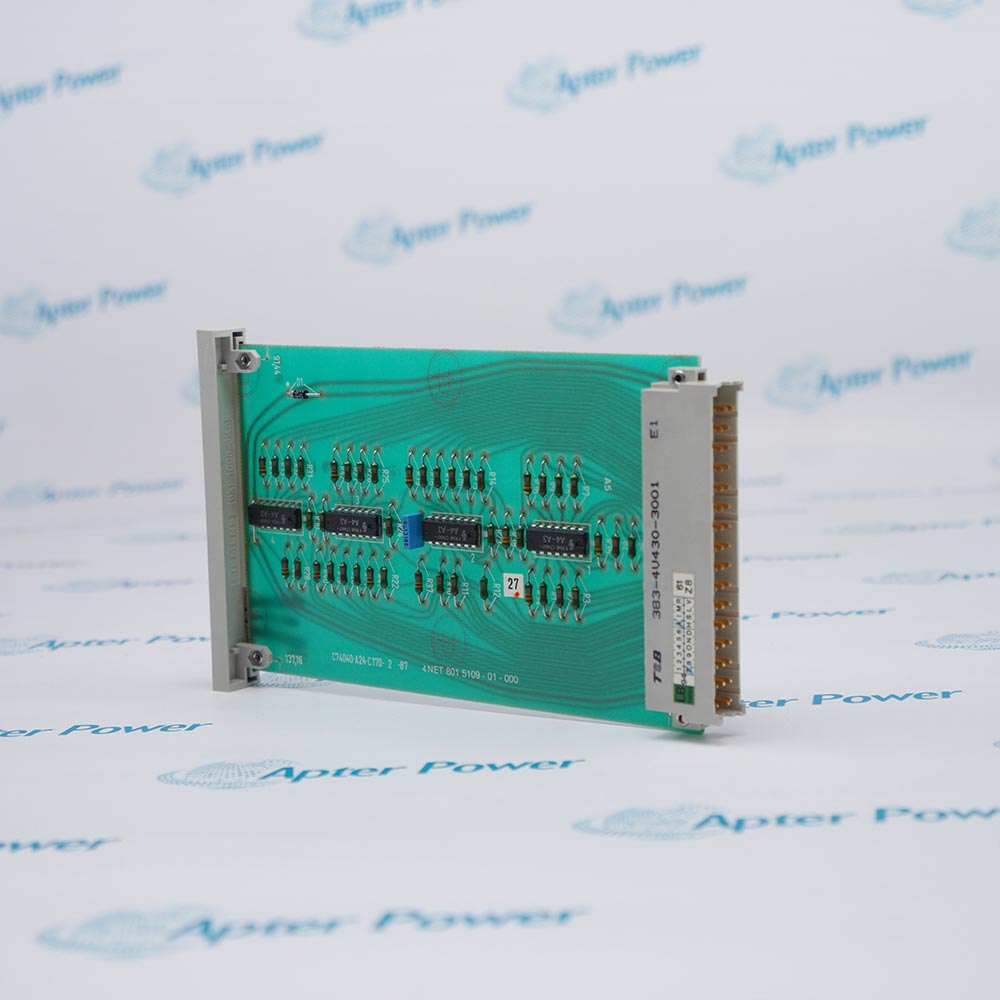

Siemens 6EC1001-0A is a flat logic assembly containing eleven two-input AND gates. The documented board draws 30 mA at no load and implements hardwired Boolean functions in legacy Siemens control hardware.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6EC1001-0A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6EC1001-0A

  • Manufacturer:
    Siemens
  • Part Number:
    6EC1001-0A
  • Product Family:
    Siemens Teleperm
  • Product Type:
    Eleven-Gate AND Logic Flat Assembly
  • Stock:
    1
  • Logic functions:
    11 AND gates
  • Inputs per gate:
    2
  • No-load current consumption:
    30 mA
  • Schematic identification:
    E53252-T32-S2
  • Assembly form:
    Flat assembly
  • Logic behavior:
    Output active only when both assigned inputs are active
  • Weight:
    0.22 lbs (0.1 kg)
  • Estimated shipping dimensions:
    10.9 x 17.9 x 1.4 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Programming Control Diagnostics

Features:

  • Contains eleven independent two-input AND logic functions.
  • Draws 30 mA under the documented no-load condition.
  • Implements fixed Boolean behavior on a legacy flat assembly.
The current assembly is a hardwired logic board rather than a programmable processor. Its eleven gate sections are identified through the original cabinet wiring and schematic.

Each output is asserted only when both inputs assigned to that gate are present. This deterministic behavior supports permissive and interlock combinations in legacy control circuits.

Before exchange, trace connectors and record the gate-to-signal mapping. The E53252-T32-S2 schematic identity should agree with the maintenance drawings and board position.

Apter Power reviews legacy supply using the article number, schematic reference and installed wiring context.
Verified resources for Siemens 6EC1001-0A:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Combines pairs of permissive signals in fixed legacy control logic.
  • Implements hardwired interlock conditions without a software execution layer.
  • Supports repair of established cabinets where the original eleven-gate assembly remains in service.
  • Logical behavior is defined by physical wiring rather than a downloadable program.
  • Each gate follows a fixed two-input AND relationship shown in the cabinet schematic.
  • Any functional change requires an engineering wiring revision, not a software parameter edit.
  • Eleven outputs independently reflect the combined states of their assigned input pairs.
  • The gate result can feed downstream permissive, interlock or indication circuits.
  • Stable operation depends on correct signal voltage and continuous connector paths.
  • Troubleshooting should compare both gate inputs with the expected output state.
  • A missing input or displaced connector can mimic an internal logic failure.
  • The 30 mA no-load condition and schematic reference provide useful identification checks.
Description
Siemens 6EC1001-0A is a flat logic assembly containing eleven independent two-input AND gates. Each gate activates its output only when both assigned inputs are present, allowing the board to implement multiple hardwired Boolean conditions inside compatible legacy Siemens control equipment. The repeated gate structure provides a compact way to build several permissive decisions on one assembly, with every output representing the simultaneous state of its two assigned signals.

The assembly is suited to interlocking, permissive and sequence logic that was originally designed around fixed hardware functions rather than software-programmed logic. With eleven gates on one board, it can combine status or command signals at several points in the same control arrangement while keeping the logic behavior deterministic and easy to trace from the schematic. Typical use involves confirming two independent conditions before a command or indication is released to the next stage of the hardwired control circuit.

The documented no-load current is 30 mA, and the associated schematic identification is E53252-T32-S2. Replacement should verify that drawing, connector assignment and signal conventions match the installed rack, because the number of gates alone does not establish mechanical or electrical interchangeability with another logic board. Every input and output wire should be traced against the original logic diagram, since reversing a signal or using an unmatched board can change the intended permissive behavior without an obvious mechanical difference.
Alternative Names
6EC1001-0A Siemens 6EC1001-0A 6EC1001 0A 6EC10010A Siemens Eleven-Gate Logic Board E53252-T32-S2 Assembly Siemens Two-Input AND Gate Module
Technical notes
Because 6EC1001-0A implements hardwired AND logic, photograph every connector and verify schematic E53252-T32-S2 before removal; a single displaced input can defeat an interlock.
