6DS1220-8AA

/ 4.9
1001 reviews | Need a Specific Revision?

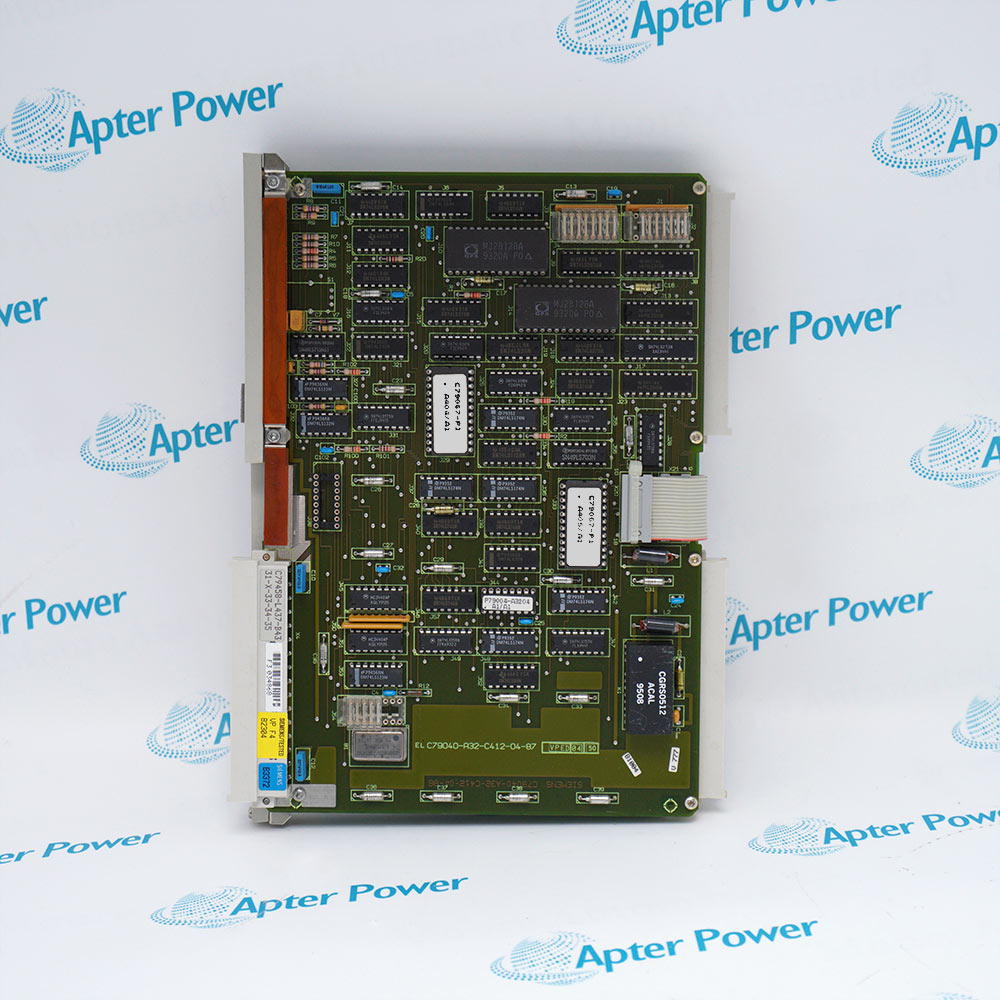

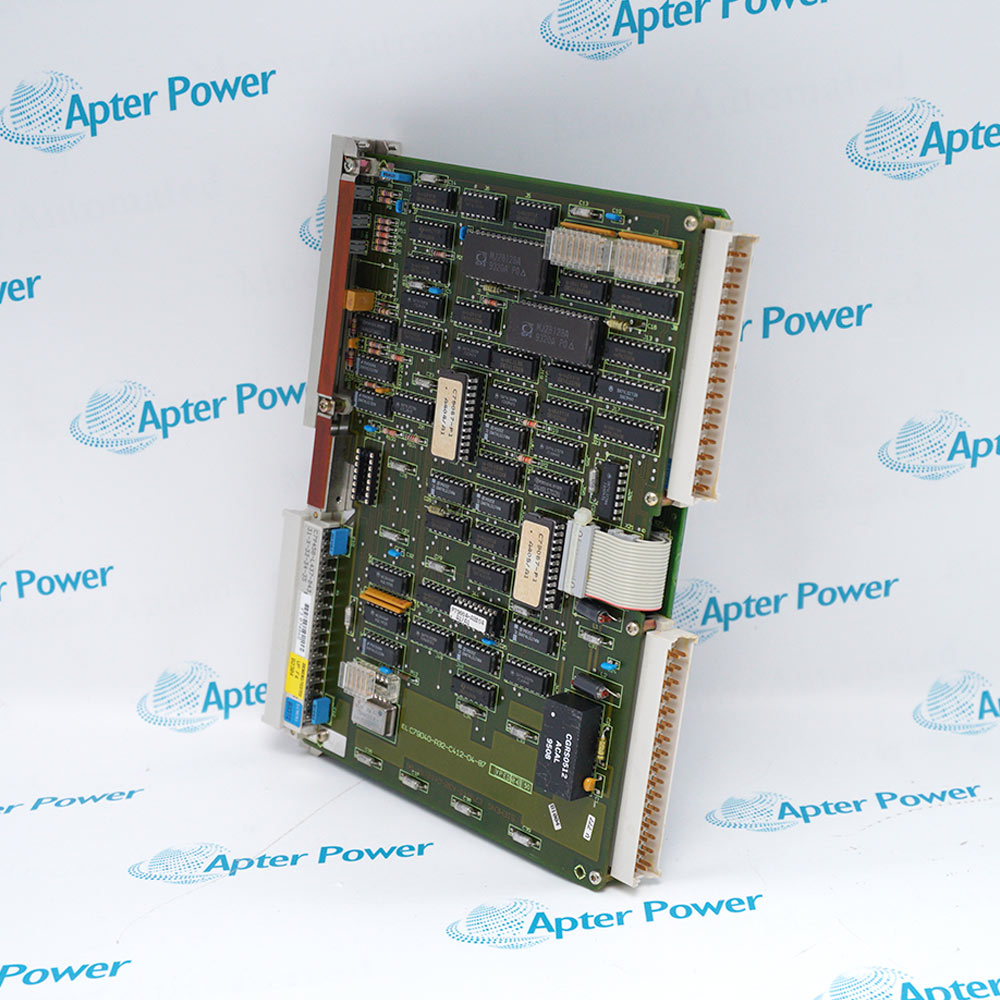

Siemens 6DS1220-8AA is the TELEPERM M N8-H 8-bit interface module for the 20 m CS275 local bus in AS 235 H systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6DS1220-8AA
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6DS1220-8AA

  • Manufacturer:
    Siemens
  • Part Number:
    6DS1220-8AA
  • Product Family:
    Siemens Teleperm
  • Product Type:
    TELEPERM M N8-H Local-Bus Interface Module
  • Stock:
    1
  • Local-bus range:
    20 m
  • Data width:
    8 bit
  • CS275 role:
    1oo2 master/reserve local-bus interface
  • Participant address range:
    1-63
  • Addressing method:
    Hardware jumpers
  • Forbidden address combination:
    Bus address 0 with participant address 0
  • Redundant CPU setting:
    CPU I and CPU II addresses must match
  • Weight:
    0.75 kg
  • Estimated shipping dimensions:
    24.3x18.2x3cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals CS275 Bus Role N8-H Addressing Redundant Operation Product Applications

Features:

  • 20 m local-bus interface: Connects the N8-H module to the documented CS275 local-bus arrangement.
  • Master/reserve operation: Supports the two-CPU AS 235 H architecture with one active bus master.
  • Hardware addressing: Uses bus and participant settings that must agree across both CPU paths.
The N8-H interface is an 8-bit local-bus module with a participant-address range of 1 to 63.

A mastership change re-parameterizes the local-bus interface, so both CPU-side modules and settings must remain available.

Service planning therefore treats the CPU pair, both N8-H modules, and the local-bus distribution path as one communication chain.

Apter Power supports Siemens 6DS1220-8AA TELEPERM M N8-H Local-Bus Interface Module quotations, technical documents, and procurement support.
Siemens 6DS1220-8AA TELEPERM M N8-H Local-Bus Interface Module Manuals,Datasheets,Link
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Local-bus connection: Links the AS 235 H to the 20 m CS275 local bus.
  • Active master: Only the interface associated with the master CPU communicates on the bus.
  • Distribution unit: The module works through the documented local-bus distribution path.
  • System exchange: The CS275 path supports communication with connected automation and operator systems.
  • Participant range: Valid participant addresses are 1 through 63.
  • Zero restriction: Bus address 0 and participant address 0 must not be used together.
  • CPU agreement: CPU I and CPU II require identical bus and participant settings.
  • Replacement continuity: The incoming N8-H module should retain the approved bus and participant address plan.
  • Module pair: Two local-bus modules are used in the redundant AS 235 H arrangement.
  • Mastership change: The standby side can assume communication after the CPU role changes.
  • Re-parameterization: The interface is re-parameterized when mastership changes.
  • Fault isolation: Both CPU paths and the distribution route form one communication chain.
  • AS 235 H communication: Provides the N8-H connection between the controller and CS275 local bus.
  • Master/reserve systems: Supports the documented 1oo2 CPU architecture.
  • Legacy cabinet maintenance: Maintains an established N8-H position and address plan.
  • N-AS migration baseline: Provides the installed configuration record for an engineered successor review.
Description
The Siemens 6DS1220-8AA is the N8-H 8-bit interface module for the 20 m TELEPERM M local bus. In an AS 235 H system it provides the CS275 communication path used by the active master CPU to exchange data with connected automation and operator systems.

A redundant AS 235 H normally uses two 6DS1220-8AA modules so the standby CPU can assume bus communication after a mastership change. Both CPU paths must retain identical bus and participant settings, while the installed distribution unit and cable route remain within the documented local-bus limits.

Address commissioning for 6DS1220-8AA remains tied to the installed AS 235 H cabinet and CPU pairing. Preserving the approved bus plan across both processor paths reduces the risk of a replacement remaining offline after mastership transfer. Apter Power can provide legacy quotations, official documents, and cabinet-level matching guidance.
Alternative Names
6DS12208AA 6DS 1220-8AA 6DS1220 8AA 6DS122O-8AA 6DSI220-8AA N8-H 6DS1220 Siemens N8-H TELEPERM M 6DS1220
Technical notes
The critical distinction for 6DS1220-8AA is between the address jumpers used on the bus-interface section and the internal bus-processor jumper pattern that Siemens factory sets. Preserve the installed bus and participant addresses, keep CPU I and CPU II identical, and never copy an address plan by moving the factory bus-processor jumpers.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does 6DS1220-8AA operate in a redundant AS 235 H system?
Two N8-H modules support the master and standby CPU paths, while only the active master communicates on CS275.
What should a buyer match before sourcing 6DS1220-8AA for an installed cabinet?
Match the complete article number, N8-H designation, AS 235 H cabinet, CPU path, and installed bus and participant address plan.
Why can 6DS1220-8AA remain offline after a board exchange?
Mismatched bus or participant addresses, a forbidden zero combination, unequal CPU settings, cable faults, or a distribution-unit problem can block communication.
What should be checked when 6DS1220-8AA loses communication during a mastership change?
Verify that both modules are installed, CPU I and CPU II use identical settings, and both local-bus paths remain connected.
Can 6DS1220-8AA and 6DS1223-8AA be used in the same AS 235 H system?
Siemens documents a mixed N8-H and N-AS arrangement as permissible, but the cabinet design and addressing must still be reviewed.
What electrical boundary applies to the local bus connected to 6DS1220-8AA?
Keep the local-bus route within 20 m and the earth-potential difference within the documented 0.2 V limit.
Can 6DS1220-8AA be replaced automatically by a 6DS1223-8AA N-AS module?
The manual positions N-AS as the successor, but wiring, addressing, connectors, redundancy, and project approval must be checked before migration.
