VM600 CMC16 200-530-022-014

/ 4.9
1001 reviews | Need a Specific Revision?

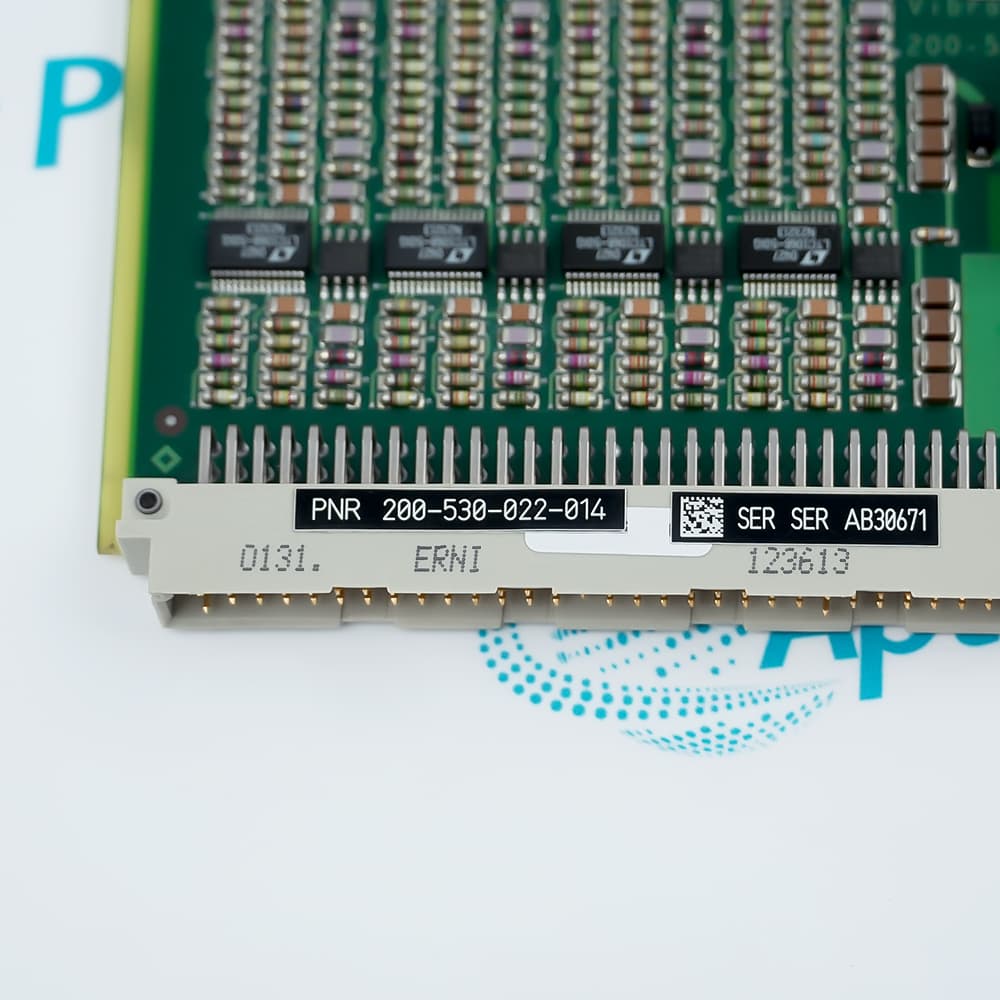

Vibro-Meter VM600 CMC16 200-530-022-014 is a 16-channel condition monitoring card for spectral, trend and diagnostic acquisition. It works with a paired IOC16T rear interface in the legacy VM600 CMS architecture.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for VM600 CMC16 200-530-022-014
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for VM600 CMC16 200-530-022-014

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    VM600 CMC16 200-530-022-014
  • Product Family:
    VM600 CMC16 / IOC16T Condition Monitoring System
  • Product Type:
    Condition Monitoring Card
  • Stock:
    1
  • Dynamic Measurement Channels:
    16 configurable channels
  • Tachometer Allocation:
    First 4 channels can be configured as tachometers
  • Process-Value Channels:
    Last 12 channels can accept process values
  • Rack Interface:
    VME
  • Signal Conversion:
    16 parallel anti-aliasing filters and ADCs
  • Acquisition Modes:
    Synchronous and asynchronous
  • FFT Resolution:
    Up to 3200 lines
  • Processed Outputs:
    Up to 10 values per channel
  • Rear I/O Pairing:
    IOC16T interface card
  • Rack Slot Range:
    VM600 slots 3 to 14
  • System Role:
    Condition monitoring and diagnostics
  • Monitoring Platform:
    Legacy CMS / VM600 architecture
  • Migration Family:
    XMV16 with XIO16T
  • Lifecycle Note:
    CMC16 platform discontinued in 2014
  • Replacement Scope:
    Hardware, software and project review required
  • Configuration Requirement:
    Back up database before exchange
  • Tariff Code:
    8537101190
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Configuration Monitoring

Features:

  • Sixteen independently converted monitoring channels.
  • Up to four speed references with synchronous and asynchronous acquisition.
  • On-board spectral analysis with as many as 3200 FFT lines.
The current ordering configuration is VM600 CMC16 200-530-022-014, a legacy condition-monitoring processor for a VM600 rack.

It collects dynamic, speed and process data for trending, spectra and machinery diagnostics without replacing the protection layer.

Preserve the database and review the paired IOC16T, software and communications before any exchange or migration.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Vibro-Meter VM600 CMC16 200-530-022-014:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Collects vibration and speed data for turbine, compressor and generator diagnostics.
  • Supports spectral, trend and transient analysis in legacy VM600 condition-monitoring systems.
  • Provides measurement data for maintenance planning while independent protection remains active.
  • Exchanges monitoring data through the legacy VM600 rack and host communications architecture.
  • Works with the rear IOC16T card that terminates the assigned field-signal paths.
  • Requires the installed CMS project and network settings to match the card configuration.
  • Defines channel type, scaling, frequency span and acquisition behavior in the monitoring database.
  • Assigns the first four channels to speed references when required by the project.
  • Supports configured synchronous, asynchronous and spectral processing for each measurement path.
  • Produces multiple processed values from each configured dynamic channel.
  • Calculates spectra with selectable resolution for machinery condition assessment.
  • Buffers and transfers monitoring data without serving as the sole machinery-protection function.
Description
VM600 CMC16 200-530-022-014 is a 16-channel condition monitoring card that supports configurable dynamic measurements, tachometer allocation and process-value inputs through a paired IOC16T interface.

Parallel filtering and conversion enable synchronous or asynchronous acquisition, FFT analysis and processed monitoring values for vibration diagnostics and machinery condition assessment.

Treat replacement or migration as a system-level change: back up the monitoring database, verify slot and rear-card pairing, then review channel maps, speed references, communications and project software.
Alternative Names
Vibro-Meter VM600 CMC16 200-530-022-014 VM600 CMC16 200 530 022 014 VM600-CMC16-200-530-022-014 200530022014 Vibro-Meter condition monitoring card 200-530-022-014 CMC16 sixteen-channel monitoring processor VM600 legacy condition monitoring module CMC16 VME machinery diagnostics card
Technical notes
Before replacing VM600 CMC16 200-530-022-014, back up the monitoring database and verify the complete CMC16/IOC16T hardware and software migration scope.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be backed up before replacing VM600 CMC16 200-530-022-014?
Save the monitoring configuration, channel map, scaling, communications settings and relevant baseline data before the rack is isolated.
Can VM600 CMC16 200-530-022-014 be accepted when only the CMC16 family name matches?
No. Compare the complete order suffix and rack position because other CMC16 variants appear in the installed base.
How should VM600 CMC16 200-530-022-014 be tested after installation?
Verify rack recognition, sensor health, speed references, live trends and data communications against the preserved configuration and a known operating condition.
Why might VM600 CMC16 200-530-022-014 show abnormal data after a hardware exchange?
A sensor, bias supply, tachometer, channel map or restored database can create the symptom. Check the measurement chain before rejecting the card.
Does VM600 CMC16 200-530-022-014 replace the independent machinery-protection function?
No. Treat it as condition-monitoring hardware and keep the approved protection system in service throughout diagnosis and commissioning.
Can an XMV16 be installed directly in place of VM600 CMC16 200-530-022-014?
Do not assume a one-for-one exchange. Migration literature describes the newer family, but the exact hardware, software, rack and project requirements need engineering review.
