VM600 CMC16 200-530-025-014

/ 4.9
1001 reviews | Need a Specific Revision?

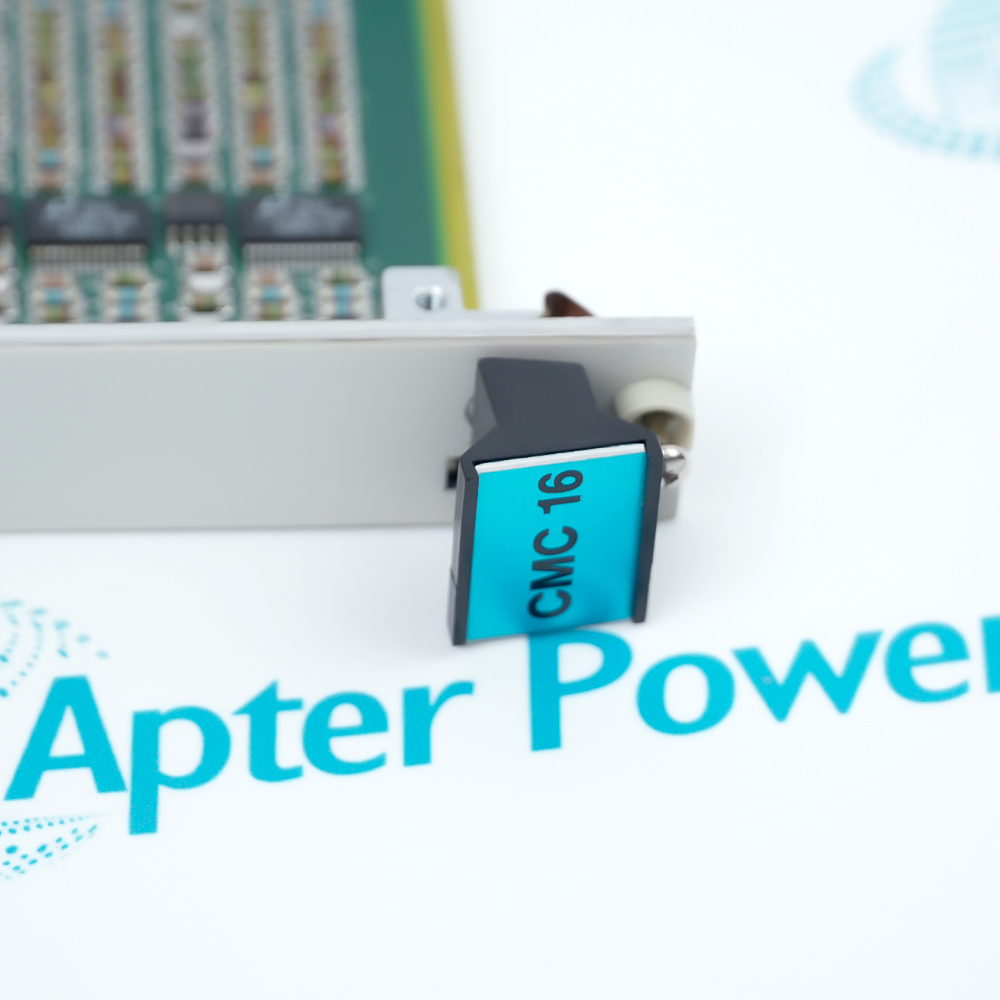

Vibro-Meter VM600 CMC16 200-530-025-014 is a 16-channel condition-monitoring card for the VM600 system. It acquires vibration, tachometer, and process inputs and supplies processed monitoring data to compatible software.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for VM600 CMC16 200-530-025-014
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for VM600 CMC16 200-530-025-014

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    VM600 CMC16 200-530-025-014
  • Product Family:
    VM600 CMC16 / IOC16T Condition Monitoring System
  • Product Type:
    VM600 CMC16 Condition Monitoring Card
  • Stock:
    1
  • Monitoring channels:
    16 programmable channels
  • Tachometer inputs:
    Channels 1–4 configurable for tachometer signals
  • Signal processing:
    Up to 3200-line FFT
  • Host system:
    VM600 CMS
  • Companion interface:
    IOC16T
  • Communication:
    Ethernet and RS-485
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    2x18.5x26.1cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Channel Setup Signal Processing VM600 Integration Product Applications

Features:

  • Sixteen channels: Acquires configurable vibration, tachometer, and process signals.
  • On-card processing: Performs FFT and buffered monitoring-data processing.
  • VM600 integration: Works with IOC16T and compatible VM600 protection and monitoring hardware.
The complete order code retains firmware and hardware-suffix information needed for an exact match.

Channel use belongs to the saved monitoring database rather than to the card label alone.

The CMC16 and IOC16T should be treated as a paired rack arrangement during diagnostics and sourcing.

Apter Power supports Vibro-Meter VM600 CMC16 200-530-025-014 VM600 CMC16 Condition Monitoring Card sourcing, official documents, and configuration review.
Vibro-Meter VM600 CMC16 200-530-025-014 VM600 CMC16 Condition Monitoring Card Manuals, Datasheets, Links
Important Notice: Manuals and supporting documents are provided for identification and engineering review. Confirm the complete product code before ordering.
  • Inputs: Sixteen channels are assigned through the monitoring database.
  • Tachometers: Channels 1–4 can provide speed or phase references.
  • Signal record: Retain sensor type, range, scaling, alarm, and channel position.
  • FFT: On-card analysis supports spectral condition monitoring.
  • Buffering: Stored event and trend data depend on the configured system.
  • Diagnostics: Trace raw input, tachometer reference, and processed output separately.
  • IOC16T: Confirm the exact companion interface and rear connection.
  • Rack path: Check power, slot seating, and communication to the monitoring server.
  • Database: Restore only the approved channel and machine configuration.
  • Rotating machinery: Monitors vibration and speed on turbines, compressors, pumps, and generators.
  • Condition monitoring: Supports spectral, trend, and event analysis in VM600 installations.
  • Legacy system service: Maintains documented CMC16 monitoring channels while migration is planned.
Description
The Vibro-Meter VM600 CMC16 200-530-025-014 is the intelligent front-end data-acquisition card used in the VM600 condition-monitoring system. It provides 16 programmable channels, with the first four available for tachometer signals and the remaining channels used for vibration or process measurements according to the configured installation.

The VM600 CMC16 200-530-025-014 works with its IOC16T interface card and receives raw and tachometer information from compatible VM600 protection hardware. On-card processing includes FFT analysis and buffered data handling, while Ethernet and RS-485 support integration with the monitoring environment.

Vibro-Meter documents the CMC16 generation as discontinued in the earlier VM600 CMS architecture. For continued service, VM600 CMC16 200-530-025-014 should be matched to firmware, hardware revision, IOC16T, rack slot, database, and sensor-channel configuration. Apter Power can support legacy sourcing, documents, and system review.
Alternative Names
CMC16 200-530-025-014 200-530-025-014 VM600 CMC16 CMC16 condition monitoring card Vibro Meter CMC16 200530025014 200-530-025-O14 VM600 200-530-025-014
Technical notes
For VM600 CMC16 200-530-025-014, preserve the CMC16 and IOC16T labels, firmware and hardware suffixes, rack position, sensor list, tachometer assignments, database backup, and communication settings. Loss of monitoring data should be traced from sensor input through the paired interface and network path before the card is replaced.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What role does VM600 CMC16 200-530-025-014 perform?
It is the 16-channel intelligent data-acquisition and processing card for a VM600 condition-monitoring system.
Which channels can accept tachometer signals on VM600 CMC16 200-530-025-014?
The first four channels can be configured for tachometer inputs; the project database defines their actual use.
Can VM600 CMC16 200-530-025-014 operate without its IOC16T?
The card is designed with the companion IOC16T interface, so the exact paired hardware and rack connection must be confirmed.
What should be checked when VM600 CMC16 200-530-025-014 stops reporting data?
Troubleshooting should cover rack power, card status, IOC16T seating, network path, database assignment, and upstream sensor signals.
Can another CMC16 revision replace VM600 CMC16 200-530-025-014 automatically?
Interchangeability requires matching firmware, hardware suffix, IOC16T, database, channel configuration, and VM600 rack records.
What should accompany an RFQ for VM600 CMC16 200-530-025-014?
A useful request includes both card labels, IOC16T details, rack slot, firmware and database record, channel list, quantity, destination, and document requirements.
