Features:

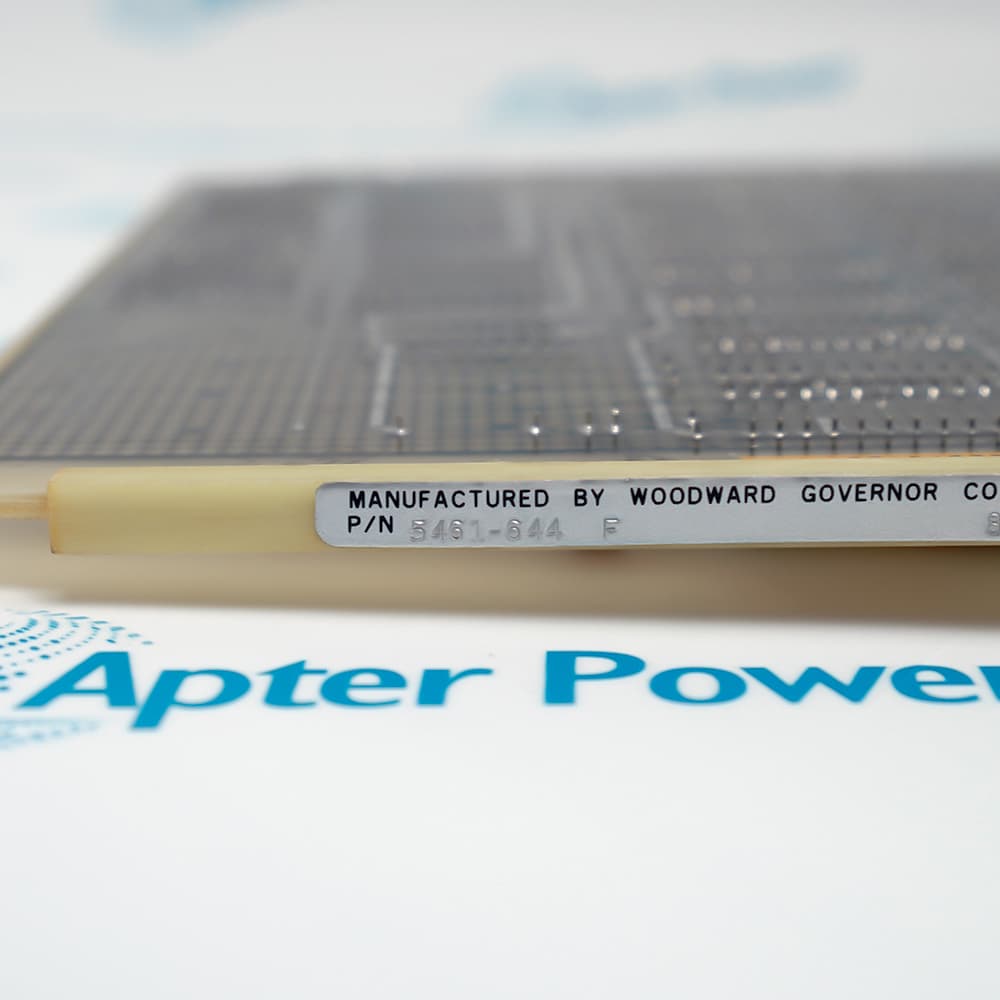

- Manufacturer label: the board edge is marked Woodward Governor Company
- Exact part identity: the visible P/N is 5461-644
- Controlled selection: part number, revision/serial evidence, connectors, and installed position must agree
The board-edge label makes 5461-644 the primary identity for purchasing and incoming comparison.
Additional revision or serial characters on the physical unit should remain attached to the service record rather than being dropped from the RFQ.
Woodward’s product-history process uses the label part and serial numbers to connect an installed board with maintenance information.
Apter Power supports label review, quotation, and procurement coordination for the Woodward 5461-644 Printed Circuit Board Assembly beyond End-of-Life by the OEM.
Woodward 5461-644 Printed Circuit Board Assembly Manuals,Datasheets,Link
Important Notice: No qualified exact-model public OEM PDF was located. Use the complete product label and controlled system record when requesting documentation.
- Part number: retain the complete 5461-644 marking.
- Manufacturer: the label identifies Woodward Governor Company.
- Serial or revision: record every additional label character on the actual unit.

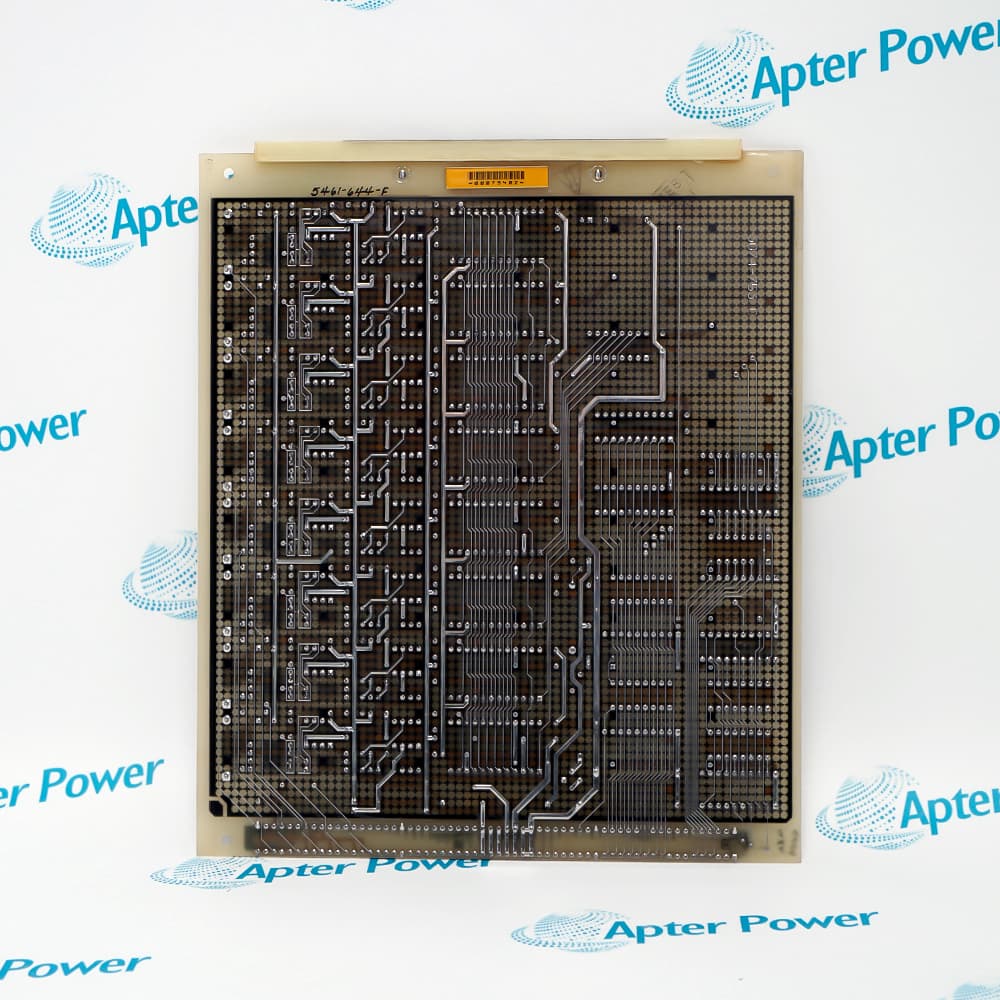

- Physical evidence: photograph both faces and all edge connectors.
- Installed position: preserve rack, slot, or cabinet location.
- Connector map: label each mating plug before removal.
- Hardware outline: compare mounting points and edge geometry.
- Controlled record: reconcile the part with drawings or the approved spare list.
- Before removal: record diagnostics, jumpers, and cable orientation.
- At receiving: compare the full label and physical interfaces.
- During installation: apply site ESD and de-energization procedures.
- At release: complete the approved diagnostic and functional test.
- Label-led spare procurement: source the board against the complete 5461-644 edge marking.
- Depot repair reconciliation: match a returned board to its original part and serial record.
- Installed-position work order: bind 5461-644 to the documented rack or cabinet location.
- Stores segregation: prevent visually similar Woodward boards from sharing one inventory identity.
