XVME-531

/ 4.9
1001 reviews | Need a Specific Revision?

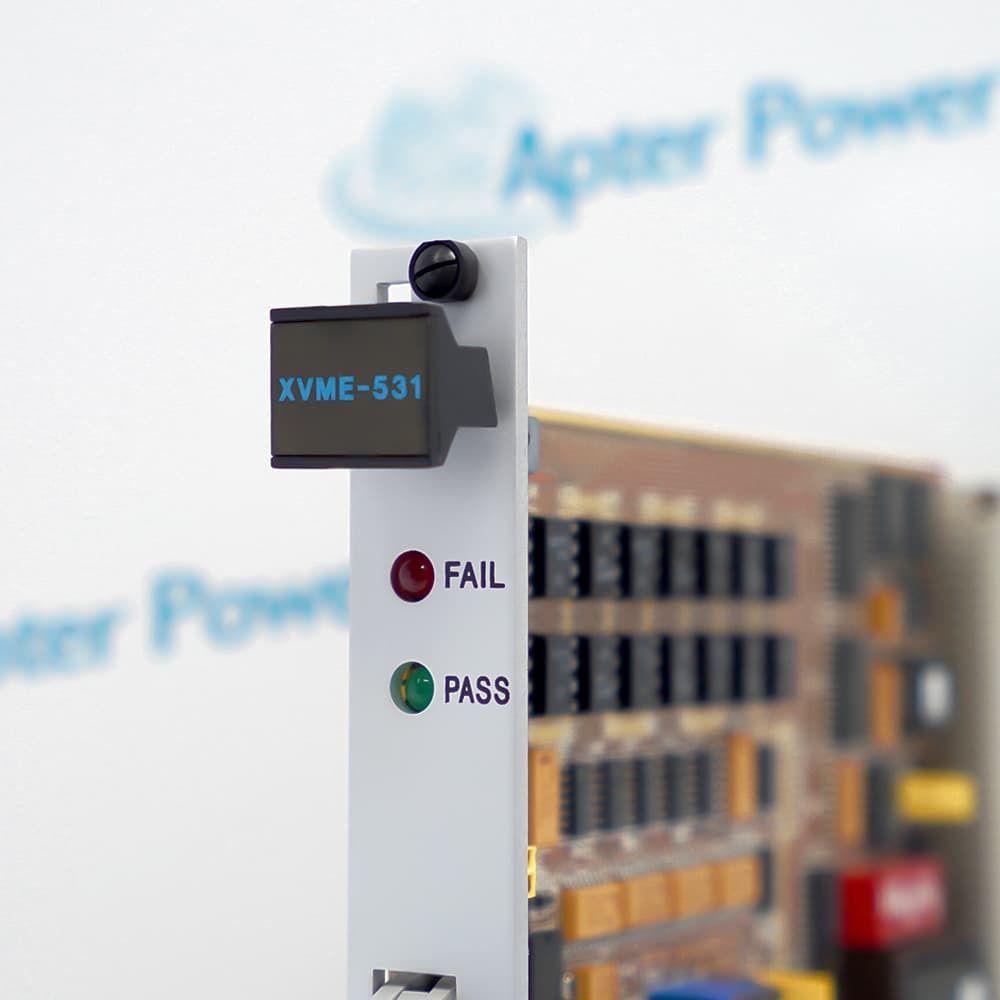

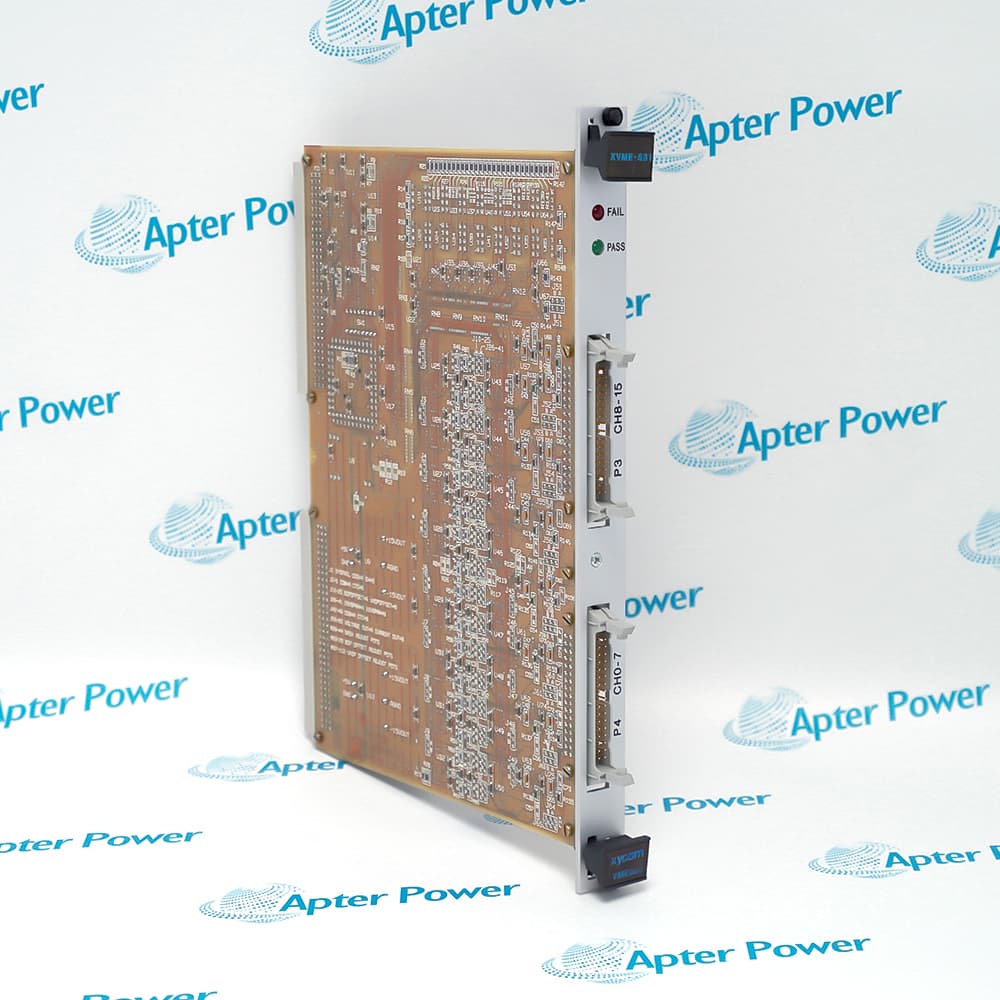

Xycom XVME-531 is a double-high VMEbus 12-bit analog output module with sixteen independently configurable channels; /1 and /2 hardware variants determine voltage-only or isolated voltage/current operation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for XVME-531
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for XVME-531

  • Manufacturer:
    Xycom
  • Part Number:
    XVME-531
  • Product Family:
    XVME I/O Modules
  • Product Type:
    VMEbus Analog Output Module
  • Stock:
    1
  • Form factor:
    Double-high VMEbus module
  • Output channels:
    16 independent
  • Resolution:
    12 bits
  • Output update:
    Simultaneous multichannel support
  • XVME-531/1 outputs:
    0-10 V, +/-5 V or +/-10 V
  • XVME-531/2 outputs:
    Voltage ranges plus 4-20 mA
  • XVME-531/2 isolation:
    500 V optical isolation
  • Voltage overall error:
    +/-0.5 LSB maximum after trim
  • Current overall error:
    +/-0.66 LSB, +/-0.016%
  • Current compliance voltage:
    10.5 V at 20 mA
  • Current load range:
    50 to 525 ohms
  • Current settling time:
    80 microseconds to 1/2 LSB
  • XVME-531/1 conversion start:
    400 ns typical
  • XVME-531/2 conversion start:
    4.7 microseconds typical
  • Voltage gain temperature coefficient:
    20 ppm/C maximum
  • Current gain temperature coefficient:
    50 ppm/C maximum
  • Current offset temperature coefficient:
    30 ppm/C maximum
  • XVME-531/1 supply current:
    1.8 A typical at full-scale outputs
  • XVME-531/2 supply current:
    3.2 A typical at full-scale 4-20 mA mode
  • Weight:
    1.1 lbs (0.5 kg)
  • Estimated shipping dimensions:
    Board: 160 x 220 mm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Output Configuration VMEbus Integration Calibration & Accuracy

Features:

  • Provides sixteen independent 12-bit analog output channels on a VMEbus module.
  • Supports simultaneous multichannel output updates for coordinated control commands.
  • Offers voltage-only /1 and isolated voltage/current /2 hardware versions.
The current ordering identity is XVME-531, the Xycom sixteen-channel 12-bit analog output module family for double-high VMEbus systems.

It converts host-written digital values into independently selected analog voltage outputs, with the /2 version also supporting isolated 4-20 mA current loops.

Before installation, identify the complete /1 or /2 suffix, preserve jumper and calibration settings, verify VME addressing, confirm load wiring and check host power capacity.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Xycom XVME-531:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Generates multichannel analog commands for legacy process-control and test systems.
  • Drives actuator references, laboratory loads or machine setpoints from a VME controller.
  • Supports current-loop control where the isolated XVME-531/2 hardware is installed.
  • Each channel is independently selected for the ranges supported by the installed /1 or /2 hardware.
  • The /1 version provides voltage output only, while /2 adds 4-20 mA current operation.
  • Simultaneous output capability coordinates updates across multiple analog channels.
  • The double-high board occupies a VMEbus slot and uses host-programmed register access.
  • Base address and bus settings must be matched to the existing chassis configuration.
  • Power budgeting must account for the higher full-scale demand of the /2 current-output version.
  • Per-channel gain and offset adjustments are used to trim the selected output range.
  • Voltage operation is specified to a maximum overall error of one-half LSB after adjustment.
  • The /2 current output is specified to two-thirds LSB overall error with a 50 to 525 ohm load range.
Description
XVME-531 is a double-high VMEbus digital-to-analog output module in the Xycom XVME family. It provides sixteen independently programmed 12-bit channels and supports simultaneous multichannel output updates.

The family contains two hardware variants: XVME-531/1 supplies unipolar or bipolar voltage outputs, while XVME-531/2 adds isolated voltage or 4-20 mA current operation. Gain and offset adjustments are provided per channel for calibration within the documented error limits.

The module is used in legacy test, process-control and machine-automation systems that require deterministic analog commands from a VME host. The exact /1 or /2 suffix, output wiring, range jumpers, I/O address and calibration records must be confirmed before replacement.
Alternative Names
XVME-531 XVME531 XVME 531 XVME-531 16-Channel Analog Output Module XVME-531 12-Bit VMEbus Analog Output Module XVME-531/1 Non-Isolated Voltage Output Module XVME-531/2 Isolated Voltage and Current Output Module Xycom VMEbus Analog Output Module
Technical notes
XVME-531 is a family identity; confirm the /1 voltage-only or /2 isolated voltage/current suffix before wiring, because their outputs and power demand differ.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why must the suffix be checked when ordering XVME-531?
XVME-531/1 is voltage-only, whereas XVME-531/2 adds optical isolation and 4-20 mA current output capability.
How many analog points can XVME-531 command?
The module provides sixteen independent 12-bit output channels with simultaneous update support.
Which loads can the XVME-531/2 current mode drive?
The manual specifies a 50 to 525 ohm load range with 10.5 V compliance at 20 mA.
Where is XVME-531 typically retained in service?
It supports legacy VME-based machine control, process automation and test systems that depend on the original register and wiring design.
What should be recorded before replacing XVME-531?
Record the /1 or /2 identity, VME address, output-range jumpers, wiring, calibration trims and host power arrangement.
Which manual is needed for an XVME-531 quotation?
Use the Xycom XVME-531 analog output module manual and provide the full suffix, board number, chassis and required ranges.
