ADV141-P13 S1

/ 4.9
1001 reviews | Need a Specific Revision?

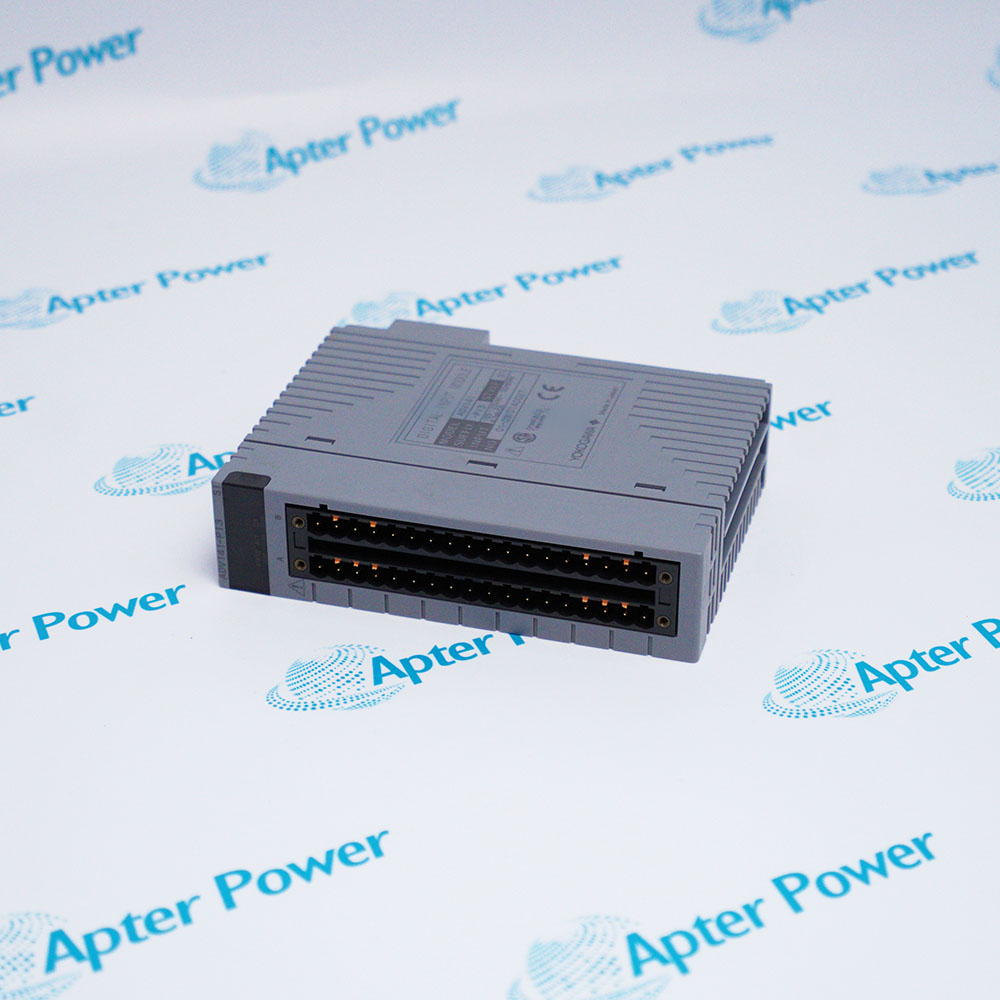

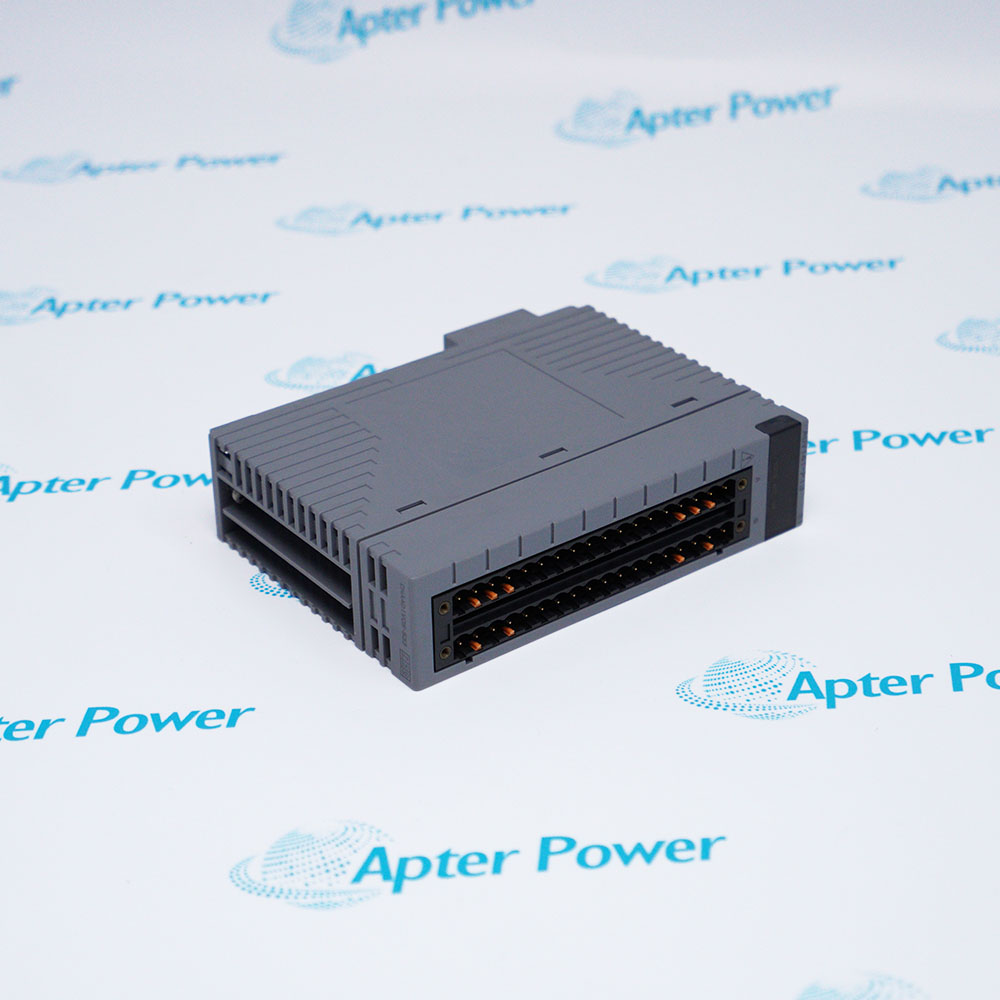

The Yokogawa ADV141-P13 S1 is a 16-channel, 100-120 V AC Isolated Digital Input Module designed for the CENTUM VP and CS 3000 DCS. This high-reliability module features pushbutton input capability and is ideal for monitoring AC voltage status signals in industrial automation applications.
Get a quick price for ADV141-P13 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV141-P13 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV141-P13 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Digital Input Module
  • Rated Input Voltage:
    100 to 120 V AC, 50/60 Hz
  • Input ON Voltage (Peak):
    80 V AC (113 V) to 132 V AC (187 V)
  • Input OFF Voltage (Peak):
    20 V AC (28 V) or less
  • Typical Input Current:
    4.7 mA (@120 V / 60 Hz) per channel
  • Max. Input Current:
    7 mA per channel
  • Response Time (Status Input):
    160 ms or less
  • Min. ON Detection Time (Pushbutton):
    200 ms
  • Max. Switching Frequency (Pushbutton):
    2.5 Hz
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    3.2x10.7x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Safety & Compliance Communication & Connectivity Applications

Features:

  • Direct AC Input Capability
  • Dual-Function Channels for Flexibility
  • Robust Electrical Isolation for Noisy Environments
The Yokogawa ADV141-P13 S1 directly accepts 100-120 V AC inputs, eliminating the cost, wiring, and panel space required for external interposing relays for AC signal monitoring.

Each of the 16 channels can be independently configured for standard Status Input (SI) for simple ON/OFF detection or Pushbutton Input (PB) for counting edge transitions, adapting to various field devices.

With 2 kV AC isolation between the input channels and the system bus, and 1.35 kV AC isolation between channel commons, this module ensures reliable, error-free operation even in harsh, electrically noisy industrial plants.

The ADV141-P13 S1 Yokogawa 16-channel 100-120 V AC Isolated Digital Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV141-P13 S1 16-channel 100-120 V AC Isolated Digital Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa ADV141-P13 S1 16-channel 100-120 V AC Isolated Digital Input Module

General

  • Manufacturer Yokogawa
  • Model ADV141-P13 S1
  • Condition New Original ready stock
  • Product Family ADV142-S02 S1,ADV141-S13 S1,ADV142-P13 S1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High-Voltage Isolation: Provides reinforced isolation with 2 kV AC withstand voltage between input circuits and the internal system bus.
  • Channel Group Isolation: Features 1.35 kV AC isolation between groups of 8 input commons, preventing cross-channel faults.
  • CE Marked: Fully compliant with EU Low Voltage (LVD) and EMC directives for 100-120 V AC industrial equipment.
  • Designed for Industrial Environments: Rated for Pollution Degree 2 (non-conductive pollution) and Installation Category II, suitable for fixed industrial plant installations.
  • FIO (Fieldnetwork I/O) Interface: Seamlessly integrates with Yokogawa's high-speed FIO bus via the ESB bus.
  • CENTUM VP DCS Compatibility: Native integration with the system builder (IOM) for configuration and diagnostics.
  • Field Wiring Connection: Equipped with a 16-point Pressure Clamp Terminal Block for secure, vibration-proof field connections without special tools.
  • Redundancy Support: Configurable for dual-redundant applications using two modules to enhance system availability.
  • AC Motor Status Monitoring: Directly monitor the run/stop status of 110 V AC motors and pumps.
  • Interlock and Limit Switch Sensing: Capture state changes from AC-powered limit switches and safety interlocks in a DCS.
  • Material Handling Systems: Monitor the presence/absence of items or position of actuators in AC-powered conveyor systems.
  • Power Distribution Monitoring: Provide digital feedback to the CENTUM VP system from circuit breakers and AC contactor auxiliary contacts.
Description
The Yokogawa ADV141-P13 S1 AC Digital Input Module is a core component of Yokogawa's prestigious CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). Engineered for robustness and precision, this module directly accepts 100-120 V AC input signals from field devices, eliminating the need for external interposing relays for many AC voltage monitoring tasks. Its 16 isolated input channels are grouped to provide high noise immunity and reliable status detection in electrically noisy industrial environments.

Designed with flexibility in mind, the Yokogawa ADV141-P13 S1 supports two distinct operational modes: standard Status Input (SI) for simple ON/OFF detection and Pushbutton Input (PB) for counting edge transitions. This versatility makes it suitable for both basic monitoring and more interactive field device control. The module boasts a fast input response time of ≤160 ms for status inputs, ensuring real-time visibility of your process.

The Yokogawa ADV141-P13 S1 utilizes pressure clamp terminals for secure, maintenance-free field wiring. It can be configured in a dual-redundant architecture to maximize system availability for critical applications. Trust the Yokogawa ADV141-P13 S1 to deliver the accuracy, durability, and seamless integration expected from a world-class DCS I/O solution.
Alternative Names
ADV141-S13 S1 ADV142-P13 S1 ADV142-S02 S1 ADV142-S03 S1
Technical notes
The Yokogawa ADV141-P13 S1 is an AC-powered digital input module, not a DC or analog model. Its rated input is strictly 100 to 120 V AC at 50/60 Hz, making it incompatible with 24 V DC or 4-20 mA signals.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the primary application of the Yokogawa ADV141-P13 S1?
The Yokogawa ADV141-P13 S1 is primarily used as a status monitoring interface for high-voltage AC field devices. It is ideal for sensing the ON/OFF state of AC-powered motors, pumps, fans, limit switches, and other 110 V AC equipment in a DCS environment.
How does the pushbutton (PB) function work on this module?
In PB mode, the Yokogawa ADV141-P13 S1 is configured to detect and count pulse edges from a field device, such as a momentary pushbutton. It has a minimum ON detection time of 200 ms, which effectively debounces mechanical contact chatter.
Does the Yokogawa ADV141-P13 S1 support hot-swapping?
While CENTUM VP FIO modules are designed for online replacement, you must first isolate the specific I/O module from an engineering workstation or Field Control Unit (FCU) before physically removing the Yokogawa ADV141-P13 S1 to ensure safe and bumpless removal.
What is the environmental rating for this module?
The Yokogawa ADV141-P13 S1 is designed for use in a controlled industrial environment. It has an operating temperature range of 0 to 50 °C, 10-90% RH (non-condensing), and can operate at altitudes up to 2000 meters. It conforms to Pollution Degree 2 and Installation Category II (for 100-120 V AC rated equipment).
What is the performance of the status input?
For standard status monitoring, the Yokogawa ADV141-P13 S1 has a reliable input response time of 160 ms or less, providing timely updates for process interlocks and monitoring logic.
