AIP532 S1

/ 4.9
1001 reviews | Need a Specific Revision?
Yokogawa AIP532 S1 is a CENTUM Control Bus Adapter. It adapts legacy CENTUM V net cabling to the field-control-station bus interface.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for AIP532 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AIP532 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    AIP532 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Control Bus Adapter
  • Stock:
    1
  • Model and style:
    AIP532, Style S1
  • System:
    Yokogawa CENTUM CS / CENTUM VP legacy V net architecture
  • Role:
    Control bus adapter for documented V net interconnection
  • Network media:
    V net 10BASE-5 and 10BASE-2 connection example
  • Processor connections:
    CPU-L and CPU-R interfaces
  • Bus paths:
    Bus 1 and Bus 2
  • Front indications:
    RCV, SND-L and SND-R
  • Control:
    ENBL and DSBL functions shown in the official cabling arrangement
  • Weight:
    0.16 kg
  • Estimated shipping dimensions:
    6x25x6.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Interoperability Monitoring & Control Temperature & Humidity Range

Features:

  • Adapts legacy CENTUM V net cabling to the field-control-station bus interface.
  • Provides paired CPU-L/CPU-R connections for Bus 1 and Bus 2 paths.

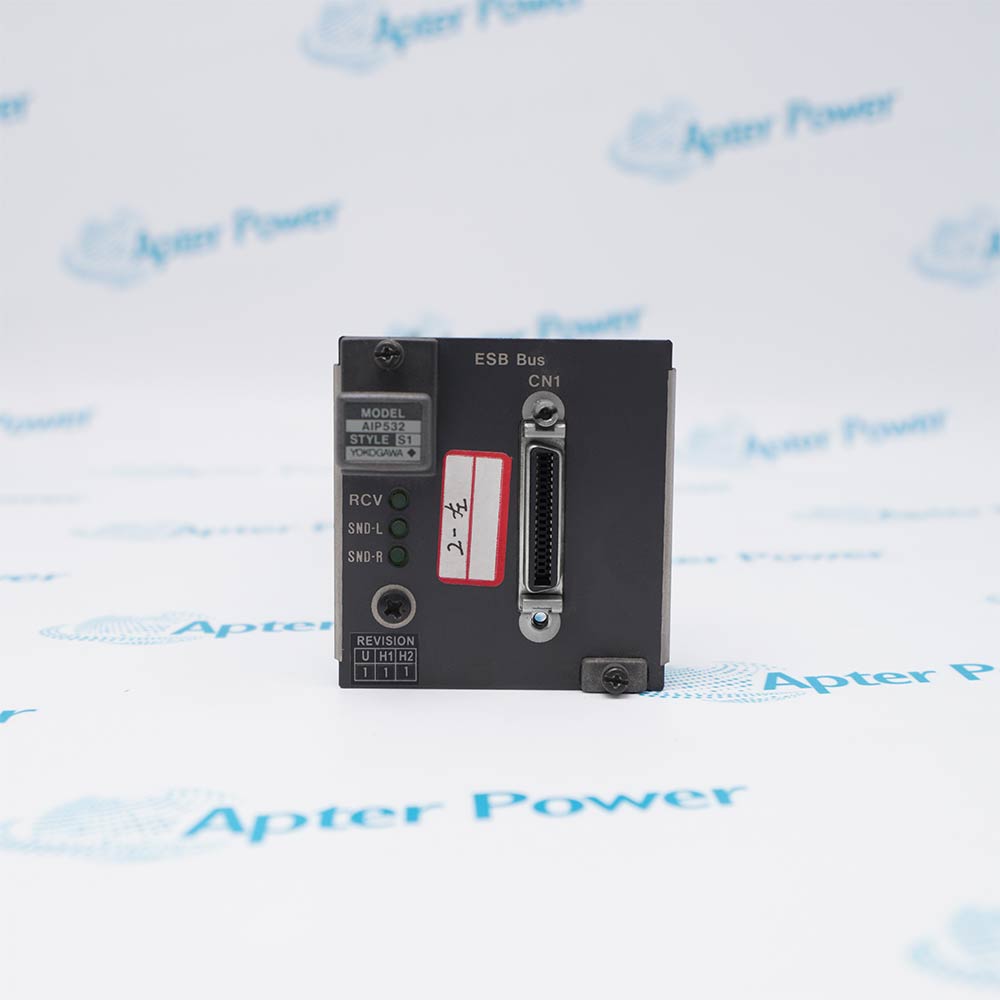

  • Shows receive and left/right send activity at the module faceplate.
AIP532 adapts the documented V net cabling to the control-station bus interface, providing separate paths for redundant bus communication and processor-side connection.

Incoming and outgoing network signals are routed through the adapter between V net media and the paired CPU-L/CPU-R interfaces. Receive and left/right send indications provide local communication status.

Confirm Style S1, cable type, clamp filters, CPU-L/CPU-R assignment and enable/disable position from the project drawings. Do not substitute a Vnet/IP interface for this legacy adapter without an engineered migration.

Availability is reviewed against the exact AIP532 S1 order identity and requested supply condition; manufacturer lifecycle status: Active / Available from OEM.
Verified resources for Yokogawa AIP532 S1:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • The Bus 1 and Bus 2 arrangement supports the redundant control-network architecture used by the related CENTUM field-control hardware.
  • The adapter is used when maintaining or renewing a legacy CENTUM cabinet that retains V net 10BASE-5/10BASE-2 cabling and the associated control-unit connection.
  • Requires exact Style S1 and V net media matching before replacement.
  • Connects legacy CENTUM CS or CENTUM VP equipment over V net.
  • Provides dedicated CPU-L and CPU-R processor-side connections.
  • Adapts redundant V net cabling to the control-station bus interface.
  • Local indicators show receive and left/right transmission activity.
  • Separate paths maintain communication across Bus 1 and Bus 2.
  • Cable type, clamp filters, and enable position must match project drawings.
  • Serves as the control-bus adapter for documented V net interconnections.
  • Supports 10BASE-5 and 10BASE-2 V net cabling examples.
  • Maintains separate Bus 1 and Bus 2 signal paths.
Description
Yokogawa AIP532 S1 AIP532 adapts the documented V net cabling to the control-station bus interface, providing separate paths for redundant bus communication and processor-side connection. Incoming and outgoing network signals are routed through the adapter between V net media and the paired CPU-L/CPU-R interfaces. Receive and left/right send indications provide local communication status.

The Bus 1 and Bus 2 arrangement supports the redundant control-network architecture used by the related CENTUM field-control hardware. The adapter is used when maintaining or renewing a legacy CENTUM cabinet that retains V net 10BASE-5/10BASE-2 cabling and the associated control-unit connection.

Confirm Style S1, cable type, clamp filters, CPU-L/CPU-R assignment and enable/disable position from the project drawings. Do not substitute a Vnet/IP interface for this legacy adapter without an engineered migration.
Alternative Names
AIP532 S1 AIP532S1 AIP532-S1 Yokogawa AIP532 S1 Yokogawa AIP532S1 Yokogawa CENTUM Control Bus Adapter
Technical notes
When refitting Yokogawa AIP532 S1, reproduce the V net cable type, clamp filters, CPU-L/CPU-R assignments, and ENBL/DSBL position; a Vnet/IP interface is not a drop-in replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does redundant V net communication require Yokogawa AIP532 S1?
AIP532 adapts the documented V net cabling to the control-station bus interface, providing separate paths for redundant bus communication and processor-side connection.
Which legacy CENTUM V net architecture supports Yokogawa AIP532 S1?
The manufacturer data specifies System as Yokogawa CENTUM CS / CENTUM VP legacy V net architecture; the installed arrangement must match that exact value.
How are redundant bus paths routed by Yokogawa AIP532 S1?
Incoming and outgoing network signals are routed through the adapter between V net media and the paired CPU-L/CPU-R interfaces. Receive and left/right send indications provide local communication status.
What CPU and cable assignments must match Yokogawa AIP532 S1?
Confirm Style S1, cable type, clamp filters, CPU-L/CPU-R assignment and enable/disable position from the project drawings. Do not substitute a Vnet/IP interface for this legacy adapter without an engineered migration.
Which present-day check is needed before sourcing Yokogawa AIP532 S1?
The page records Active / Available from OEM. Apter Power reviews the exact order identity and condition without presenting this as an OEM delivery promise.
What V net path information should accompany a Yokogawa AIP532 S1 quote?
Submit the complete nameplate, Bus paths (Bus 1 and Bus 2), installed system evidence, condition, quantity and destination so the document and quotation match AIP532 S1.
