    Apter Power supplies factory-fresh Yokogawa SDV531-S23 S1 functional modules, providing process engineers with a dependable, current-generation hardware source to maintain reliable field switch monitoring and uninterrupted plant safety interlocks.

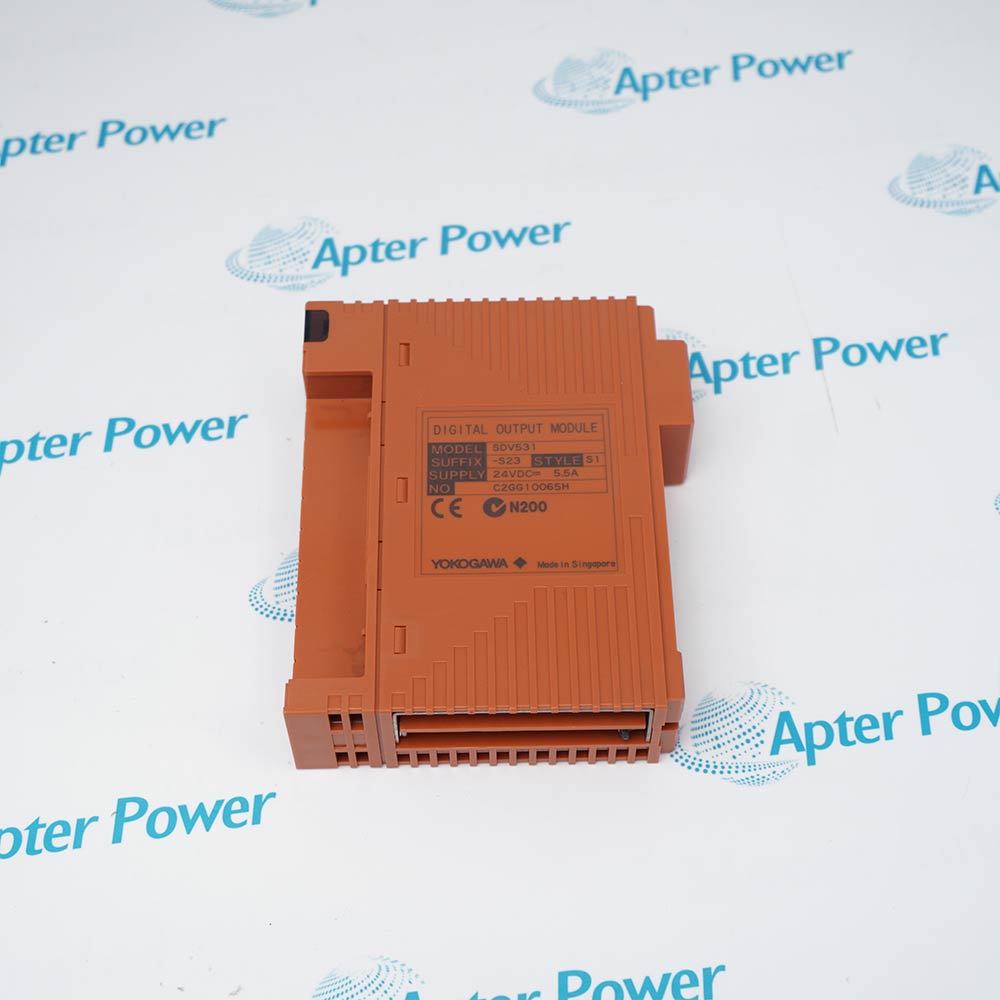

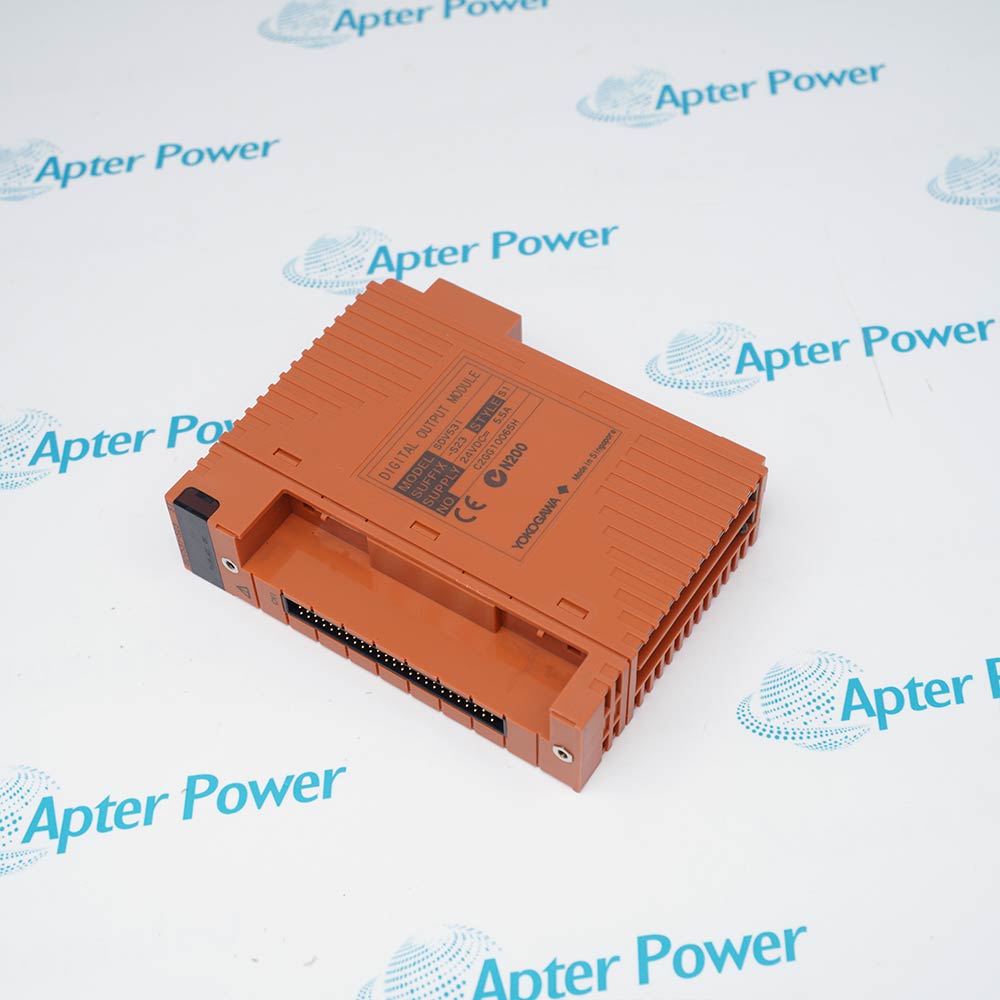

SDV531-S23 S1

/ 4.9
1001 reviews | Need a Specific Revision?
The YOKOGAWA SDV531-S23 S1 is a 8-channel isolated digital output module engineered for ProSafe-RS safety instrumented systems to deliver secure 24 V DC field actuation.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SDV531-S23 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDV531-S23 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    SDV531-S23 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Digital Output Module
  • Stock:
    2
  • Number of Channels:
    8 channels, module isolated
  • Rated Output Voltage:
    24 V DC Internal Current Consumption (5 V DC)Max. 280 mA
  • Internal Current Consumption (24 V DC):
    Max. 140 mA
  • Maximum Load Current:
    Up to 0.6 A per channel
  • Diagnostic Pulse Width / Interval:
    Approx. 200 µs / Approx. 0.5 seconds
  • Operating Temperature Range:
    -20°C to +70°C (Varies by load current and mounting configuration)
  • Storage Temperature Range:
    -40°C to +85°C
  • Relative Humidity:
    5% to 95% RH (Non-condensing)
  • Weight:
    0.22 kg
  • Estimated shipping dimensions:
    3.2x10.6x13cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Monitoring & Control Operating Environment

Features:

  • Advanced Line Diagnostics with Online Pulse Testing
  • High-Density Adaptive Redundancy Configuration
  • Strict Voltage-Drop Mitigation & Multi-Option Interfacing
The YOKOGAWA SDV531-S23 S1 incorporates an intelligent online fault detection mechanism that generates precise 200 µs diagnostic pulses every 0.5 seconds. This allows the safety system to continuously scan the field loops for open-circuit or short-circuit anomalies in real-time, drastically boosting loop integrity without interfering with active 24VDC actuator states.

Engineered for high-availability process industries, the YOKOGAWA SDV531-S23 S1 supports hot-swappable dual-redundant deployment. When dual-configured on safety node units like the SNB10D, the modules split power coefficient loads dynamically, guaranteeing uninterrupted safety control actions even during a sudden hardware module or sub-component failure.

To guarantee precise voltage delivery to field elements, the YOKOGAWA SDV531-S23 S1 complies with strict mathematical length-to-current ratio formulas. Accompanied by multiple dedicated connection interfaces—such as pressure clamp terminal boards (STB4S/D) and MIL cable systems—it optimizes signal conditioning and minimizes line attenuation over long distances.

The SDV531-S23 S1 YOKOGAWA Digital Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
YOKOGAWA SDV531-S23 S1 Digital Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
YOKOGAWA SDV531-S23 S1 Digital Output Module

General

  • Manufacturer YOKOGAWA
  • Model SDV531-S23 S1
  • Condition New Original ready stock
  • Product Family SDV531-L63 S4,SDV531-L33 S4,SDV531-S23 S4
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Emergency Shutdown Systems (ESD): Acts as the final safety execution layer to de-energize critical emergency isolation valves (SVs) during process upsets.
  • Fire and Gas (F&G) Systems: Drives high-power visual beacons, audible sirens, and deluge valves to ensure immediate hazardous area annunciation.
  • Critical Interlocking: Manages high-integrity safety interlocks for boilers, furnaces, and high-pressure reactors to prevent catastrophic equipment failures.
  • Burner Management Systems (BMS): Safely regulates fuel-trip valves in industrial combustion processes, ensuring rapid fuel cutoff under fault conditions.
  • Line Fault Monitoring: Real-time supervision of field wiring paths to instantly identify open circuits and short circuits before they compromise plant safety.
  • Dynamic Pulse Testing: Utilizes ultra-fast, non-disruptive 200 µs cyclical pulse testing to verify internal electronic switch readiness without dropping field loads.
  • Redundancy Status Tracking: Continuously cross-checks the health status between redundant pairs, enabling automated seamless failover if an anomaly is detected.
  • System LED Diagnostics: Features localized front-panel status indicators showing channel ON/OFF states, module faults, and communication integrity for rapid field troubleshooting.
  • Wide Thermal Tolerance: Capable of operating in ambient field conditions ranging from -20°C to +70°C under managed thermal loading.
  • Conformal Coating Resilience: Features ISA S71.04 Class G3 compliance to prevent circuit board traces from corroding in humid or sulfur-rich chemical environments.
  • Vibration and Shock Resistance: Certified to withstand mechanical vibrations common to heavy-industrial compressor stations and offshore platforms.
  • High-Altitude & Humidity Protection: Designed to operate efficiently in relative non-condensing humidity up to 95% and within standard industrial atmospheric pressure bounds.
Description
The YOKOGAWA SDV531-S23 S1 is purpose-built to comply with rigorous international safety standards like IEC 61508/IEC 61511. Operating within the ProSafe-RS architecture, this module ensures that critical safety loops in hazardous process environments—such as oil refineries, petrochemical plants, and offshore platforms—execute their fail-safe states without hesitation when demanded.

Equipped with embedded, high-frequency pulse testing, the YOKOGAWA SDV531-S23 S1 continuously monitors field loops for open and short circuits without disrupting connected loads. By executing periodic 200 µs diagnostic pulses, it provides maintenance teams with real-time fault visibility, drastically reducing the Mean Time to Repair (MTTR) and preventing spurious trips.

Designed for versatile industrial deployment, the YOKOGAWA SDV531-S23 S1 supports both single and dual-redundant configurations to achieve fault-tolerant operation. It seamlessly integrates into safety control units (SSC60/SSC50) and safety node units (SNB10D), offering multi-tiered signal connection options via pressure clamp terminals, dedicated cables, or MIL connectors.

Built to withstand severe operational conditions, specific variants of the YOKOGAWA SDV531-S23 S1 family support G3 harsh environment compatibility and temperature-adaptability. This ensures structural and electronic resilience against corrosive gases and extreme temperature swings, guaranteeing a prolonged lifecycle in challenging field-mounted marshalling cabinets.
Alternative Names
SDV531-S23 SDV531 S23 S1 SDV53I-S23 SI SDV144-S13 S2 SDV541-S53 S3 SDV531-L33 S4 SDV531-L63 S4 SDV531-S23 S4
Technical notes
The YOKOGAWA SDV531-S23 S1 utilizes a periodic pulse test (approx. 0.5s interval, 200 µs width) for field wiring diagnostics which requires careful load impedance matching to prevent unexpected load chattering. Furthermore, system engineers must strictly adhere to the module's temperature-dependent coefficient and cable length restrictions to eliminate excessive voltage drops when operating under maximum current loads.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the wiring interface options for integrating the YOKOGAWA SDV531-S23 S1 into a marshalling cabinet?
The YOKOGAWA SDV531-S23 S1 offers three distinct interface options depending on your architecture. For direct field wiring, you can use Pressure Clamp Terminal Blocks (STB4S for single, STB4D for redundant setups). For centralized marshalling, it connects to SBD3D terminal boards via AKB331 or AKB651 signal cables, or utilizes standardized MIL connector cables to streamline high-density cabinet integration.
How do the diagnostic pulses of the YOKOGAWA SDV531-S23 S1 affect sensitive downstream field components?
The YOKOGAWA SDV531-S23 S1 conducts field wiring diagnostics by applying micro-second ON/OFF pulses (around 200 µs width) at 0.5-second intervals. While standard interposing relays and solenoid valves are too slow to react to this micro-pulse, ultra-sensitive electronic loads or fast-acting solid-state relays might chatter; in such integration scenarios, the diagnostic pulse feature can be calibrated or bypassed via the software configuration.
What firmware or software environment is required to configure and monitor the YOKOGAWA SDV531-S23 S1?
The YOKOGAWA SDV531-S23 S1 is fully integrated into the ProSafe-RS Safety Engineering Tool. Engineers define its parameters, activate dual-redundancy mapping, and extract diagnostic logs directly through the Engineering Station (ENG). It communicates seamlessly over the safety control network (Vnet/IP) when seated in compatible SSC60, SSC50, or SNB10D base units.
Which global safety certifications and standards does the YOKOGAWA SDV531-S23 S1 comply with for hazardous areas?
The YOKOGAWA SDV531-S23 S1 is certified as a core component of the ProSafe-RS platform, complying with IEC 61508 and IEC 61511 standards for Functional Safety up to SIL3. Additionally, its hardware architecture meets ATEX and IECEx zone requirements for explosive atmospheres, and incorporates ISA S71.04 Class G3 conformal coating to resist corrosive chemical environments.
What are the installation restrictions when configuring the YOKOGAWA SDV531-S23 S1 for dual-redundant operation?
When installing the YOKOGAWA SDV531-S23 S1 for redundancy, the pair must be seated in designated adjacent slots of a compatible safety control or node unit (such as the SNB10D). The engineering team must also apply specific "Coefficient A and B" multiplier math provided in the manual to accurately assess the total node power consumption and thermal dissipation inside the enclosure.
