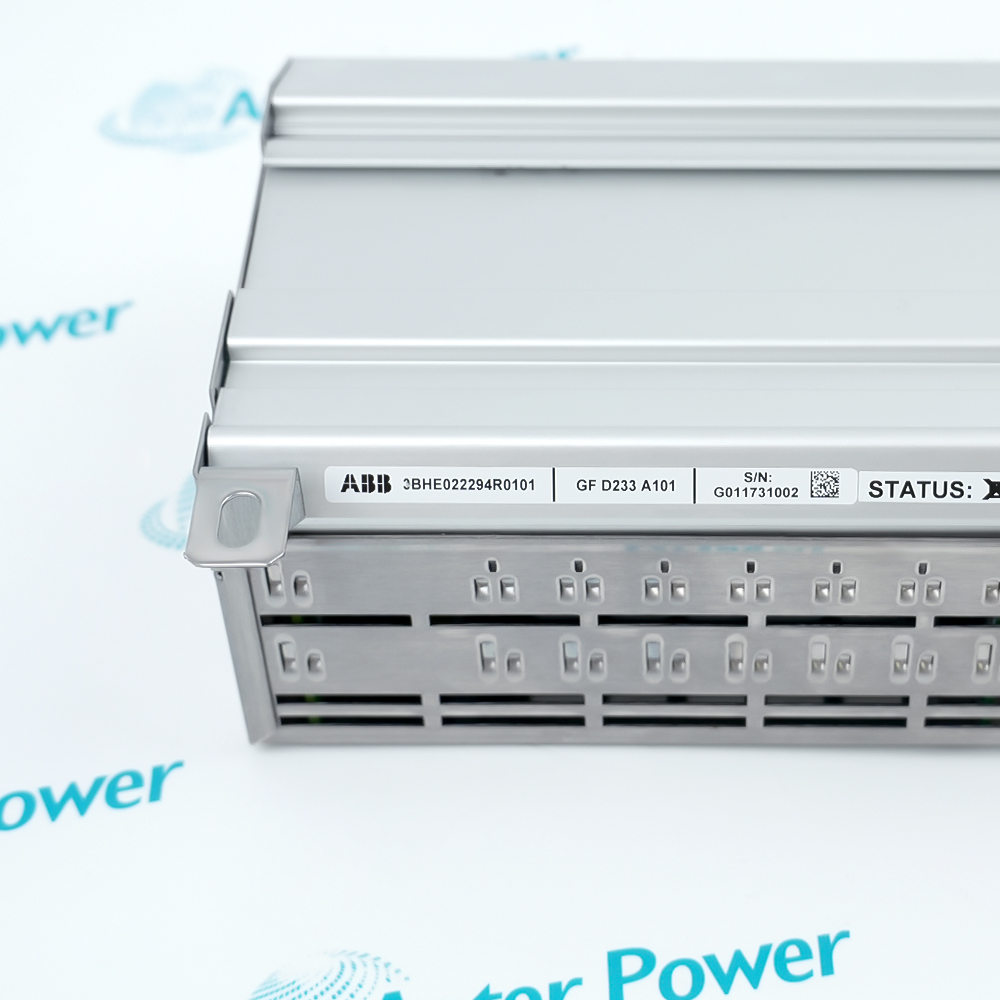

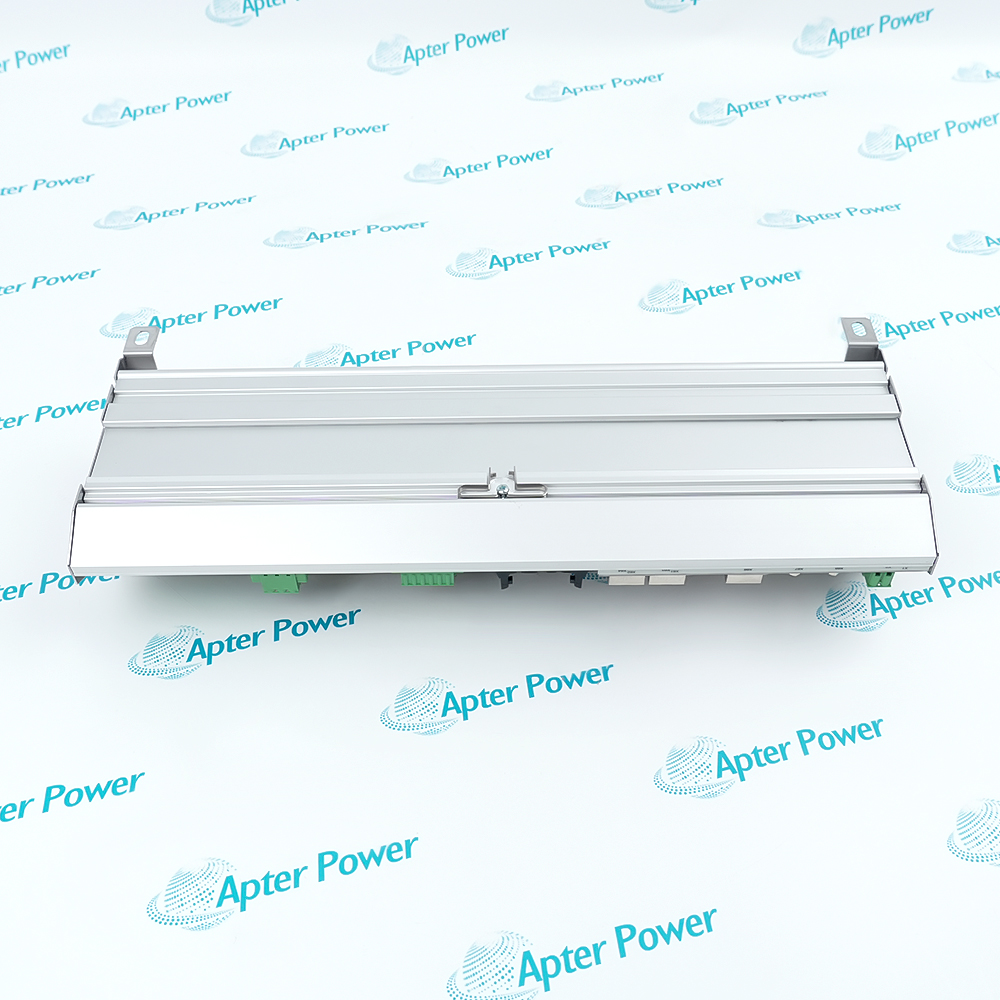

ABB 3BHE022294R0101 GFD233A is an AC 800PEC control module identified on the physical unit as GF D233 A101 for high-performance industrial control-system installations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 3BHE022294R0101 GFD233A
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3BHE022294R0101 GFD233A

  • Manufacturer:
    ABB
  • Part Number:
    3BHE022294R0101 GFD233A
  • Product Family:
    ABB AC 800 PEC/PEC 80
  • Product Type:
    AC 800PEC Control Module
  • Stock:
    1
  • Nameplate Type Designation:
    GF D233 A101
  • Mounting Arrangement:
    DIN-rail module enclosure
  • Visible Interface Hardware:
    Optical-module positions, communication ports, D-sub connectors, and removable terminal blocks
  • Visible Status Indicators:
    R, P, and A
  • Dimensions:
    37.5 × 14 × 7.5 cm
  • Hardware Architecture:
    Modular and configurable AC 800PEC hardware architecture.
  • Weight:
    1.4 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Identification Replacement Installation Application
  • Identified by the physical nameplate as ABB 3BHE022294R0101 and GF D233 A101.
  • Belongs to ABB's AC 800PEC high-performance industrial control platform.
  • Provides a configurable module enclosure with communication, optical, and field-interface hardware.

3BHE022294R0101 GFD233A is an ABB AC 800PEC control module with the full physical type marking GF D233 A101.

The AC 800PEC platform combines high-speed control with process-control functions and supports fast communication and I/O for demanding industrial systems.

Before replacement, compare the complete nameplate, hardware population, software configuration, connectors, optical interfaces, mounting arrangement, and project documentation.

Availability, condition, price, and shipping time for 3BHE022294R0101 GFD233A are confirmed during quotation.

ABB 3BHE022294R0101 GFD233A Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use 3BHE022294R0101 as the complete ABB product ID.
  • Use GF D233 A101 as the complete type designation visible on the nameplate.
  • Do not approve a substitute from the GFD233 family solely by its abbreviated family name.
  • Back up the installed software, parameters, and project configuration before removal.
  • Photograph every connector, optical fiber, cable label, terminal plug, and module position.
  • Match the nameplate identification code and hardware/software configuration before energizing.
  • Use qualified personnel and the project-specific ABB service procedure.
  • Restore cables and optical fibers to their documented ports and orientations.
  • Check status indications, communication, I/O response, and the controlled function before return to service.
  • High-speed power-electronics control systems built on the AC 800PEC platform.
  • Industrial and utility control installations requiring fast communication and I/O.
  • Traction, marine, or other engineered AC 800PEC applications when the project specifies GF D233 A101.
Description
3BHE022294R0101 GFD233A is an ABB AC 800PEC control module identified on the product label as GF D233 A101.

The module belongs to ABB's high-performance AC 800PEC platform and provides the physical control, communication, and I/O interface hardware required by its configured industrial application.

Before replacement, match the complete product ID and GF D233 A101 designation, installed hardware and software configuration, connector allocation, optical interfaces, mounting arrangement, and project documentation.
Alternative Names
3BHE022294R0101 GFD233A GF D233 A101 ABB 3BHE022294R0101 ABB GF D233 A101 AC 800PEC GF D233
Technical notes
3BHE022294R0101 GFD233A selection requires matching the GF D233 A101 nameplate, enclosure mounting, connector layout, and optical-module population; differing hardware arrangements may not fit the installed AC 800PEC configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a buyer confirm that ABB 3BHE022294R0101 GFD233A matches the installed AC 800PEC module?
Match the complete 3BHE022294R0101 product ID, GF D233 A101 nameplate designation, front-panel layout, optical-module positions, connector allocation, mounting arrangement, and project hardware list.
Can ABB 3BHE022294R0101 GFD233A be replaced by another GFD233 unit with a different suffix?
Do not assume compatibility from the GFD233 family name alone. The full type suffix, hardware population, software configuration, I/O allocation, and application documentation must match or receive ABB project approval.
Does ABB 3BHE022294R0101 GFD233A include the cables, optical components, and terminal plugs needed for installation?
Treat those items as separate unless the quotation explicitly lists them. Confirm the supplied connector plugs, optical modules, fibers, communication cables, mounting hardware, and configuration files before ordering.
What information should be preserved before replacing ABB 3BHE022294R0101 GFD233A?
Record the complete nameplate, installed position, every cable and fiber label, connector orientation, status indications, hardware population, software version, parameters, and system backup.
Can ABB 3BHE022294R0101 GFD233A be installed as a plug-and-play replacement?
Not automatically. ABB's service guidance requires matching the identification code, hardware configuration, and software configuration, followed by controlled reconnection and functional checks.
What should be checked if ABB 3BHE022294R0101 GFD233A powers up but communication is unavailable?
Check the supply and status indicators, port and fiber mapping, connector seating, fiber direction and condition, network settings, installed software, and the approved project configuration before changing hardware.
How can a customer minimize system downtime when replacing ABB 3BHE022294R0101 GFD233A?
Prepare a verified software and parameter backup, label every cable and optical fiber, confirm the replacement unit's full hardware configuration, arrange qualified commissioning support, and establish a tested rollback plan before the shutdown begins.
