DSQC 352A 3HNE00009-1

/ 4.9
1001 reviews | Need a Specific Revision?

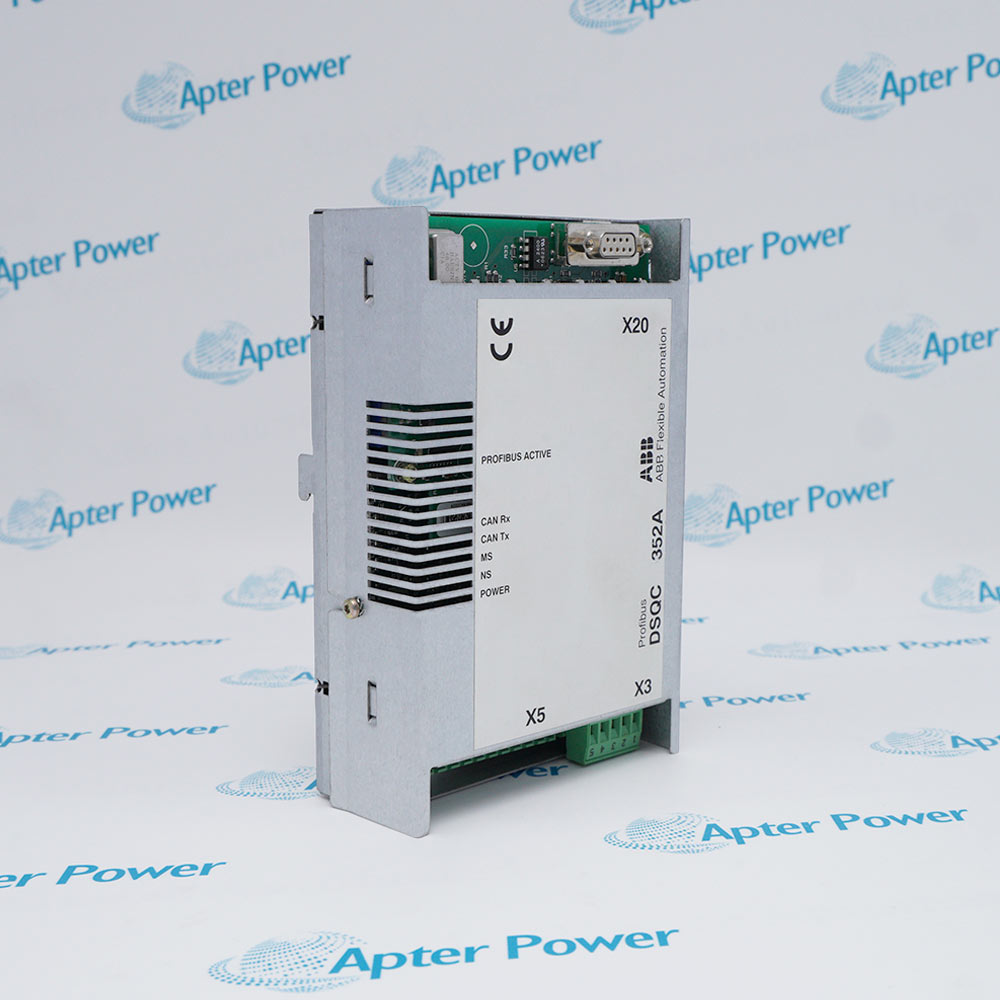

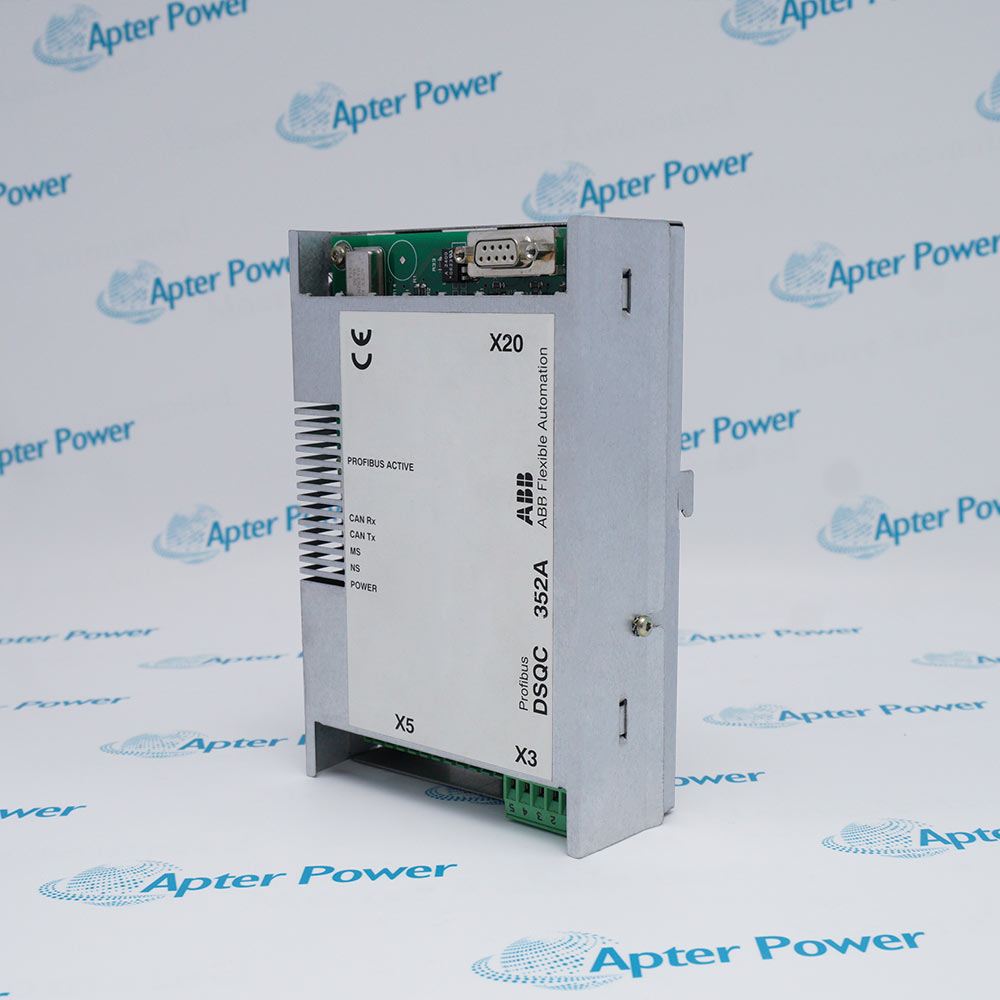

ABB DSQC 352A 3HNE00009-1 is a DeviceNet-to-PROFIBUS-DP gateway board that exposes PROFIBUS data as robot-controller I/O.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for DSQC 352A 3HNE00009-1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSQC 352A 3HNE00009-1

  • Manufacturer:
    ABB
  • Part Number:
    DSQC 352A 3HNE00009-1
  • Product Family:
    ABB Robots
  • Product Type:
    DeviceNet/PROFIBUS-DP Gateway Board
  • Stock:
    1
  • Documented mounting context:
    Control module or external I/O unit
  • Multiple-board support:
    Yes
  • Robot-system data access:
    PROFIBUS data available as general I/O
  • DeviceNet connector:
    X5
  • PROFIBUS-DP connector:
    X20
  • Backup supply connector:
    X3
  • DeviceNet communication types:
    Polled and Change-Of-State
  • Change-Of-State acknowledgement suppression:
    Supported
  • DeviceNet data rate:
    500 kbps
  • PROFIBUS external supply:
    Not required; board supply is provided through X5
  • Configurable PROFIBUS input size:
    0 to 8 words, maximum 128 bits
  • Configurable PROFIBUS output size:
    0 to 8 words, maximum 128 bits
  • Configuration reset requirement:
    Reset or power cycle after Fieldbus command changes
  • PROFIBUS configuration file:
    GSD file supplied with RobotWare documentation media
  • Dimensions:
    17 × 11.6 × 5.3 cm
  • Weight:
    0.58 kg
  • Tariff Code:
    8517629900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Network Gateway I/O Mapping Commissioning Application
  • Gateway between DeviceNet and PROFIBUS-DP networks.
  • PROFIBUS data is available to the robot system as general I/O.
  • The board can be fitted in the controller or an external I/O unit.

DSQC 352A 3HNE00009-1 is the ABB fieldbus gateway that connects DeviceNet with PROFIBUS-DP.

Its configurable input and output areas each support up to eight words, while X3, X5 and X20 provide the documented backup-supply, DeviceNet and PROFIBUS connections.

Commissioning requires matched DeviceNet and PROFIBUS settings, the correct GSD data, verified termination and a reset or power cycle after Fieldbus configuration changes.

Availability, condition, price, and shipping time for DSQC 352A 3HNE00009-1 are confirmed during quotation.

ABB DSQC 352A 3HNE00009-1 DeviceNet/PROFIBUS-DP Gateway Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • DeviceNet carries the robot-side fieldbus connection through X5.
  • PROFIBUS-DP connects through X20 without a separate board supply.
  • PROFIBUS signals are presented to the controller as general I/O.
  • Input data is configurable from zero to eight words.
  • Output data is configurable from zero to eight words.
  • PLC and robot projects must use identical word allocations.
  • Load the correct GSD definition into the PROFIBUS configuration.
  • Verify DeviceNet address, data rate and bus termination.
  • Reset or power-cycle the gateway after Fieldbus setting changes.
  • DeviceNet-to-PROFIBUS-DP data exchange in ABB robot systems
  • PROFIBUS process data integration as robot-controller general I/O
  • External I/O expansion using multiple documented gateway boards
Description
DSQC 352A 3HNE00009-1 is the ABB gateway board documented between a DeviceNet network and a PROFIBUS-DP fieldbus.

The board can reside in the control module or an external I/O unit, supports multiple-board configurations, and makes PROFIBUS signals accessible to the robot system as general I/O.

Before commissioning, verify X3 backup supply, X5 DeviceNet, X20 PROFIBUS, bus termination, DeviceNet addressing, PROFIBUS configuration, GSD data and the configured input/output word allocation.
Alternative Names
DSQC 352A DSQC352A 3HNE00009-1 3HNE 00009-1 ABB DSQC 352A DSQC 352A 3HNE00009-1 ABB DSQC 352A 3HNE00009-1
Technical notes
ABB DSQC 352A 3HNE00009-1 bridges DeviceNet and PROFIBUS-DP; preserve X3, X5 and X20 wiring, bus settings, GSD configuration and I/O word mapping during replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB DSQC 352A 3HNE00009-1 be installed without updating both the robot and PROFIBUS configurations?
No. Its DeviceNet and PROFIBUS-DP settings, station identity and I/O mapping must agree with the robot controller and PLC projects before communication can operate correctly.
Can ABB DSQC 352A 3HNE00009-1 be moved from the control module to an external I/O unit without other changes?
Not automatically. ABB permits both locations, but the backup supply, DeviceNet connection, PROFIBUS cable, shielding, termination and cabinet arrangement must match the selected installation.
Which connectors must be checked on ABB DSQC 352A 3HNE00009-1?
Verify X3 for backup supply, X5 for DeviceNet and X20 for PROFIBUS-DP, together with connector orientation, shielding and bus termination.
Why can ABB DSQC 352A 3HNE00009-1 appear online while its I/O data remains incorrect?
The gateway can communicate while the configured input and output word counts or PLC mapping remain mismatched. Compare the robot Fieldbus settings, PROFIBUS configuration and GSD-based mapping at both ends.
What must be checked when ABB DSQC 352A 3HNE00009-1 is connected to a different DeviceNet scanner?
Confirm the scanner uses the required polled or Change-Of-State behavior, including the selected acknowledgement setting, and verify the DeviceNet address, data rate and mapped I/O size before commissioning.
Why might ABB DSQC 352A 3HNE00009-1 require a restart after configuration?
ABB requires a reset or power cycle after changing Fieldbus configuration parameters so the gateway restarts with the new DeviceNet and PROFIBUS settings.
What should be checked when replacing ABB DSQC 352A 3HNE00009-1?
Confirm the full article number, board location, DeviceNet address, PROFIBUS station configuration, GSD file, I/O word mapping, termination and saved robot/PLC projects before commissioning.
