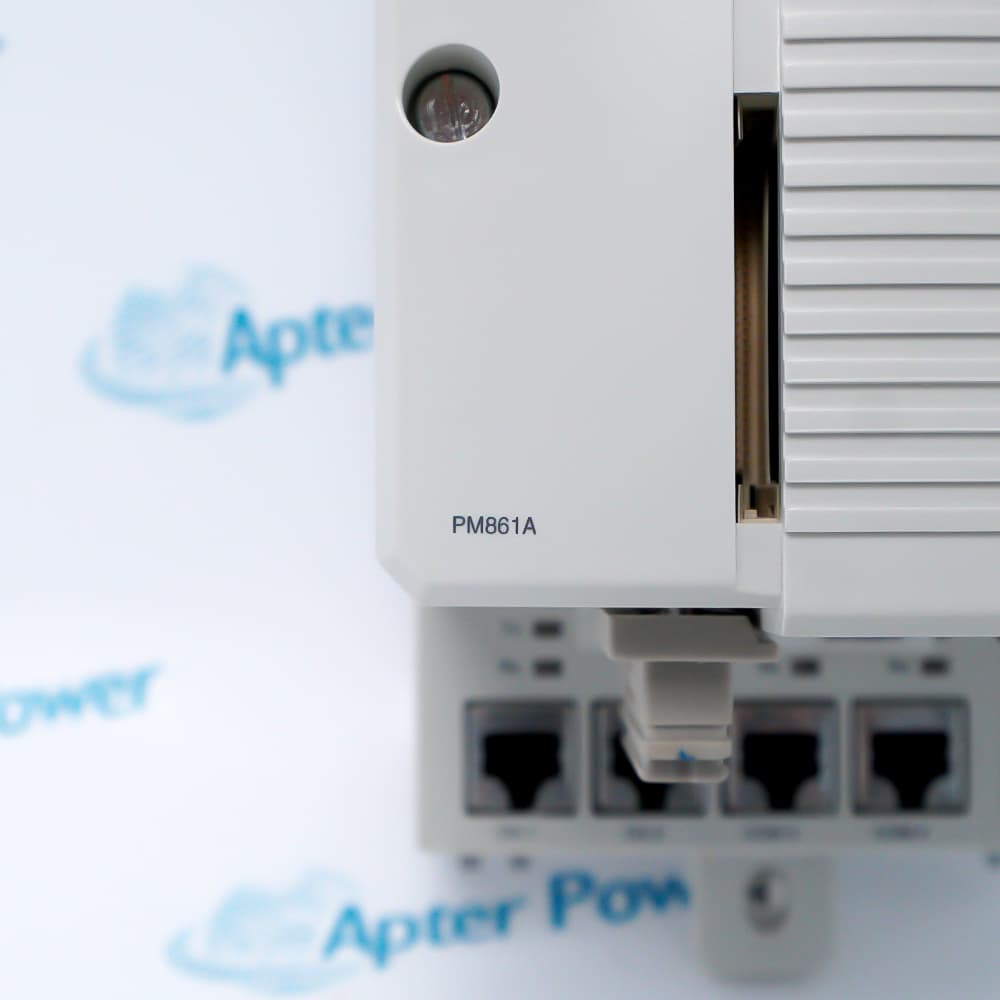

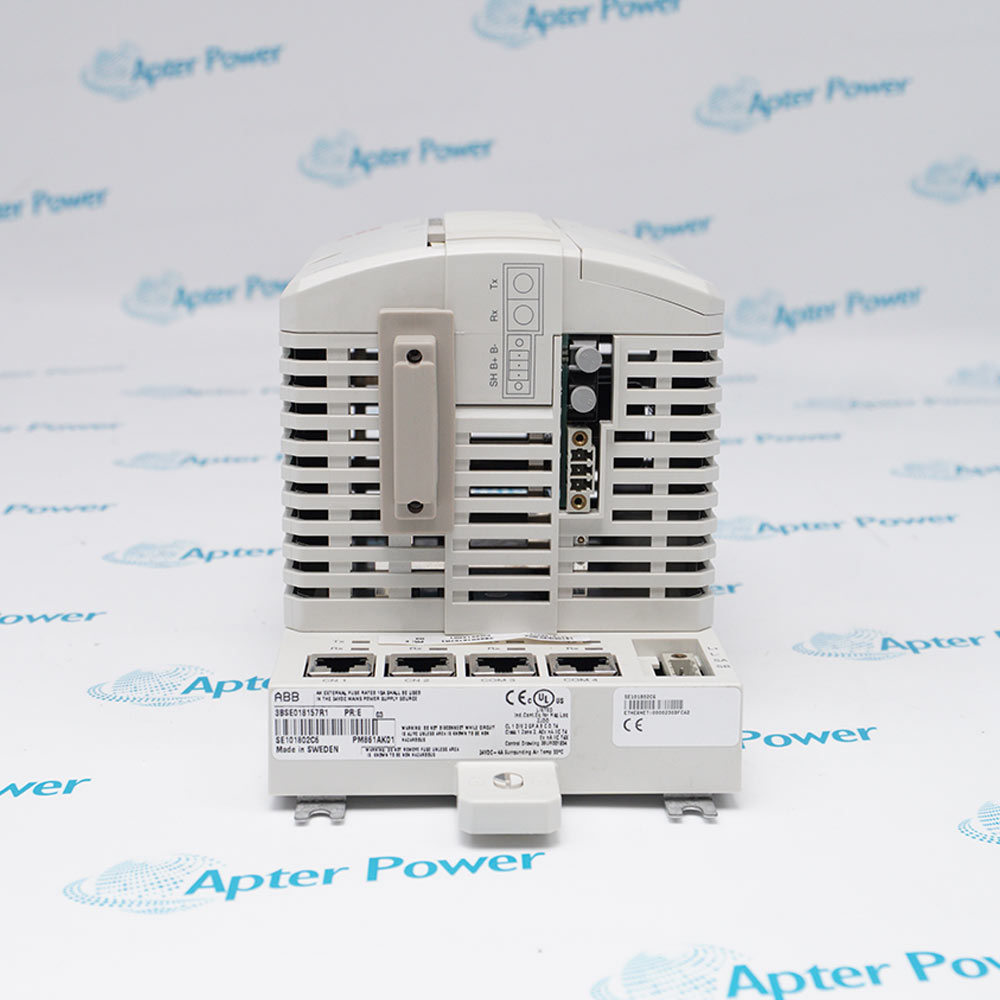

ABB PM861AK01 3BSE018157R1 is the non-redundant K01 package for the classic PM861A AC 800M controller.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for PM861AK01 3BSE018157R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PM861AK01 3BSE018157R1

  • Manufacturer:
    ABB
  • Part Number:
    PM861AK01 3BSE018157R1
  • Product Family:
    ABB Advant AC800M
  • Product Type:
    Processor Unit Kit
  • Stock:
    1
  • Controller version:
    PM861A
  • Package redundancy:
    No
  • High Integrity:
    No
  • Clock frequency:
    48 MHz
  • Performance for 1000 Boolean operations:
    0.23 ms
  • RAM:
    16 MB
  • Application RAM:
    7.155 MB
  • Flash memory:
    Yes
  • Processor type:
    MPC860
  • Redundant-configuration switch-over:
    Maximum 10 ms
  • Minimum application cycle:
    1 ms
  • Power supply:
    24 V DC (19.2-30 V)
  • Power consumption at 24 V:
    250 mA typical; 430 mA maximum
  • Typical power dissipation:
    6.0 W
  • CEX-Bus communication modules:
    Up to 12
  • Built-in Ethernet channels:
    2
  • Built-in RS-232C channels:
    2
  • Operating temperature:
    0 to +55 °C
  • Storage temperature:
    -40 to +70 °C
  • Protection rating:
    IP20
  • Weight:
    1.2 kg
  • Estimated shipping dimensions:
    11.9x18.6x13.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Redundancy Context Classic-System Records Hardware Tree Review

Features:

  • Classic controller support: The listing supports maintenance of installed PM861A applications.
  • K01 package clarity: One controller kit is distinguished from redundant package planning.
  • System-record matching: Partner, CEX, ModuleBus, and software evidence guide procurement.
PM861AK01 remains relevant to plants maintaining earlier AC 800M controller generations.

Where the installed project is redundant, the spare review must include the partner CPU and redundancy-link hardware.

Preserving a validated project archive and hardware tree reduces restoration risk during a controller exchange.

Availability is subject to Apter Power's current inventory and sourcing confirmation.
PM861AK01 3BSE018157R1 Manuals and Resources Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
PM861AK01 3BSE018157R1 Processor Unit Kit Specs

General

  • Manufacturer ABB
  • Model PM861AK01 3BSE018157R1
  • Condition New Original ready stock
  • Product Family AC 800M Processor Units
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • K01 identity: This order supplies one PM861A controller kit.
  • Partner CPU: Record the installed redundant partner article and revision.
  • RCU-Link: Document terminators and cables in the existing design.
  • Pair validation: Follow ABB-supported rules before introducing a replacement unit.
  • Engineering release: Keep the exact tool and system version.
  • Firmware: Capture both controller firmware levels when paired.
  • Project archive: Validate the latest backup before shutdown.
  • Change log: Review historic controller and library upgrades.
  • CEX layout: List communication interfaces and positions.
  • ModuleBus branches: Map electrical and optical S800 I/O connections.
  • Base hardware: Compare CPU bases, terminators, and power wiring.
  • Test scope: Define communication, I/O, and redundancy acceptance steps.
Description
The ABB PM861AK01 3BSE018157R1 is the K01 processor-unit package for the PM861A generation of ABB AC 800M controllers.

The ABB PM861AK01 3BSE018157R1 supplies one controller kit for standard operation while the PM861A platform can be engineered into a separate redundant configuration.

Before ordering ABB PM861AK01 3BSE018157R1, verify the K01 contents, partner-controller requirements, engineering software, firmware, CEX hardware, ModuleBus topology, and controller cabinet labels.
Alternative Names
PM861AK01 3BSE018157R1 ABB PM861AK01 3BSE018157R1 PM861AK01 3BSE018157R1 PM861AK01-3BSE018157R1 PM861A K01 PM861AK013BSE018157R1 AC 800M PM861A
Technical notes
The K01 package is a single-controller order even though PM861A supports redundant-system designs. Preserve partner and RCU-Link records where applicable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB PM861AK01 3BSE018157R1 be introduced into a redundant pair with any PM861A unit?
Do not assume that. Compare full articles, hardware revisions, firmware, base units, RCU-Link hardware, ABB compatibility guidance, and the approved controller procedure.
What should engineers do if ABB PM861AK01 3BSE018157R1 repeatedly changes controller role?
Preserve events and check partner health, RCU-Link cabling and termination, firmware alignment, power quality, base connections, and redundancy diagnostics.
How can a plant reduce project-restore risk when replacing ABB PM861AK01 3BSE018157R1?
Validate the current archive in the correct engineering release, record firmware and hardware tree, secure rollback hardware, and rehearse the approved restore sequence.
Why is ABB PM861AK01 3BSE018157R1 not automatically interchangeable with PM864A or PM866A?
Controller generations differ in capacity and may require software, firmware, hardware-tree, base, redundancy, and application changes. Review migration evidence for the complete system.
What evidence should accompany an ABB PM861AK01 3BSE018157R1 spare for a redundant site?
Include CPU and base labels, partner identity, firmware, RCU-Link parts, controller roles, CEX layout, ModuleBus map, and the validated project archive.
How should intermittent CEX communication faults involving ABB PM861AK01 3BSE018157R1 be investigated?
Correlate controller events with interface diagnostics, base connections, power, firmware, module position, cabling, and recent project changes before exchanging the CPU.
What commissioning sign-off is useful after installing ABB PM861AK01 3BSE018157R1?
Confirm project and firmware identity, controller roles where applicable, CEX links, all I/O branches, alarms, process functions, and rollback closure.
