    Apter Power supplies original ABB S800 I/O communication modules to ensure reliable PROFIBUS network integration, seamless process data exchange, and maximum operational uptime.

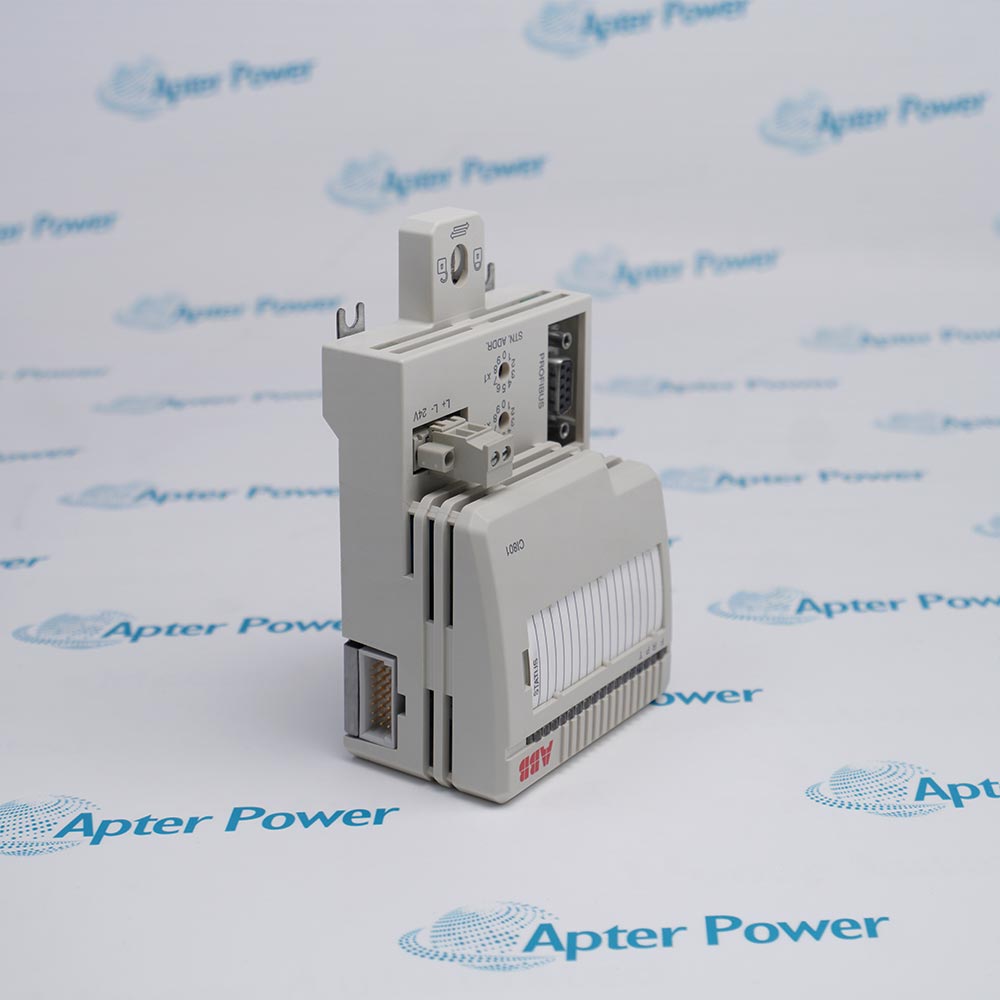

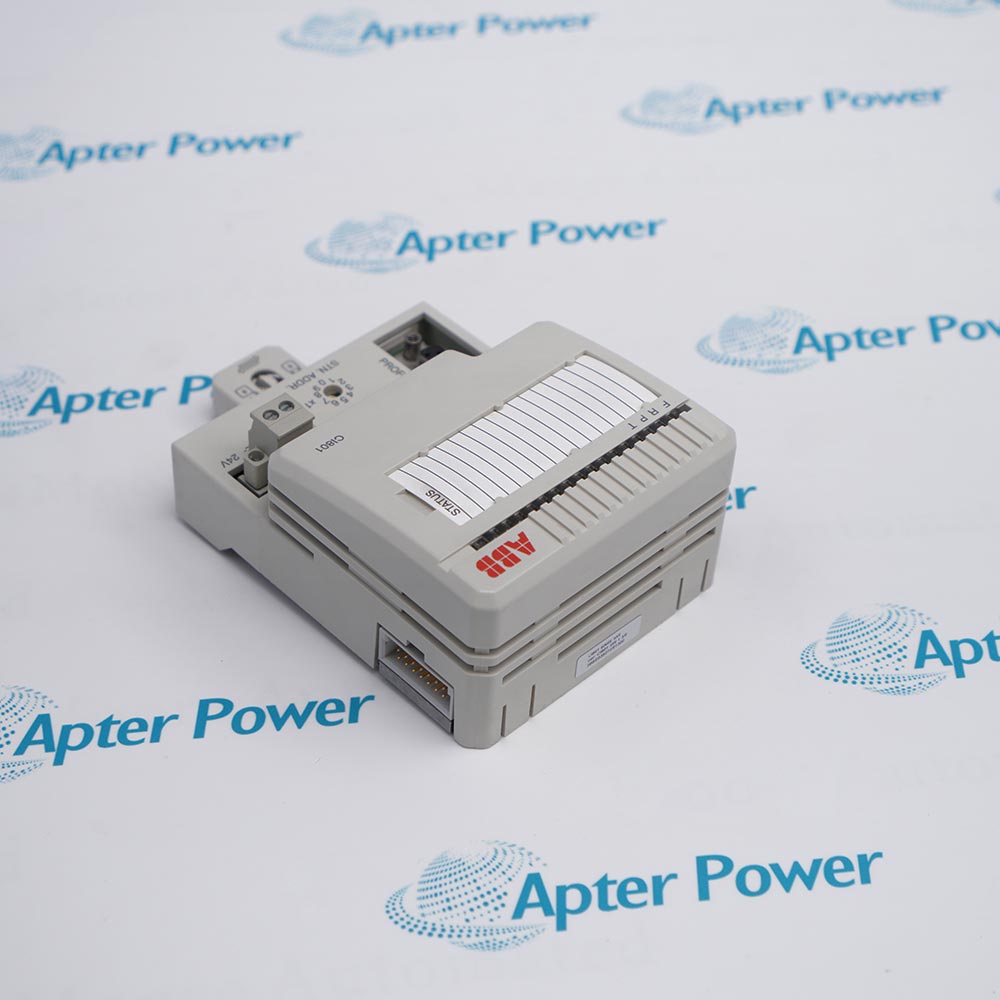

CI801 3BSE022366R1

/ 4.9
1001 reviews | Need a Specific Revision?
The CI801 3BSE022366R1 is a machinery condition monitoring controller designed to provide precise protection and reliable data acquisition for industrial rotating equipment.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for CI801 3BSE022366R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CI801 3BSE022366R1

  • Manufacturer:
    ABB
  • Part Number:
    CI801 3BSE022366R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    PROFIBUS FCI S800 Interface Module
  • Stock:
    1
  • 24 V consumption typ:
    140 mA
  • Marine certificates:
    ABS, BV, DNV-GL, LR
  • Temperature, Operating:
    0 to +55 °C (+32 to +131 °F)
  • Temperature, Storage:
    -40 to +70 °C (-40 to +158 °F)
  • Relative humidity:
    5 to 95 %, non-condensing
  • Protocol Support:
    PROFIBUS DP-V1 (slave mode)​
  • Communication Interface:
    RS-485 (PROFIBUS DP standard compliant)
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    9.2x13.6x5.8cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Product Applications Installation Monitoring
Features:
  • Provides Advanced Monitoring And Protection For Rotating Machinery In Industrial Environments.
  • Features Modular Architecture With Flexible Channel Expansion And Interface Compatibility.
  • Ensures Continuous Operation With Built-In Redundancy And Self-Diagnostic Capabilities.
The CI801 3BSE022366R1 is specifically designed for condition monitoring and protection of industrial rotating machinery, accurately identifying shaft vibration, misalignment, and potential faults. Through high-performance signal processing, the device can issue timely alarms, reducing downtime, lowering maintenance costs, and extending machinery life.

This product features a modular design, supporting multi-channel expansion and various interface types, allowing users to customize system configurations for different operating conditions. The CI801 3BSE022366R1 can be seamlessly integrated with Bently Nevada 3300 series probes and other modules to achieve a complete machinery condition monitoring ecosystem.

The CI801 3BSE022366R1 incorporates redundancy and self-testing functions, maintaining system stability and reliability even in critical production processes. Whether deploying new projects or upgrading existing equipment, this product provides a high-precision, stable, and reliable machinery protection solution, offering robust protection for industrial enterprises' equipment management.

CI801 3BSE022366R1 Profibus DP-VI Communication Interface Module may still be available for purchase and support from authorized distributors beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB CI801 3BSE022366R1 Profibus DP-VI Communication Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB CI801 3BSE022366R1 Profibus DP-VI Communication Interface Module Specs

General

  • Manufacturer ABB
  • Model CI801 3BSE022366R1
  • Condition New Original ready stock
  • Product Family CI801 3BSE022366R2,CI802 3BSE022367R1,CI803 3BSE022368R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Process Automation and Industrial Control: Serving as a communication bridge between controllers and distributed I/O modules, it is widely used in the oil and gas, refinery (e.g., FF network integration in Middle Eastern refineries), chemical plants (e.g., HART retrofitting in North American chemical plants), and pharmaceutical industries.
  • Harsh Industrial Environments: Rugged design with interference resistance, it can operate stably in temperatures ranging from 0 to +55 °C, suitable for industries such as power generation, metallurgy, papermaking, cement, and textiles.
  • Marine and Offshore Applications: Certified by multiple classification societies including ABS, BV, DNV-GL, and LR, it can be used in automation systems for ships and offshore platforms.
  • DIN Rail: Must be installed on a standard 35mm DIN rail.
  • Base Compatibility: The CI801 must be inserted into the corresponding base unit (e.g., TU800/TU802/TU803). During installation, first secure the base to the rail, then press the CI801 module into the base until it locks in place.
  • Power Input: Connect a 24V DC regulated power supply via the power terminals on the base.
  • Hardware Tree: Check if the CI801 node is displayed as "green" (normal) or "red cross" (offline/faulty).
  • ModuleBus Status: Monitors all S800 I/O modules connected to the CI801. If an I/O module goes offline, the CI801 will report a "Module Missing" alarm.
  • Environmental Sealing: Includes a Viton® O-ring to seal differential pressure between the probe tip and case.
Description
The CI801 3BSE022366R1 is primarily used for condition monitoring and protection of rotating machinery, helping industrial users quickly identify abnormal vibrations, shaft misalignment, or other potential faults, reducing equipment downtime risks. This product is widely applicable in power plants, oil and gas, chemical, and large machinery systems, providing continuous and reliable protection for critical machinery.

Compared to similar products, the CI801 3BSE022366R1 excels in signal processing accuracy, modular design, and system integration capabilities. Its modular architecture supports rapid installation, flexible expansion, and seamless compatibility with other Bently Nevada series probes and interfaces. Users can achieve simultaneous monitoring of multiple rotating equipment through multi-channel data acquisition, ensuring the safe operation of every critical component.

The CI801 3BSE022366R1 also features redundant design and self-diagnostic capabilities, ensuring system continuity and reliability under critical operating conditions. Whether deploying new projects or upgrading existing systems, this product provides stable performance and accurate data analysis, offering a solid foundation for machinery condition management in industrial enterprises.
Alternative Names
CI801 3BSE022366R1 C1801 3BSE022366R1 CI801 3BSE022366RI CI801 3BSE022366R2 CI802 3BSE022367R1 CI803 3BSE022368R1
Technical notes
The ABB CI801 3BSE022366R1 PROFIBUS Fieldbus Communication Interface (FCI) is designed specifically for S800 distributed process I/O systems. It acts as an intelligent communication hub, seamlessly connecting main controllers such as the AC 800M or third-party PLCs to local S800 I/O modules. Employing the robust PROFIBUS DP/DPV1 protocol, it can perform advanced local operations including signal processing, comprehensive monitoring information acquisition, Output Status Protocol (OSP) processing, and HART pass-through data transmission.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the operating temperature range of CI801 3BSE022366R1?
CI801 3BSE022366R1 is designed to operate reliably from -20°C to +60°C.
Why is CI801 3BSE022366R1 considered highly modular?
Its modular design allows users to add or replace monitoring channels and interface modules without downtime.
How does CI801 3BSE022366R1 handle signal redundancy?
It includes built-in redundant circuitry and self-diagnostics to ensure uninterrupted protection in critical operations.
