    Apter Power provides tested, factory-discontinued ABB 5SHY35L4520 assemblies, delivering an authentic supply of hard-to-find power electronics to keep your critical infrastructure running.

5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520

/ 4.9
1001 reviews | Need a Specific Revision?

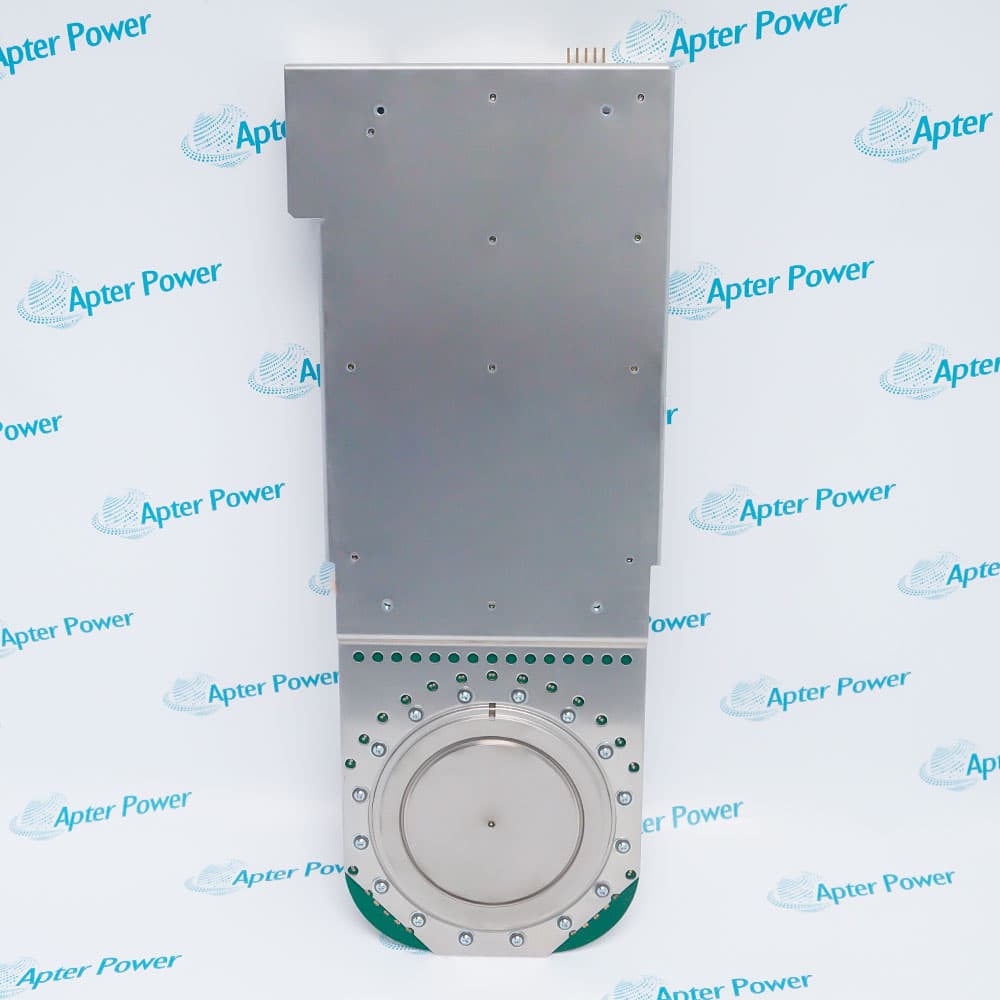

The 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 Integrated Gate-Commutated Thyristor Module is a high-power, industrial-grade power semiconductor assembly manufactured by ABB.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520

  • Manufacturer:
    ABB
  • Part Number:
    5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Integrated Gate-Commutated Thyristor Module
  • Stock:
    1
  • Drive Voltage:
    ±15 V
  • Protection Functions:
    Overcurrent, short-circuit, overtemperature
  • Overcurrent Response Time:
    < 1 µs (shutdown when >1.5× rated current)
  • Overtemperature Threshold:
    Tj > 150°C (triggers derating or shutdown)
  • Diagnostic Output:
    LED indicators, digital fault status signals
  • Electromagnetic Immunity:
    High
  • Control Interface:
    Simple control interface with status feedback
  • Reliability:
    MTBF ≥ 100,000 hours
  • Weight:
    2.82 kg
  • Estimated shipping dimensions:
    44.6x7.2x4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Core Applications Communication & Connectivity Monitoring & Control

Features:

  • Interface Between the Universal AC Power Source and IGCT Power Conversion Stage
  • Combines Capability of High-Power Gate Commutation with Integrated Thyristor Switching
  • Operates in Conjunction with Medium-Voltage Drive Systems and High-Power Inverter Platforms
The ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 operates as the Integrated Gate-Commutated Thyristor Module in high-power conversion systems, providing reliable high-current switching and precise gate control for all power stages within the system. It continuously handles high blocking voltages and conducts large current pulses to regulated output stages, distributing controlled power through the main converter circuit to support steady state operation of all drive and inverter modules.

The 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 provides essential switching functions common to the entire power conversion system, and is a critical component of the power path, directly affecting the proper, normal operation of the overall drive system. The 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520. occupies a standardized mounting position in the power stack and is always located in the primary switching position (the dedicated IGCT slots within the phase module assembly).

For Dual Redundant Power applications, the power conversion system requires a second 5SGY35L4520 module installed in the redundant slot. In addition to standard single module operation, the redundant configuration also performs automatic switchover. The dual module configuration executes failover using the internal circuitry specified in the AC10272001R0101 and 5SXE10-0181 gate driver options.

The 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 ABB Integrated Gate-Commutated Thyristor Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 Integrated Gate-Commutated Thyristor Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 Integrated Gate-Commutated Thyristor Module Specs

General

  • Manufacturer ABB
  • Model 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520
  • Condition New Original ready stock
  • Product Family 5SHX0845F0001 3BHL000385P0101,5SHX0445D0001 3BHL000389P0001
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Medium-Voltage Drives (MVD): Operates within high-capacity motor control systems, variable speed drives, and heavy industrial automation setups.
  • Renewable Energy Systems: Manages grid-tied power conversion inside large-scale wind turbine converters and central solar inverters.
  • Power Grid Infrastructure: Deployed in Flexible AC Transmission Systems (FACTS), Static Var Compensators (SVCs), and railway interties to stabilize distribution grids.
  • Marine Propulsion: Drives massive electric motors, thrusters, and onboard power distribution networks for commercial and naval vessels.
  • Optical Fiber Transmission: Utilizes fiber-optic cables to transmit gate triggering commands, ensuring absolute galvanic isolation between high-voltage paths and low-voltage control electronics.
  • High Electromagnetic Immunity (EMI): Features built-in shielding to prevent accidental misfiring caused by severe high-voltage switching noise.
  • Low-Latency Switching: Supports ultra-fast signal propagation times to execute precise, microsecond-level turn-on and turn-off pulses.
  • Real-Time Status Feedback: Provides a continuous diagnostic loop back to the central Programmable Logic Controller (PLC) to report component health and operational readiness.
  • Snubberless Design: Eliminates the need for large, bulky, external snubber circuits, shrinking the overall footprint and reducing potential points of failure.
  • Thermal Protection Interfaces: Works alongside integrated sensing circuits to monitor core junction temperatures and prevent catastrophic thermal runaway.
Description
The ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 Integrated Gate-Commutated Thyristor Module is specifically designed to handle the challenges of high-power switching and efficient power conversion in demanding industrial environments. This module addresses the critical need for reliable commutation control and high-current handling in medium-voltage drive systems, solving the problems associated with slow switching speeds and high losses found in conventional thyristor-based solutions. It provides a robust platform for applications where precise gate control and rapid current turn-off are essential to maintaining system stability and operational efficiency.

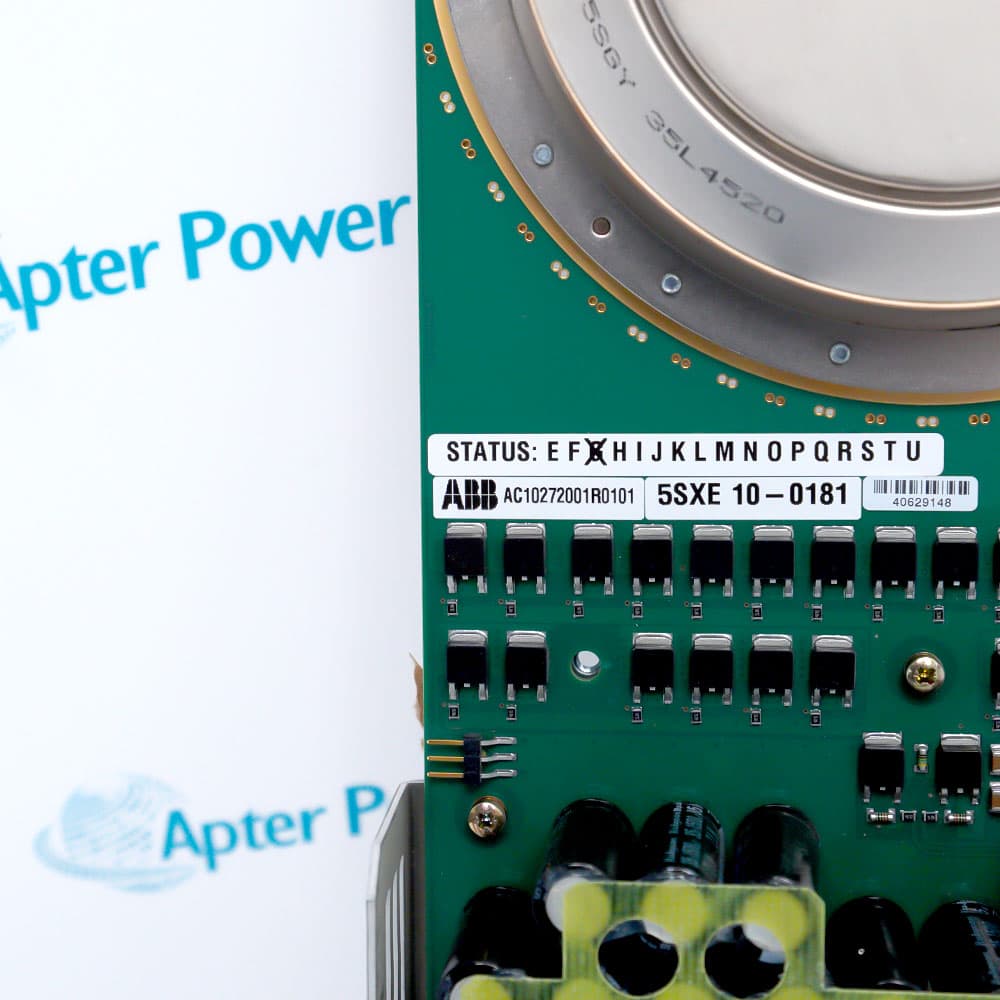

The 5SHY35L4520 serves as the core power switching element within this integrated assembly, delivering the fundamental IGCT performance required for heavy-duty power electronics. The 191091KB62211 designation identifies the specific module configuration and manufacturing specification, ensuring traceability and consistent performance across production batches. The AC10272001R0101 and 5SXE10-0181 components function as the dedicated gate driver and control interface units, providing the necessary signal processing and protection logic to achieve accurate gate-commutated switching. The 5SGY35L4520 represents a complementary variant within the same product family, sharing the identical IGCT technology platform and mechanical packaging standards established by the 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 series.

This Integrated Gate-Commutated Thyristor Module is widely applied across multiple industrial sectors that require high-power conversion and motor control capabilities. It is extensively deployed in medium-voltage variable frequency drives for large industrial motors, enabling efficient speed regulation in applications such as pumps, compressors, and fans within the oil and gas, mining, and water treatment industries. The module also plays a vital role in renewable energy systems, including wind turbine converters and grid-tied inverters, where reliable switching performance directly impacts energy yield and grid stability. Additionally, the 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 platform supports traction drive systems for heavy rail and marine propulsion, as well as static VAR compensators and high-power rectifier circuits used in metal processing and chemical manufacturing plants.
Alternative Names
5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 5SDF0860H0001 5SHY55L4500 5SHY3545L0009 3BHB013085R0001 5SHY3545L0016 3BHB020720R0002
Technical notes
The ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 combines the low conduction loss of a standard thyristor with the fast, predictable switching characteristics of a transistor. It has a rated voltage of 4500V, a turn-off current of 4000A, and a mounting clamping force of 40kN.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What industrial problems does the ABB 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 module solve?
The module is designed to operate under high-voltage electrical stress while reducing thermal dissipation, simplifying gate-drive circuitry, and improving synchronization. Its integrated design also minimizes electromagnetic interference and reduces the need for bulky peripheral components.
What types of systems commonly use this 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 module?
The module is widely used in large motor drives, medium-voltage inverters, renewable energy systems, power distribution equipment, and heavy industrial automation applications.
How is the 5SHY35L4520 191091KB62211 AC10272001R0101 5SXE10-0181 5SGY35L4520 module connected to the control system?
It supports direct fiber-optic or electrical feedback connections, enabling reliable communication and accurate gate-control synchronization with the system controller.
