TU830V1 3BSE013234R1

/ 4.9
1001 reviews | Need a Specific Revision?

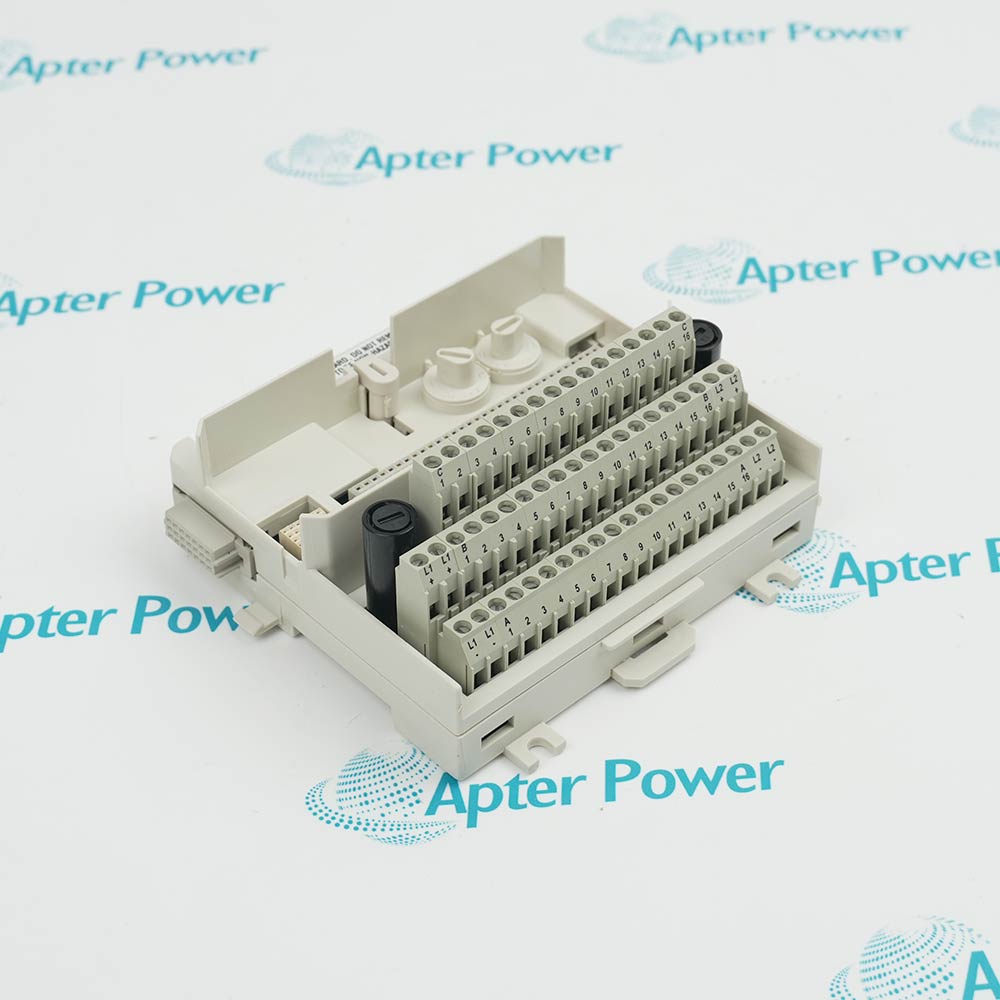

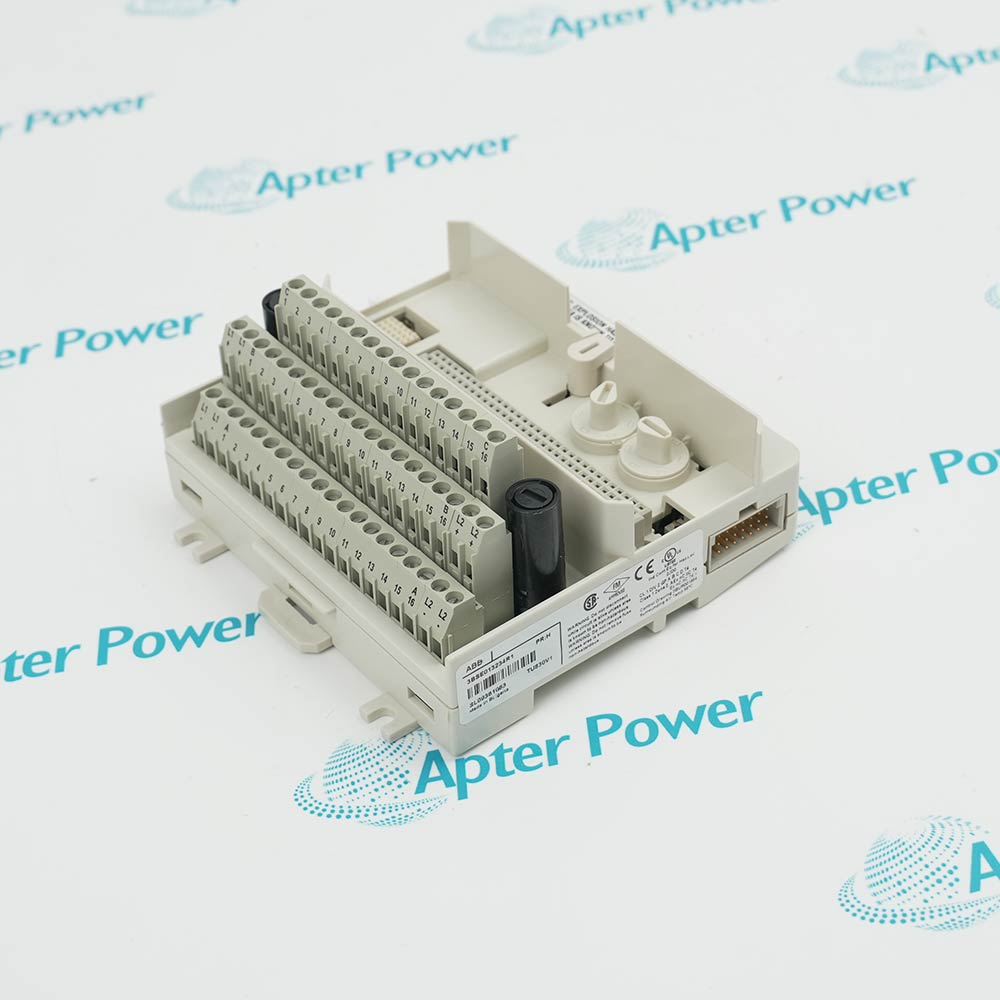

ABB TU830V1 3BSE013234R1 is an extended 16-channel terminal-block MTU for selected S800 I/O modules.
In Stock
Ships by Saturday, October 17
Fast Shipping Available
Get a quick price for TU830V1 3BSE013234R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TU830V1 3BSE013234R1

  • Manufacturer:
    ABB
  • Part Number:
    TU830V1 3BSE013234R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Extended Module Termination Unit
  • Stock:
    1
  • MTU type:
    Extended
  • I/O channels:
    16
  • Rated signal voltage:
    50 V
  • I/O arrangement:
    Single
  • Process connections:
    56
  • Maximum current per I/O channel:
    2 A
  • Maximum process-connection current:
    5 A
  • Conductor range:
    Solid 0.2-4 mm²; stranded 0.2-2.5 mm²
  • Recommended terminal torque:
    0.5-0.6 Nm
  • Stripping length:
    7 mm
  • Dielectric test:
    500 V AC
  • Mechanical keying:
    Two keys; six positions per key
  • Operating temperature:
    0 to +55 °C
  • Storage temperature:
    -40 to +70 °C
  • Protection rating:
    IP20
  • Corrosion protection:
    ISA-S71.04 G3
  • Weight:
    0.28 kg
  • Estimated shipping dimensions:
    12.6 x 11 x 6.4 cm
  • Tariff Code:
    85371098
  • Country of origin:
    Bulgaria
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Module Matching Terminal Planning Swap Checklist

Features:

  • Direct field termination: The extended housing provides a structured termination point for cabinet wiring.
  • Key-controlled installation: Mechanical coding helps prevent an unintended module combination.
  • Maintenance-ready identity: The ABB article number supports precise spare-part records.
TU830V1 is suited to S800 I/O cabinets where an extended terminal-block format is required.

A useful procurement package pairs the MTU label with the installed I/O module label and the cabinet termination drawing.

The listing separates official hardware data from site-specific wiring decisions so engineers can review each independently.

Availability is subject to Apter Power's current inventory and sourcing confirmation.
TU830V1 3BSE013234R1 Manuals and Resources Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
TU830V1 3BSE013234R1 Extended Module Termination Unit Specs

General

  • Manufacturer ABB
  • Model TU830V1 3BSE013234R1
  • Condition New Original ready stock
  • Product Family S800 I/O Module Termination Units
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Installed article: Capture the complete I/O module label, not only its front abbreviation.
  • Approved pairing: Check the exact module against ABB's TU830V1 compatibility list.
  • Channel purpose: Compare the project channel schedule with the intended module.
  • Key positions: Document both coding keys before dismantling.
  • Wire schedule: Match each conductor to the approved terminal drawing.
  • Ferrules: Use site-approved conductor preparation for the installed wire type.
  • Segregation: Maintain the cabinet's signal and power separation rules.
  • Inspection: Check for damaged clamps, overheated terminals, and loose strands.
  • Isolation: Apply the plant isolation procedure before disturbing field wiring.
  • Labeling: Tag every conductor before removal.
  • Continuity: Complete point-to-point checks before inserting the I/O module.
  • Functional test: Verify channel behavior against the control-system test plan.
Description
The ABB TU830V1 3BSE013234R1 is an extended Module Termination Unit that provides field termination for selected ABB S800 I/O modules.

The ABB TU830V1 3BSE013234R1 combines sixteen I/O positions with a terminal-block interface and mechanical keying for a single-module arrangement.

Before ordering ABB TU830V1 3BSE013234R1, verify the installed I/O module article, terminal plan, key positions, conductor preparation, and complete MTU nameplate.
Alternative Names
TU830V1 3BSE013234R1 ABB TU830V1 3BSE013234R1 TU830V1 3BSE013234R1 TU830V1-3BSE013234R1 TU830 V1 TU830V13BSE013234R1 S800 I/O TU830V1
Technical notes
Record the installed key settings before removal. Re-energization should follow point-to-point wiring and channel-function checks.
