AI835A 3BSE051306R1

/ 4.9
1001 reviews | Need a Specific Revision?

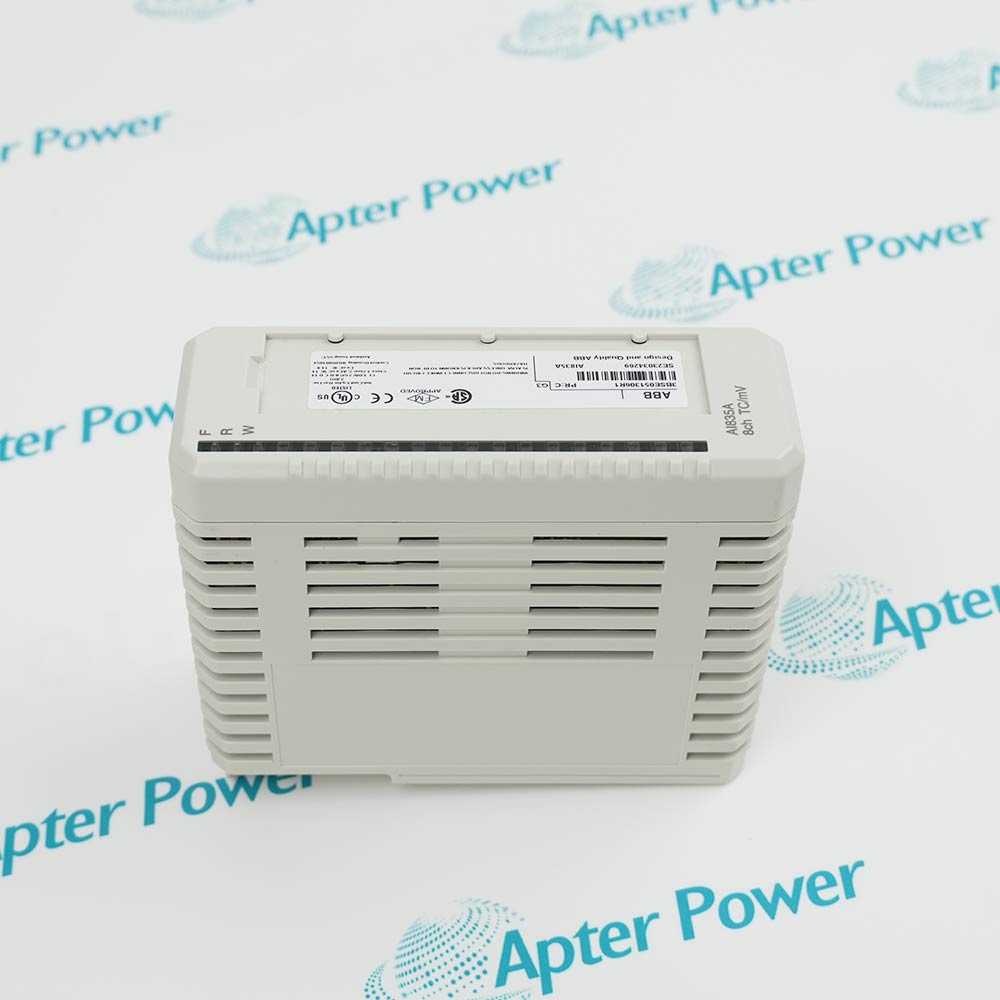

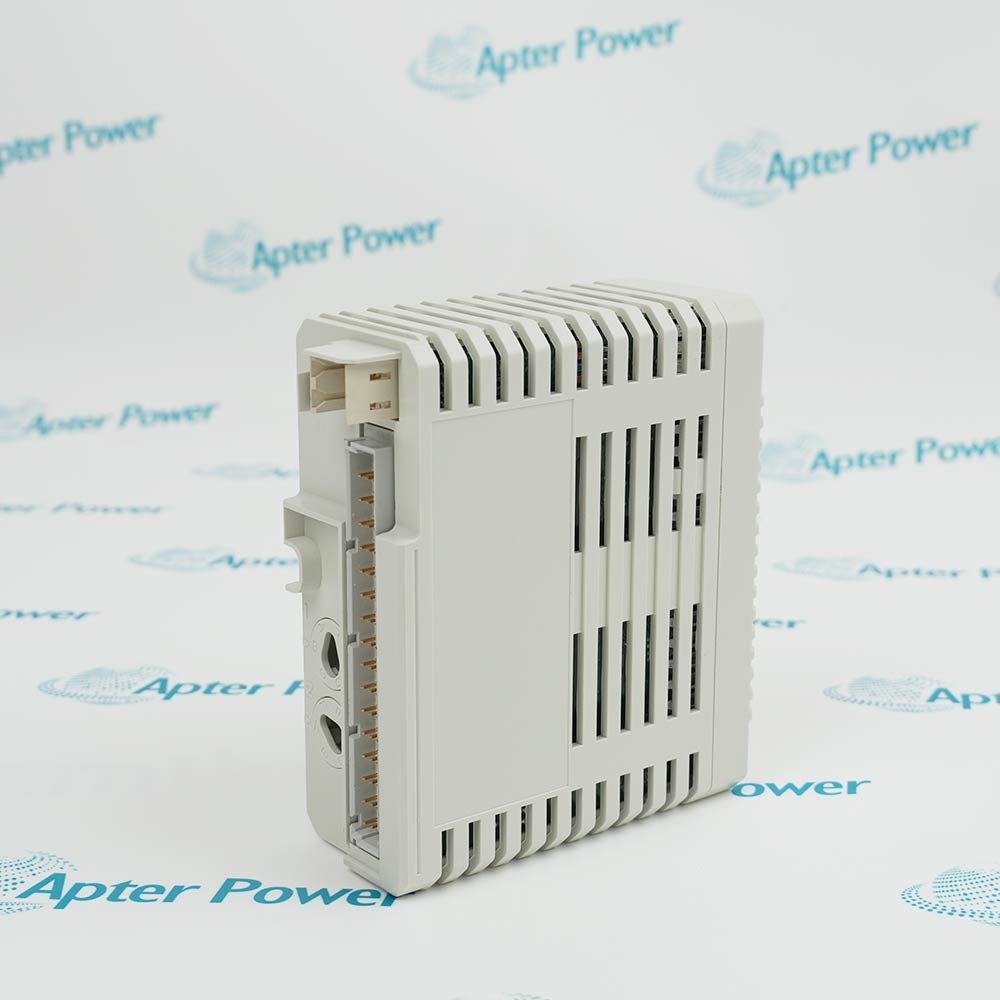

The ABB AI835A 3BSE051306R1 is a 8-channel analog input module belonging to the prominent S800 I/O family.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for AI835A 3BSE051306R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI835A 3BSE051306R1

  • Manufacturer:
    ABB
  • Part Number:
    AI835A 3BSE051306R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Input Module
  • Stock:
    4
  • Number of Channels:
    8
  • Resolution:
    15 bits
  • Input Impedance:
    > 1 MΩ
  • CMRR, 50Hz, 60Hz:
    120 dB
  • NMRR, 50Hz, 60Hz:
    > 60 dB
  • Rated Insulation Voltage:
    50 V
  • Power Dissipation:
    1.6 W
  • Operating Temperature:
    0 to +55 °C (+32 to +131 °F)
  • Storage Temperature:
    -40 to +70 °C (-40 to +158 °F)
  • Relative Humidity:
    5 to 95 %, non-condensing
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    5.4x10.5x12cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Configuration & Programming

Features:

  • 8-Channel Thermocouple and Millivolt Input Processing for S800 I/O Systems
  • Comprehensive Compatibility with Twelve Standard Thermocouple Types Including B, C, D, E, J, K, L, N, R, S, T and U
  • Direct Integration with ABB Module Termination Units TU810, TU812, TU814, TU818, TU830, TU833
The ABB AI835A 3BSE051306R1 functions as the Thermocouple/mV Input Module in the S800 I/O rack, providing accurate analog signal acquisition for all eight input channels. It continuously processes low-level millivolt signals from field-mounted temperature sensors including Types B, C, D, E, J, K, L, N, R, S, T and U, transforming these raw sensor inputs into digital data for the control system. Precise signal conditioning is inherent to the AI835A 3BSE051306R1, ensuring reliable temperature measurement across diverse industrial environments. This AI835A 3BSE051306R1 module solves the fundamental challenge of centralized multi-point temperature monitoring by consolidating eight independent thermocouple channels into a single unit, thereby simplifying wiring infrastructure while preserving measurement accuracy and signal integrity.

The AI835A 3BSE051306R1 delivers essential analog input capabilities fundamental to the control loop, serving as a critical element in the measurement path that directly influences proper, normal operation of the overall process control system. One or multiple AI835A 3BSE051306R1 modules may be deployed per S800 I/O rack according to the required channel density. The module installs in a standard I/O slot and requires pairing with designated Module Termination Units TU810, TU812, TU814, TU818, TU830, or TU833 to achieve correct field wiring termination, secure electrical connectivity, and reliable signal distribution between the field devices and the controller.

For extensive temperature monitoring requirements, the S800 architecture supports installation of several AI835A 3BSE051306R1 modules within a single rack configuration. Each AI835A 3BSE051306R1 manages its own eight channels independently, preventing signal cross-interference between adjacent process measurement points. The control system monitors operational status of every AI835A 3BSE051306R1 through the I/O communication bus, enabling rapid identification of channel-specific faults or measurement anomalies. Through this modular approach, operations can expand temperature monitoring coverage incrementally by integrating additional AI835A 3BSE051306R1 units while maintaining uniform measurement performance across the entire installation.

The AI835A 3BSE051306R1 ABB Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI835A 3BSE051306R1 Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AI835A 3BSE051306R1 Analog Input Module Specs

General

  • Manufacturer ABB
  • Model AI835A 3BSE051306R1
  • Condition New Original ready stock
  • Product Family AI830 3BSE008518R1,AI835 3BSE008520R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High-Temperature Furnaces & Boilers: Direct monitoring of combustion and exhaust chambers.
  • Chemical Reactors: Precision tracking of exothermic or endothermic chemical reactions.
  • Steam & Gas Turbines: Exhaust gas temperature (EGT) measurements in power plants.
  • Heat Treatment Plants: Accurate profile testing during metal tempering or annealing.
  • Low-Voltage Signal Aggregation: Interfacing directly with millivolt-range sensors (-30 mV to +75 mV linear ranges).
  • Hazardous Area Certification: Certified for use in Class 1 Zone 2 / Division 2 hazardous locations.
  • Galvanic Isolation: Features groupwise electrical isolation from ground to prevent ground-loop noise.
  • Dielectric Strength: Tested with a 500 V AC dielectric test voltage and rated for 50 V insulation.
  • Wire-Break Diagnostics: Automatically detects open circuits or faulty thermocouple lines to prevent incorrect process control responses.
  • Environmental Constraints: Operates between 0°C and +55°C within a 5% to 95% non-condensing humidity range.
  • Hardware Integration: Paired with a Module Termination Unit (MTU) like the TU810, TU812, TU814, TU818, TU830, or TU833 to handle physical field wiring.
  • Sensor Selection: Channels are individually configurable via software parameter settings for -30 mV to +75 mV linear ranges or Thermocouple types B, C, D, E, J, K, L, N, R, S, T, and U.
  • Cold Junction Compensation (CJC): Channel 8 can be dedicated to measuring ambient temperature using a Pt100 RTD sensor (Hardware CJC), or assigned a fixed parameter value (Software CJC).
Description
The ABB AI835A 3BSE051306R1 is an Analog Input Module specifically designed as a Thermocouple/mV Input solution for industrial automation systems. This AI835A 3BSE051306R1 8-channel module is engineered to handle complex temperature measurement and low-level millivolt signal acquisition challenges across diverse process environments. The AI835A 3BSE051306R1 addresses the critical industry need for reliable, multi-point temperature monitoring by providing accurate analog input processing, making it an essential component for precision control applications where signal integrity directly impacts operational performance.

The AI835A 3BSE051306R1 supports an extensive range of thermocouple types including B, C, D, E, J, K, L, N, R, S, T and U, ensuring comprehensive compatibility with various temperature sensing technologies. As an 8-channel Thermocouple/mV Input Module, the AI835A 3BSE051306R1 enables simultaneous monitoring of multiple temperature points, delivering robust analog input capabilities within the ABB S800 I/O system architecture. This broad thermocouple support allows the AI835A 3BSE051306R1 to serve as a versatile interface between field sensors and the control system.

For installation and integration, the AI835A 3BSE051306R1 is designed to work with Module Termination Units TU810, TU812, TU814, TU818, TU830, and TU833. This compatibility ensures flexible mounting options and reliable connectivity within the control system infrastructure. The AI835A 3BSE051306R1 integrates efficiently into existing ABB automation frameworks, supporting straightforward deployment and maintenance procedures while maintaining consistent signal termination standards across different hardware configurations.

The AI835A 3BSE051306R1 finds extensive application across industries requiring precise temperature measurement and millivolt signal processing, including chemical processing, oil and gas production, power generation, and manufacturing operations. This AI835A 3BSE051306R1 module serves critical roles in furnace monitoring, reactor temperature control, heat treatment processes, and environmental chamber regulation where accurate thermocouple signal acquisition directly impacts operational safety, energy efficiency, and product quality. The AI835A 3BSE051306R1 is particularly valuable in applications requiring multi-channel temperature profiling and distributed monitoring capabilities.
Alternative Names

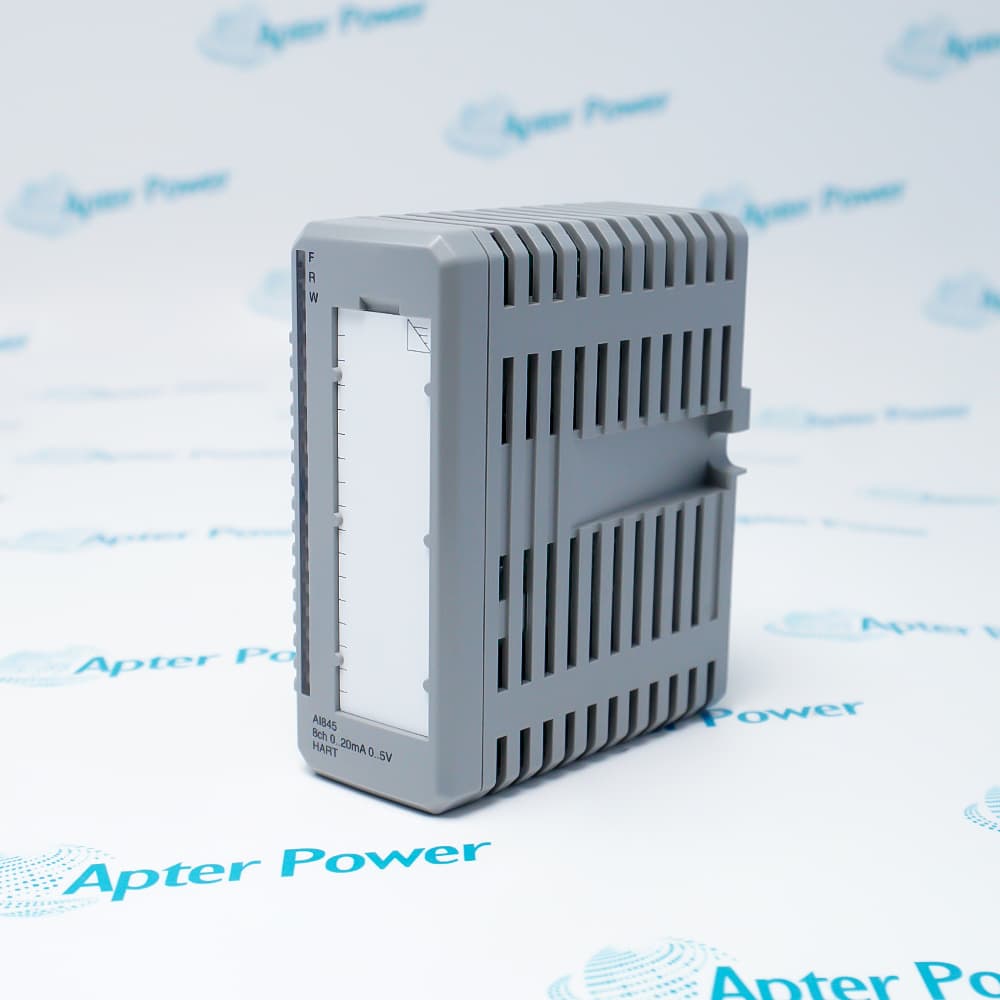

AI835A 3BSE051306R1 AI835A 3BSEO513O6R1 AI835A 3BSE05I306RI AI830 3BSE008518R1 AI835 3BSE008520R1 AI845-EA 3BSE023675R2
Technical notes
The ABB AI835A 3BSE051306R1 is a 8-channel analog input module belonging to the prominent S800 I/O family. This specialized analog input module is explicitly engineered for process control and data acquisition systems within the ABB Ability System 800xA architecture.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the AI835A 3BSE051306R1 Analog Input Module?
The AI835A 3BSE051306R1 is an analog input module designed for ABB control systems. It acts as a high-density interface between field instruments and controllers, converting temperature and millivolt signals into accurate digital data for process monitoring and control.
What industrial challenges does the AI835A 3BSE051306R1 solve?
The AI835A 3BSE051306R1 is engineered to address signal degradation, electrical noise, and sensor compatibility issues in demanding industrial environments. Its differential input design and high-resolution signal conversion help maintain measurement accuracy even across long cable distances.
How does the AI835A 3BSE051306R1 improve signal accuracy?
By utilizing differential input technology and high-resolution analog-to-digital conversion, the AI835A 3BSE051306R1 minimizes the effects of electrical interference and noise. This allows accurate signal transmission over cable lengths of up to 600 meters.
How is the AI835A 3BSE051306R1 integrated into a control system?
The module is installed onto a compatible MTU and communicates with ABB AC 800M controllers through the standard ModuleBus interface. This enables seamless integration into ABB System 800xA distributed control architectures.
Does the AI835A 3BSE051306R1 support cold junction compensation?
Yes. When used with compatible MTUs, the module supports cold junction compensation, ensuring accurate thermocouple measurements across varying ambient temperature conditions.
