AI910S 3KDE175511L9100

/ 4.9
1001 reviews | Need a Specific Revision?

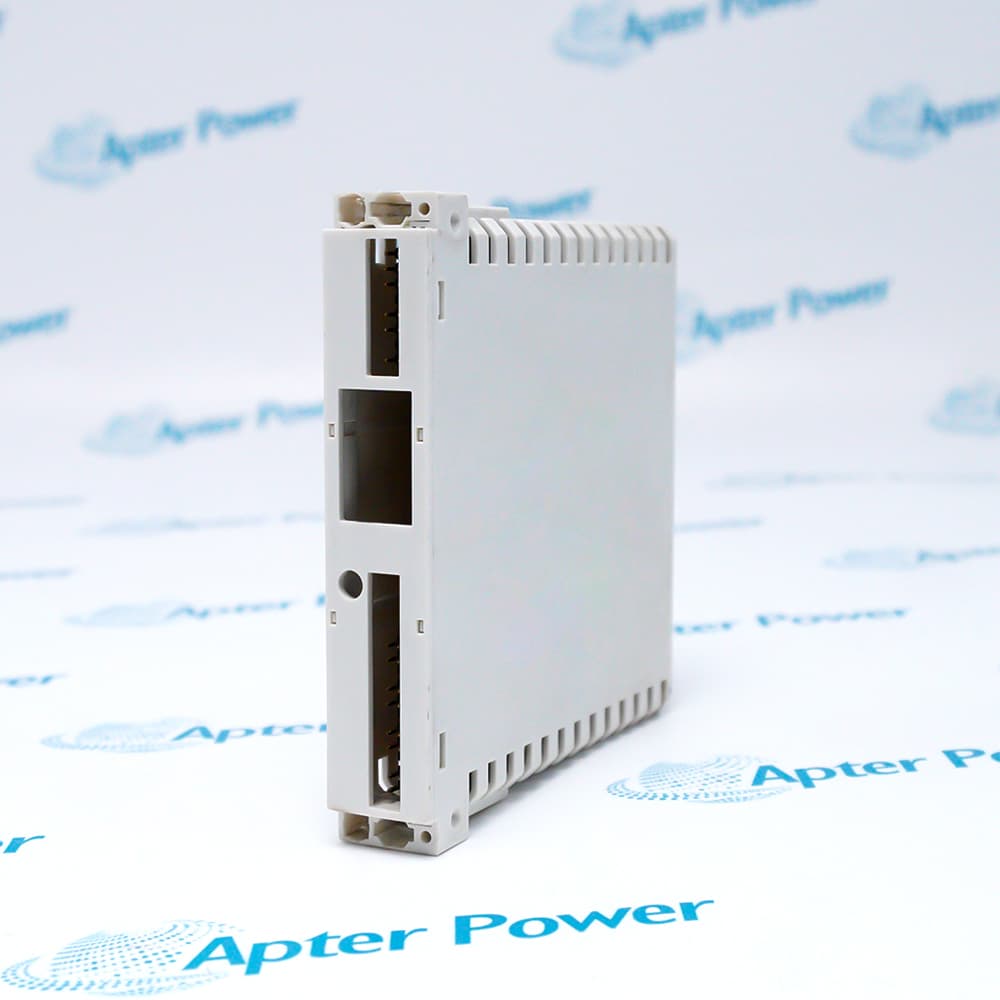

The ABB AI910S 3KDE175511L9100 Analog Input Module is a highly specialized 4-channel automation component designed for the S900 remote I/O system.
Get a quick price for AI910S 3KDE175511L9100
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for AI910S 3KDE175511L9100

  • Manufacturer:
    ABB
  • Part Number:
    AI910S 3KDE175511L9100
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Analog Input Module
  • Number of Channels:
    4 channels
  • Input Signal Type:
    4...20 mA
  • Transmitter Support:
    Loop powered 2-wire transmitters
  • Loop Power Supply:
    Integrated power supply for 4...20 mA 2-wire transmitters
  • Input Return Configuration:
    Common return for all inputs
  • Communication Protocol:
    PROFIBUS DP
  • Weight:
    0.13 kg
  • Estimated shipping dimensions:
    2x10.4x10.4cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Installation & Integration Compatibility & Interoperability

Features:

  • Analog Input and Loop Power Supply for 4...20 mA 2-Wire Transmitters in Hazardous Areas
  • ATEX Zone 1 Certification with Intrinsically Safe Connections to Zone 0, 1, and 2 Field Devices
  • Redundant Power and Communication Paths Supporting Hot Swap and Extended Diagnostics
The AI910S 3KDE175511L9100 functions as the Analog Input Module within the S900 I/O system, providing reliable signal acquisition and loop power for 4...20 mA 2-wire transmitters in hazardous area applications. It continuously processes analog input signals from intrinsically safe field devices installed in Zone 2, Zone 1, or Zone 0 and transmits this data via PROFIBUS DP to the control system level. Seamless process integration is standard with the AI910S 3KDE175511L9100, however utilizing its redundant power and communication configuration will ensure continuous operation in the event of a primary path failure. The AI910S 3KDE175511L9100 incorporates significant improvements over previous analog input designs in addition to providing comprehensive ATEX certification and extended diagnostic capabilities within the S900 I/O platform.

The AI910S 3KDE175511L9100 provides essential analog input functions for the entire S900 I/O rack, and is a critical component of the process monitoring path, directly affecting the accurate acquisition and transmission of field data to the overall control system. One or multiple AI910S 3KDE175511L9100 modules are required per rack depending on the channel count and process monitoring requirements. The AI910S 3KDE175511L9100 occupies a standard slot in the S900 I/O rack and is designed for direct field installation, eliminating the need for separate marshalling cabinets and reducing overall wiring costs.

For Dual Redundant Power and Communication applications, the S900 system requires proper configuration of redundant pathways connected to the AI910S 3KDE175511L9100 module. In addition to standard single path operation, the redundant configuration also performs automatic switchover. The S900 dual redundancy configuration executes failover using the internal monitoring circuitry specified in the system options. Using this method, the redundant system continually monitors the health of both power and communication paths. If the system detects that the primary path is no longer providing stable operation (outside configured tolerance levels), it will automatically transfer the load to the secondary path and generate an extended diagnostic event in the system log.

The AI910S 3KDE175511L9100 ABB Analog Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AI910S 3KDE175511L9100 Analog Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AI910S 3KDE175511L9100 Analog Input Module Specs

General

  • Manufacturer ABB
  • Model AI910S 3KDE175511L9100
  • Condition New Original ready stock
  • Product Family AI930N 3KDE175513L9300,AI930S 3KDE175511L9300
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Hazardous Area Deployments: Certified for direct installation in ATEX Zone 1 environments.
  • Field Device Powering: Connects to and powers intrinsically safe field equipment located in Zone 0, Zone 1, or Zone 2.
  • Core Industry Verticals: Extensively used in Oil & Gas facilities, chemical processing plants, pharmaceutical labs, and power generation stations.
  • Instrument Monitoring: Interfaces directly with 2-wire field transmitters measuring variables like pressure, temperature, flow, and tank levels.
  • Hot Swap Capability: Modules can be plugged or removed during system operation (Hot Swap functionality) without disrupting primary voltage or neighboring modules.
  • Rugged Engineering: Features a G3 conformal coating on all components to resist harsh, corrosive atmospheres per ISA-S71.04 standards.
  • Diagnostics & Safety: Includes automatic short-circuit and line-break detection per channel. Complete galvanical isolation safeguards the internal power/bus circuits from field faults.
  • System Family: Exclusively interfaces with the ABB S900 Remote I/O platform.
  • Upstream Network: Communicates with higher-level controllers using the PROFIBUS DP fieldbus standard.
  • Host Integration: Fully compatible with ABB Ability System 800xA and Freelance automation systems.
  • Configuration Software: Supported via standard FDT/DTM tools, enabling standardized configuration and asset management.
Description
99The AI910S 3KDE175511L9100 is a specialized Analog Input Module from ABB's S900 I/O series, engineered specifically for processing analog signals from field transmitters in hazardous industrial environments. This AI910S 3KDE175511L9100 module is designed to handle the critical challenge of safely acquiring 4...20 mA process data from loop-powered 2-wire transmitters while operating in potentially explosive atmospheres. The AI910S 3KDE175511L9100 addresses the fundamental problem of reliable signal acquisition in Zone 1 hazardous areas, where standard instrumentation would pose significant safety risks. By providing both signal input and power supply capabilities for 2-wire transmitters, the AI910S 3KDE175511L9100 eliminates the need for separate power supplies and signal conditioners, streamlining installation and reducing overall system complexity. This AI910S 3KDE175511L9100 module features four independent input channels with a common return configuration, making it an efficient solution for multi-point analog monitoring applications.

The AI910S 3KDE175511L9100 carries full ATEX certification for installation directly in Zone 1 hazardous areas, representing one of its most significant design achievements. The AI910S 3KDE175511L9100 enables direct connection to intrinsically safe field devices installed in Zone 2, Zone 1, or even Zone 0 locations, providing a critical safety bridge between the most hazardous field locations and the control system. The AI910S 3KDE175511L9100 incorporates comprehensive electrical isolation between input/bus and input/power interfaces, ensuring that potential faults remain contained and do not propagate through the system. This AI910S 3KDE175511L9100 module includes advanced diagnostic capabilities for short-circuit and line-break detection, enabling proactive maintenance before process disruptions occur. The integrated G3-grade coating on all components of the AI910S 3KDE175511L9100 ensures long-term reliability in corrosive industrial atmospheres, extending operational lifespan in challenging chemical and petrochemical environments.

The AI910S 3KDE175511L9100 communicates with the control system level using the standardized PROFIBUS DP protocol, ensuring seamless integration with a wide range of automation platforms. The AI910S 3KDE175511L9100 is designed for installation directly in the field as part of the remote S900 I/O system, which significantly reduces marshalling and wiring costs compared to traditional centralized I/O architectures. The AI910S 3KDE175511L9100 supports redundancy for both power and communication paths, providing exceptional availability for critical process control applications where downtime is extremely costly. The AI910S 3KDE175511L9100 benefits from excellent configuration and diagnostic capabilities through FDT/DTM technology, enabling efficient asset management and remote troubleshooting. This AI910S 3KDE175511L9100 module supports Hot Configuration in Run functionality, allowing parameter modifications without process interruption, and features Hot Swap capability for replacement during operation without shutting down the primary voltage supply.
Alternative Names
AI910S 3KDE175511L9100 AI91OS 3KDE175511L91OO AI9I0S 3KDEI755IIL9100 A1910S 3KDE175511L9100 AI910N 3KDE175513L9100 AI930N 3KDE175513L9300 AI930S 3KDE175511L9300
Technical notes

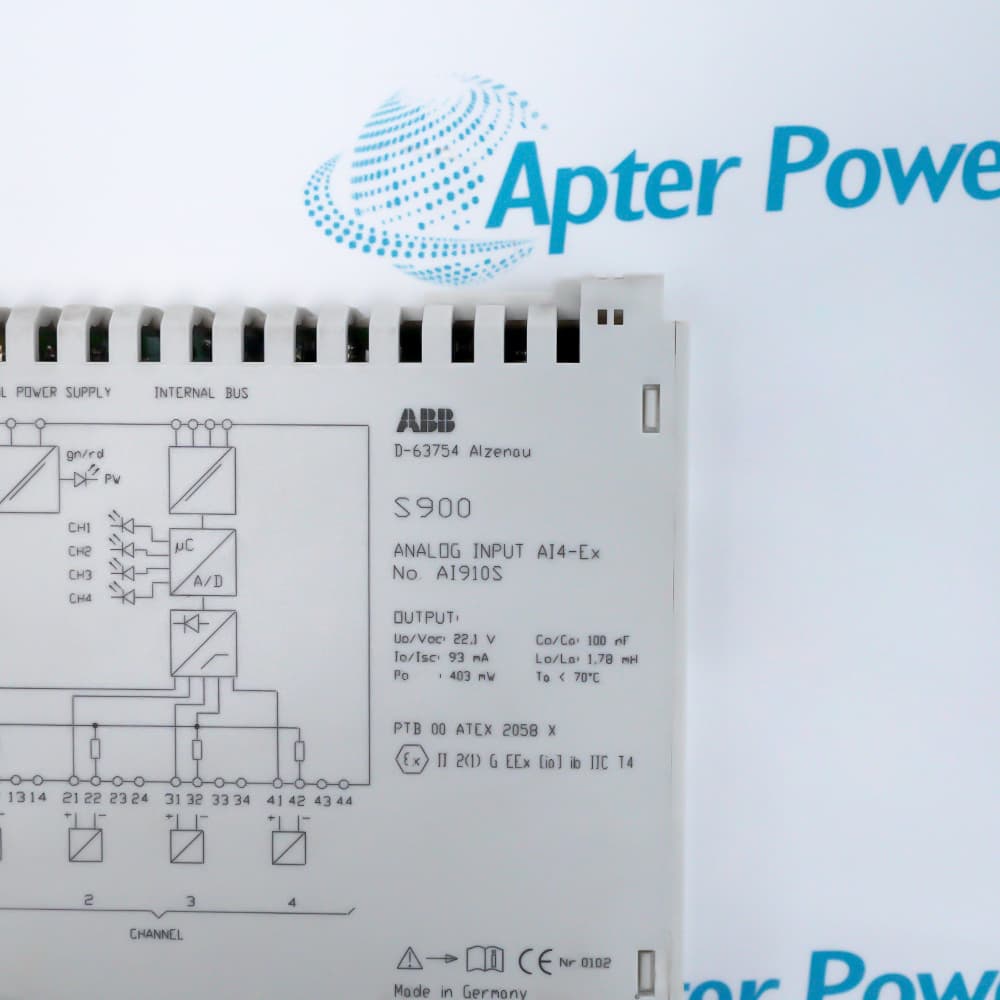

The AI910S 3KDE175511L9100 features electrical isolation between the input/bus and input/power supply, and provides a common return function for all inputs. It also employs dedicated short-circuit and open-circuit detection mechanisms to ensure continuous and accurate data transmission.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What are the core functions of the ABB AI910S 3KDE175511L9100?
The ABB AI910S 3KDE175511L9100 handles analog signal acquisition, loop power supply, and safe communication between field transmitters and control systems. It also includes electrical isolation, short-circuit detection, and line break monitoring to ensure reliable process data transmission.
What industrial problem does the ABB AI910S 3KDE175511L9100 solve?
The ABB AI910S 3KDE175511L9100 is specifically designed to solve the challenge of safe signal transmission in explosive or hazardous environments. Its intrinsic safety protection helps prevent sparks or thermal energy from igniting volatile gases during field operations.
Why is the ABB AI910S 3KDE175511L9100 suitable for hazardous areas?
The module supports intrinsically safe operation, making it ideal for hazardous Zone 0, Zone 1, and Zone 2 locations where flammable gases or vapors may be present. This allows safe deployment of field instrumentation in high-risk industrial facilities.
How does the ABB AI910S 3KDE175511L9100 support predictive maintenance?
The module includes advanced auto-diagnostic functions that immediately detect faults such as signal interruptions or wiring issues. These diagnostics help facilities transition from reactive troubleshooting to predictive maintenance strategies.
