    Apter Power supports TU810V1 quotations, terminal review, documentation, and S800 I/O matching.

TU810V1 3BSE013230R1

/ 4.9
1001 reviews | Need a Specific Revision?

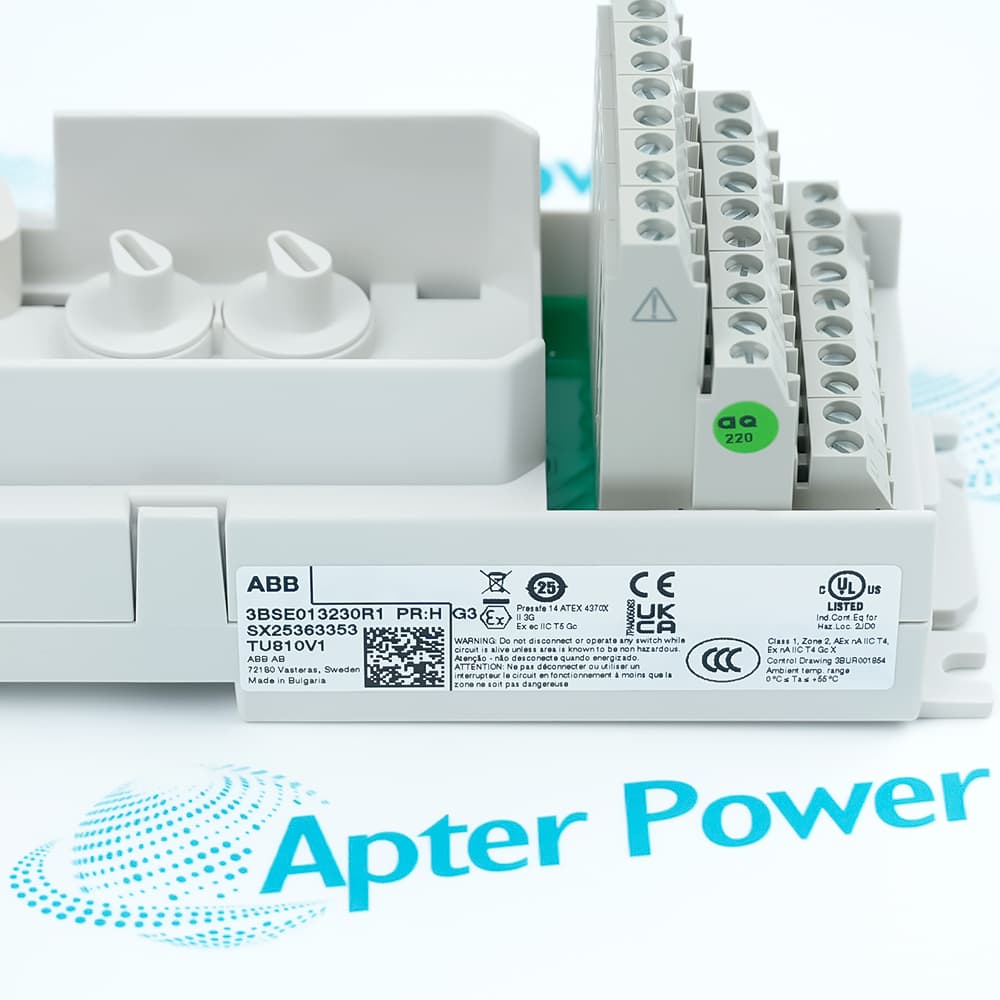

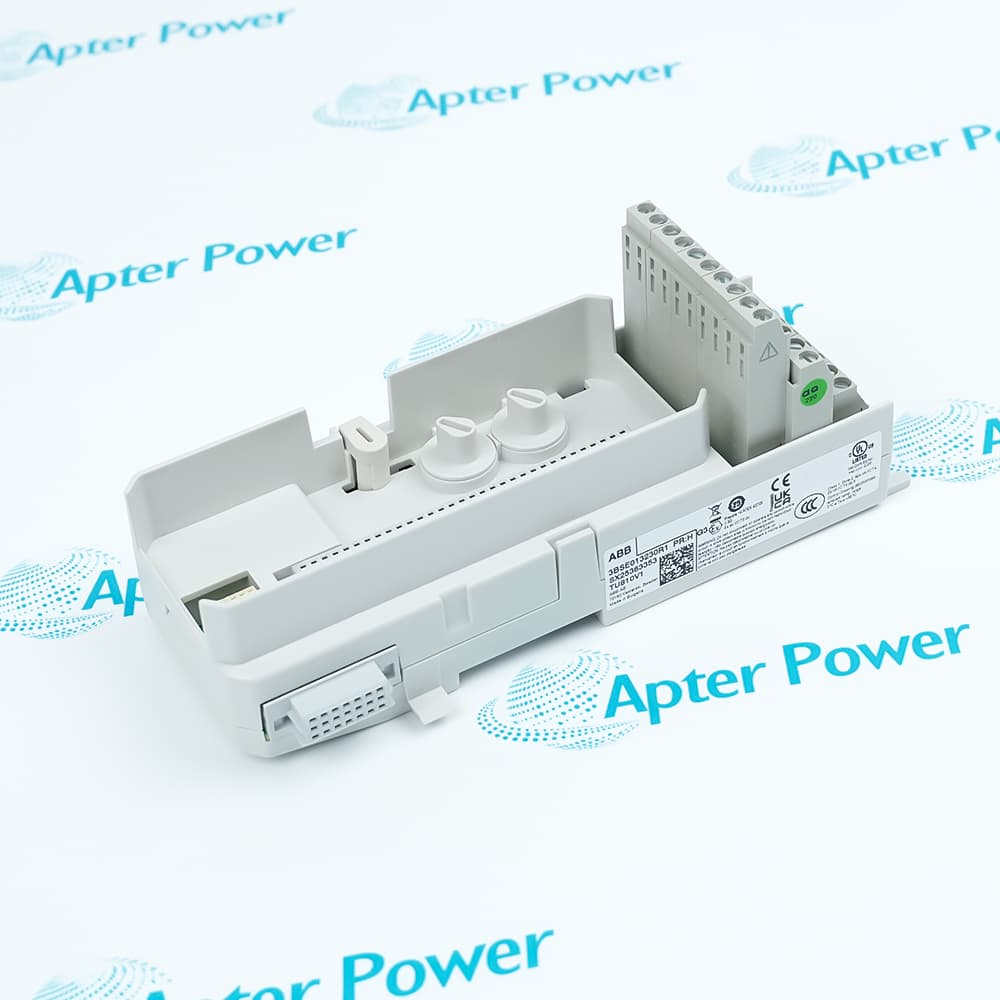

ABB TU810V1 3BSE013230R1 is a 16-channel, 50 V compact S800 I/O module termination unit with terminal-block field connections.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for TU810V1 3BSE013230R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TU810V1 3BSE013230R1

  • Manufacturer:
    ABB
  • Part Number:
    TU810V1 3BSE013230R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Compact Module Termination Unit
  • Stock:
    1
  • ABB Article Number:
    3BSE013230R1
  • MTU Form:
    Compact
  • Connection:
    Terminal block
  • Channels:
    16
  • Rated Voltage:
    50 V
  • I/O Arrangement:
    Single
  • Maximum Channel Current:
    2 A
  • Maximum Process-Connection Current:
    5 A
  • Solid Conductor Range:
    0.2–4 mm²
  • Stranded Conductor Range:
    0.2–2.5 mm²
  • Dielectric Test:
    500 V AC
  • Mechanical Keying:
    Two keys; six positions each
  • Mounting:
    Horizontal or vertical
  • Protection Rating:
    IP20
  • Weight:
    0.17 kg
  • Estimated shipping dimensions:
    Product dimensions: 6.4 x 6.4 x 17.0 cm (W x D x H), including connector, terminals, and latch.
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Wiring Plan I/O Matching Keying Setup

Features:

  • Sixteen-channel compact base: The terminal block supports field signals and process-power connections.
  • Mechanical module control: Two configurable keys prevent insertion of an incompatible I/O module.
  • ModuleBus continuity: The passive MTU distributes the bus to the inserted module and next base.

TU810V1 is a general compact termination base for a broad official list of analog, digital, and pulse S800 I/O modules.

Its one-wire field-connection arrangement and shared process-power terminals make the cabinet wiring schedule essential.

A replacement should preserve terminal labels, module order, key positions, grounding, DIN-rail engagement, and I/O acceptance records.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

TU810V1 3BSE013230R1 Compact Module Termination Unit Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit Specs

General

  • ManufacturerABB
  • ModelTU810V1 3BSE013230R1
  • ConditionNew Original ready stock
  • Product FamilyABB S800 I/O and AC 800M

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Terminal-transfer checks

  • Wire markers: Preserve every channel and power identifier.
  • Conductor preparation: Inspect stripped ends and ferrules.
  • Power groups: Trace process-power and 0 V connections.
  • Point testing: Verify continuity before reconnecting field devices.

Approved-module review

  • Module article: Match the complete inserted-module identity.
  • Signal duties: Confirm analog, digital, or pulse requirements.
  • Current limits: Review field loads and shared power.
  • Configuration: Keep controller hardware settings aligned.

Mechanical-control review

  • Two keys: Record both six-position settings.
  • Insertion check: Never force a module into a mismatched base.
  • Module order: Preserve the station sequence.
  • Rail lock: Confirm secure latching and grounding.
Description
The TU810V1 3BSE013230R1 is a passive compact MTU that connects field wiring to approved S800 I/O modules while distributing ModuleBus and position signals.

For TU810V1 3BSE013230R1, ABB documents sixteen field channels, process-power connections, mechanical keying, DIN-rail mounting, and single-I/O operation.

Before ordering TU810V1 3BSE013230R1, verify the installed I/O article, terminal schedule, 50 V class, conductor size, process-current plan, key positions, and mounting orientation.
Alternative Names
ABB TU810V1 3BSE013230R1 TU810V1 3BSE013230R1 TU810V1 TU810 V1 TU-810-V1 3BSE013230R1 3BSE 013230 R1 S800 TU810V1 compact MTU
Technical notes
ABB TU810V1 3BSE013230R1 is a compact module termination unit documented for ABB S800 I/O and AC 800M. Verify the complete article, installed hardware, wiring, and system configuration before ordering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should TU810V1 3BSE013230R1 be matched to an S800 I/O module?
Use ABB’s compatible-module list, then confirm the exact module article, channel wiring, process power, key positions, and approved cabinet drawing.
What should technicians photograph before replacing TU810V1?
Capture the complete label, inserted module, both mechanical keys, every terminal and wire marker, DIN-rail position, and neighboring MTUs.
How should TU810V1 conductors be prepared for a wiring transfer?
Follow the documented solid or stranded range, inspect ferrules, maintain polarity and terminal numbers, and apply the approved terminal torque.
Why can a correctly fitted module still fail on a new TU810V1?
Check ModuleBus continuity, keying, module seating, process power, terminal wiring, address sequence, grounding, and controller hardware configuration.
How does mounting orientation affect a TU810V1 installation?
Confirm the cabinet temperature limit for the chosen orientation, maintain service clearance, and preserve DIN-rail grounding and airflow.
What should be checked when several downstream modules disappear after TU810V1 service?
Inspect the outgoing ModuleBus connection, base alignment, position-signal path, next MTU engagement, module order, and interface diagnostics.
How should TU810V1 wiring be accepted after replacement?
Perform point-to-point checks, verify process power, test affected channels safely, confirm module recognition, and update the terminal schedule.
What should a TU810V1 procurement RFQ include?
Include quantity, destination, date, full labels, inserted I/O model, wiring method, key positions, and required documentation.
