Features:
- Bridge Between Control System and Intrinsically Safe Field Actuators in Hazardous Areas
- Integrates 0/4...20 mA Analog Output Capability with Zone 1 Installation and Channel-to-Channel Isolation
- Functions as Part of the S900 I/O System Communicating via PROFIBUS DP Standard

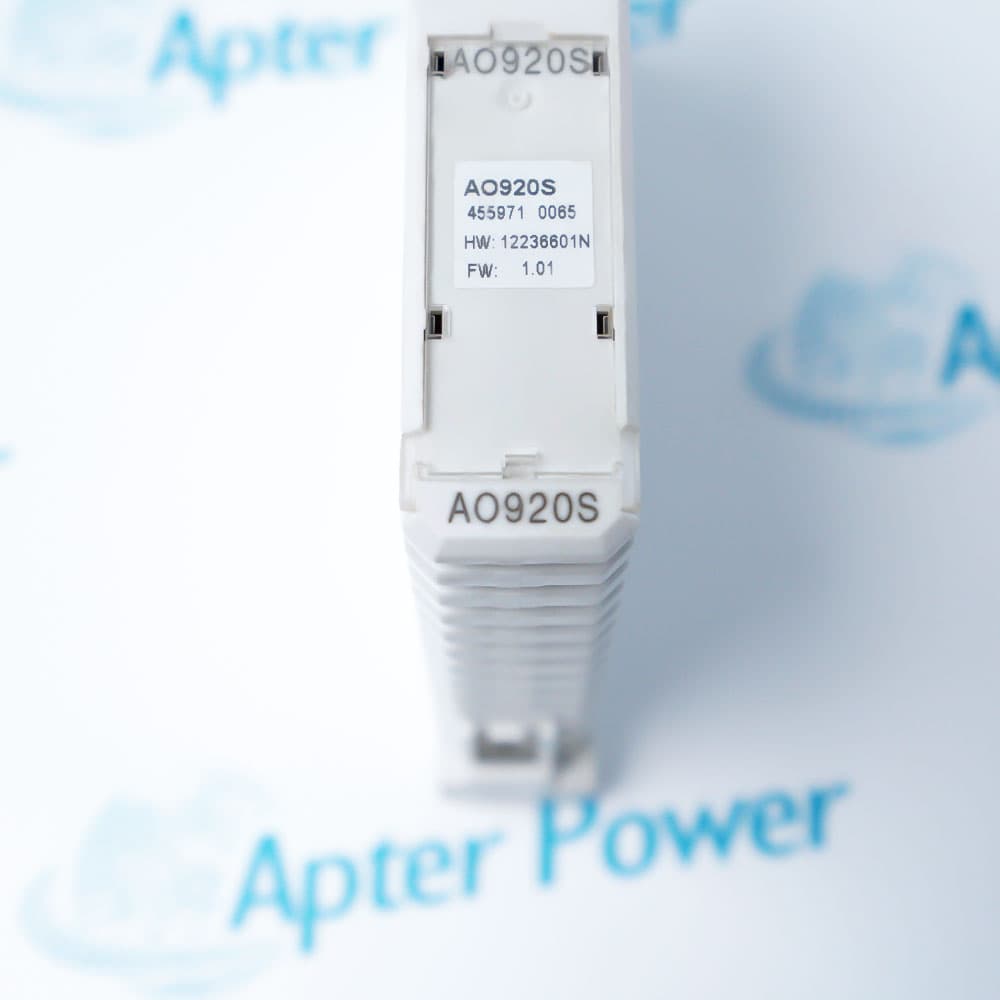

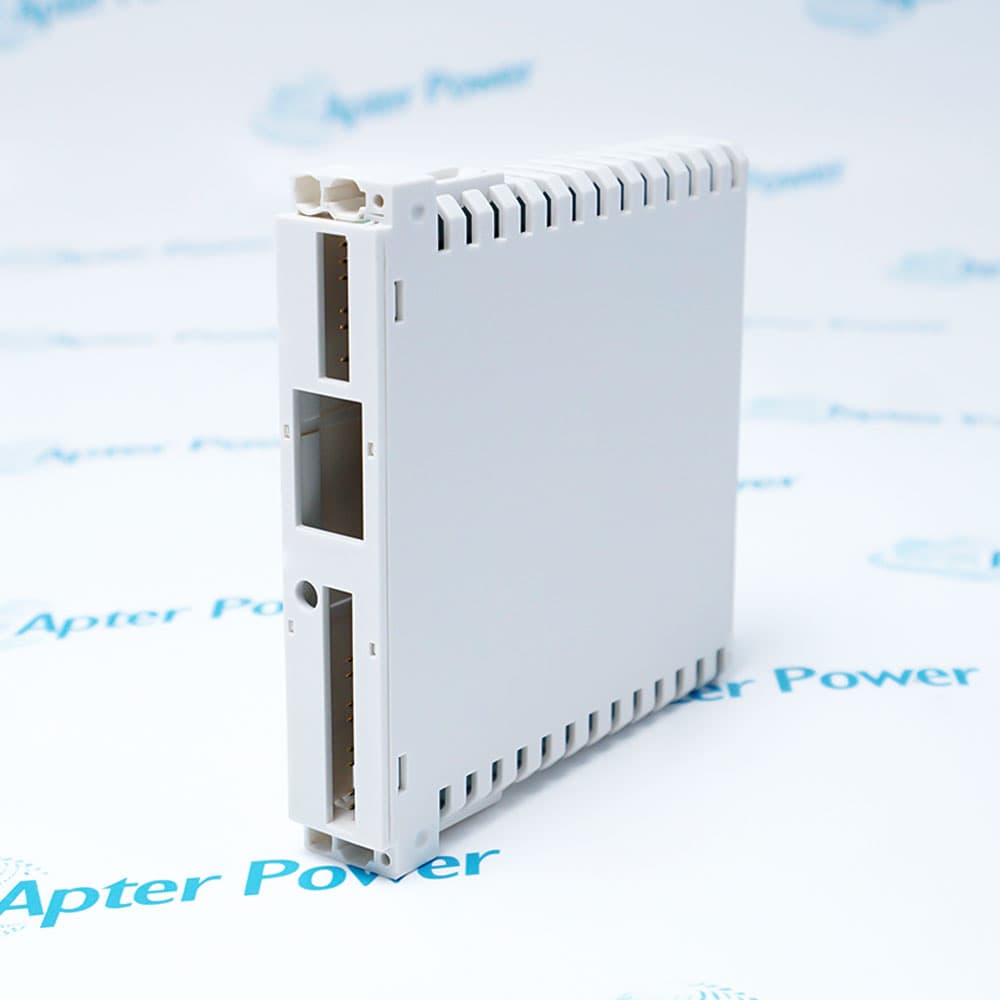

The AO920S 3KDE175531L9200 serves as the Analog Output Module (AO4I-Ex) within the S900 I/O remote station, delivering reliable 0/4...20 mA signals to actuators connected through intrinsically safe field circuits. It continuously generates precise current output for up to four channels and distributes these signals through isolated output circuitry to support steady state operation of control valves, drives, and other final control elements in Zone 0, Zone 1, or Zone 2 hazardous areas. Seamless signal integrity is standard with the AO920S 3KDE175531L9200, and the module's built-in short and break detection ensures immediate fault identification in the event of a field wiring anomaly.
The AO920S 3KDE175531L9200 provides essential analog output functions for the S900 I/O system and is a critical component of the control path, directly affecting the proper, normal operation of field actuators in process automation environments. One AO920S 3KDE175531L9200 module occupies a single slot within the S900 I/O station and delivers four independent output channels.
For enhanced system availability, the S900 I/O platform supports redundancy at both the power and communication levels. In addition to standard single-module operation, the S900 system architecture allows hot-swappable replacement of the AO920S 3KDE175531L9200 without interrupting primary voltage. The S900 I/O station executes module monitoring using integrated auto-diagnostics specified in the AO920S design.
The AO920S 3KDE175531L9200 ABB Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB AO920S 3KDE175531L9200 Analog Output Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB AO920S 3KDE175531L9200 Analog Output Module Specs
General
- Manufacturer ABB
- Model AO920S 3KDE175531L9200
- Condition New Original ready stock
- Product Family AO920N 3KDE175533L9200,AO920B 3KDE175532L9200
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Hazardous Area Actuation: Driving control valves, I/P converters, positioners, and indicators mounted directly in ATEX Zone 1 or Zone 0 environments.
- Distributed Process Automation: Deploying close to field equipment inside chemical plants, oil refineries, and pharmaceutical manufacturing sites to minimize expensive marshalling and wiring runs.
- High-Availability Operations: Continuous manufacturing processes where field components require live maintenance without interrupting the control network.
- Explosion Protection: Built with an intrinsically safe design (AO4I-Ex) and ATEX Certification, enabling safe operation inside Zone 1 hazardous environments.
- Electrical Isolation: Complete galvanic isolation between the individual output channels, the communication bus, and the power supply line.
- Fault Detection: Active, auto-diagnostic supervision including short-circuit and line-break detection on field loop wiring.
- Environmental Resistance: Features a heavy-duty G3 conformal coating on all internal electronic components to resist harsh, corrosive gases and moisture.
- Integration Software: Fully managed and configured through standard ABB engineering environments like Automation Builder or DCS tools via FDT/DTM technologies.
- Hot Configuration in Run (HCIR): Parameters, ranges, and scaling can be altered on-the-fly while the Distributed Control System (DCS) continues running.
- Hot Swap Functionality: Modules can be plugged or removed under voltage during live operation without dropping power or bus communication to adjacent modules.
- Signal Mapping: Configurable output parameters supporting both standard industrial current limits (0...20 mA or 4...20 mA) depending on valve requirements.
