    Apter Power supplies original ABB BC810K02 CEX-Bus kits for compatible AC 800M controllers.

BC810K02 3BSE031155R1

/ 4.9
1001 reviews | Need a Specific Revision?

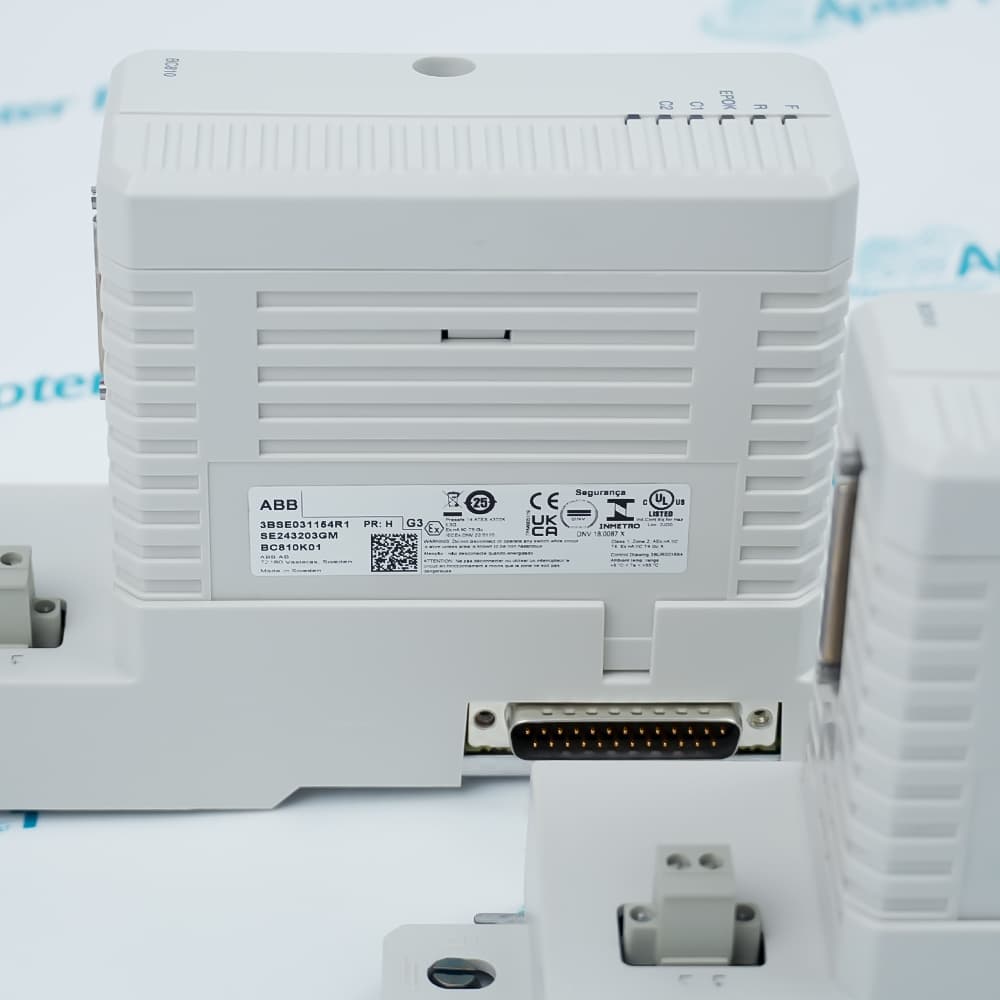

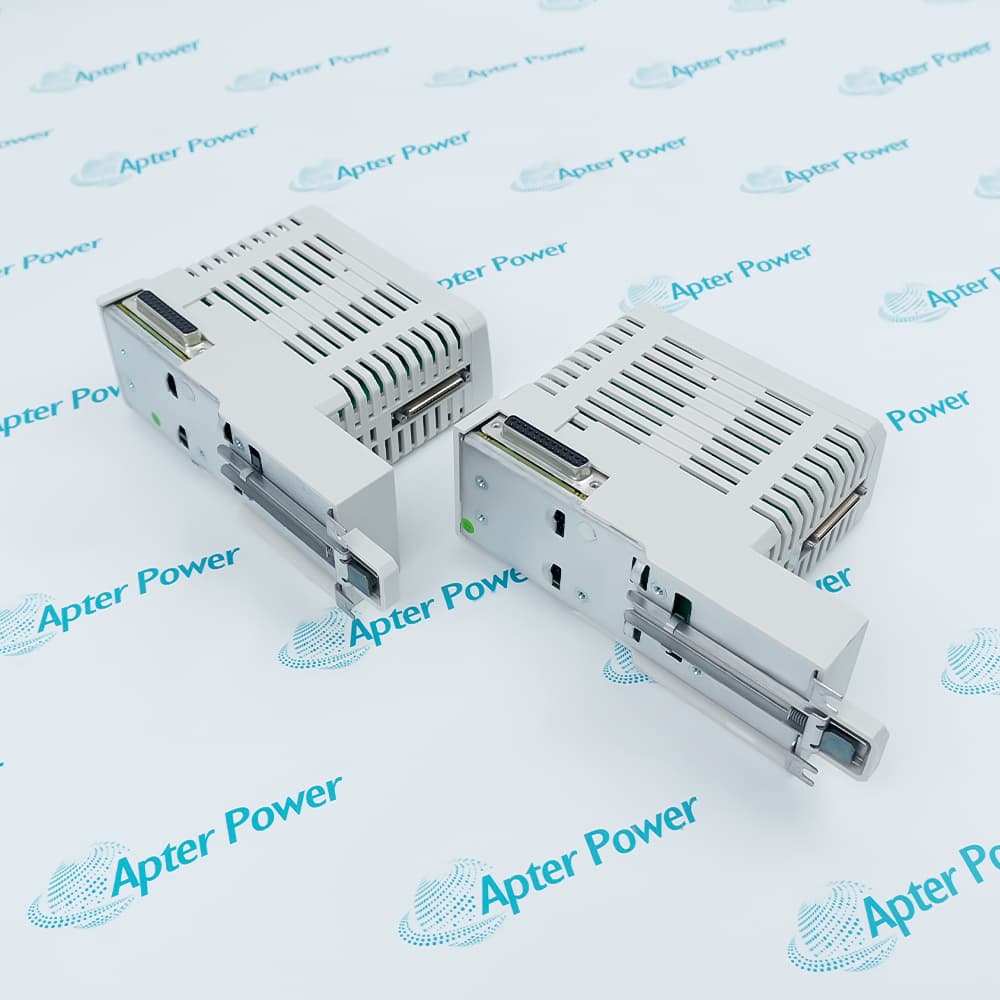

ABB BC810K02 3BSE031155R1 is the redundant AC 800M CEX-Bus interconnection kit containing two BC810 units, two TP857 baseplates, the TK851 cable and two TB850 terminators.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for BC810K02 3BSE031155R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for BC810K02 3BSE031155R1

  • Manufacturer:
    ABB
  • Part Number:
    BC810K02 3BSE031155R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Redundant CEX-Bus Interconnection Kit
  • Stock:
    1
  • Kit Designation:
    BC810K02
  • BC810 Units:
    2
  • TP857 Baseplates:
    2, each 60 mm wide
  • Interconnection Cable:
    TK851, 1.0 m
  • CEX-Bus Terminators:
    2 × TB850
  • Redundancy:
    Yes
  • High Integrity:
    Yes
  • Hot Swap:
    Supported
  • Nominal Supply:
    24 VDC
  • Supply Range:
    19.2 to 30 VDC
  • Current Consumption:
    50 mA typical; 70 mA maximum per BC810
  • Power Dissipation:
    1.2 W typical per BC810
  • Operating Temperature:
    0 to +55 °C
  • Storage Temperature:
    -40 to +70 °C
  • Relative Humidity:
    5 to 95%, non-condensing
  • Protection Class:
    IP20 according to EN 60529 / IEC 529
  • Electrical Safety:
    UL 61010-1 and UL 61010-2-201
  • Hazardous Location:
    cULus Class I, Zone 2; AEx nA IIC T4; Ex nA IIC T4 Gc X
  • Marine Certificates:
    ABS, BV, DNV, LR and CCS
  • Dimensions:
    59 × 185 × 127.5 mm per assembled unit
  • Package Weight:
    1.5 kg
  • Weight:
    1.5 kg
  • Estimated shipping dimensions:
    5.9x18.5x12.75cm
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Safety & Compliance

Features:

  • Supplies the paired BC810 hardware required for a redundant CEX-Bus arrangement.
  • Includes the interconnection cable and termination hardware for the documented topology.
  • Supports online CPU-baseplate replacement in a fully redundant controller configuration.
The current ordering configuration is ABB BC810K02, article number 3BSE031155R1, supplied as a two-unit redundant CEX-Bus kit.

Its paired architecture separates communication-interface groups so a CPU-baseplate service action can be completed without disturbing CEX traffic in the supported redundant design.

Before commissioning, verify both 24 VDC feeds, the TK851 connection, TB850 termination, CPU redundancy links, module order and the controller hardware configuration.

Availability is subject to Apter Power inventory and sourcing confirmation.
ABB BC810K02 3BSE031155R1 CEX-bus Interconnection Unit Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerABB
  • ModelBC810K02 3BSE031155R1
  • ConditionNew Original ready stock
  • Product FamilyAC 800M / System 800xA CEX-Bus

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Builds a sectioned CEX-Bus for AC 800M systems using redundant communication-interface units.
  • Supports online service of the CPU baseplate when two BC810 units and a primary/backup CPU pair are correctly interconnected.
  • Maintains separate CEX communication segments in process-control architectures requiring higher availability.
  • Operates from 0 to +55 °C when installed within the documented AC 800M cabinet conditions.
  • May be stored from -40 to +70 °C before installation and commissioning.
  • Supports 5 to 95% relative humidity when condensation is prevented.
  • Carries IP20 protection and the listed UL electrical-safety approvals for industrial control equipment.
  • Supports the documented Class I, Zone 2 hazardous-location classifications when all installation conditions are met.
  • Includes the published marine, CE, RoHS and WEEE conformity information for the current hardware data sheet.
Description
ABB BC810K02 3BSE031155R1 supplies the paired hardware needed for a redundant AC 800M CEX-Bus arrangement. Its package contains two BC810 units with TP857 baseplates, the TK851 interconnection cable and two TB850 terminators, giving the system designer the matched components required to build the documented topology.

Working as an interconnected pair, the two units separate communication-interface groups into independent CEX segments and support the primary and backup sides of a high-availability controller design. The arrangement keeps the expansion bus organized around defined paths rather than depending on a single unsectioned chain of communication modules.

When the complete redundant configuration is operating correctly, the architecture supports online service of a CPU baseplate without interrupting CEX traffic. This benefit depends on both interconnection units, the controller pair, termination and power feeds remaining correctly installed, so the kit is intended for engineered redundancy rather than a simple single-unit replacement.
Alternative Names
BC810K02 3BSE031155R1 BC81OKO2 3BSEO31155R1 BC8I0K02 3BSE03II55RI BC820K02 3BSE071500R1 BC810 3BSE031154R1 PM857K01 3BSE088385R1 PM858K01 3BSE082895R1
Technical notes
BC810K02 3BSE031155R1 preserves CEX traffic during CPU-baseplate service only in the documented fully redundant arrangement; replacing a BC810 stops its segment.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What hardware is supplied in ABB BC810K02 3BSE031155R1?
The kit contains two BC810 units, two TP857 baseplates, one 1.0 m TK851 interconnection cable and two TB850 CEX-Bus terminators.
Why does ABB BC810K02 3BSE031155R1 contain two interconnection units?
The two units are used to create the sectioned redundant CEX-Bus arrangement described for primary and backup controller hardware.
Can ABB BC810K02 3BSE031155R1 keep CEX traffic active during CPU replacement?
Yes, but only in the fully redundant topology with both BC810 units and the primary/backup CPU pair correctly installed and operating.
What happens when one BC810 in ABB BC810K02 3BSE031155R1 is replaced?
Traffic to the CEX segment connected through that unit stops, so the maintenance plan must account for the affected communication interfaces.
Which controllers are listed for use with the BC810 hardware?
ABB lists PM857, PM861A, PM862, PM863, PM866, PM866A, PM867 and PM891 on the current BC810K02 product page.
What information is needed to quote ABB BC810K02 3BSE031155R1?
Provide article number 3BSE031155R1, quantity, condition, destination, CPU pair and the existing CEX-Bus topology.
