CI867K01 3BSE043660R1

/ 4.9
1001 reviews | Need a Specific Revision?

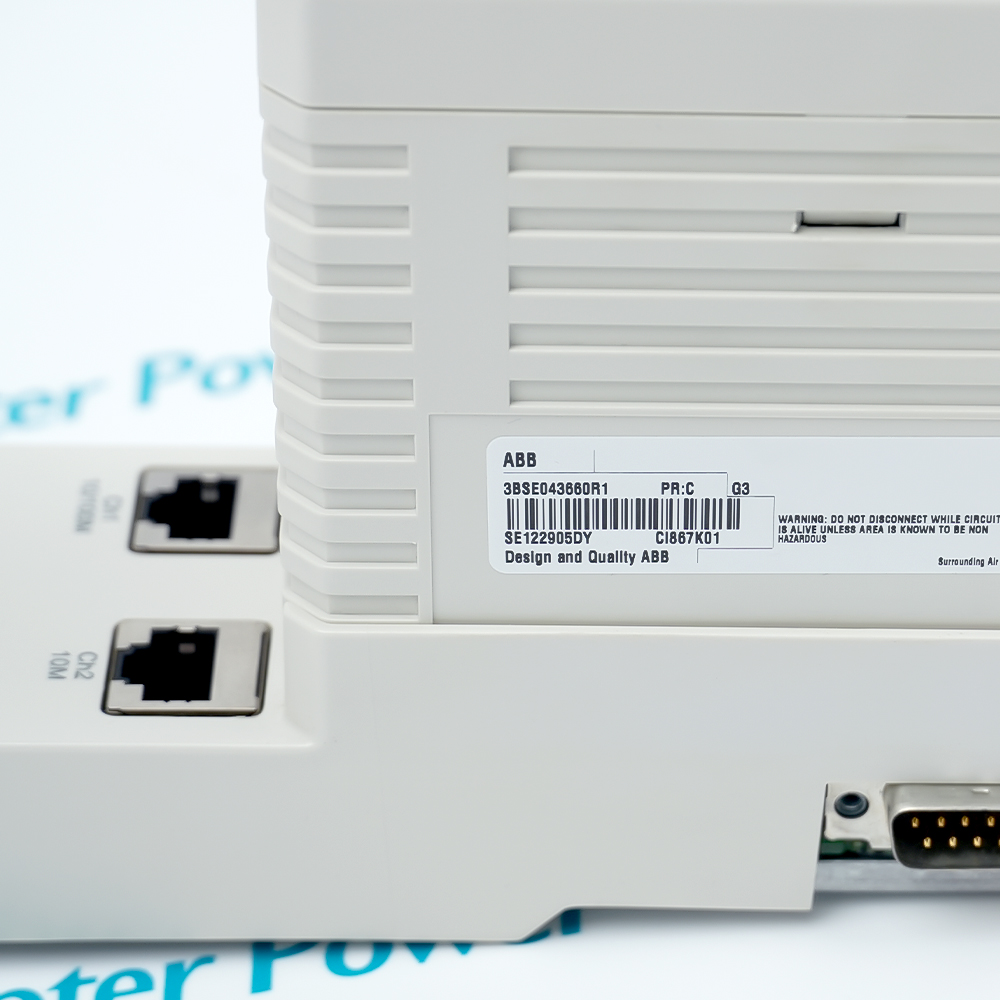

ABB CI867K01 3BSE043660R1 is an AC 800M Modbus TCP interface package containing the CI867 communication interface and TP867 baseplate.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for CI867K01 3BSE043660R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CI867K01 3BSE043660R1

  • Manufacturer:
    ABB
  • Part Number:
    CI867K01 3BSE043660R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Modbus TCP Communication Interface Package
  • Stock:
    1
  • Protocol:
    Modbus TCP
  • Operating Roles:
    Client/master and server/slave
  • Ethernet Channels:
    2
  • Channel 1 Speed:
    10/100 Mbit/s
  • Channel 2 Speed:
    10 Mbit/s
  • Redundancy:
    Supported in the documented AC 800M architecture
  • Hot Swap:
    Supported
  • Current Consumption:
    160 mA typical; 250 mA maximum
  • Power Dissipation:
    3.8 W
  • Protection:
    IP20
  • Dimensions:
    5.9 × 18.5 × 12.75 cm
  • Weight:
    0.7 kg
  • Tariff Code:
    85176200
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Network Roles Redundancy Diagnostics Application
  • CI867 communication interface supplied with TP867 baseplate
  • Modbus TCP client/master and server/slave operation
  • Two Ethernet channels with redundancy and hot-swap support

CI867K01 3BSE043660R1 is an AC 800M Modbus TCP communication package containing the CI867 module and TP867 baseplate.

It connects AC 800M applications to external Modbus TCP devices and supports the documented online replacement and redundant communication architecture.

Before installation or replacement, preserve IP addressing, channel assignment, client/server roles, register maps, timeouts, firmware compatibility, redundancy settings, and TP867 cabling.

Availability, condition, price, and shipping time for CI867K01 3BSE043660R1 are confirmed during quotation.

CI867K01 3BSE043660R1 Modbus TCP Communication Interface Package Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Client/master connections initiate polling of external Modbus TCP servers
  • Server/slave operation exposes configured AC 800M data to authorized clients
  • Function codes, unit identifiers, register offsets, and byte order remain application-specific
  • The interface supports documented AC 800M redundancy arrangements
  • Hot swap and online replacement depend on correct hardware and firmware compatibility
  • Both network paths and connection recovery require an operational switchover test
  • Evaluate module, channel, controller, and network status together
  • Healthy hardware indication does not prove correct register mapping or fresh process values
  • IP routing, channel speed, timeouts, polling load, and remote connection limits are common fault points
  • AC 800M integration of Modbus TCP process instruments and remote I/O
  • Supervisory data exchange with PLCs, analyzers, and package-unit controllers
  • Redundant Modbus TCP communication for supported System 800xA process-control architectures
Description
CI867K01 3BSE043660R1 is an AC 800M communication-interface package for integrating external Modbus TCP equipment as client/master or server/slave devices.

The package combines the CI867 interface and TP867 baseplate, provides two Ethernet channels, and supports documented redundancy, hot-swap, and online replacement functions within a correctly engineered AC 800M system.

Before replacement, preserve IP addressing, Modbus unit and register maps, client/server role, channel assignment, redundancy settings, controller firmware compatibility, and the installed TP867 wiring.
Alternative Names
CI867K01 3BSE043660R1 CI867K01 3BSE043660R1 ABB CI867K01 ABB 3BSE043660R1 CI867 K01
Technical notes
ABB CI867K01 3BSE043660R1 is a CI867 plus TP867 Modbus TCP package. Preserve channel speed, IP configuration, role, register mapping, firmware compatibility, redundancy, and baseplate wiring.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB CI867K01 3BSE043660R1 be replaced by CI867AK01 without engineering changes?
Do not assume so. The later CI867A package has a different Ethernet-channel implementation and requires AC 800M hardware, firmware, redundancy, and application-configuration review before migration.
Does ABB CI867K01 3BSE043660R1 include everything needed to connect a Modbus TCP device?
The K01 package contains CI867 and TP867. Ethernet cables, switches, network power, field-device configuration, controller licenses, and application engineering are separate unless the stock description lists them.
Can both Ethernet ports on ABB CI867K01 3BSE043660R1 be treated as identical 100 Mbit/s ports?
No. ABB documents Channel 1 as 10/100 Mbit/s and Channel 2 as 10 Mbit/s. Preserve the installed channel assignment and network design instead of moving links by convenience.
Can ABB CI867K01 3BSE043660R1 act as both a Modbus TCP client and server?
Yes, within the supported AC 800M application architecture. The configured role, connection count, unit identifiers, function codes, timeouts, and register mapping must still match the plant design.
What must be backed up before hot-swapping ABB CI867K01 3BSE043660R1?
Back up the controller application and record IP settings, channel use, redundancy state, Modbus connection parameters, unit IDs, register maps, timeouts, firmware level, and TP867 cabling before removal.
Why can ABB CI867K01 3BSE043660R1 show healthy hardware LEDs while Modbus data remains stale?
A healthy module does not prove valid application traffic. Check client/server role, IP route, port and channel, unit ID, function code, register offset, byte order, timeout, polling load, and the remote device's connection limit.
How should ABB CI867K01 3BSE043660R1 redundancy be tested after replacement?
Verify both communication paths, controller and network redundancy status, switchover without stale or duplicated values, alarm handling, and recovery of all Modbus connections under the site's acceptance procedure.
