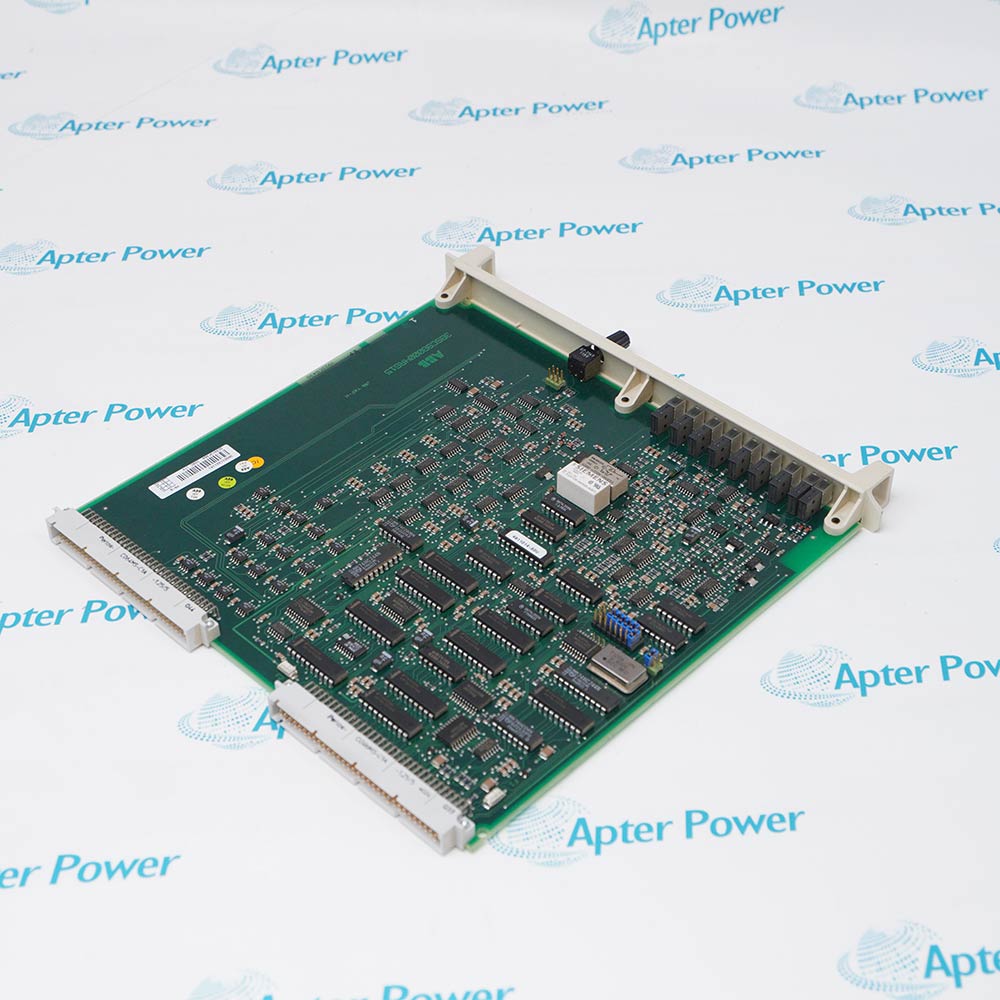

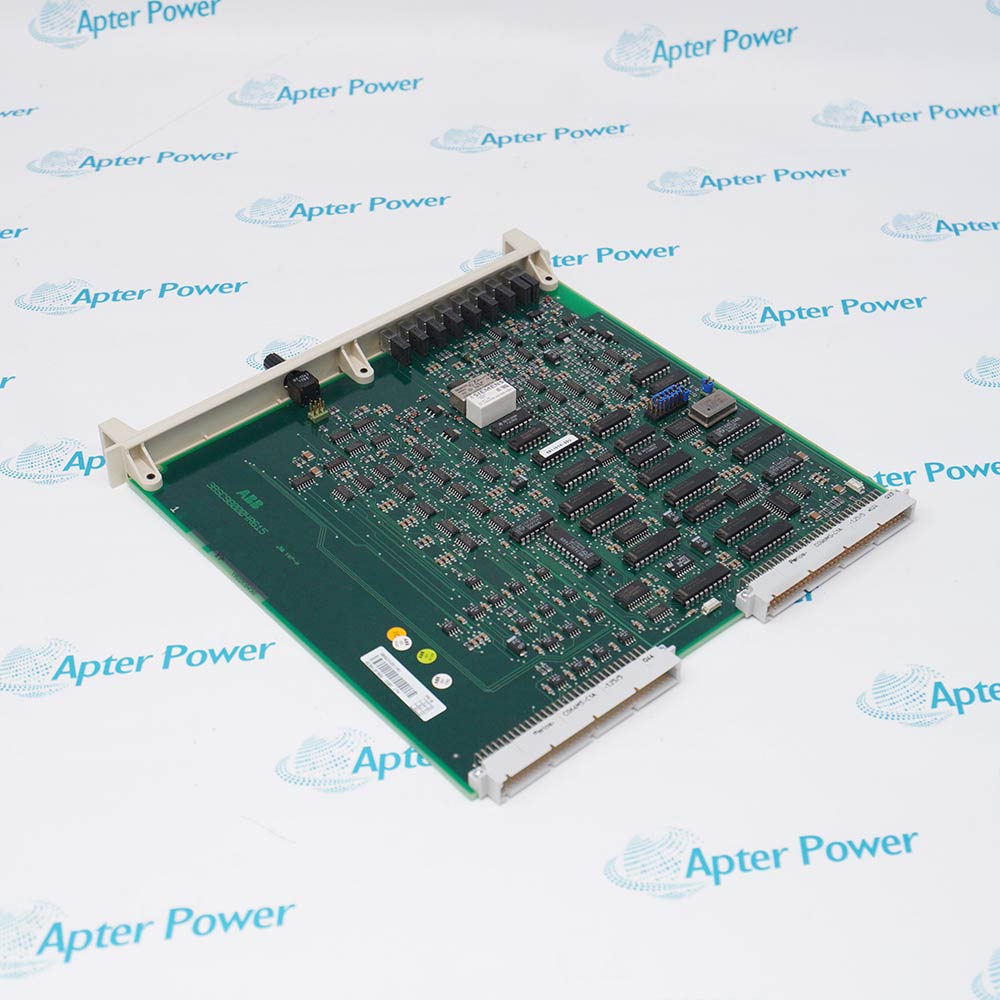

ABB DSBC174 3BSE012211R1 is an S100 I/O bus extender used with documented ABB communication-interface and controller configurations.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSBC174 3BSE012211R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSBC174 3BSE012211R1

  • Manufacturer:
    ABB
  • Part Number:
    DSBC174 3BSE012211R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    S100 I/O bus extender
  • Stock:
    1
  • ABB Type Designation:
    DSBC174
  • Function:
    Bus extender
  • I/O Family:
    S100 I/O
  • Interface Context:
    CI856 with TP856
  • Related Bus Extenders:
    DSBC176 or DSBC173A, selected by documented system design
  • RoHS Status:
    Not RoHS compliant
  • WEEE Category:
    5, small equipment
  • Battery Content:
    0
  • Dimensions:
    26.0 × 2.0 × 36.0 cm
  • Weight:
    0.34 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rack Role Connection Kits Signal Services Application
  • ABB S100 I/O bus extender
  • Documented in CI856 and TP856 interface arrangements
  • Multiple ABB kit references require exact installed-system matching

DSBC174 3BSE012211R1 is an ABB bus extender for S100 I/O communication.

Its correct use depends on the communication interface, termination plate, kit, cable route, and configured system topology.

Verify the complete product ID and installed kit before choosing DSBC174 or any documented alternative.

Availability, condition, price, and shipping time for DSBC174 3BSE012211R1 are confirmed during quotation.

ABB DSBC174 3BSE012211R1 S100 I/O Bus Extender Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • DSBC174 operates as the bus-extender slave in an S100 I/O rack
  • ABB specifies installation in the last position of the rack
  • The product record classifies DSBC174 under S100 I/O bus extensions
  • DSBC174K11 3BSE014080R1 is the connection kit for standard S100 I/O
  • DSBC174K21 and K25 are documented connection kits for red S100
  • DSBC174K41, K45, and K46 are additional ABB red S100 connection kits
  • ABB maps DSBC174 to the CI856 communication interface
  • The AC 800M adaptor table lists HART support as No and SOE support as Yes
  • ABB requires OPC Server for AC 800M when alarms and events are used
  • Extending an S100 I/O bus in an Advant installation
  • Connecting documented CI856 and TP856 communication arrangements
  • Replacing DSBC174 3BSE012211R1 within a verified ABB kit configuration
Description
DSBC174 3BSE012211R1 is an ABB bus extender for S100 I/O installations.

ABB documentation includes DSBC174 among the bus-extension alternatives used with CI856 and TP856 communication-interface arrangements and lists several exact kit references.

Confirm the full product ID, interface module, termination plate, kit, bus cable, rack position, and controller configuration before replacement.
Alternative Names
DSBC174 DSBC 174 3BSE012211R1 DSBC174 3BSE012211R1 ABB DSBC174 ABB DSBC174 3BSE012211R1
Technical notes
ABB DSBC174 3BSE012211R1 is an S100 bus extender. Verify the CI856/TP856 arrangement, rack-end position, connection kit, cabling, and termination before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What system information is needed to confirm ABB DSBC174 3BSE012211R1 as the correct bus extender?
Provide the controller and S100 layout, CI856 and TP856 details, installed extender labels, kit code, bus cables, termination, rack positions, and topology drawing.
Are cables and kit accessories included with ABB DSBC174 3BSE012211R1?
Do not assume they are included. The quotation should list the board, kit parts, cables, connectors, termination hardware, and any mounting accessories separately.
How should CI856 and TP856 compatibility be checked for ABB DSBC174 3BSE012211R1?
Match the exact ABB system configuration, firmware and hardware context, termination plate, bus topology, kit reference, and cable arrangement before approval.
Can ABB DSBC174 3BSE012211R1 be replaced by DSBC176 automatically?
No. The correct bus extender depends on the documented system topology, kit, cabling, and controller configuration.
How can the correct kit be identified for ABB DSBC174 3BSE012211R1?
Use the installed kit label, rack documentation, cable set, neighboring modules, and clear photographs rather than selecting from the DSBC174 type alone.
What should a buyer consider about the compliance status of ABB DSBC174 3BSE012211R1?
The official record states that it is not RoHS compliant, so confirm whether the destination, project specification, and import requirements permit the offered spare.
What information is required to quote ABB DSBC174 3BSE012211R1?
Provide the product ID, installed CI/TP interface, kit code, rack and cable details, quantity, condition, and destination.
