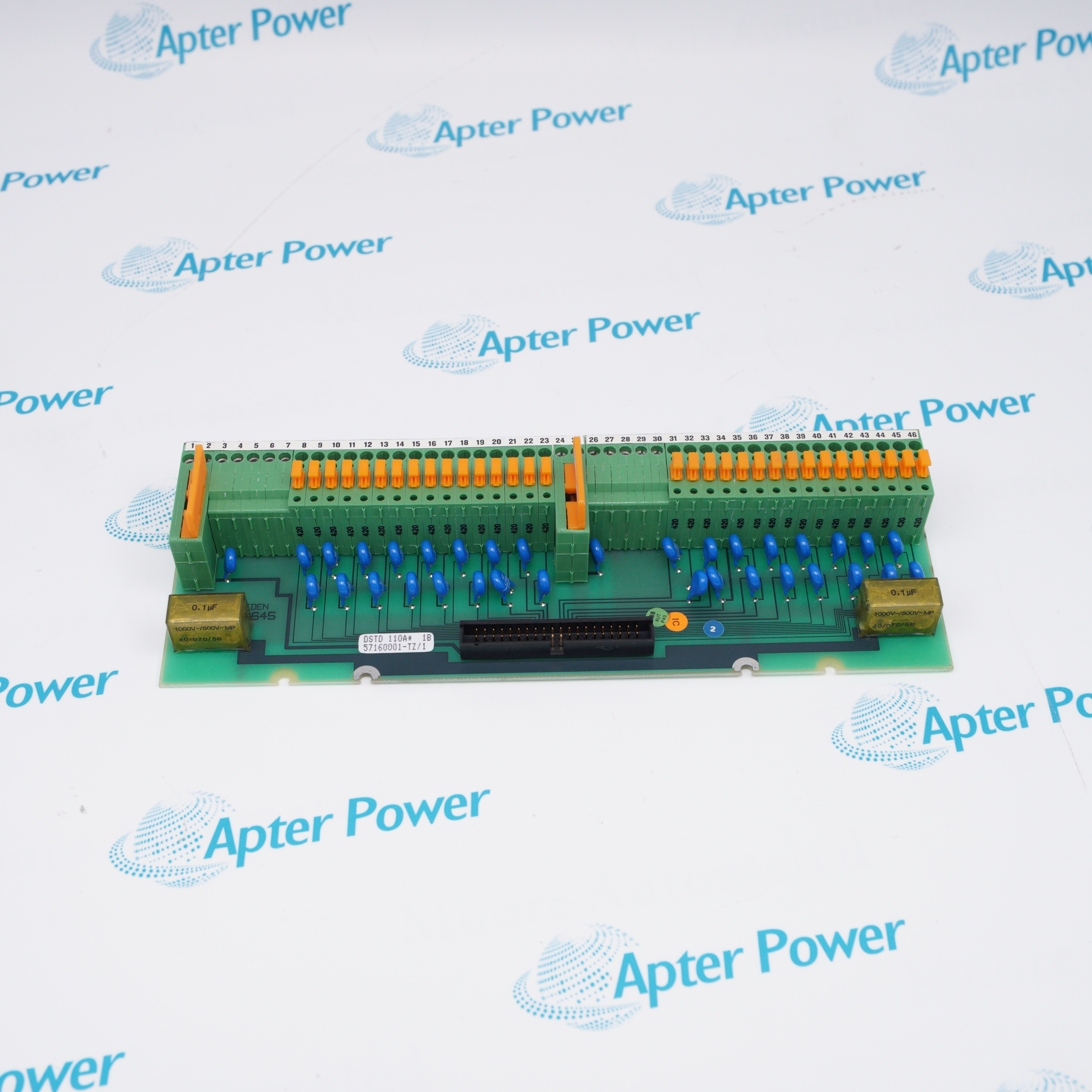

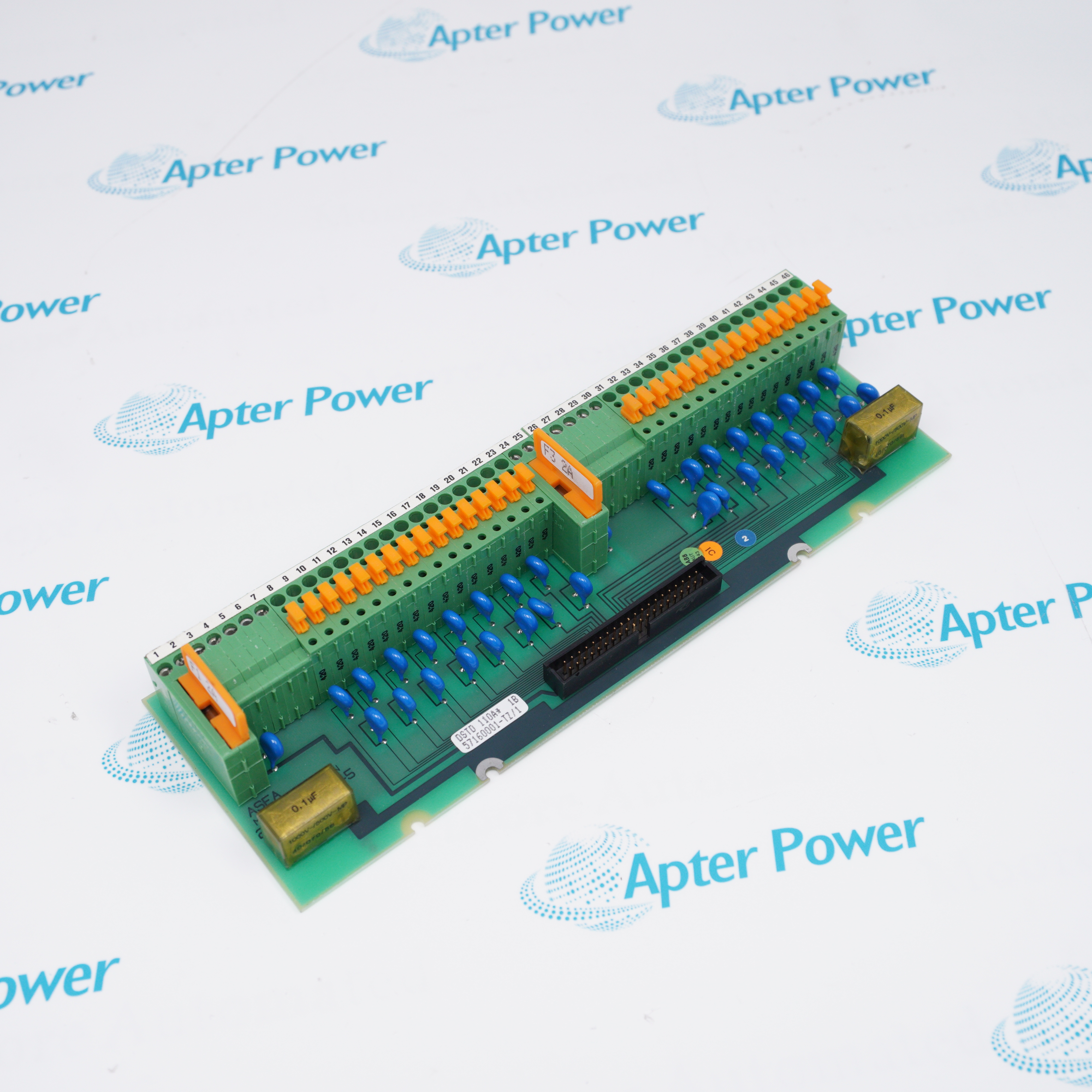

ABB DSTD 110A 57160001-TZ is a 32-channel connection unit for a digital output board with a documented maximum circuit voltage of 60 V.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTD 110A 57160001-TZ
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTD 110A 57160001-TZ

  • Manufacturer:
    ABB
  • Part Number:
    DSTD 110A 57160001-TZ
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Digital Output Connection Unit
  • Stock:
    1
  • Channel capacity:
    32
  • Maximum circuit voltage:
    60 V
  • Mounting screw kit:
    3BSE021202R1
  • Associated kit:
    DSDO115K12, 3BSE019933R1, 32-channel 24 V
  • Associated kit:
    DSDO115K01, 5730030-VC
  • Dimensions:
    15.75 × 5.4 × 32.4 cm
  • WEEE category:
    5, small equipment
  • Battery content:
    No batteries
  • Weight:
    0.365 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Channel Mapping Kit Compatibility Mounting Control Application
  • Connection unit for a 32-channel digital output board with a maximum circuit voltage of 60 V
  • Documented in DSDO 115K12 and DSDO 115K01 digital-output kit configurations
  • ABB exchange number EXC57160001-TZ and mounting screw kit 3BSE021202R1 support replacement planning

DSTD 110A 57160001-TZ is an ABB connection unit that terminates field wiring for a 32-channel digital output board. It is not a stand-alone output module and must be matched to the associated board and S100 I/O configuration.

ABB documents the unit as part of DSDO 115K12 kit 3BSE019933R1 and DSDO 115K01 kit 5730030-VC. Its published system contexts include Advant Controller 450 Version 2.3, MasterPiece 200 and 200/1, 800xA S100 I/O, Advant OCS with MOD 300 and Compact Product Suite.

Before replacement, confirm that the field circuit does not exceed 60 V, record every terminal and cable position, verify the installed DSDO kit and retain the correct mounting hardware. For exchange sourcing, ABB identifies EXC57160001-TZ as the corresponding exchange number.

Availability, condition, price, and shipping time for DSTD 110A 57160001-TZ are confirmed during quotation.

ABB DSTD 110A 57160001-TZ Digital Output Connection Unit Datasheet, Manuals, and Support Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Record every occupied terminal before the connection unit is removed.
  • Confirm the associated board is the documented 32-channel digital-output device.
  • Check field-circuit voltage against the ABB-supported connection-unit context.
  • Match DSDO115K12 only where the installed 3BSE019933R1 kit is confirmed.
  • Match DSDO115K01 only where the installed 5730030-VC kit is confirmed.
  • Do not infer compatibility with a different DSDO kit from connector appearance.
  • Verify mounting screw kit 3BSE021202R1 before installation.
  • Restore cable routing without loading the terminal connectors.
  • Test the relevant S100 I/O output channels after the wiring review.
  • DSDO115K12 32-channel 24 V digital-output kit installations
  • DSDO115K01 digital-output kit installations
  • S100 I/O digital-output termination in documented AC450 and MasterPiece control systems
Description
DSTD 110A 57160001-TZ is ABB's connection unit for a 32-channel digital output board in documented S100 I/O configurations.

ABB identifies a maximum 60 V circuit rating, mounting screw kit 3BSE021202R1 and digital-output kits DSDO115K12 and DSDO115K01.

Ordering and installation must be checked against the complete 57160001-TZ identity and the installed digital-output kit because the terminal unit is not a stand-alone output module.
Alternative Names
DSTD 110A 57160001-TZ DSTD110A 57160001-TZ 57160001-TZ DSTD 110A 57160001-TZ DSTD110A ABB DSTD 110A 57160001-TZ ABB 57160001-TZ DSTD 110A
Technical notes
DSTD 110A 57160001-TZ requires verification of the 32-channel output board, associated DSDO kit, terminal record and mounting kit 3BSE021202R1 before replacement to prevent wiring mismatch.
