ABB DSTD132 is a legacy connection unit identified on the supplied board as DSTD 132 with part number 57160001-FX/1 for digital input/output termination.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTD132
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTD132

  • Manufacturer:
    ABB
  • Part Number:
    DSTD132
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Digital I/O Connection Unit
  • Stock:
    1
  • Visible Field Terminals:
    Numbered screw terminals
  • Visible Rack Connector:
    One multipin connector
  • Visible D-sub Connectors:
    Three multi-pin D-sub connectors
  • Channel Reference:
    16 digital input channels
  • Maximum Voltage:
    240 V
  • Tariff Code:
    8517799000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Board Hardware Terminal Mapping Replacement Application

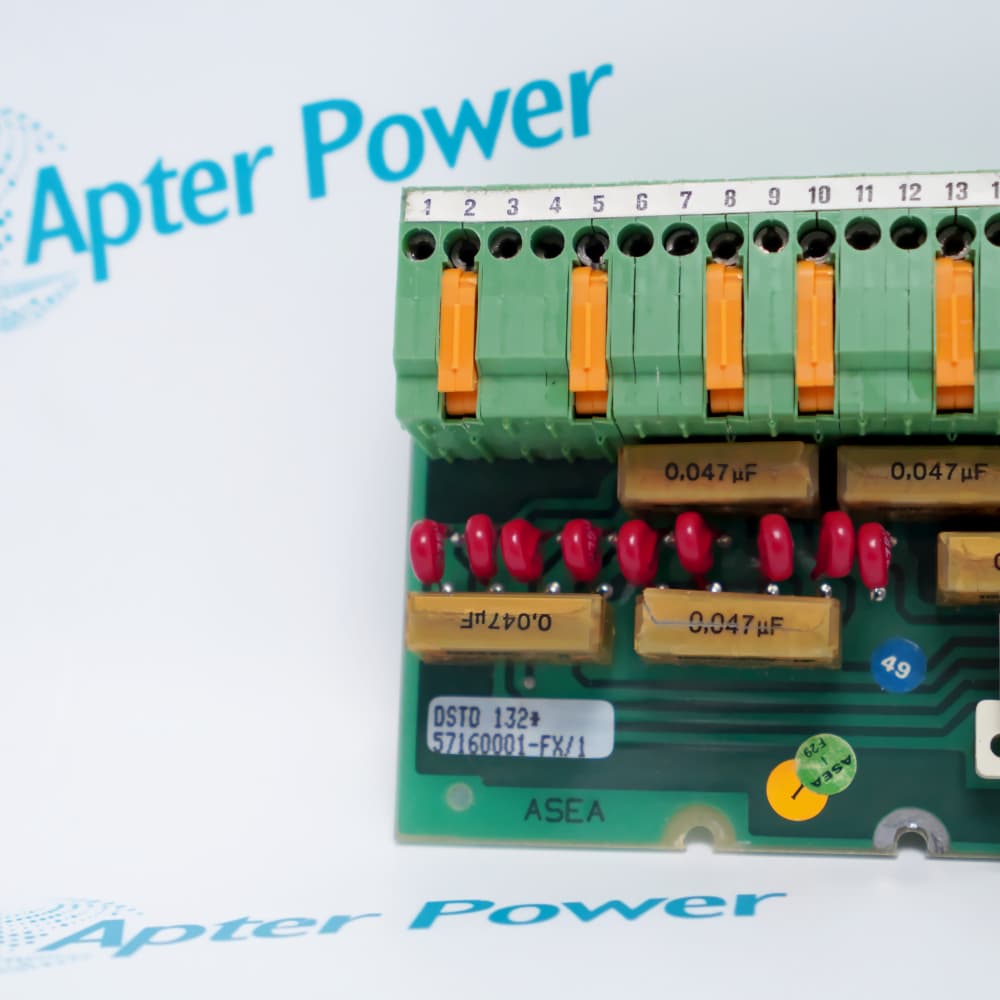

  • Visible DSTD 132 board identity with part number 57160001-FX/1
  • Numbered field-terminal blocks for documented digital signal connections
  • Multipin rack connector for integration with the installed I/O assembly

DSTD132 is an ABB/ASEA digital I/O connection unit designed for signal termination within a documented legacy control-system assembly.

The board provides numbered field-terminal connections and a multipin rack interface for routing installed digital signals to the associated I/O hardware.

Before installation or replacement, verify the complete 57160001-FX/1 identity, terminal mapping, jumper positions, connector keying, rack position, cabling, and installed-system drawings.

Availability, condition, price, and shipping time for DSTD132 are confirmed during quotation.

ABB DSTD132 Digital I/O Connection Unit Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Segmented field-terminal assemblies equipped with orange disconnect or test tabs
  • Multiple 0.047 µF components arranged beneath the terminal sections
  • Repeated rows of discrete components distributed across the individual board channels
  • Numbered field-terminal positions for point-by-point wire identification
  • Multipin rack-side connector carrying the board circuits into the installed I/O assembly
  • Channel assignments determined by the applicable cabinet and system wiring drawings
  • Photograph and label every numbered terminal connection before removing the installed board
  • Match the complete 57160001-FX/1 suffix, connector keying, jumper positions, and rack location
  • Verify every transferred digital point under the applicable site commissioning test plan
  • Termination of documented digital input signals from field circuits
  • Connection of documented digital output circuits within compatible ABB I/O assemblies
  • Routing of digital field signals between numbered terminals and the rack-side I/O interface
Description
ABB DSTD132 is a Digital I/O Connection Unit. ABB DSTD132 is a legacy connection unit identified on the supplied board as DSTD 132 with part number 57160001-FX/1 for digital input/output termination.

For replacement work, confirm the complete model identity, installed slot or mounting context, connector and terminal arrangement, power requirements, configuration and site drawings before energization.

Apter supports legacy automation spares, technical cross-reference and replacement planning. Availability and configuration should be confirmed against the installed unit.
Alternative Names
DSTD132 DSTD 132 ABB DSTD132 ABB DSTD 132 DSTD132 57160001-FX DSTD 132 57160001-FX/1 57160001-FX DSTD132
Technical notes
DSTD132 must be matched by its 57160001-FX/1 label, terminal numbering, connector orientation, jumpers, rack slot, and installed digital-I/O drawings.
