DSTK221L3 3BSC950164R30

/ 4.9
1001 reviews | Need a Specific Revision?
ABB DSTK221L3 3BSC950164R30 is a three-metre prefabricated ribbon-cable assembly for documented S100 I/O board and connection-unit combinations.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSTK221L3 3BSC950164R30
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSTK221L3 3BSC950164R30

  • Manufacturer:
    ABB
  • Part Number:
    DSTK221L3 3BSC950164R30
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    S100 I/O Prefabricated Ribbon Cable Assembly
  • Stock:
    1
  • Cable construction:
    Ribbon cable, 40 conductors
  • Cable length:
    3 m
  • Board-side connector:
    64-pole
  • Connection-unit connector:
    40-pole
  • System family:
    S100 I/O; Advant Controller 450 prefabricated cables
  • Referenced spare-contact support:
    3BSC910185R1; separate support item
  • WEEE scope:
    Product not in WEEE scope
  • Documented kit use:
    Selected DSAI 130, DSAO 120A/130, DSDI 110A/120A and DSDO 115 S100 I/O kits
  • Weight:
    0.275 kg
  • Tariff Code:
    8544421100
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals I/O Set Matching Connector Handling Signal Validation Application
  • Use DSTK221L3 3BSC950164R30 only as the documented S100 I/O prefabricated cable
  • Match its 64-pole and 40-pole ends to the approved board and connection unit
  • Preserve connector orientation, cabinet routing and channel records before replacement

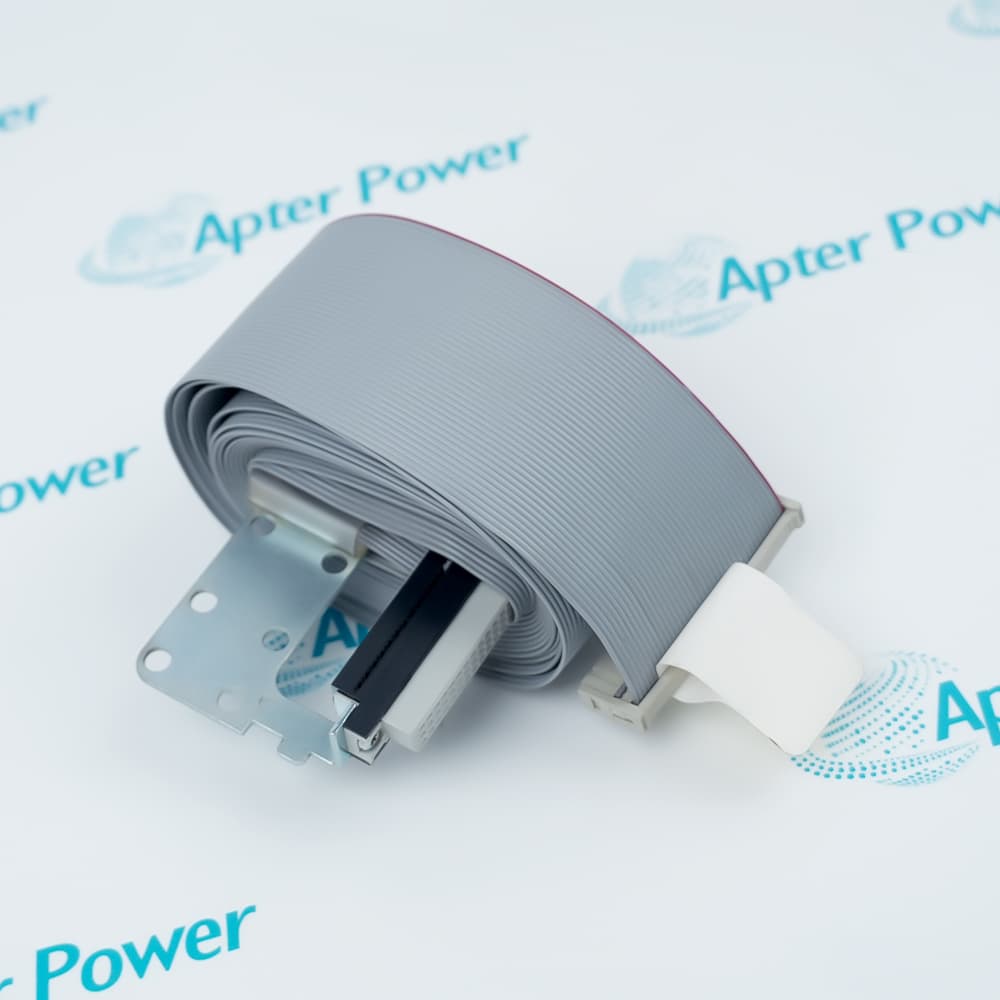

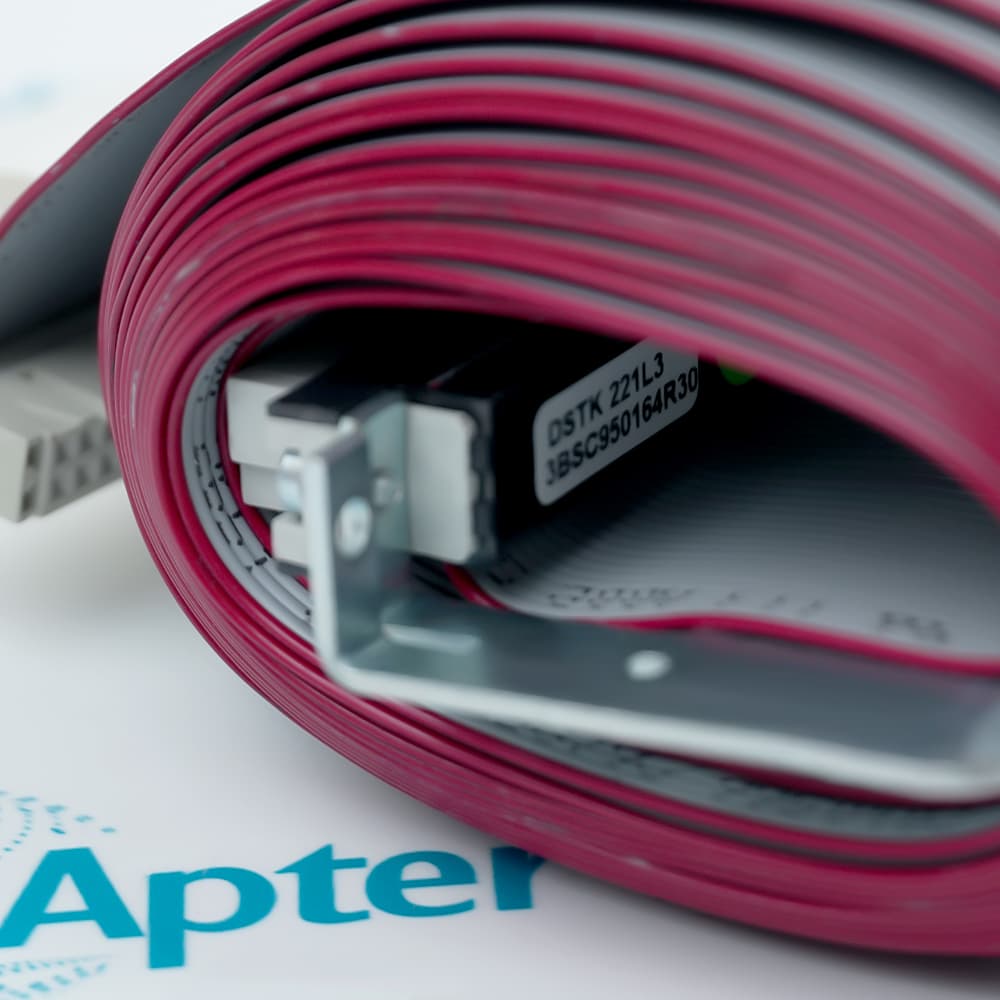

ABB DSTK221L3 3BSC950164R30 is a 3 m S100 I/O prefabricated ribbon-cable assembly.

ABB DSTK221L3 3BSC950164R30 is a three-metre prefabricated ribbon-cable assembly for documented S100 I/O board and connection-unit combinations. DSTK 221L3 is the ABB type designation and 3BSC950164R30 is the Product ID for the same cable assembly. It is not an I/O board, connection unit or spare-contact kit.

Before installation or replacement, verify the complete nameplate, compatible companion hardware, wiring or network design, saved configuration and commissioning plan.

Availability, condition, price, and shipping time for DSTK221L3 3BSC950164R30 are confirmed during quotation.

ABB DSTK221L3 3BSC950164R30 S100 I/O Prefabricated Ribbon Cable Assembly Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match DSAI analog-input boards to the documented DSTA connection units
  • Match DSAO analog-output boards to the documented DSTA connection units
  • Match DSDI or DSDO digital boards to the documented DSTD connection units
  • Inspect the 64-pole and 40-pole connectors before insertion
  • Align keys and latches without twisting the ribbon cable
  • Route the three-metre assembly clear of sharp edges and unsupported bends
  • Confirm cable continuity before applying field signals
  • Exercise every used channel at the relevant connection unit
  • Review board status, channel alarms and grounding after replacement
  • Connecting DSAI130/130A analog-input boards to documented DSTA131/133/135 units
  • Connecting DSAO120A/130/130A analog-output boards to documented DSTA171/180/181 units
  • Connecting selected DSDI110A/120A or DSDO115/115A digital boards to documented DSTD units
Description
DSTK221L3 3BSC950164R30 is a 3 m, 40-conductor prefabricated ribbon cable for documented ABB S100 I/O board and connection-unit combinations.

Selection must match the 64-pole board-side connector, 40-pole connection-unit end, exact I/O set and cabinet routing.

Before replacement, record both connector orientations, board and connection-unit identities, cable route and every affected channel.
Alternative Names
DSTK221L3 3BSC950164R30 DSTK 221L3 3BSC950164R30 DSTK221L3 DSTK 221L3 3BSC950164R30 ABB DSTK221L3 3BSC950164R30 ABB DSTK 221L3 3BSC950164R30 ABB 3BSC950164R30
Technical notes
DSTK221L3 3BSC950164R30 identifies one three-metre ABB S100 I/O ribbon-cable assembly. Match both connector ends and the documented I/O board/connection-unit set; related boards and terminals are separate hardware.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Is the 3BSC910185R1 spare-contact support included with DSTK221L3 3BSC950164R30?
No. The 3BSC910185R1 spare-contact support is a separate item. Confirm whether the installed connection unit requires it before ordering the cable assembly.
How can I confirm the two ends of DSTK221L3 3BSC950164R30 are correct for my installation?
Match the 64-pole and 40-pole connectors, connector keying and cable route to the exact board-to-connection-unit combination in the approved S100 I/O documentation.
Can another DSTK cable length or subtype replace DSTK221L3 3BSC950164R30?
Not automatically. The exact three-metre length, connector arrangement, pin assignment and supported I/O set must agree with the project drawing.
Which S100 I/O arrangements use DSTK221L3 3BSC950164R30?
ABB documents it in selected DSAI analog-input, DSAO analog-output, DSDI digital-input and DSDO digital-output sets with the specified DSTA or DSTD connection units.
What should be inspected before installing DSTK221L3 3BSC950164R30?
Inspect ribbon insulation, bend damage, both connector shells, keying, latch condition, contact alignment and cabinet routing before connecting either end.
Why can channels remain failed after replacing DSTK221L3 3BSC950164R30?
Check for reversed or offset connector seating, bent contacts, the wrong board/connection-unit pairing, damaged conductors and the I/O board configuration.
How should DSTK221L3 3BSC950164R30 be commissioned?
Confirm connector seating and cable continuity first, then validate every used channel, status indication and alarm for the exact S100 I/O set before returning it to service.
