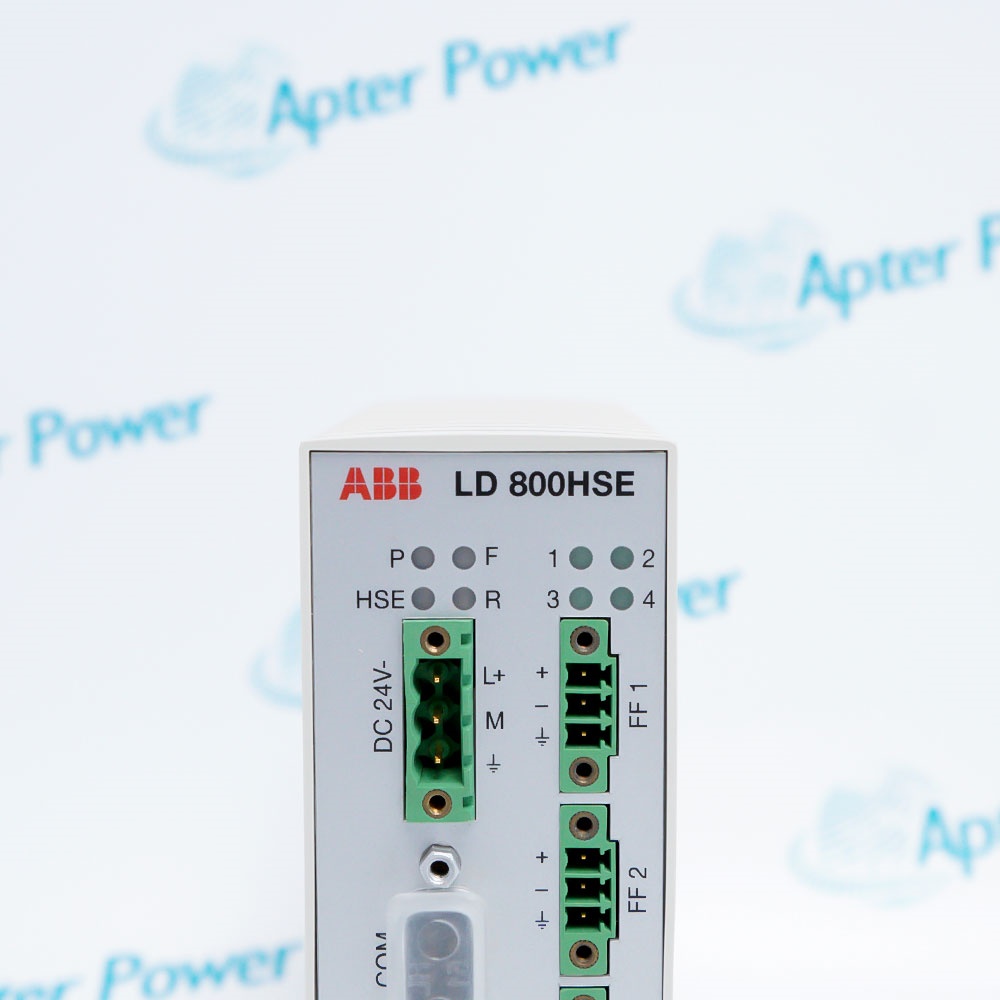

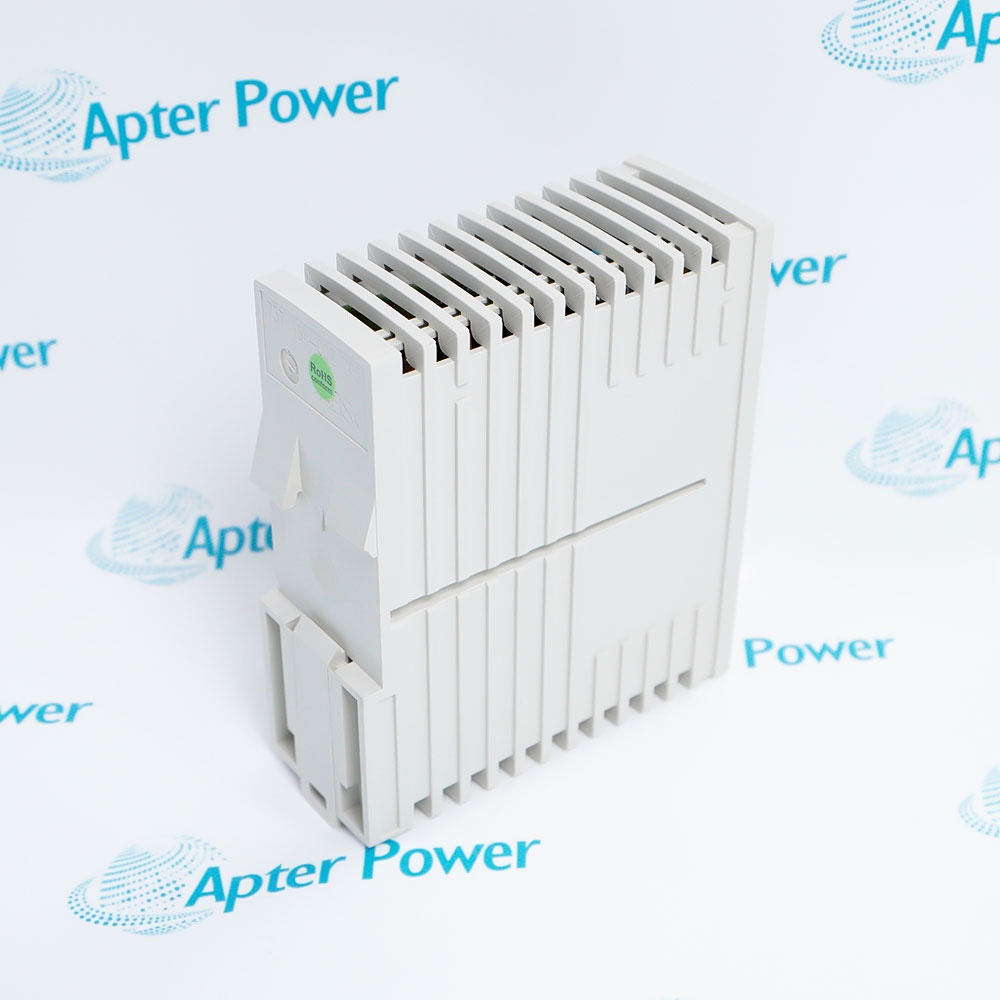

        LD800HSE

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The ABB LD800HSE is a rail-mounted network gateway designed according to class 42c of the HSE profile to bridge the gap between High-Speed Ethernet (HSE) backbones and localized FOUNDATION Fieldbus (FF) H1 field networks.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for LD800HSE
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for LD800HSE

        • Manufacturer:
          ABB
        • Part Number:
          LD800HSE
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Linking Device
        • Stock:
          1
        • HSE Profile Registration:
          Class 42c Registered Supply Voltage Range24 V DC (±20%)
        • Typical Current Consumption:
          200 mA
        • Power Dissipation:
          Typ. 4.8 W
        • Ethernet HSE Channels:
          1 Channel, 10BASE-T/100BASE-TX (RJ45, Autosensing)
        • H1 Fieldbus Channels:
          4 Channels, 31.25 kbit/s, Galvanically Isolated
        • H1 Port Connector Type:
          3-pole pluggable screw terminals with transformer coupling
        • Serial Redundancy Interface:
          9-pole SubD male RS-232 port (115.2 kbit/s data rate)
        • Ingress Protection Rating:
          IP20 Protection class
        • Mounting Configuration:
          35 mm DIN rail mountable (vertical standard)
        • Operating Temperature:
          0°C to +55°C (Hammpered air convection may reduce limit)
        • Storage Temperature:
          -20°C to +70°C
        • Environmental Humidity:
          0% to 95% Relative Humidity, non-condensing
        • Weight:
          0.42 kg
        • Estimated shipping dimensions:
          4.7x12.2x13.3cm
        • Tariff Code:
          8537101190
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Applications Safety & Compliance Performance & Efficiency

        Features:

        • Four Independent H1 Link Masters (LAS)
        • Bumpless Serial Hardware Redundancy
        • Industrial G3 Conformal Chemical Coating
        The ABB LD800HSE acts as a Link Master for up to four isolated H1 channels simultaneously, ensuring highly reliable, deterministic scheduling of publisher/subscriber communication cycles directly at the field level.

        By linking a pair of ABB LD800HSE gateways via their dedicated RS-232 serial com ports, the system establishes active redundancy tracking that guarantees instant, bumpless failover without disrupting real-time field data or H1 cycles.

        The specialized ABB LD800HSE EX variant features standard G3-level ruggedized coating tested against ANSI/ISA 71.04 and EN 60068-2-60 protocols, preventing corrosion from moisture, salt air, and aggressive industrial gases.

        The LD800HSE ABB FOUNDATION Fieldbus Linking Device may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB LD800HSE FOUNDATION Fieldbus Linking Device Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB LD800HSE FOUNDATION Fieldbus Linking Device

        General

        • Manufacturer ABB
        • Model LD800HSE
        • Condition New Original ready stock
        • Product Family LDMTR-01 63940135,LDMUI-01 61320946,LDSTA-01 63940143
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Oil & Gas Petrochemical Refineries: The gateway is extensively used to link explosive Zone 2 upstream wellheads, safety barriers, and gas fractionators into central control loops via System 800xA.
        • Pharmaceutical & Biotech Manufacturing: It enables precise batch processing validation by offering transparent digital access to smart instrument function blocks, calibration parameters, and asset health statuses.
        • Large-Scale Power & Utility Generation: The module aggregates hundreds of digital pressure, flow, and temperature field instruments across turbine and boiler structures, feeding real-time diagnostics into System 800xA.
        • Chemical & Fertilizer Processing Plants: It provides a reliable data path in demanding processing plants that rely on extensive FOUNDATION Fieldbus instrument architectures to manage highly corrosive chemical flows.
        • Global Hazardous Area Explosion Protection: Certified under ATEX and IECEx standards with an Ex nA IIC T4 Gc rating, making it suitable for safe deployment in rugged, decentralized electrical cabinets near hazardous processing zones.
        • North American Div 2 Compliance: Carries full cULus listings for Class I, Division 2, Groups A, B, C, and D areas, meeting the rigorous safety requirements of the North American oil, gas, and chemical sectors.
        • G3 Harsh Environment Protection: The ABB LD800HSE EX is built with standard G3 conformal coating compliant with ANSI/ISA 71.04 and EN 60068-2-60, defending sensitive microelectronics from sulfur dioxide, hydrogen sulfide, and moisture.
        • CE & Industrial Interference Compliance: Fully complies with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC, while meeting FCC Part 15 Class A guidelines to operate reliably amid severe electromagnetic noise.
        • High-Bandwidth Subnet Consolidation: Merges four distinct 31.25 kbit/s H1 loops into a single high-speed 10/100 Mbps HSE link, removing traditional communication bottlenecks between the field and the control room.
        • Autonomous Edge-Level Link Active Scheduling: Operates as a localized Link Master (LAS) on all four ports, managing bus schedules autonomously to maintain deterministic communication even if connection to the host controller drops.
        • Zero-Overhead Localized H1-to-H1 Routing: Supports up to 64 concurrent H1-to-H1 data republishings, allowing field instruments to share variables directly through the gateway without consuming controller processing cycles.
        • Optimized Electrical Efficiency: The gateway draws typically just 200 mA at 24 V DC, operating on an efficient 4.8 W power footprint that minimizes thermal buildup inside sealed control enclosures.
        Description
        The ABB LD800HSE is engineered to function as a highly compact and reliable link between up to four independent FF H1 field networks running at 31.25 kbit/s and a high-speed 10/100 Mbit/s HSE subnet. By translating low-level instrumentation data into standardized Ethernet packets, the ABB LD800HSE allows supervisory management consoles and plant controllers to interact directly with sophisticated field devices without sacrificing communication bandwidth or data integrity.

        Acting as a robust Link Active Scheduler (LAS) and SM Time Publisher for every connected H1 channel, the ABB LD800HSE ensures precise deterministic execution of publisher/subscriber communication cycles. It features advanced data republishing mechanisms that route critical process measurements directly from H1 to HSE or even cross-communicate between separate H1 links. This localized control completely offloads cyclic macro-cycle management from the central IEC 61131 controller, guaranteeing continuous process execution even during host disconnects.

        The ABB LD800HSE is fully optimized for the ABB Ability™ System 800xA and Freelance DCS environments, enabling complete transparency via System Management and Network Management Agents. Alarms, events, and asset optimization data generated by sub-tier field instruments are systematically aggregated and reported through the ABB LD800HSE directly to system connectivity servers. This ensures that predictive maintenance packages can instantly tap into advanced device diagnostics, reducing plant downtime and enhancing overall asset lifecycle management.

        Designed for the uncompromising demands of heavy industrial plants, the ABB LD800HSE natively supports redundant physical topologies to protect critical loops from a single point of failure. Two physical ABB LD800HSE units can be coupled together using a dedicated RS-232 serial null-modem cable to synchronize control states and monitor heartbeat status. In the event of a primary hardware failure, the secondary linking device initiates a bumpless switchover, maintaining uninterrupted control signals across the entire process architecture.
        Alternative Names
        LD8OOHSE 3BDH000320R02 LD800HSE 3BDH000320R02 LDMTR-01 63940135 LDMUI-01 61320946 LDSTA-01 63940143
        Technical notes
        The ABB LD800HSE features an integrated web server that allows immediate IP address configuration, commissioning, and system status verification via a standard web browser.When deploying the ABB LD800HSE in harsh or explosive processing environments, the conformal G3-coated version (LD800HSE EX) provides robust protection against corrosive gases and carries full international certifications for Zone 2 and Class I, Div 2 locations.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What are the strict session and VCR network capacity limits when configuring the ABB LD800HSE on an HSE subnet?
        The ABB LD800HSE is built to handle complex multi-device field subnets. On the HSE side, the ABB LD800HSE supports a maximum of 64 configured HSE sessions, up to 400 configured HSE Virtual Communication Relationships (VCRs), 32 automatic HSE sessions, and 256 automatic HSE VCRs, giving engineers plenty of bandwidth for high-density instrument mapping.
        How does the ABB LD800HSE manage data republishing and alarm routing across separate H1 channels without controller intervention?
        The ABB LD800HSE includes built-in gateway routing mechanics compliant with the class 42c profile. It supports up to 64 simultaneous H1-to-H1 data republishings natively, meaning data from an instrument on H1 Link 1 can be directly mapped to a device on H1 Link 2 through the ABB LD800HSE without wasting execution cycles on the primary IEC 61131 control system. Alarms and events are passed transparently straight up to the System 800xA Connectivity Servers.
        Can the firmware of the ABB LD800HSE be upgraded remotely, and how is its baseline IP address initially assigned?
        Yes, the ABB LD800HSE supports remote firmware updates via network downloads, simplifying maintenance over long lifecycles. For commissioning, the ABB LD800HSE features an integrated web server that allows field engineers to configure, modify, and lock the IP address and subnet masks using a basic web browser on a laptop connected to the RJ45 port.
        How should the VCR types be budgeted per individual H1 channel on the ABB LD800HSE?
        Each of the four individual H1 channels on the ABB LD800HSE supports a maximum limit of 128 total VCR connections. This allocation can include up to 20 Source + Sink VCRs, up to 40 Client + Server VCRs, and up to 100 Publisher + Subscriber VCRs. Note that because the ABB LD800HSE hardware module does not generate intrinsic fieldbus alarms itself, there is no practical engineering requirement to allocate Source VCRs to the module.
        What are the hazardous location explosion-proof certifications and environmental compliance standards met by the ABB LD800HSE EX variant?
        The ABB LD800HSE EX is thoroughly certified for decentralized installation in Zone 2 / Division 2 explosive hazardous atmospheres. Its safety compliance ratings include cULus Class I, Division 2 (Groups A, B, C, D), IECEx Ex nA IIC T4 Gc, and ATEX II 3G Ex nA IIC T4 Gc. It also carries standard CE compliance certifications for the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
        What are the physical mounting constraints and clearance considerations for installing the ABB LD800HSE inside an outdoor cabinet?
        The ABB LD800HSE is designed for high-density spacing, featuring a 47 mm wide IP20 housing that snaps onto a standard 35 mm DIN rail. It has a rated operating range of 0°C to +55°C, but system integrators must ensure adequate ventilation. Installing the ABB LD800HSE in a non-vertical orientation or within tight, unventilated enclosures will restrict natural air convection, requiring a derating of the upper ambient temperature limit.
