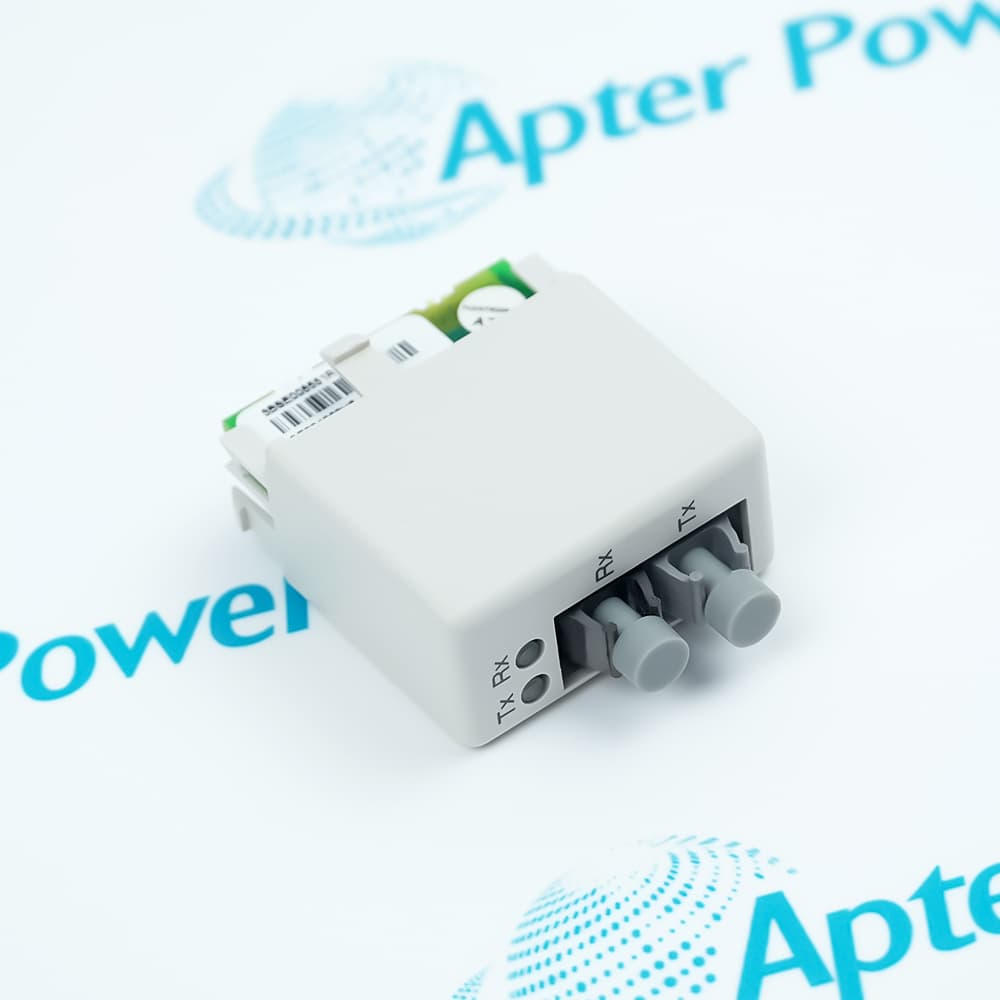

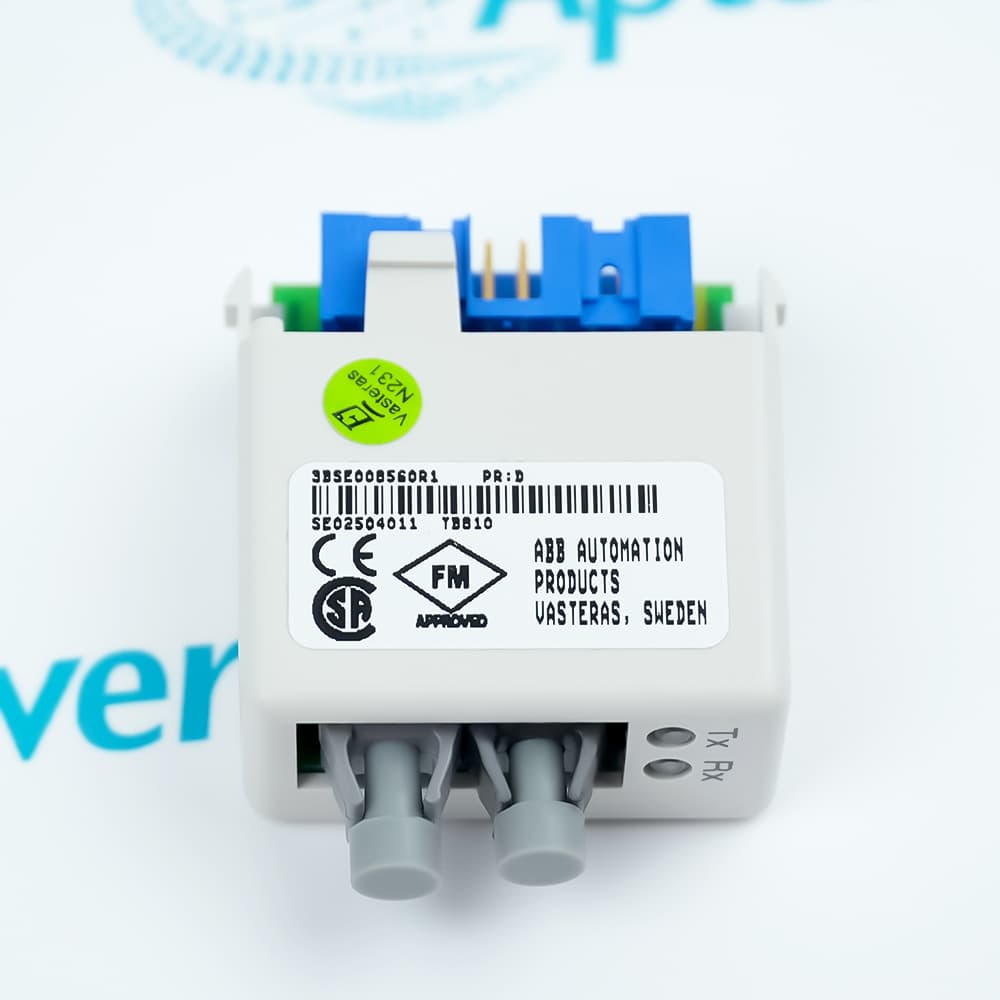

ABB TB810 3BSE008560R1 is a 10 MBd ModuleBus optical port for S800 I/O communication links.
In Stock
Ships by Sunday, October 18
Fast Shipping Available
Get a quick price for TB810 3BSE008560R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TB810 3BSE008560R1

  • Manufacturer:
    ABB
  • Part Number:
    TB810 3BSE008560R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    ModuleBus Optical Port
  • Stock:
    1
  • Communication Medium:
    Optical ModuleBus
  • Transmission Rate:
    10 MBd
  • Supported Fiber Types:
    Plastic optical fiber and hard-clad silica fiber
  • POF Link Length:
    2 to 30 m
  • HCS Link Length:
    2 to 200 m
  • Indicators:
    Tx and Rx LEDs
  • Optical-Link Rule:
    All optical components in the link must use the same speed
  • ABB-Listed Interfaces:
    CI810, CI820, and CI830
  • RoHS Status:
    Following EU Directive 2011/65/EU
  • WEEE Category:
    5. Small Equipment
  • Number of Batteries:
    0
  • Weight:
    0.035 kg
  • Estimated shipping dimensions:
    4 x 4 x 2 cm
  • Tariff Code:
    85389091
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Optical Link S800 Match Installation Review

Features:

  • 10 MBd optical link: TB810 extends ModuleBus through a speed-matched optical connection.
  • Two fiber options: ABB documents POF and HCS link ranges.
  • Compact S800 hardware: The official net dimensions are 20 × 40 × 40 mm.

TB810 is used where an S800 I/O ModuleBus cluster requires optical communication between documented ABB components.

Fiber choice determines the approved reach, and every optical component on the link must use the same transmission speed.

Service planning should record fiber type, link length, Tx/Rx status, cluster layout, and the full 3BSE008560R1 identity.

Availability is subject to Apter Power's current inventory and sourcing confirmation.

ABB TB810 3BSE008560R1 ModuleBus Optical Port Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

ABB TB810 3BSE008560R1 ModuleBus Optical Port Specs

General

  • ManufacturerABB
  • ModelTB810 3BSE008560R1
  • ConditionNew and factory sealed
  • Product FamilyS800 I/O Communication Modules

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Fiber-link planning

  • POF: Use the documented 2–30 m link range.
  • HCS: Use the documented 2–200 m link range.
  • Speed: Match every optical component at 10 MBd.
  • Indicators: Check Tx and Rx LEDs during controlled commissioning.

System boundary checks

  • Product family: Use TB810 within documented S800 I/O and Advant ModuleBus arrangements.
  • Article number: Confirm 3BSE008560R1.
  • Adjacent hardware: Match the connected communication modules and cluster design.
  • Documentation: Use the applicable S800 I/O hardware manual.

Mechanical and service checks

  • Net envelope: Allow for the official 20 × 40 × 40 mm product dimensions.
  • Fiber routing: Respect bend radius, connector cleanliness, and cabinet routing.
  • Link record: Preserve fiber destinations and cluster order.
  • Replacement test: Verify Tx/Rx activity before returning the system to service.
Description

The ABB TB810 3BSE008560R1 is a 10 MBd ModuleBus optical port in the S800 I/O communication-module family.

Official documentation for TB810 specifies plastic or hard-clad silica optical fiber, Tx and Rx indicators, and link ranges of 2–30 m for POF or 2–200 m for HCS.

Before ordering 3BSE008560R1, verify the installed optical speed, fiber type, cable length, adjacent ModuleBus hardware, and complete article number.

Alternative Names
ABB TB810 3BSE008560R1 TB810 3BSE008560R1 ABB TB810 TB810 ABB 3BSE008560R1 3BSE008560R1 TB810 ModuleBus Optical Port S800 I/O TB810 Optical Module
Technical notes
ABB TB810 3BSE008560R1 provides a 10 MBd optical ModuleBus port for S800 I/O. Confirm the fiber type, link length, matching optical speed, Tx/Rx indicators, and complete article number.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is ABB TB810 3BSE008560R1 used for?
It provides a 10 MBd optical ModuleBus link for documented S800 I/O arrangements. Confirm the complete optical path before ordering.
Which product family includes TB810?
TB810 belongs to ABB S800 I/O communication modules and is also listed in Advant ModuleBus categories.
Which fiber types can TB810 use?
ABB documents plastic optical fiber for 2–30 m and hard-clad silica fiber for 2–200 m links.
How do I verify the correct TB810?
Check TB810, 3BSE008560R1, 10 MBd speed, fiber type, link length, Tx/Rx indicators, and adjacent hardware.
Is TB810 active or discontinued?
The current ABB product page is available and does not state that TB810 is discontinued. Supply still requires sourcing confirmation.
Is there an official replacement for TB810?
No replacement is claimed on this page. Any change must preserve optical speed, fiber design, and S800 I/O system requirements.
Where can I get the TB810 datasheet and a quote?
Open the verified PDF in Manuals, then send Apter Power the link layout, quantity, destination, condition, and required date.
