ABB PM876 3BDH000607R1

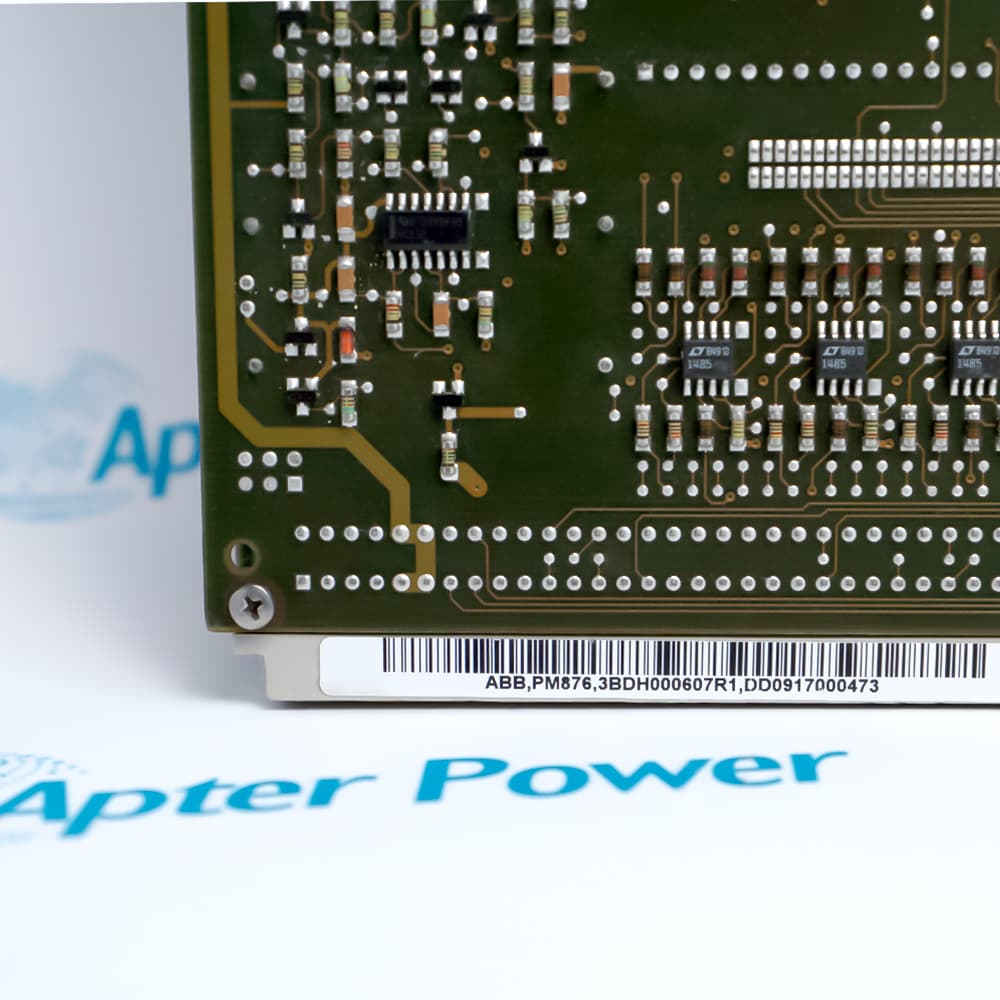

ABB PM876 3BDH000607R1
ABB PM876 3BDH000607R1
ABB PM876 3BDH000607R1
ABB PM876 3BDH000607R1
ABB PM876 3BDH000607R1
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power supports PM876 3BDH000607R1 quotation, technical documentation and controller-network review.

PM876 3BDH000607R1

/ 4.9
1001 reviews | Need a Specific Revision?
ABB PM876 3BDH000607R1 is a process controller with Onet, redundant Cnet/Fnet, dual PROFIBUS DP and Ethernet interfaces.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for PM876 3BDH000607R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PM876 3BDH000607R1

  • Manufacturer:
    ABB
  • Part Number:
    PM876 3BDH000607R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Controller
  • Stock:
    1
  • ABB Type:
    PM876
  • Product ID:
    3BDH000607R1
  • Onet Interface:
    1
  • Redundant Cnet Interface:
    1
  • Redundant Fnet Interface:
    1
  • PROFIBUS DP Interfaces:
    2
  • Ethernet Interface:
    1
  • Firmware Service:
    USB stick or Analyzer
  • Licensed Functions:
    PROFIBUS DP and IEC 61850
  • Redundancy Link:
    NT 031 cable required
  • Battery:
    Included
  • Weight:
    2.02 kg
  • Estimated shipping dimensions:
    8x19.5x30.6cm
  • Tariff Code:
    85371091
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interfaces Firmware Redundancy Applications

Features:

  • Integrated communications: Combines Onet, redundant Cnet/Fnet, two PROFIBUS DP interfaces and Ethernet.
  • Service access: Supports documented USB and Analyzer paths for firmware and controller work.
  • Licensed functions: Available software features depend on the licenses assigned to the installed controller.
The interface set connects supervisory networks, controller networks and fieldbus devices within the documented architecture.

Redundant Cnet/Fnet paths support controller designs that require duplicated network communication.

NT031, firmware, licenses and the application backup remain part of the installed configuration boundary.

Apter Power supports ABB PM876 3BDH000607R1 Controller quotation, technical documentation and network-configuration review.
ABB PM876 3BDH000607R1 Controller Manuals,Datasheets,Link
Important Notice: Confirm the network topology, PROFIBUS configuration, firmware, licenses, NT031 connection and application backup before service.
  • Onet interface: Provides the documented Onet connection within the controller architecture.
  • Cnet/Fnet: Redundant network connections support duplicated controller communication paths.
  • PROFIBUS DP: Two interfaces connect configured fieldbus stations to the controller.
  • Ethernet: Supports the documented Ethernet communication path for the installed system.
  • USB service path: Supports documented controller software and firmware handling.
  • Analyzer access: Provides the additional service route identified for controller work.
  • Baseline control: Firmware should remain aligned with the recorded application and network configuration.
  • Backup readiness: A current controller application backup supports recovery after service activity.
  • Dual network paths: Redundant Cnet/Fnet connections provide two communication routes.
  • Topology alignment: The controller address and network role must follow the installed redundant design.
  • Peer configuration: Redundant operation depends on the surrounding controller and network arrangement.
  • Fault isolation: Interface indications help distinguish a controller issue from one failed network path.
  • Distributed process control: Executes the installed application within the ABB controller architecture.
  • Redundant controller networks: Supports Cnet/Fnet designs that use duplicated communication paths.
  • PROFIBUS integration: Connects configured DP field devices through two available interfaces.
  • Supervisory communication: Uses Onet and Ethernet paths defined by the installed system design.
Description
The controller interface set determines how a process-control node reaches supervisory, fieldbus and redundant networks. PM876 3BDH000607R1 combines one Onet interface, redundant Cnet and Fnet connections, two DPV2 interfaces and one Ethernet port in the PM 876 central unit.

Firmware on PM876 3BDH000607R1 can be upgraded or downgraded through a USB stick or ABB Analyzer. PROFIBUS DP and IEC 61850 functions depend on the applicable license, so the installed software entitlement must be checked alongside the hardware part number.

For redundant-controller service, PM876 3BDH000607R1 requires the NT 031 redundancy-link cable and must be aligned with the recorded network topology, firmware and application backup. This keeps replacement work focused on restoring the original control architecture rather than only exchanging the CPU.
Alternative Names
PM876 PM 876 PM-876 3BDH000607R1 3BDH 000607 R1 PM876 3BDH000607 R1 ABB PM876 3BDH000607R1 PM876
Technical notes
PM876 3BDH000607R1 combines Onet, redundant Cnet/Fnet, two PROFIBUS DP ports and Ethernet in one controller. The installed license set and firmware determine which software functions are available. For a controlled service exchange, the network topology, NT031 connection, fieldbus configuration and current application backup should remain aligned.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which communications are built into PM876 3BDH000607R1?
The controller includes Onet, redundant Cnet/Fnet, two PROFIBUS DP interfaces and Ethernet.
Can PM876 3BDH000607R1 participate in a redundant control network?
Yes. ABB documents redundant Cnet/Fnet connectivity, while the installed system design determines how the controller is paired and addressed.
How is firmware handled on PM876 3BDH000607R1?
The documented service paths include USB and Analyzer tools; the target firmware should follow the recorded controller and application baseline.
Do all software functions come standard with PM876 3BDH000607R1?
No. Some functions depend on the licenses assigned to the installed controller, so the license record is part of the configuration.
What should I compare before moving PM876 3BDH000607R1 to another rack?
Compare the Cnet/Fnet topology, PROFIBUS stations, Ethernet settings, NT031 connection, firmware, licenses and application backup.
Where should diagnosis start if PM876 3BDH000607R1 loses field communication?
Start with controller indications and the affected interface, then separate Cnet/Fnet, PROFIBUS DP, Ethernet or NT031 path issues before changing the application.
Is PM876 3BDH000607R1 only a PROFIBUS controller?
No. PROFIBUS DP is one part of a broader interface set that also includes Onet, redundant Cnet/Fnet and Ethernet.
