PS24-EX-SA910S

/ 4.9
1001 reviews | Need a Specific Revision?
The ABB PS24-EX-SA910S is a certified Ex e/Ex m power supply module for the S900 I/O system, engineered to power up to 16 field devices in Zone 1/2 hazardous areas.
Get a quick price for PS24-EX-SA910S
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for PS24-EX-SA910S

  • Manufacturer:
    ABB
  • Part Number:
    PS24-EX-SA910S
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Power Supply Module
  • Input Voltage (Nominal):
    24 V DC
  • Input Voltage Range:
    19.2 … 32 V DC
  • Max Load Current:
    < 2.1 A @ 24 V / < 2.6 A @ 19.2 V
  • Output Power Capacity:
    < 45 W (Max for I/O Modules)
  • Total Power Loss:
    < 50 W
  • Operating Temperature:
    -25°C to +70°C
  • Storage Temperature:
    -40°C to +85°C
  • Humidity:
    5–95% (non-condensing)
  • Weight:
    0.06 kg
  • Estimated shipping dimensions:
    11.4x5.4x2cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Operating Environmen Firmware & Updates Applications

Features:

  • Redundancy with Bumpless Exchange
  • High Survivability in Extreme Temperatures
  • Ruggedized High-Surface-Area Thermal Dissipation Unit
For critical safety loops, the ABB PS24-EX-SA910S supports parallel redundant operation (1+1). It features dedicated alarm relays for primary power loss, allowing for immediate diagnosis and replacement without process interruption.

Engineered for outdoor skid mounting, the ABB PS24-EX-SA910S operates reliably across a wide temperature range from -20°C to +55°C (-4°F to 131°F), ensuring cold starts in arctic conditions and stable performance in desert solar radiation.

The specialized front-facing aluminum heatsink block on the ABB PS24-EX-SA910S Power Supply Module is structurally optimized for vertical natural convection airflow, ensuring low thermal degradation without fan vulnerabilities.

The PS24-EX-SA910S ABB Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB PS24-EX-SA910S Power Supply Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB PS24-EX-SA910S Power Supply Module

General

  • Manufacturer ABB
  • Model PS24-EX-SA910S
  • Condition New Original ready stock
  • Product Family HIEE401091R0002 GD9924 BE V2,HIEE450964R0001 SA9923A-E,HIEE451116R0001 FM9925A-E
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Ambient Temperature: Wide -20°C to +55°C operational range, supporting non-air-conditioned shelters.
  • Pollution Degree: Designed for Pollution Degree 2 environments (typical for control rooms and protected field enclosures).
  • Altitude: Capable of operation up to 2000 meters above sea level without derating.
  • Humidity: Withstands 5% to 95% relative humidity, non-condensing, ensuring resilience in tropical climates.

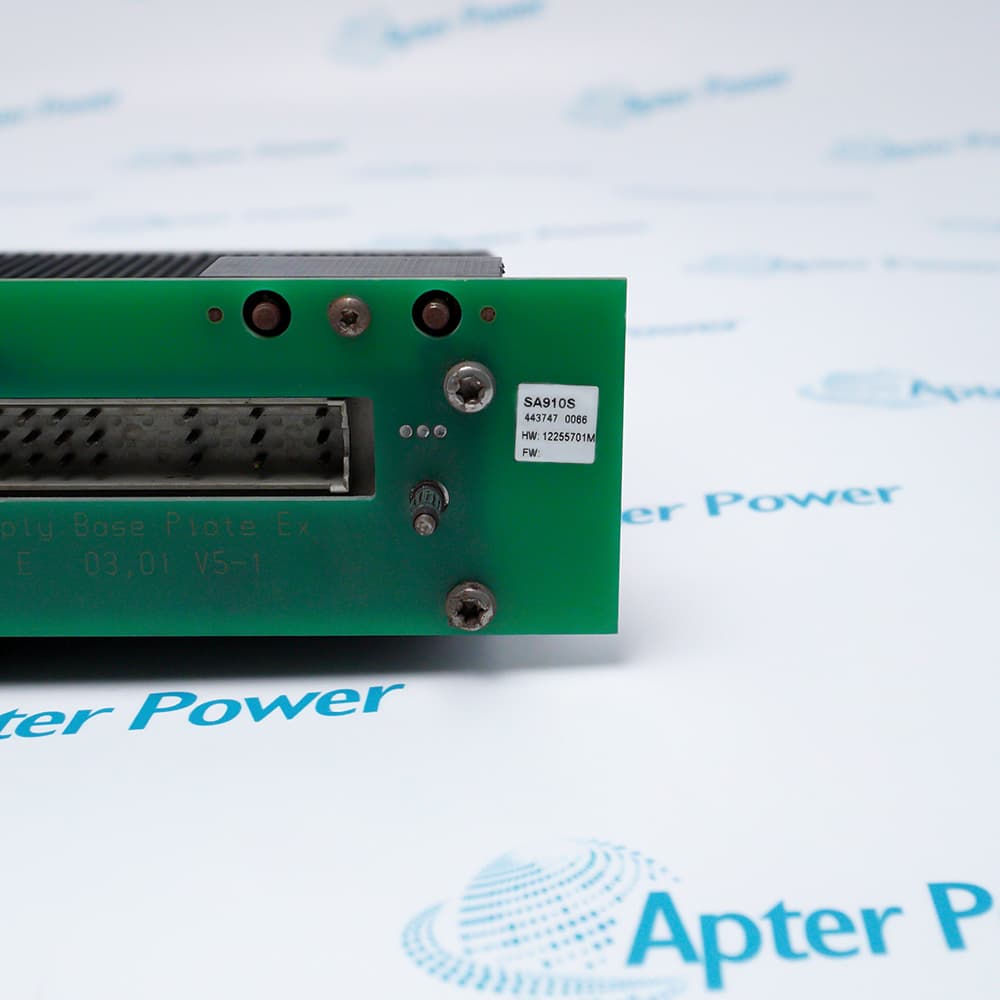

  • Hardware Profile Lockdown: The ABB PS24-EX-SA910S Power Supply Module utilizes fixed, stable hardware-level operational firmware (HW: 12255701M), removing vulnerabilities related to over-the-air firmware hacks or sudden code corruption.
  • DCS Integration Compatibility: Embedded parameters map seamlessly to ABB's system engineering architectures (like Advant OCS or 800xA) via standard GSD file configurations.
  • Diagnostic Code Architecture: Hardcoded hardware states allow the internal controllers to immediately output real-time voltage tracking anomalies to the central S900 gateway interface.
  • Simplified Hardware Lifecycle Management: No software licensing updates or ongoing flash patches are required, dramatically lowering long-term maintenance costs.
  • Petrochemical and Hydrocarbon Refining: Placed directly into distributed control environments to fuel sensors, valves, and intrinsically safe actuators located near hazardous distillation columns.
  • Offshore Oil Rigs & Marine Vessels: Chosen for its high resistance to corrosive saline mist and mechanical vibrations, powering critical remote S900 telemetry racks on drilling platforms.
  • Chemical Processing Facilities: Manages discrete safety loops and continuous analog monitoring lines within designated explosive zone areas.
  • Municipal Gas Distribution Networks: Safeguards the transmission system by supplying spark-free power across localized valve control stations and remote monitoring hubs.
Description
Explosion-Proof Certified for Harsh Environments: The ABB PS24-EX-SA910S carries the ATEX II 2 G EEx m[ib] e IIC T4 certification, allowing it to be mounted directly in Zone 1 explosive gas atmospheres without the need for an additional heavy enclosure. This reduces cabinet space and installation complexity for offshore platforms and chemical plants.

High-Density Power Distribution: Capable of supplying up to 45W of continuous power, the ABB PS24-EX-SA910S can drive up to 16 I/O modules (e.g., AI, AO, DI, DO) plus two CI920S communication interfaces simultaneously. This high-density design minimizes the footprint of your control system in space-constrained skids.

Fault-Tolerant & Hot-Swappable Design: To ensure 24/7 process uptime, the ABB PS24-EX-SA910S supports true hot-swap functionality. In redundant configurations, a failed unit can be replaced without powering down the system or interrupting backplane communications, ensuring bumpless transfer.

Seamless S900 Integration: The ABB PS24-EX-SA910S is specifically tailored for the ABB S900 I/O architecture. It provides electrical isolation and power conditioning via the backplane, requiring only a simple three-step mechanical installation, which significantly reduces Mean Time To Repair (MTTR).
Alternative Names
PS24-EX SA910S PS24-EX SA910S
Technical notes
The ABB PS24-EX-SA910S has reached its lifecycle transition and is being replaced by the SA920S; users should note that the ABB PS24-EX-SA910S and SA920S must not be mixed in the same redundant pair due to incompatible load-sharing algorithms. For installations where the primary supply line exceeds 3 meters in length or when a UPS is used, the ABB PS24-EX-SA910S requires the external BP901S power conditioner to suppress voltage transients and high-frequency interference. Additionally, the ABB PS24-EX-SA910S achieves earth reference directly through the DIN rail mounting, eliminating the need for a separate floating ground terminal.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the exact backplane power budget for the ABB PS24-EX-SA910S when powering mixed I/O types?
The ABB PS24-EX-SA910S provides a total power budget of < 45W to the backplane. This is sufficient to power up to 16 standard I/O modules (e.g., AI, AO) or a combination of 14 I/O modules plus 2 x CI920S Profibus communication interfaces, provided each module does not exceed its individual thermal rating.
Can the ABB PS24-EX-SA910S be integrated with a third-party controller via Profibus, or must it be paired with an ABB controller?
The ABB PS24-EX-SA910S supplies power only; communication is handled by the CI920S module. Yes, the S900 I/O system (powered by the SA910S) is communication-agnostic and can be integrated with any Profibus DP master, including Siemens S7 or Emerson DeltaV.
Are there specific firmware dependencies for the ABB PS24-EX-SA910S when used in a redundant configuration?
Yes. For redundant operation of the ABB PS24-EX-SA910S, both units must have identical hardware revision levels. Furthermore, ABB explicitly warns not to mix SA910S with its successor SA920S in a redundant pair, as the load-sharing algorithms are incompatible.
Is the ABB PS24-EX-SA910S approved for SIL 2/3 loops under IEC 61508?
The ABB PS24-EX-SA910S is designed for use in safety instrumented systems up to SIL 3 when used in conjunction with certified S900 I/O modules. While the PS24-EX itself is the power source, its redundant configuration and high MTBF support the overall safety availability.
