SD802F 3BDH000012R1

/ 4.9
1001 reviews | Need a Specific Revision?

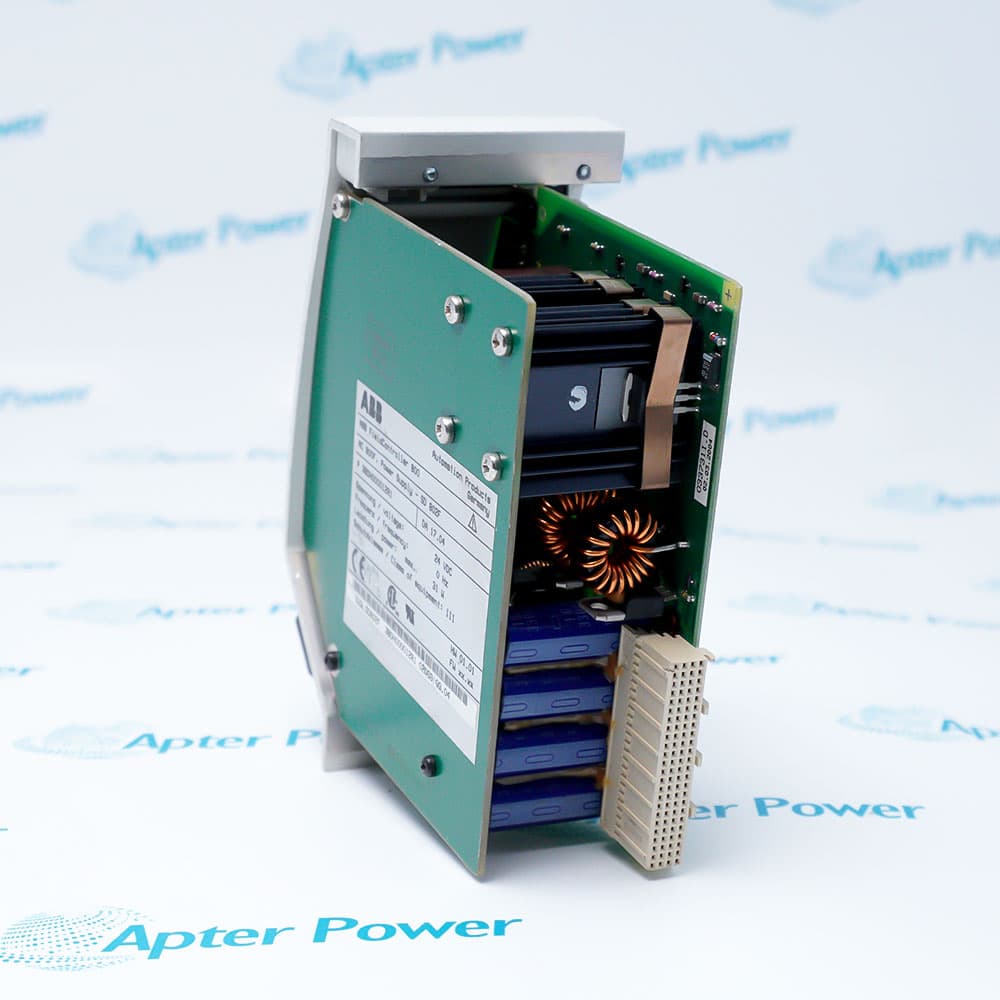

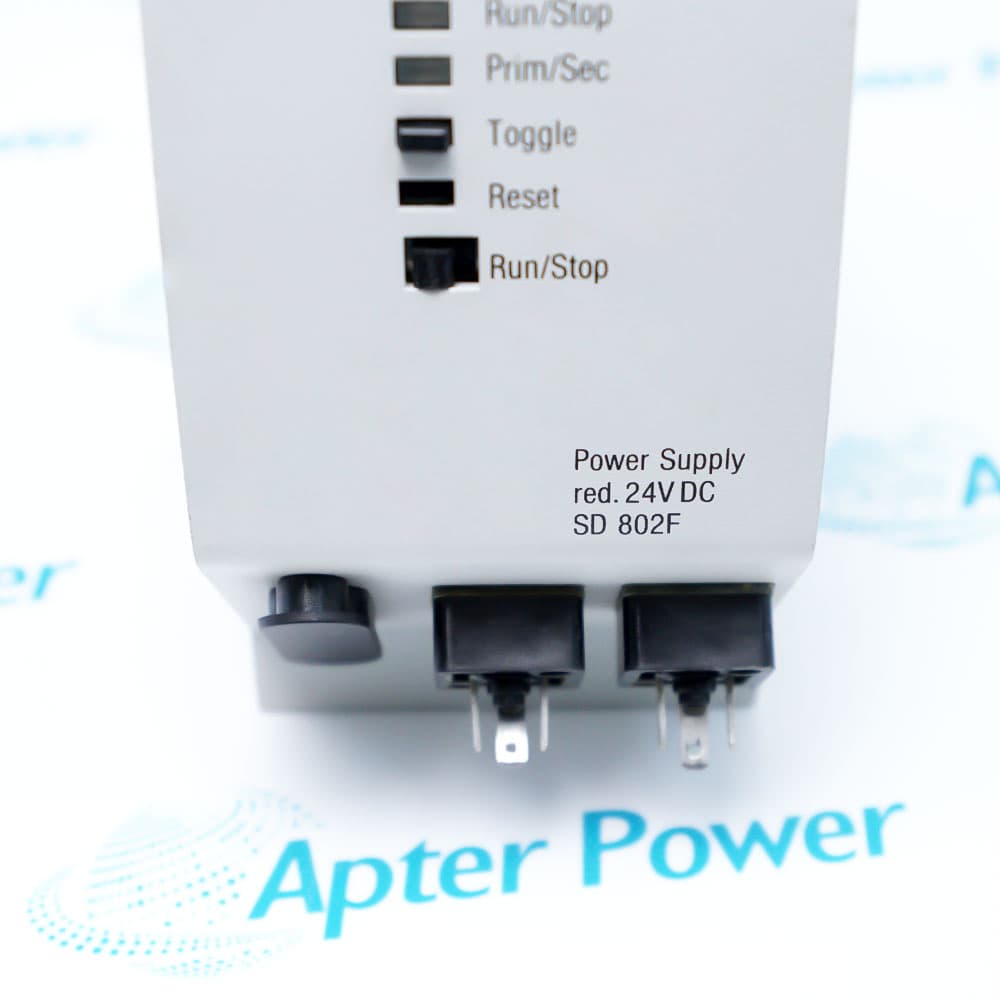

ABB SD802F 3BDH000012R1 power supply module provides a stable 24 VDC power source for industrial automation systems. With a maximum power output of 31 W and IP20 protection, it supports reliable operation in demanding control environments.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SD802F 3BDH000012R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SD802F 3BDH000012R1

  • Manufacturer:
    ABB
  • Part Number:
    SD802F 3BDH000012R1
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    Power Supply Module
  • Stock:
    6
  • Voltage:
    24 VDC
  • Frequency:
    0 Hz
  • Leistung / power:
    max. 31 W
  • Class of equipment:
    III
  • Operating temperature:
    -20°C to +60°C.
  • Storage temperature:
    -40°C to +85°C.
  • Ambient humidity:
    5% to 95% RH (non-condensing mechanical protection).
  • Protection rating:
    IP20.
  • Weight:
    0.44 kg
  • Estimated shipping dimensions:
    6.6x12.5x15.5cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Configuration Control Application Scenarios

Features:

  • Provides a regulated 24 VDC output with a maximum power rating of 31 W.
  • Supports reliable operation across a wide operating temperature range from -20°C to +60°C.
  • Combines Class III equipment classification with IP20 protection for industrial control cabinet installation.
Reliable power delivery is essential for automation systems, and the ABB SD802F 3BDH000012R1 is designed to supply stable DC power for industrial control equipment. Consistent electrical performance helps connected devices operate as intended while supporting overall system stability. The module is well suited for use in manufacturing, process automation, and other industrial installations.

With a 24 VDC output and a maximum power capacity of 31 W, the module meets the power requirements of many automation applications. Its Class III equipment classification supports installation in appropriate low-voltage systems, while the IP20 protection rating makes it suitable for installation inside protected control cabinets. These characteristics contribute to dependable long-term operation.

The environmental specifications allow installation in a broad range of industrial conditions. Operating temperatures from -20°C to +60°C, storage temperatures from -40°C to +85°C, and ambient humidity from 5% to 95% RH under non-condensing mechanical protection conditions provide flexibility for equipment storage and operation. As a result, ABB SD802F 3BDH000012R1 is a practical power supply solution for modern industrial automation systems.

The SD802F 3BDH000012R1 ABB Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SD802F 3BDH000012R1 Power Supply Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SD802F 3BDH000012R1 Power Supply Module Specs

General

  • Manufacturer ABB
  • Model SD802F 3BDH000012R1
  • Condition New Original ready stock
  • Product Family SD811V1 3BSC610044R1,SD821 3BSC610037R13,SD822 3BSC610038R1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Module width: Occupies one slot in a standard AC 800F controller rack.
  • Terminal wiring: Uses front-mounted removable screw terminals to simplify hardware configuration.
  • Identification: Equipped with a unique barcode and a 3BDH000012R1 hardware electronic tag.
  • Factory self-calibration: Voltage accuracy calibration is completed before shipment, and configuration data is written to the internal ROM.
  • Self-healing control: The module automatically initiates current-limiting lockout self-healing control after a short-circuit fault.
  • Logic handshake: Implements low-level microsecond-level power-down logic handshake with the AC 800F CPU.
  • Status interlock: The module automatically performs current-sharing interlock and diode decoupling control when powered by dual power sources.
  • Local reset: Equipped with a hardware logic reset trigger mechanism to ensure local control under abnormal crash conditions.
  • Distributed power grid: Main power supply for field control rooms in substation automation control systems.
  • Glass melting furnace control: Reliable and continuous power supply in harsh, high-temperature environments, in conjunction with the AC 800F controller.
  • Petrochemical irrigation area monitoring: Long-distance DC voltage drop compensation for remote distributed I/O acquisition stations.
  • Overseas project repair: Providing complete, same-model repair for legacy Freelance systems left by multinational corporations.
Description
ABB SD802F 3BDH000012R1 power supply module is built to deliver a regulated 24 VDC output for industrial control equipment. Operating at 0 Hz with a maximum power rating of 31 W, the module supplies dependable power for automation applications where consistent electrical performance is essential.

The module belongs to Class III equipment and is suitable for installation in standard industrial control cabinets. Its IP20 protection rating helps safeguard internal components against accidental contact while supporting integration into protected electrical enclosures. The compact power design makes ABB SD802F 3BDH000012R1 an effective choice for automation systems requiring reliable DC power distribution.

ABB SD802F 3BDH000012R1 operates within an ambient temperature range of -20°C to +60°C and can be stored from -40°C to +85°C. It also supports ambient humidity from 5% to 95% RH under non-condensing mechanical protection conditions, allowing stable operation across a wide variety of industrial environments while maintaining dependable power performance.
Alternative Names
SD8O2F 3BDHOOOO12R1 SD802F 3BDH0000I2RI SD811V1 3BSC610044R1 SD834 3BSC610067R1 SS832 3BSC610068R1 SD822 3BSC610038R1 SD821 3BSC610037R1 SD812 3BSC610023R0001
Technical notes
The ABB SD802F 3BDH000012R1 is a highly precise 1-slot form factor power supply module purpose-built for the Freelance AC 800F central chassis. Utilizing an integrated decoupling diode infrastructure, it establishes secure redundant interlocking loops with a wide 19.2V to 30V DC input range.
Exceptional Service
