SDCS-BAB-F02 3ADT316400R0502

/ 4.9
1001 reviews | Need a Specific Revision?

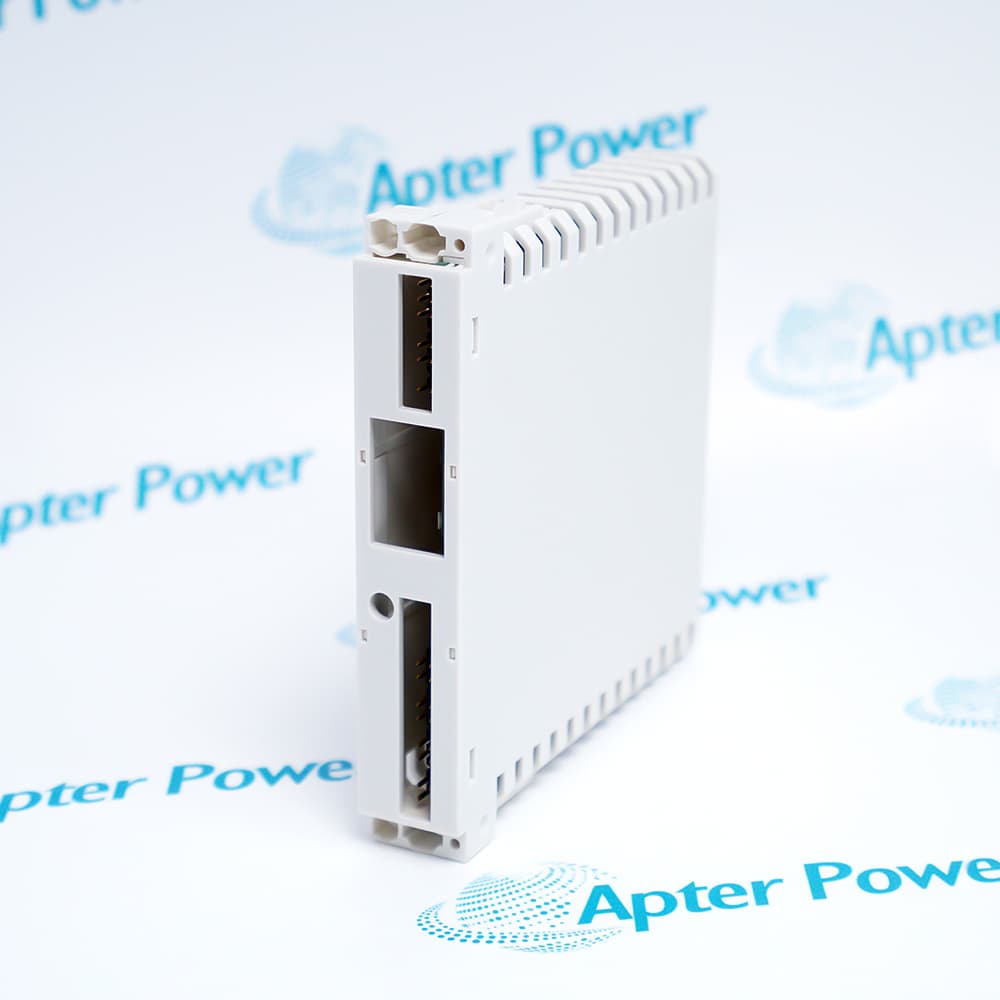

The ABB SDCS-BAB-F02 (3ADT316400R0502) is a compact adapter board with 24 V DC power and isolation for industrial drive systems.
Get a quick price for SDCS-BAB-F02 3ADT316400R0502
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SDCS-BAB-F02 3ADT316400R0502

  • Manufacturer:
    ABB
  • Part Number:
    SDCS-BAB-F02 3ADT316400R0502
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    3ADT316400R0502
  • Power Supply:
    24 V DC
  • Power Consumption:
    3-8 W (typical)
  • Operating Voltage:
    3.3 V / 5 V DC logi
  • Isolation:
    500-1500 V AC
  • Operating Temperature:
    0°C to +60°C
  • Storage Temperature:
    -40°C to +85°C
  • Humidity:
    5-95% RH (non-condensing)
  • Weight:
    0.25 kg
  • Estimated shipping dimensions:
    12.1x4.7x4.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.
Description
The ABB SDCS-BAB-F02 (3ADT316400R0502) Adapter Board is designed for integration into industrial drive systems, powered by 24 V DC with typical power consumption of 3–8 W.  It features 3.3 V / 5 V DC logic operating voltage and 500–1500 V AC isolation, ensuring electrical safety and compatibility with drive control circuits.

Rated for operation at 0°C to +60°C and storage at -40°C to +85°C, it withstands harsh industrial environments.  With a 5–95% non-condensing humidity rating, the board provides reliable signal and power adaptation for ABB drive systems.
Alternative Names
SDCS-8A8-F02 SDCS-BAB-FO2 SDCSBABF02 SDCS8A8F02 SDCSBABFO2 3ADT316400R0502
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the power supply voltage for the SDCS-BAB-F02?
The board operates at 24 V DC.
What is the typical power consumption?
Typical power consumption ranges from 3 to 8 W.
What logic voltage levels does it support?
It supports 3.3 V and 5 V DC logic.
What is the isolation rating?
Isolation is rated between 500 V AC and 1500 V AC.
What is the operating temperature range?
The board operates from 0°C to +60°C.
