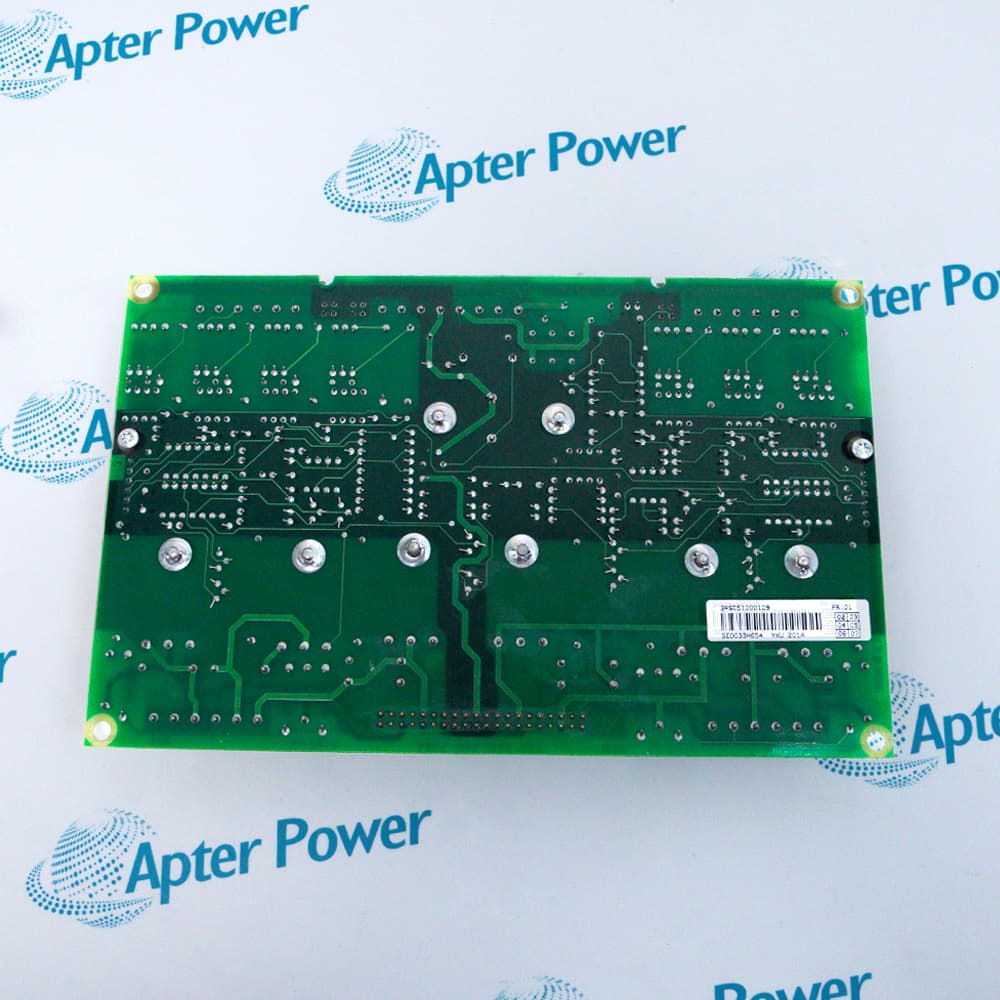

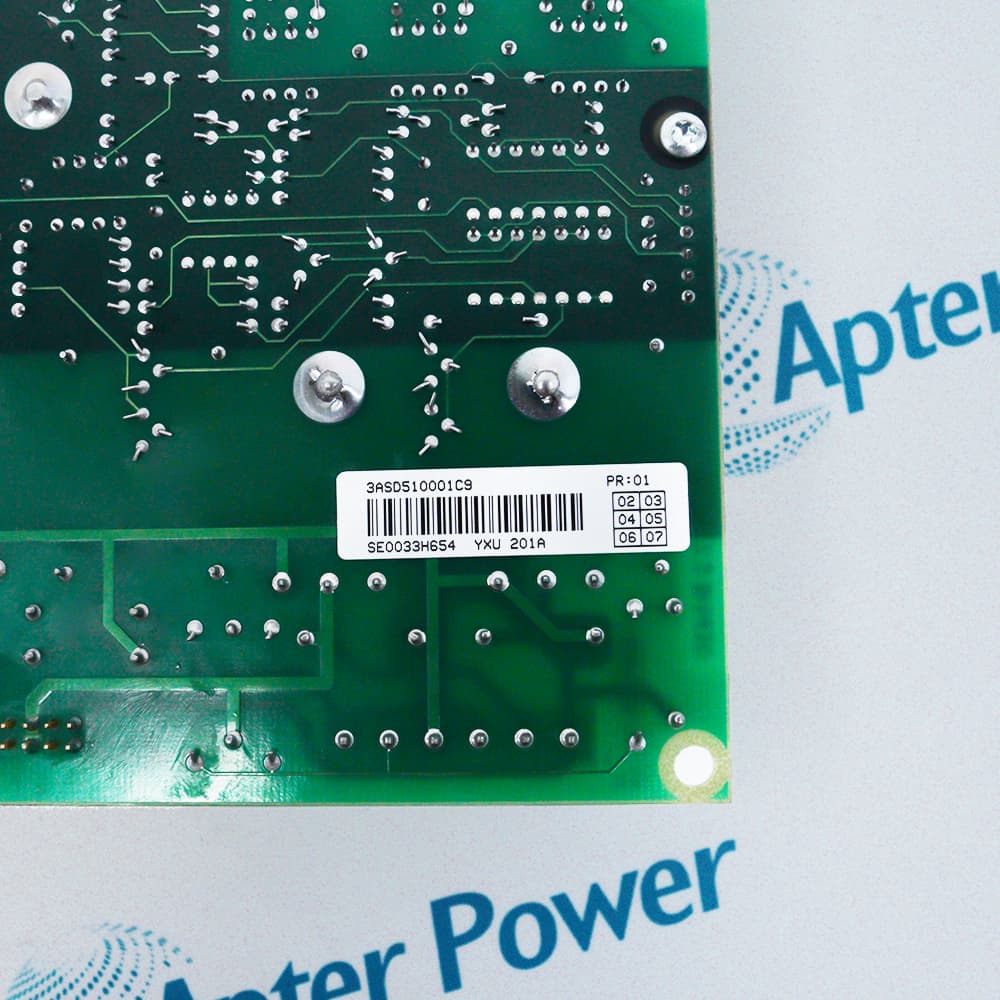

YXU201A 3ASD510001C9

Features:

• Receives and Amplifies Trigger Pulses for Thyristor Bridge Gate Control
• Provides Galvanic Isolation via Pulse Transformers to Power Semiconductors
• Supports Built-In Diagnostic Access Through Board-Mounted Test Terminals

The ABB YXU201A 3ASD510001C9 operates as the dedicated Pulse Amplifier Board within TYRAK XL thyristor convertor systems, receiving low-level trigger pulses from the opto coupler units located in the convertor control cubicle and conditioning them for delivery to individual thyristor gates. It continuously processes incoming firing signals conducted via shielded cables, applying galvanic isolation through integrated pulse transformers before distributing gate pulses to the six thyristor positions of the three-phase fully controlled bridge. The YXU201A 3ASD510001C9 maintains precise 120° electrical phase displacement between successive trigger pulses, ensuring proper commutation timing essential for stable rectifier or regenerative drive operation. The board includes dedicated test terminals that allow direct oscilloscope verification of each gate pulse amplitude and timing, enabling safe diagnostic and commissioning procedures without requiring voltage on the main power circuit.

The YXU201A 3ASD510001C9 provides essential pulse conditioning functions common to the entire thyristor bridge, and is a critical component of the firing path, directly affecting the proper, normal operation of the overall convertor system. One YXU201A 3ASD510001C9 pulse amplifier board is required per bridge direction, installed within the pulse amplification unit (B15) of the thyristor cubicle alongside companion interface boards to complete the trigger signal chain. The YXU201A 3ASD510001C9 interfaces directly with the convertor control unit through shielded cable connections and occupies a standard mounting position within the cubicle assembly to ensure reliable transmission of firing signals across all six thyristor channels.

For double convertor or anti-parallel bridge applications, the TYRAK XL system requires two complete sets of pulse amplifier boards, with one YXU201A 3ASD510001C9 handling the forward bridge direction and a second set managing the reverse bridge direction. In addition to standard single-bridge operation, this bidirectional configuration performs independent trigger pulse amplification for both forward and reverse thyristor groups. Using this architecture, the dual-bridge firing system continually routes direction-specific gate pulses through separate galvanic isolation channels on their respective YXU201A 3ASD510001C9 boards. If the drive system commands bridge reversal during regenerative braking or four-quadrant motor operation, the active YXU201A 3ASD510001C9 board ensures properly phased trigger pulses reach the appropriate thyristor bridge while maintaining full diagnostic visibility through board-mounted test points.
