Features:
- Provides field termination for SPHSS13.
- Uses the documented NKHS03 module cable.
- Supports hydraulic-servo and LVDT field connections.

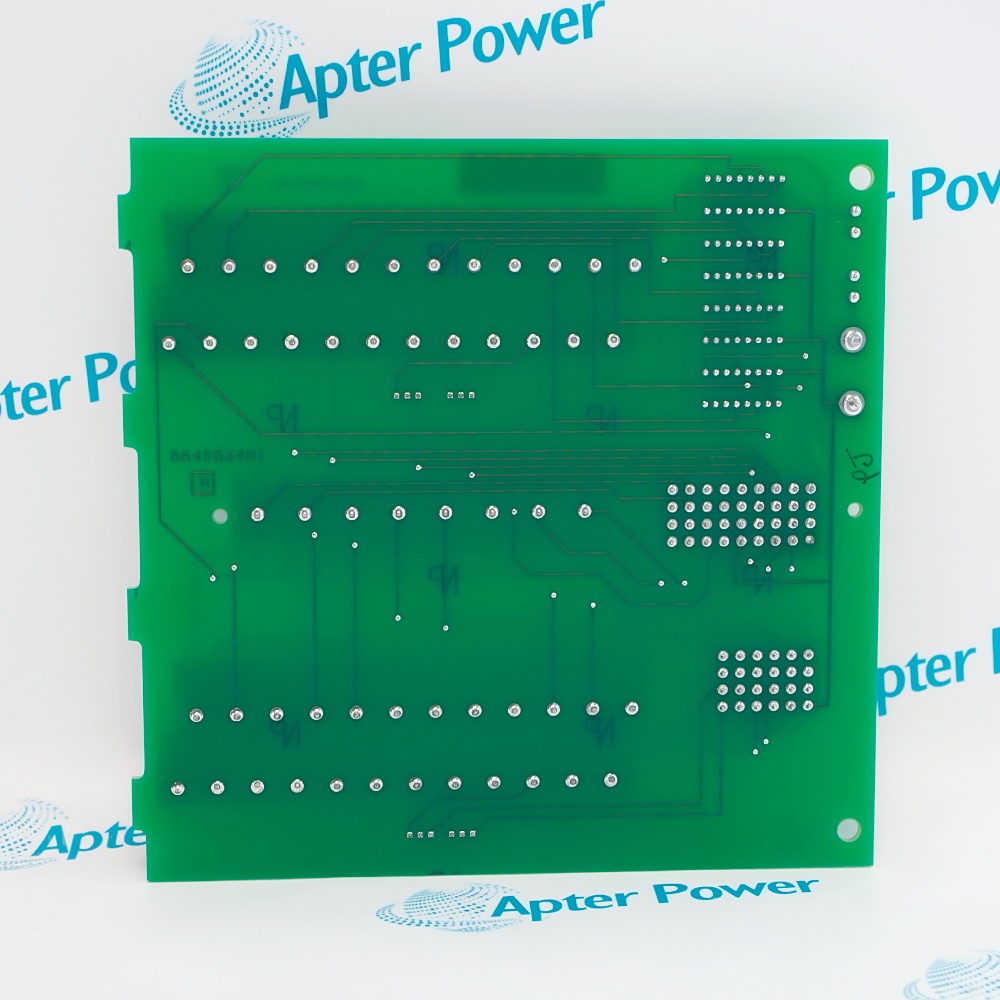

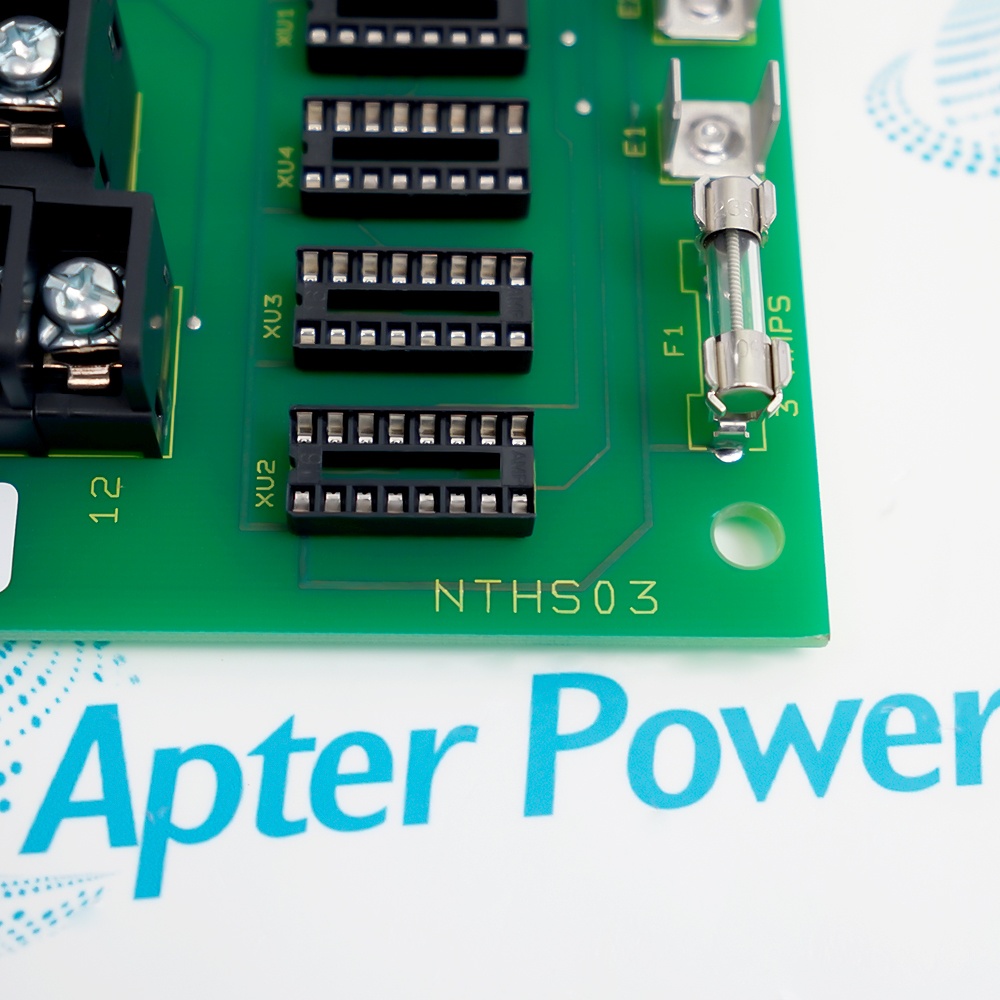

NTHS03 is the ABB termination unit used with the SPHSS13 hydraulic servo module and NKHS03 cable.
It provides the field-termination interface for LVDT feedback, servo output and related hydraulic-actuator signals.
Confirm SPHSS13 compatibility, cable type, LVDT wiring, servo-coil arrangement and terminal assignments before installation.
Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for ABB NTHS03:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB NTHS03 Hydraulic Servo Termination Unit Specs
General
- ManufacturerABB
- ModelNTHS03
- ConditionNew / Surplus / Refurbished
- Product FamilySymphony Plus / Harmony
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- The termination unit is used with the documented hydraulic-servo controller and NKHS03 cable assembly.
- Connector keying, terminal numbers, jumpers and shield connections must match the installed turbine-control drawing.
- Photograph and record every conductor and setting before the existing termination hardware is removed.
- LVDT feedback, servo-drive and related status conductors terminate at the unit before reaching the rack controller.
- Feedback type, polarity, excitation and servo-current path must correspond to the configured valve-control function.
- Cable length, grounding and terminal assignments require verification across the complete controller-to-actuator assembly.
- Place the turbine actuator in its approved safe state and isolate hydraulic and electrical energy before service.
- Commission feedback scaling, direction and servo polarity under controlled conditions before automatic control is enabled.
- Complete the required trip, interlock and valve-stroke tests under the site's authorized turbine procedure.
