SPBRC410

/ 4.9
1001 reviews | Need a Specific Revision?

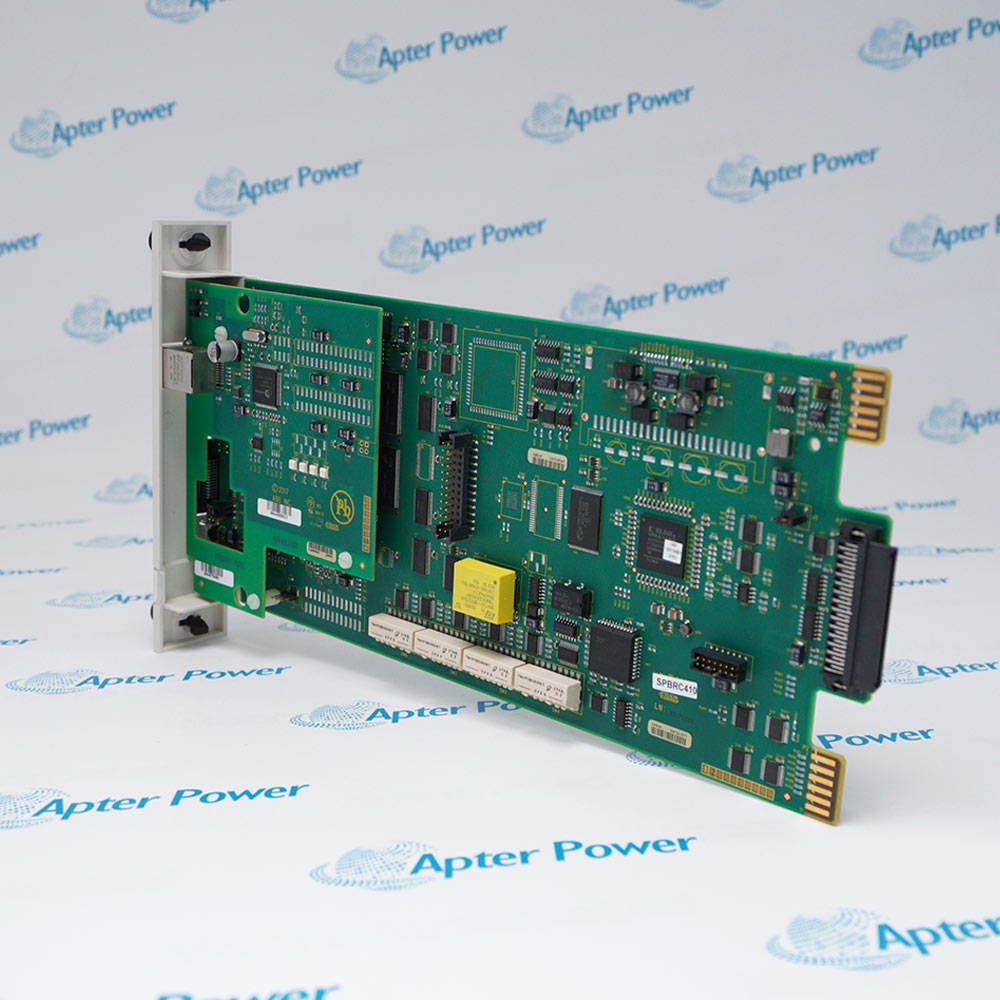

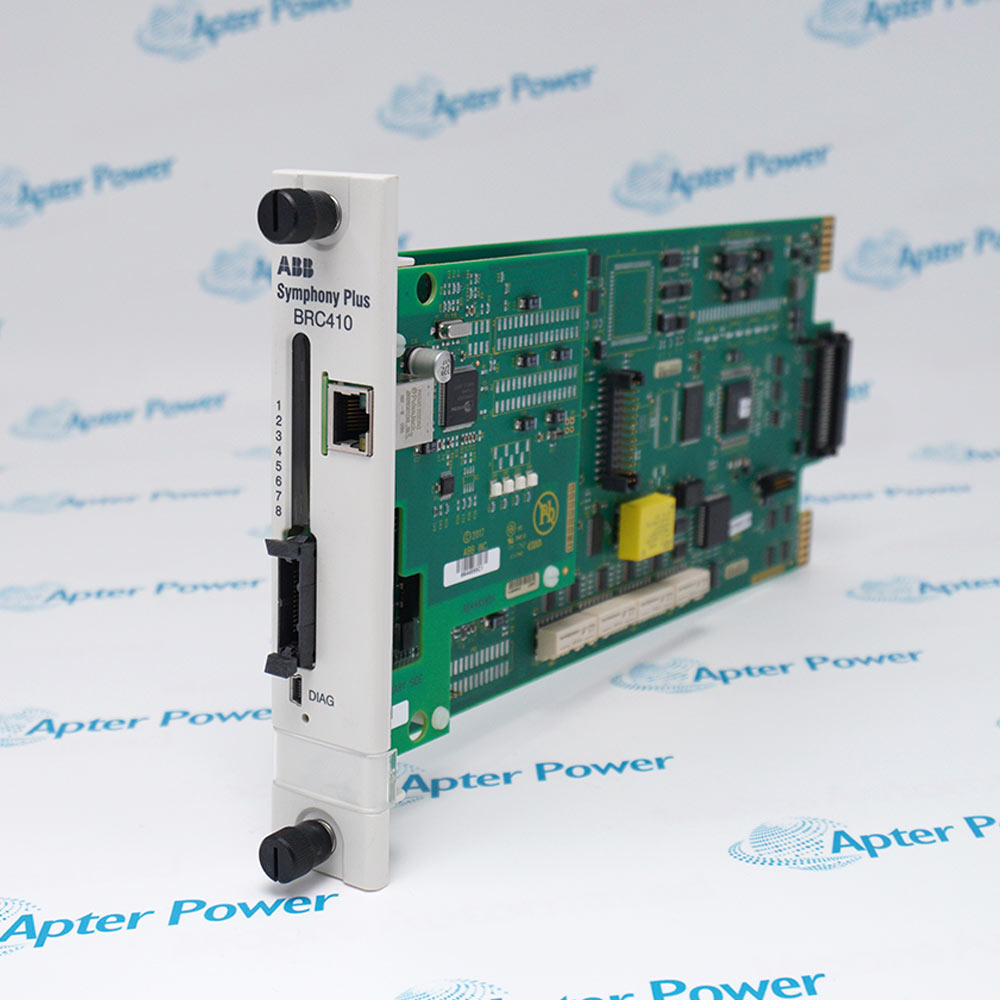

ABB SPBRC410 is a Symphony Plus Harmony Rack bridge controller for plant control and I/O coordination. It supports engineered serial, Ethernet, diagnostic and redundant-controller functions within the configured system.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SPBRC410
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPBRC410

  • Manufacturer:
    ABB
  • Part Number:
    SPBRC410
  • Product Family:
    ABB Bailey
  • Product Type:
    Harmony Rack Bridge Controller
  • Stock:
    1
  • Processor:
    Industrial-grade RISC
  • Memory:
    8 MB DRAM, 2 MB NVRAM
  • Power requirements:
    2 A at 5 VDC, 10 W
  • Redundancy data rate:
    4 MB/s during normal operation
  • Programming:
    Function codes, Batch 90 and user-defined function codes
  • Controller communication:
    Peer-to-peer with console HMI and engineering station access
  • HR Series I/O:
    Rack I/O
  • SD Series I/O:
    Supported
  • S800 I/O:
    Via IOR810
  • Serial ports:
    2 RS-232-C or 1 RS-232-C and 1 RS-485
  • Ethernet:
    1 x 10/100 Mbps
  • Diagnostic port:
    1 x mini-USB
  • Operating temperature:
    0 to 70 degrees C
  • Modbus TCP capacity:
    Up to 4,000 points with the applicable Harmony Gateway license
  • Weight:
    0.32 kg
  • Estimated shipping dimensions:
    3.5 x 32 x 17.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Control Network Redundancy Applications

Features:

  • Controller architecture: Industrial RISC processing with 8 MB DRAM and 2 MB NVRAM.
  • Mixed I/O support: Connects HR Series, SD Series and S800 I/O architectures.
  • Gateway integration: Adds licensed Modbus TCP access for intelligent field devices.
SPBRC410 coordinates controller, engineering-station and I/O communications in ABB Harmony Rack applications.

Its defined network and I/O paths let modernization teams retain supported field hardware while controlling the integration boundary.

The controller, firmware, redundancy partner and Harmony Gateway license should be treated as one approved configuration during replacement.

Apter Power can assist with quotation and documentation support for the ABB SPBRC410 Harmony Rack Bridge Controller.
ABB SPBRC410 Harmony Rack Bridge Controller Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Peer coordination: Supports controller peer-to-peer communication.
  • Engineering access: Provides the documented console HMI and engineering-station path.
  • Execution platform: Runs function codes, Batch 90 and user-defined function codes.
  • Replacement boundary: Keep the approved firmware and controller configuration with the asset record.
  • Rack I/O: Connects HR Series I/O through the documented controller architecture.
  • SD Series: Supports SD Series I/O within the approved system configuration.
  • S800 path: Connects S800 I/O through IOR810.
  • Field devices: Uses licensed Modbus TCP integration for supported intelligent devices.
  • Normal transfer: The redundant-controller data rate is 4 MB per second.
  • Pair check: Match partner identity, firmware and project configuration before service.
  • Network check: Confirm the active peer and I/O paths before changing controller roles.
  • Mismatch stop: Do not return a pair to service when the redundancy configuration is unresolved.
  • Harmony Rack control: Supports controller replacement in documented HR Series architectures.
  • Mixed I/O modernization: Coordinates supported HR, SD and S800 I/O paths.
  • Modbus TCP projects: Integrates licensed intelligent-device points into the control configuration.
  • Service spares: Provides a traceable controller identity for planned outage support.
Description
SPBRC410 is the ABB Harmony Rack bridge controller built around an industrial RISC processor with 8 MB DRAM and 2 MB NVRAM for Symphony Plus control applications.

SPBRC410 links controller peers and engineering stations while supporting HR Series I/O, SD Series I/O and S800 I/O through IOR810, giving upgrade teams a defined path for retaining mixed I/O architectures.

SPBRC410 can integrate Modbus TCP devices through Harmony Gateway licensing for configurations of up to 4,000 points, so the selected license, network plan and controller configuration must be checked together before deployment.
Alternative Names
SPBRC41000000 P-HC-BRC41000000
Technical notes
SPBRC410 service decisions must keep firmware, Harmony Gateway licensing and the active network design aligned. The controller uses defined HR Series, SD Series and S800 communication paths and supports redundancy at 4 MB/s. Stop replacement or upgrade work if peer, I/O, Modbus TCP point or license assignments cannot be reconciled with the approved configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should a migration engineer verify before replacing SPBRC410 in a Harmony Rack system?
Verify the controller project, firmware, peer arrangement, active I/O networks and every required Harmony Gateway license before scheduling the change.
Can SPBRC410 integrate 4,000 Modbus TCP points without a gateway license review?
No. The 4,000-point scope depends on the applicable Harmony Gateway license, so the point count and license assignment must be checked together.
Which local service interfaces should a technician expect on SPBRC410?
The documented interfaces include serial ports, one 10/100 Mbps Ethernet port and one mini-USB diagnostic port; confirm the approved service procedure before connection.
How does SPBRC410 connect to S800 I/O during a retained-field-system upgrade?
ABB documents the S800 path through IOR810, so the interface module and project configuration must remain part of the integration review.
What should an engineer do if the redundancy partner for SPBRC410 has different firmware?
Stop before returning the pair to service and reconcile firmware, project and partner configuration under the approved system procedure.
What information should procurement include in an SPBRC410 quotation request?
Provide both alternative part-number markings, the installed Symphony Plus architecture, firmware record, redundancy role, I/O networks and required Modbus TCP point count.
