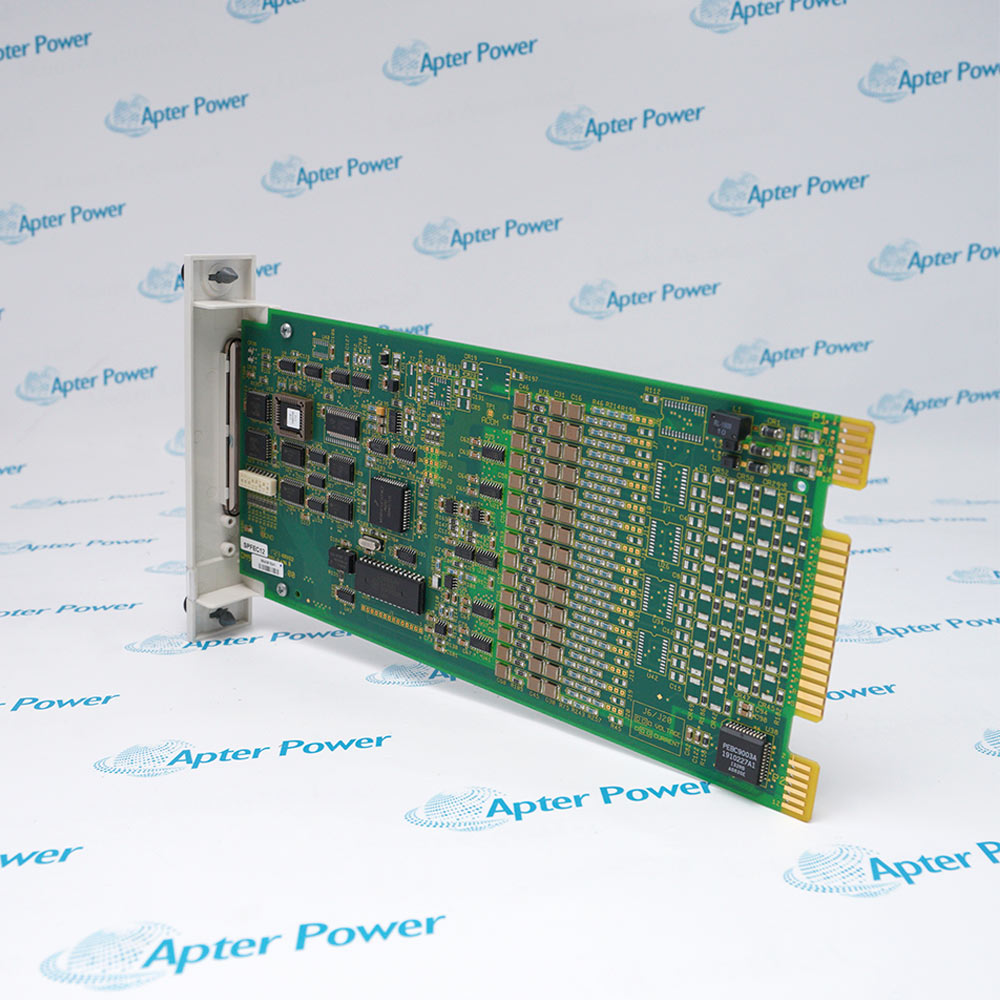

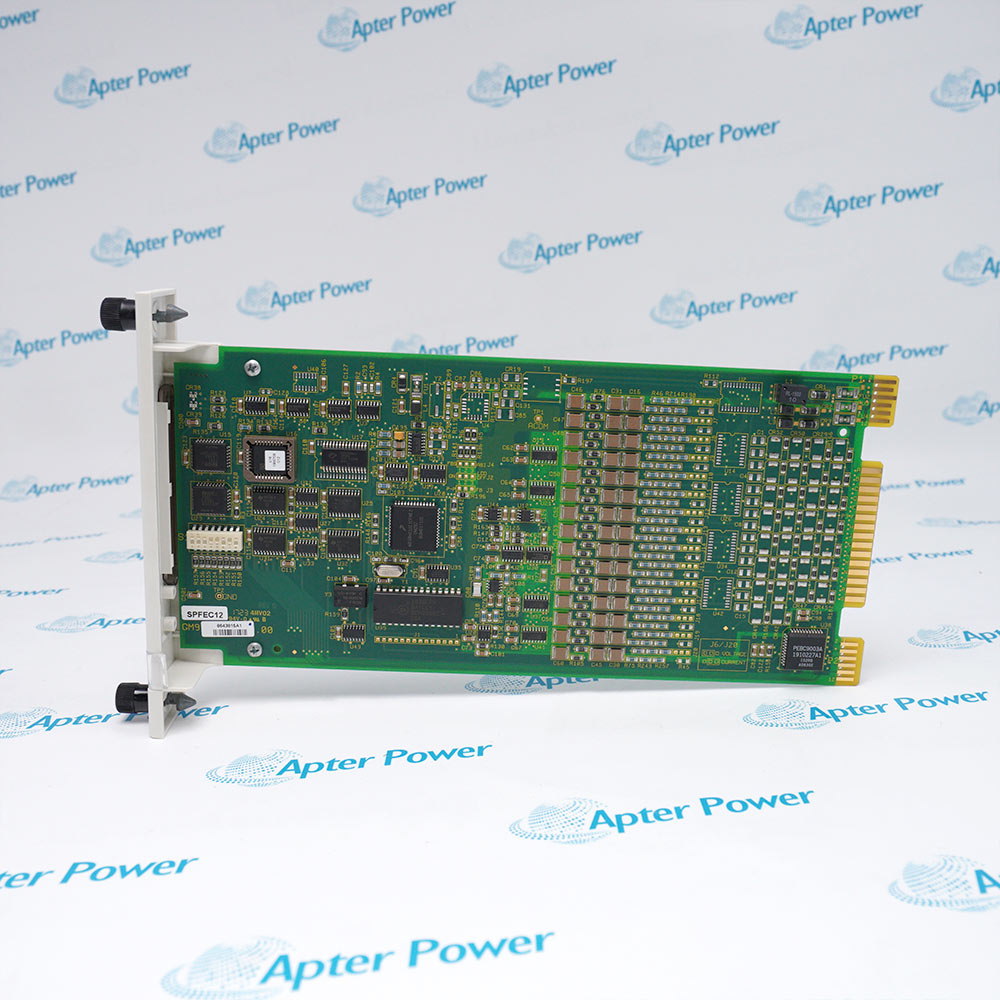

ABB SPFEC12 is a 15-channel Symphony Plus Harmony Rack analog input module for programmable current and voltage signals. It brings conventional field measurements into the controller through the rack I/O expander bus.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SPFEC12
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPFEC12

  • Manufacturer:
    ABB
  • Part Number:
    SPFEC12
  • Product Family:
    ABB Bailey
  • Product Type:
    15-channel analog input module
  • Stock:
    1
  • Input channels:
    15
  • Channel programming:
    Individually programmable
  • Conversion resolution:
    14 bit
  • Current input:
    4-20 mA
  • Voltage range A:
    1-5 VDC
  • Voltage range B:
    0-1 VDC
  • Voltage range C:
    0-5 VDC
  • Voltage range D:
    0-10 VDC
  • Bipolar voltage range:
    -10 to +10 VDC
  • Transmitter class:
    Conventional transmitters
  • Signal class:
    Standard analog inputs
  • Positive logic supply:
    +5 VDC ±5%
  • Positive logic current:
    85 mA
  • Positive analog supply:
    +15 VDC ±5%
  • Positive analog current:
    25 mA
  • Negative analog supply:
    -15 VDC ±5%
  • Negative analog current:
    20 mA
  • Typical power:
    1.1 W
  • Ambient temperature:
    0-70 °C
  • Controller bus:
    Rack I/O expander bus
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Monitoring Compatibility & Interoperability Configuration

Features:

  • Handles fifteen individually programmable analog inputs.
  • Provides 14-bit conversion for conventional transmitters and standard analog signals
  • The unit interfaces through the Harmony Rack I/O expander-bus architecture.
The current ordering configuration is SPFEC12, which is the ABB Harmony Rack fifteen-channel analog input module for individually programmed current and voltage signals from conventional field transmitters.

Within the installed Symphony Plus Harmony Rack architecture, this configuration interfaces field signals with the Symphony Plus controller architecture and provides 14-bit conversion for conventional transmitters and standard analog signals.

confirm the fifteen individually programmable analog inputs range, termination unit, I/O expander-bus position, function code and field wiring before installation.
Availability is subject to Apter Power inventory and sourcing confirmation.

Verified resources for ABB SPFEC12:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

General

  • ManufacturerABB
  • ModelSPFEC12
  • ConditionNew / Surplus / Refurbished
  • Product FamilySymphony Plus Harmony Rack
  • Analog channels are programmed individually for the supported current or voltage signal used by each field device.
  • Conversion results are delivered to the controller for conventional process measurement and control.
  • Range selection and field wiring must agree with the transmitter or source connected to that channel.
  • The module communicates with its controller through the rack I/O expander-bus arrangement.
  • Field conductors terminate on the matching termination unit rather than on the module faceplate.
  • Function-code selection and termination hardware are verified together as one I/O assembly.
  • Each channel's current or voltage range must match the controller database and connected field source.
  • Function-code selection, switch positions and jumpers define the installed analog-input setup.
  • Rack address, dipshunt and termination assignments must be recorded before the module is exchanged.
Description
SPFEC12 is the ABB Harmony Rack analog input module for fifteen individually programmed current or voltage signals from conventional field devices.

The module converts those measurements for Symphony Plus control strategies and exchanges them with the controller through the rack I/O expander bus.

The active range, function code, matching termination unit, channel wiring, rack address and switch or jumper settings must be recorded before replacement.
Alternative Names
SPFEC12 ABB SPFEC12 SPFEC12 15-channel analog input module Symphony Plus Harmony Rack SPFEC12 ABB Symphony Plus Harmony Rack SPFEC12 ABB Symphony Plus Harmony Rack 15-channel analog input module
Technical notes
Before energizing SPFEC12, verify field wiring, power isolation and the validated Symphony Plus Harmony Rack configuration.
