SPSED01

/ 4.9
1001 reviews | Need a Specific Revision?

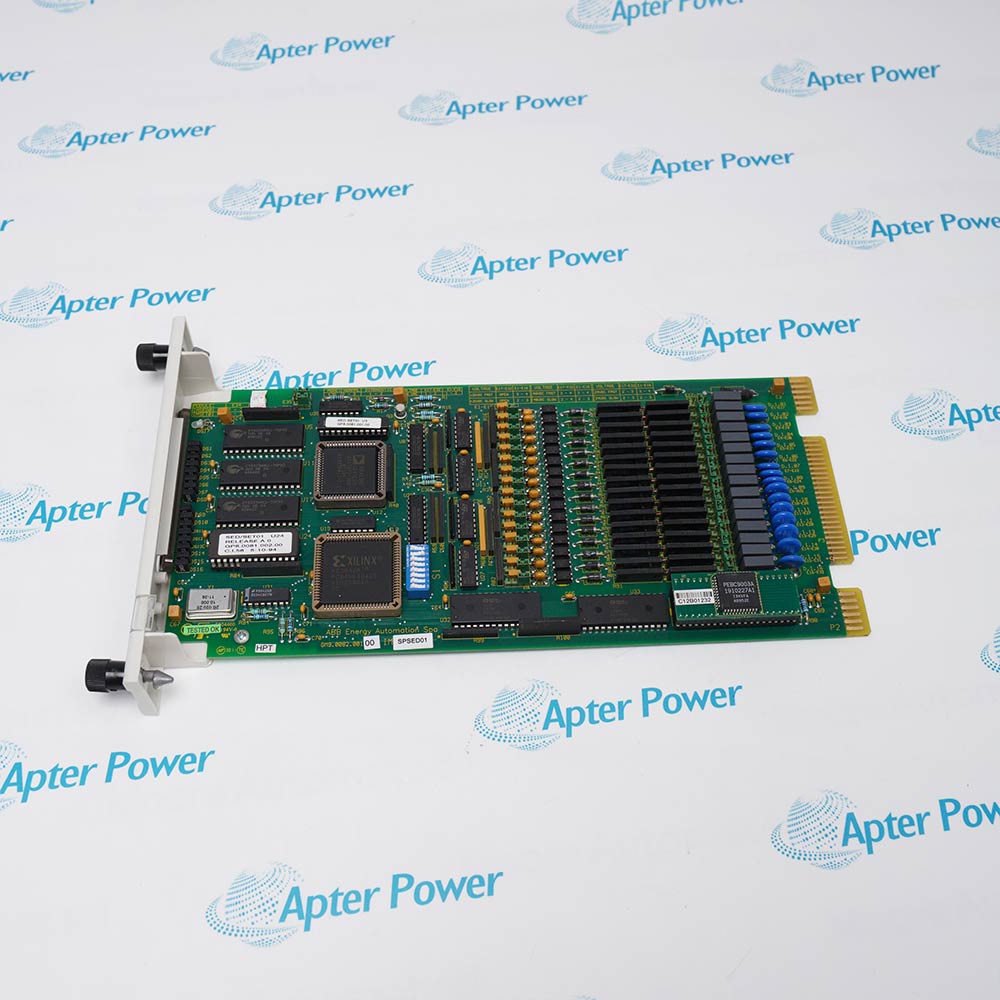

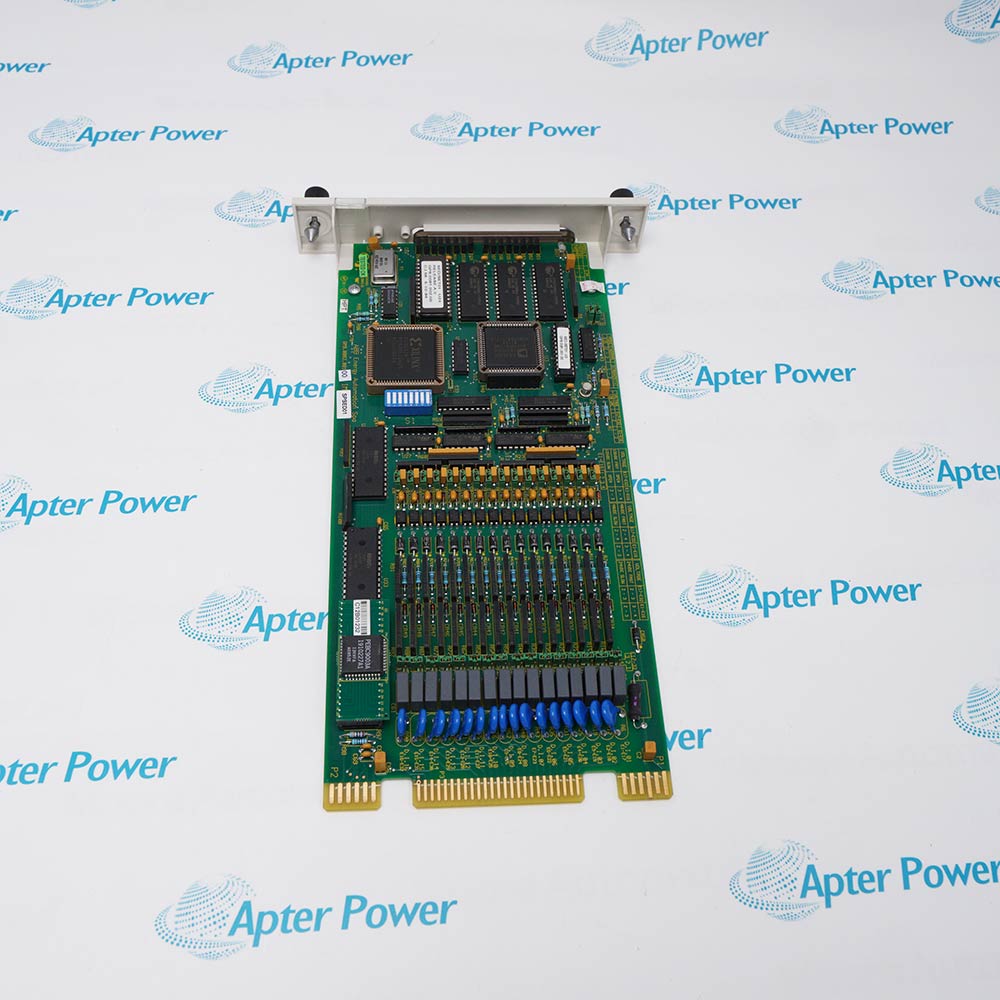

ABB SPSED01 is a Symphony Plus HR Series sequence-of-events digital input module for 16 optically isolated field inputs and I/O expander bus integration.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for SPSED01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SPSED01

  • Manufacturer:
    ABB
  • Part Number:
    SPSED01
  • Product Family:
    ABB Bailey
  • Product Type:
    Sequence of Events Digital Input Module
  • Stock:
    1
  • Manufacturer:
    ABB
  • Model:
    SPSED01
  • Condition:
    New & Original
  • Product Family:
    Symphony Plus Harmony Rack
  • Module Function:
    Sequence of events digital input
  • Controller Interface:
    I/O expander bus
  • Power Supply:
    +5 VDC
  • Power Tolerance:
    ±5%
  • Typical Supply Current:
    350 mA
  • Microprocessor:
    16-bit
  • Processor Clock:
    10 MHz
  • RAM:
    64 KB
  • ROM:
    64 KB
  • Digital Input Channels:
    16
  • Input Isolation:
    Optically isolated
  • 24 VDC Input Tolerance:
    ±10%
  • 48 VDC Input Tolerance:
    ±10%
  • 125 VDC Input Tolerance:
    ±10%
  • 120 VAC Input Tolerance:
    ±10%; system control logic only
  • Time-Synchronization Link Processing:
    Not supported by this module
  • I/O Expander-Bus Capacity:
    Up to 63 modules with one timing module
  • Ambient Temperature:
    0 °C to 70 °C (32 °F to 158 °F)
  • Weight:
    0.79 lbs (0.36 kg)
  • Estimated shipping dimensions:
    3.5 x 31.5 x 17.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Monitoring Compatibility Operating Environment

Features:

  • Processes 16 optically isolated digital field inputs for Symphony Plus Harmony Rack sequence-of-events service.
  • Supports selectable 24 VDC, 48 VDC, 125 VDC, or 120 VAC input operation.
  • Operates on the I/O expander bus without decoding the system time-synchronization link.
The current ordering configuration is SPSED01, a Symphony Plus Harmony Rack Sequence of Events Digital Input Module identified by ABB.

SPSED01 acquires field contact changes and transfers their digital states through the I/O expander bus for sequence-of-events monitoring.

Before installation, verify the selected field voltage, termination wiring, expander-bus assignment, and coordination with the segment time-synchronization module.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for ABB SPSED01:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Acquires digital field transitions for sequence-of-events monitoring in Symphony Plus Harmony Rack control systems.
  • Expands event-input capacity on an I/O expander bus segment that uses a dedicated SPSET01 timing receiver.
  • Handles documented DC or AC contact-input services when each channel is configured for its connected field circuit.
  • Processes 16 independent input states through an onboard 16-bit processor with dedicated program and data memory.
  • Transfers current digital event states to the controller across the Harmony I/O expander bus.
  • Leaves time-link decoding to the SPSET01 module while providing additional input capacity on the same segment.
  • Integrates with the ABB Symphony Plus Harmony Rack controller and I/O expander-bus architecture.
  • Allows up to 63 SPSED01 modules to share a segment with one SPSET01 time-synchronization module.
  • Requires confirmation of the installed expander-bus arrangement and field termination before replacing an existing module.
  • Operates across the documented ambient temperature range of 0 to 70 degrees C.
  • Uses optical isolation on all 16 input channels to separate field circuits from module electronics.
  • Supports configured 24 VDC, 48 VDC, 125 VDC, or 120 VAC field inputs according to the selected wiring arrangement.
Description
SPSED01 is the ABB Symphony Plus Harmony Rack sequence-of-events digital input module that processes 16 optically isolated field inputs for documented DC or AC service.

The module communicates through the I/O expander bus and adds event-input capacity without decoding the time synchronization link assigned to the segment SPSET01 module.

Confirm field-voltage selection, termination wiring, expander-bus assignment, and the required SPSET01 timing arrangement before replacement or installation.
Alternative Names
SPSED01 SP SED 01 SPSED-01 ABB SPSED01 ABB Bailey SPSED01 ABB Symphony Plus SPSED01 ABB SPSED01 Sequence of Events Digital Input Module
Technical notes
SPSED01 cannot decode the SPTKM01 time-synchronization link; retain one SPSET01 on the I/O expander-bus segment when synchronized event timing is required.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does SPSED01 process events without decoding the time-synchronization link?
SPSED01 reads 16 optically isolated inputs and transfers their states over the I/O expander bus; segment timing is supplied by the dedicated timing hardware.
How many SPSED01 modules can share one I/O expander-bus segment?
ABB documents up to 63 SPSED01 input modules on one segment when the required timing module is also installed.
When is SPSED01 appropriate for sequence-of-events monitoring?
Use SPSED01 when additional isolated event inputs are required on a correctly timed Harmony Rack I/O segment.
Which SPSED01 markings should be checked on an available spare?
Confirm the complete SPSED01 code, input-voltage configuration, module condition and traceability before accepting the spare.
Can SPSED01 replace a timing-capable event module without a design review?
No. SPSED01 does not decode the time-synchronization link, so the segment timing architecture must remain unchanged.
What should an SPSED01 documentation request include?
Request the ABB Symphony Plus product-catalog pages for SPSED01 together with the configured field voltage and I/O expander-bus details.
