Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle Status

    Discontinued / Obsolete by OEM
    Apter Power supplies fully inspected Foxboro legacy accessories to maintain the seamless continuity of your critical plant infrastructure.

P0902BP

/ 4.9
1001 reviews | Need a Specific Revision?

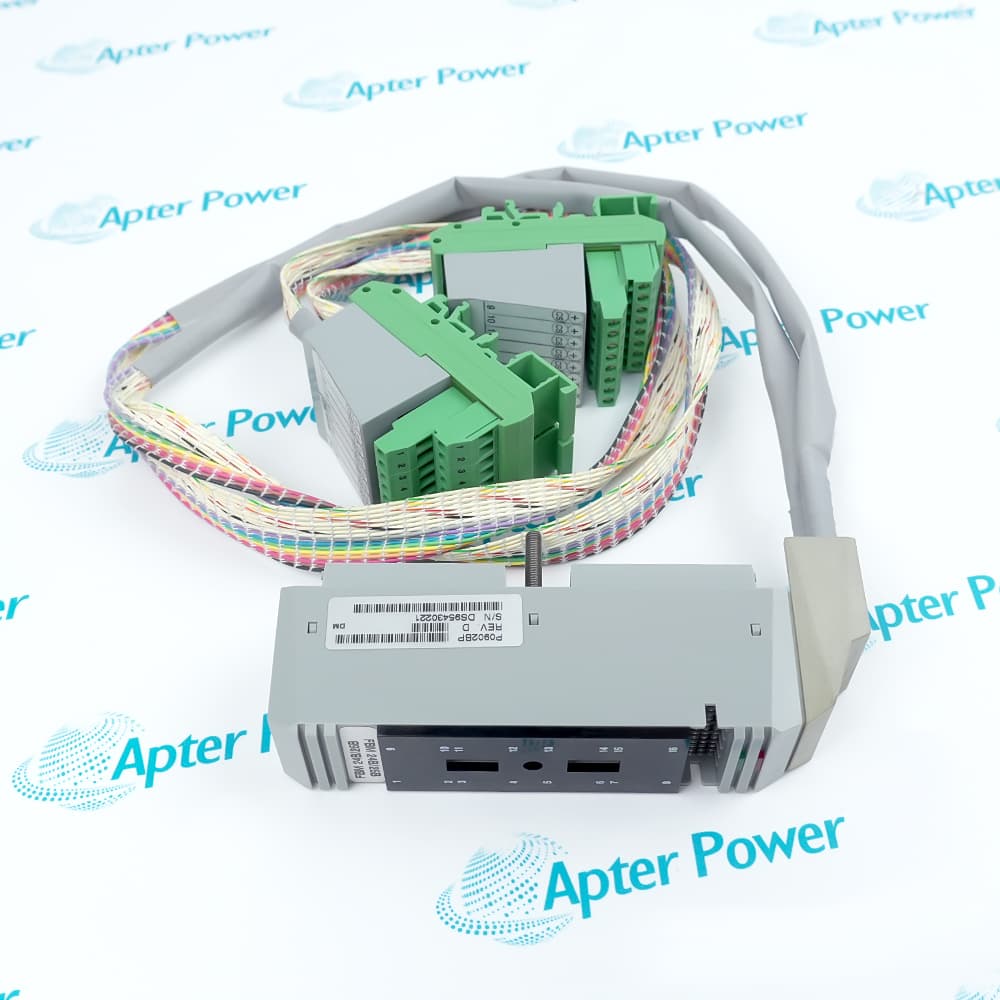

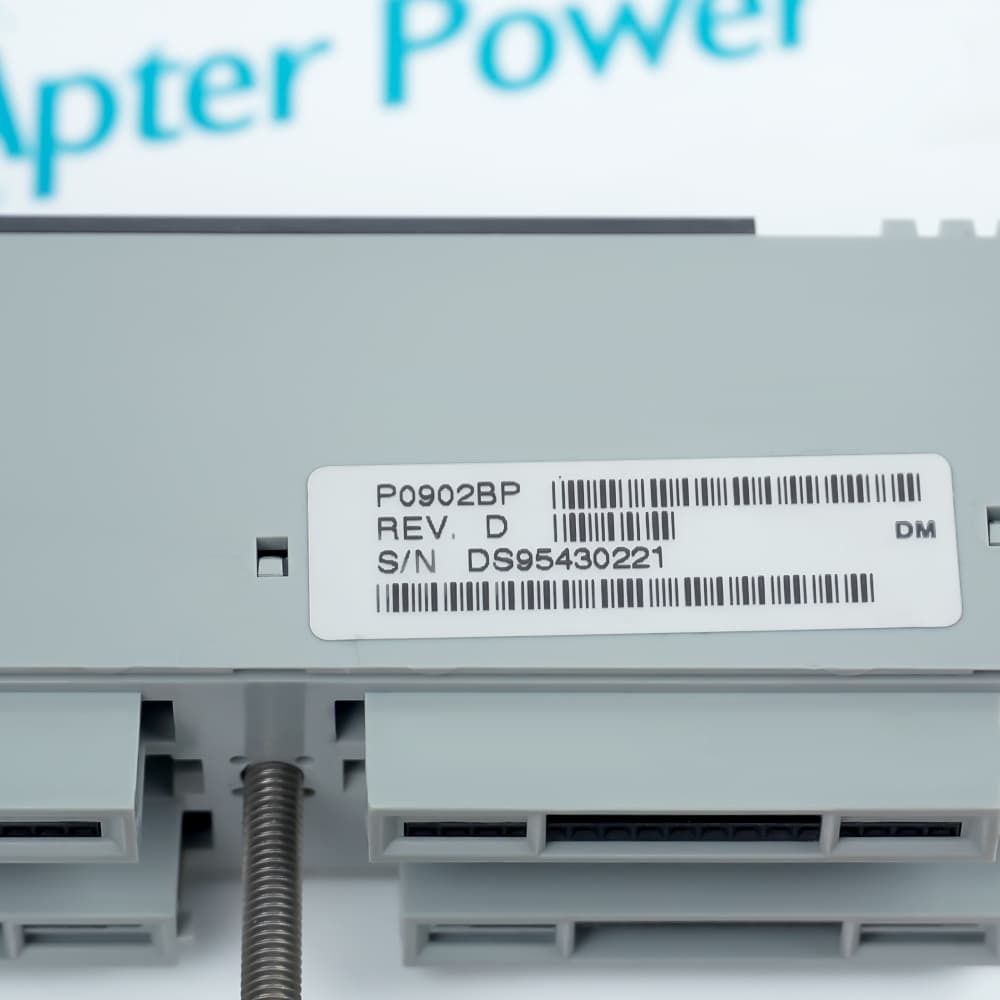

Foxboro P0902BP is a terminal cable assembly that connects FBM24B and FBM25B modules to screw-terminal field wiring within the Foxboro I/A DCS.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for P0902BP
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for P0902BP

  • Manufacturer:
    Invensys
  • Part Number:
    P0902BP
  • Product Family:
    Foxboro
  • Product Type:
    Terminal Cable Assembly
  • Stock:
    2
  • Compatible Modules:
    FBM 24B / 25B
  • Cable Type:
    Rainbow Flat Ribbon Cable
  • Cabling Structure:
    2-Wire Dry Contact
  • Mounting Method:
    Screw Locking
  • Control System:
    Foxboro I/A DCS
  • Operating Temperature:
    0°C to +60°C
  • Storage Temperature:
    -40°C to +70°C
  • Relative Humidity:
    5% to 95% Non-condensing
  • Weight:
    0.75 kg
  • Estimated shipping dimensions:
    28x22x8cm
  • Tariff Code:
    7419209000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Application Scenarios Installation Compatibility

Features:

  • Rainbow flat ribbon cable supports organized parallel transmission of multiple field signals.
  • Screw-locking connections improve installation security and maintenance reliability.
  • Compatibility with FBM24B and FBM25B modules simplifies Foxboro I/A DCS cabinet wiring.
Foxboro P0902BP helps control cabinet designers reduce the amount of individual point-to-point wiring required between field terminals and I/O modules. Multiple signals can pass through one compact ribbon cable rather than through numerous separate conductors. Color coding improves visual identification during installation and troubleshooting. The arrangement also keeps cabinet interiors cleaner and easier to service.

Reliable mechanical connection is important in process plants where vibration, repeated maintenance, and long operating periods can affect ordinary cable interfaces. Foxboro P0902BP uses screw locking to maintain a stable connection between the cable assembly and compatible hardware. The multipin interface provides a structured path for several field signals. Maintenance personnel can disconnect and reconnect the assembly without handling every field wire individually.

In petroleum, power, and pharmaceutical facilities, Foxboro P0902BP supports the collection of field contact information used by the distributed control system. Valve positions, relay conditions, and equipment status signals can be routed through the assembly to FBM24B or FBM25B modules. The wide storage temperature range supports spare-parts management in different warehouse conditions. Non-condensing humidity tolerance also supports dependable use in standard industrial control rooms and cabinets.

The P0902BP Foxboro Terminal Cable Assembly may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro P0902BP Terminal Cable Assembly Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Foxboro P0902BP Terminal Cable Assembly Specs

General

  • Manufacturer Foxboro
  • Model P0902BP
  • Condition New Original ready stock
  • Product Family P0904AK,P0903CW,P0903CV
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Loop Optimization: Centralized management of high-density wiring harnesses within the control cabinet.
  • Status Monitoring: Introduction of auxiliary contacts for field circuit breakers and pumps/valve.
  • Signal Expansion: Physical extension of I/O points in distributed control systems.
  • Fastening Method: Equipped with a secure screw-locking connector that guarantees solid electrical contact and long-term mechanical stability.
  • Cable Laying: Features a space-saving flat rainbow ribbon cable tailored for high-density panel wiring and flexible bending around tight corners.
  • Module Interlocking: Direct plug-and-play interface ensures seamless module interlocking, significantly reducing installation time and maintenance effort.
  • Core Compatibility & Bus Architecture: Optimized for Foxboro I/A Series DCS, providing exclusive interface support for FBM24B and FBM25B modules.
  • Physical Base & Terminal Integration: Complies with C-series standard field terminal kit specifications, ensuring precise mechanical fit and easy cabinet mounting.
  • Signal Type & Transmission: Dedicated to passive dry contact signal processing, delivering reliable and noise-free discrete signal transmission across field loops.
Description
Foxboro P0902BP provides the physical connection between compatible FBM24B or FBM25B modules and field-side screw terminals. The assembly uses a rainbow flat ribbon cable to carry multiple field signals in parallel, allowing faster connection inside a Foxboro I/A DCS cabinet. A high-density multipin connector supports reliable signal transfer between the module and terminal interface.

Built for 2-wire dry-contact cabling, Foxboro P0902BP helps organize signals from devices such as valve limit switches, pressure relay contacts, and other field status points. Color-coded ribbon conductors make cable identification easier and reduce the risk of incorrect positioning during installation or maintenance. Screw locking secures the connection against accidental loosening in industrial control environments.

Foxboro P0902BP operates from 0°C to +60°C and can be stored between -40°C and +70°C. Relative humidity tolerance ranges from 5% to 95% under non-condensing conditions. The industrial housing supports installation within DCS control cabinets used in petrochemical, power generation, pharmaceutical, and other process facilities where compact wiring and convenient maintenance are important.
Alternative Names
P0916AG P0916NG P0916DB P0916CC P0916AA P0914ZM P0904BS PO9O2BP
Technical notes
The Foxboro P0902BP is a dedicated terminal cable assembly designed for FBM 24B/25B modules. Featuring an integrated multi-pin connector, this compact assembly offers a plug-and-play solution that can reduce field deployment time by up to 50%.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What modules can Foxboro P0902BP connect to?
Foxboro P0902BP is compatible with Foxboro FBM24B and FBM25B modules used in the I/A DCS platform.
Does Foxboro P0902BP include a secure connection method?
Screw locking keeps the assembly firmly connected and helps prevent movement caused by vibration or routine cabinet maintenance.
How should Foxboro P0902BP be stored before installation?
Foxboro P0902BP should be stored between -40°C and +70°C in a non-condensing environment within the specified humidity range.
In what industrial environments is the Foxboro P0902BP typically deployed?
The Foxboro P0902BP is deployed in continuous process industries, including oil and gas, chemical production, power plants, and water treatment facilities using Foxboro DCS solutions.
Is the Foxboro P0902BP compatible with non-B series modules like FBM24C or FBM25C?
No, module variants such as FBM24C/25C typically require external power termination cables (such as P0902BQ) rather than the standard Foxboro P0902BP assembly.
How do I replace a faulty Foxboro P0902BP cable in an existing cabinet?
Simply power down or safely isolate the associated field loop, detach the connector from the FBM24B/25B module, disconnect the terminal wiring, and install the new Foxboro P0902BP unit.
