ABB NGDR-07C NGDR-07 FF1400R12IP4 is a photo-identified gate-driver and Infineon PrimePACK 3 half-bridge assembly for high-current converter service.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for NGDR-07C NGDR-07 FF1400R12IP4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for NGDR-07C NGDR-07 FF1400R12IP4

  • Manufacturer:
    ABB
  • Part Number:
    NGDR-07C NGDR-07 FF1400R12IP4
  • Product Family:
    ABB Drives
  • Product Type:
    IGBT Gate Driver and 1200 V 1400 A PrimePACK Power Module Assembly
  • Stock:
    1
  • Power Module Topology:
    PrimePACK 3 half bridge
  • Collector-Emitter Voltage:
    1200 V — power-module rating
  • Nominal Collector Current:
    1400 A — power-module rating
  • Peak Collector Current:
    2800 A — power-module rating
  • Typical Saturation Voltage:
    1.75 V at rated test conditions — power-module rating
  • Maximum Power Dissipation:
    7650 W — power-module rating
  • Isolation Test Voltage:
    4 kV AC for 1 minute — power-module rating
  • Temperature Sensor:
    Integrated NTC in the power module
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Assembly Boundary Pair Control Thermal Mounting Application
  • NGDR-07C gate-driver board marked 68980127B 1/4
  • NGDR-07 assembly combined with FF1400R12IP4
  • 1200 V 1400 A PrimePACK 3 half-bridge power stage

NGDR-07C NGDR-07 FF1400R12IP4 is a gate-driver and high-current IGBT power-module assembly for ABB converter service.

The photographs identify the ABB driver hardware, while the official Infineon datasheet defines the ratings of the FF1400R12IP4 semiconductor module rather than the complete ABB assembly.

Before replacement, verify kit contents, paired devices, driver revision, busbar order, thermal interface, tightening torque, connector pinout, cooling path, and the exact ABB drive working instruction.

Availability, condition, price, and shipping time for NGDR-07C NGDR-07 FF1400R12IP4 are confirmed during quotation.

NGDR-07C NGDR-07 FF1400R12IP4 IGBT Gate Driver and 1200 V 1400 A PrimePACK Power Module Assembly Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The offered item must identify the driver board, power module, harness, plate, and included service hardware
  • FF1400R12IP4 ratings apply to the semiconductor module, not automatically to the complete ABB assembly
  • A bare PrimePACK 3 module does not replace the NGDR-equipped converter assembly by itself
  • Follow the applicable ABB instruction when matched PrimePACK devices are replaced as a pair
  • Do not mix FF1400R12IP4 with the FF650R17IE4 voltage and package design
  • Inspect both driver channels, snubbers, busbars, feedback, and the opposite power device after a failure
  • Prepare the cooler and apply the specified thermal compound uniformly
  • Use the documented module and busbar tightening sequence and torque
  • Verify NTC, insulation, gate behavior, and staged low-current operation before full load
  • Battery-energy-storage converter service where the installed ABB assembly uses the FF1400R12IP4 power module
  • High-current motor-drive converter maintenance after the complete NGDR driver-board and power-module pairing is verified
  • Traction, wind-power, photovoltaic, or UPS converter service performed with the original ABB assembly drawing and commissioning record
Description

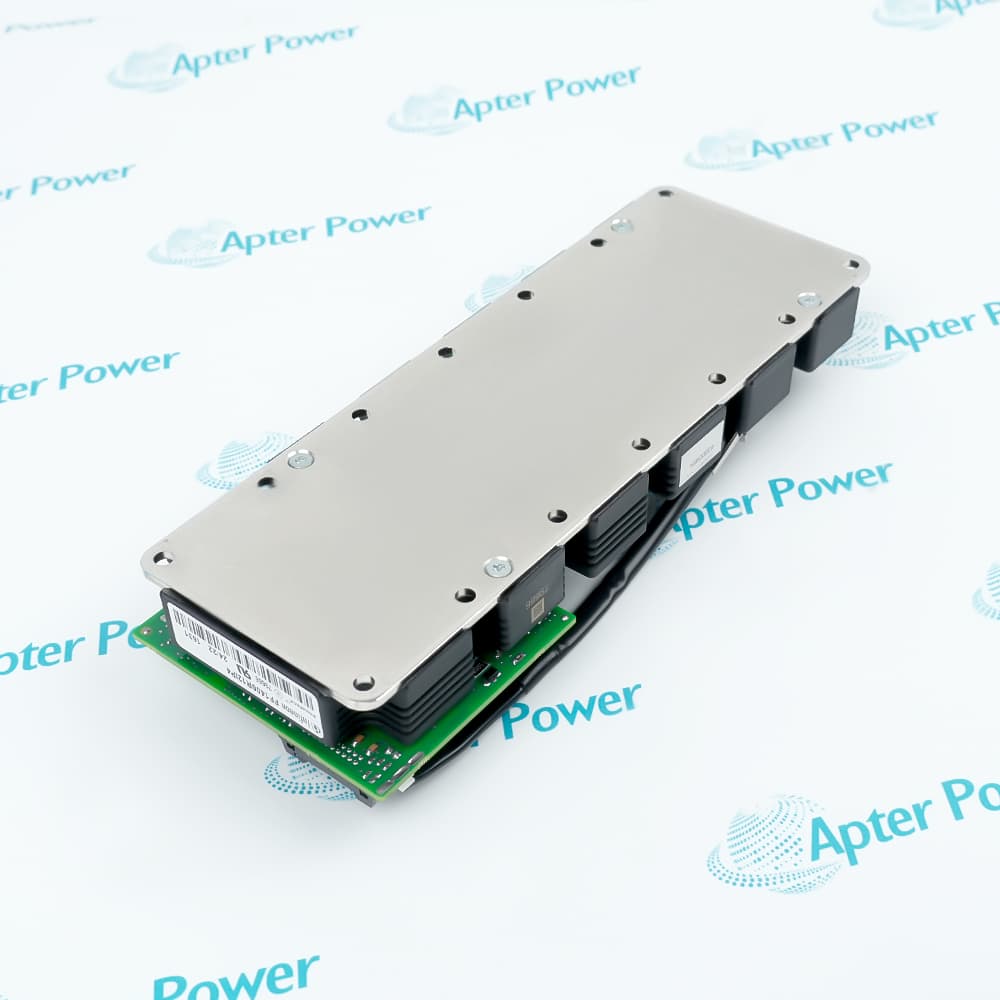

NGDR-07C NGDR-07 FF1400R12IP4 is a photo-identified ABB NGDR-07/NGDR-07C gate-driver assembly mounted with an Infineon FF1400R12IP4 PrimePACK 3 half-bridge power module.

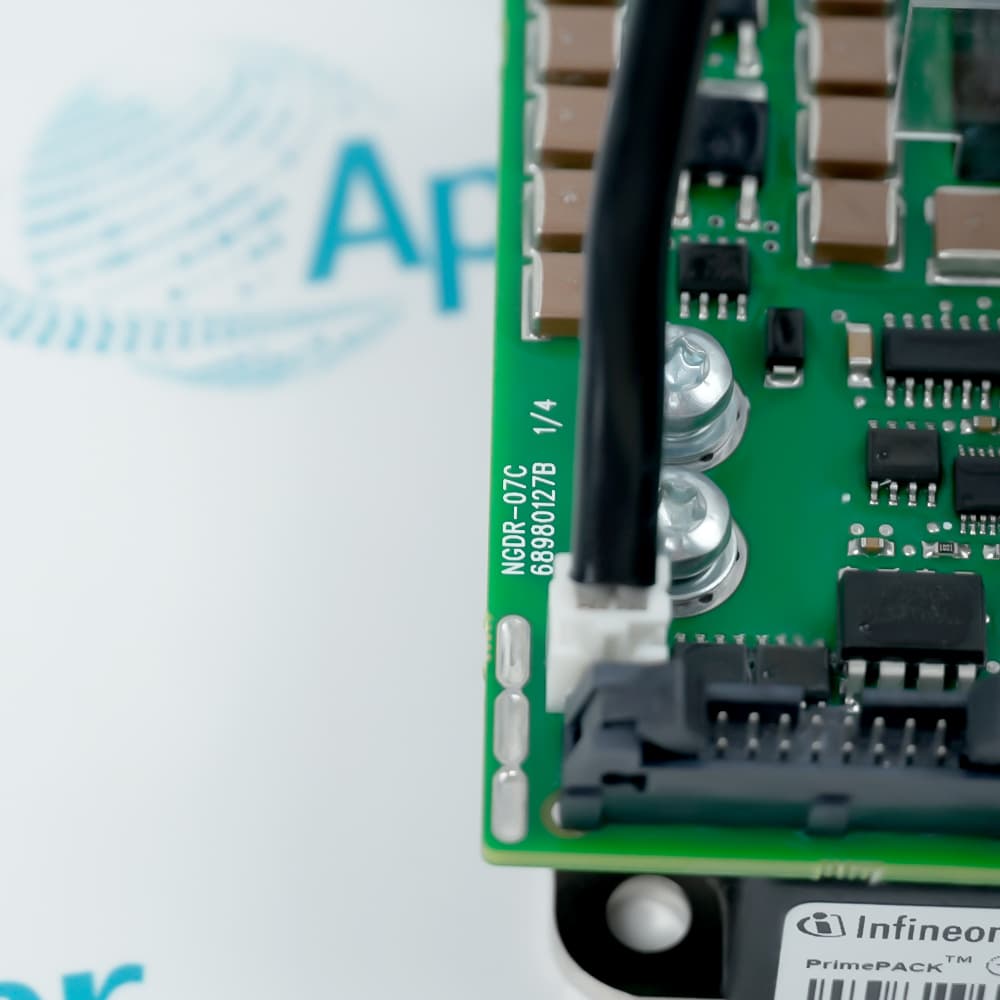

Official Infineon data supports the 1200 V, 1400 A semiconductor-module ratings, while the supplied photographs confirm NGDR-07C board marking 68980127B 1/4 and the complete driver/module construction.

Before replacement, verify the exact converter kit, paired devices, driver revision, mounting base, busbar sequence, thermal compound, connector pinout, tightening torque, and ABB drive working instruction.
Alternative Names
NGDR-07C NGDR-07 FF1400R12IP4 NGDR-07C FF1400R12IP4 NGDR-07 FF1400R12IP4 ABB NGDR-07C ABB NGDR-07 FF1400R12IP4 NGDR-07
Technical notes
ABB NGDR-07C NGDR-07 FF1400R12IP4 combines a photo-identified NGDR gate driver with a 1200 V, 1400 A PrimePACK 3 half-bridge. Confirm kit contents, paired replacement, thermal procedure, driver health, busbar torque, and staged commissioning.
