Features:
- Central CPU board that executes control algorithms and coordinates communication between system modules.
- Companion board architecture supports signal isolation, interface expansion, and industrial drive functions.
- Industrial environmental design with 500 V DC opto-isolation, moisture-proof coating, and wide operating conditions.

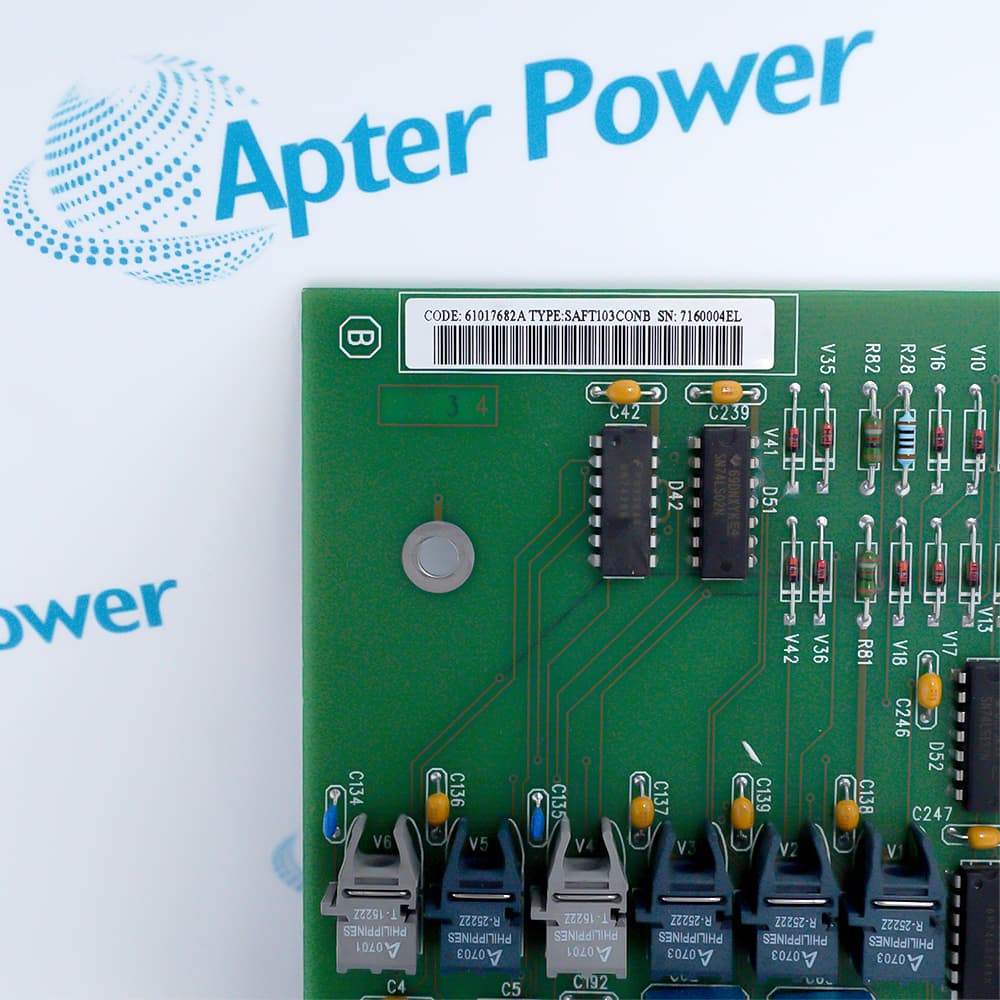

ABB SAFT103CON 57777290 is an important processing board used in industrial drive and automation platforms where coordinated control and reliable communication are essential. Acting as the central controller, the board manages system calculations while distributing trigger commands to connected hardware. Combined with SAFT 400F380E 57778865, the assembly forms a complete control solution for legacy ABB equipment. The design continues to support maintenance projects for long-service industrial installations.
SAFT 400F380E 57778865 complements the CPU board by extending interface capability and supporting signal isolation or drive-related functions. Communication between both boards is achieved through six dedicated L-shaped ribbon cable sockets, allowing efficient integration within existing control cabinets. TTL digital signals and 12-bit analog processing provide dependable data handling for industrial automation tasks. Low power consumption of no more than 15 W further supports stable continuous operation.
ABB SAFT103CON 57777290 remains valuable in facilities operating mature automation infrastructure where system replacement is not practical. Typical maintenance projects include large industrial drives used in paper mills and steel plants, together with ABB DCS cabinets found in chemical processing and power generation facilities. Operating temperatures from 0°C to +55°C, storage capability down to -40°C, and support for high non-condensing humidity make the board suitable for demanding industrial environments. Although considered an obsolete spare part, ABB SAFT103CON 57777290 continues to provide an effective replacement option for extending the service life of established control systems.
The SAFT103CON 57777290 SAFT 400F380E 57778865 ABB CPU Control PCB Circuit Board may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SAFT103CON 57777290 SAFT 400F380E 57778865 CPU Control PCB Circuit Board Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB SAFT103CON 57777290 SAFT 400F380E 57778865 CPU Control PCB Circuit Board Specs
General
- Manufacturer ABB
- Model SAFT103CON 57777290 SAFT 400F380E 57778865
- Condition New Original ready stock
- Product Family SAFT123PAC,SAFT171PAC,SNAT609TAI
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Large-scale transmission in papermaking machinery: Used for precise control of multi-motor transmission speed chains in large papermaking machines.
- Hot rolling mill roller drive in steel mills: Controls high-power DC/AC inverters in harsh high-temperature and high-vibration environments.
- Marine electric propulsion systems: Serves as a core control board in triggering and scheduling high-power main propulsion inverters.
- Early Strömberg system maintenance: Seamless in-situ replacement and lifespan extension for aging transmission cabinet control units.
- Core processor logic: Uses a dual-chip microprocessor architecture for drive control calculations.
- Communication response latency: Internal data bus cycle shortened to less than 2ms.
- Pulse synchronization control: Integrated 6-channel L-shaped sockets support multi-axis high-speed pulse synchronization triggering.
- Fault-tolerant control mechanism: Features onboard parameter real-time mirror backup and hardware-level deadlock automatic reset.
- Electrical isolation standard: Complies with IEC 60664-1 insulation coordination, with 500V DC isolation withstand voltage.
- Industrial electromagnetic compatibility: Certified according to EN 61000-6-4 industrial environmental radiated emission standards.
- Environmental tolerance certification: Complies with IEC 60068-2-6 Industrial-grade anti-resonance and micro-vibration specifications.
- Compliant manufacturing process: Utilizes lead-free environmentally friendly processes; circuit board surface is coated with a moisture-proof and salt-spray-proof conformal coating.
