SAMC 11 POW

/ 4.9
1001 reviews | Need a Specific Revision?

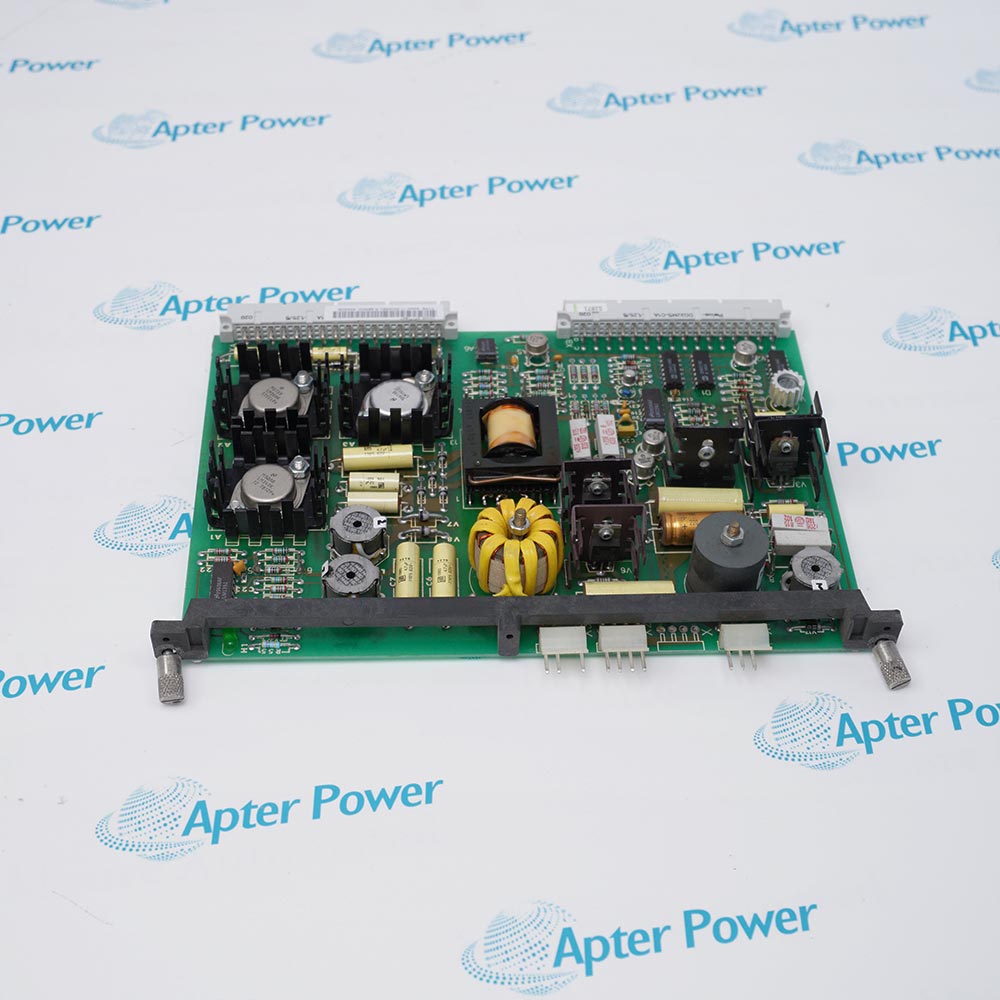

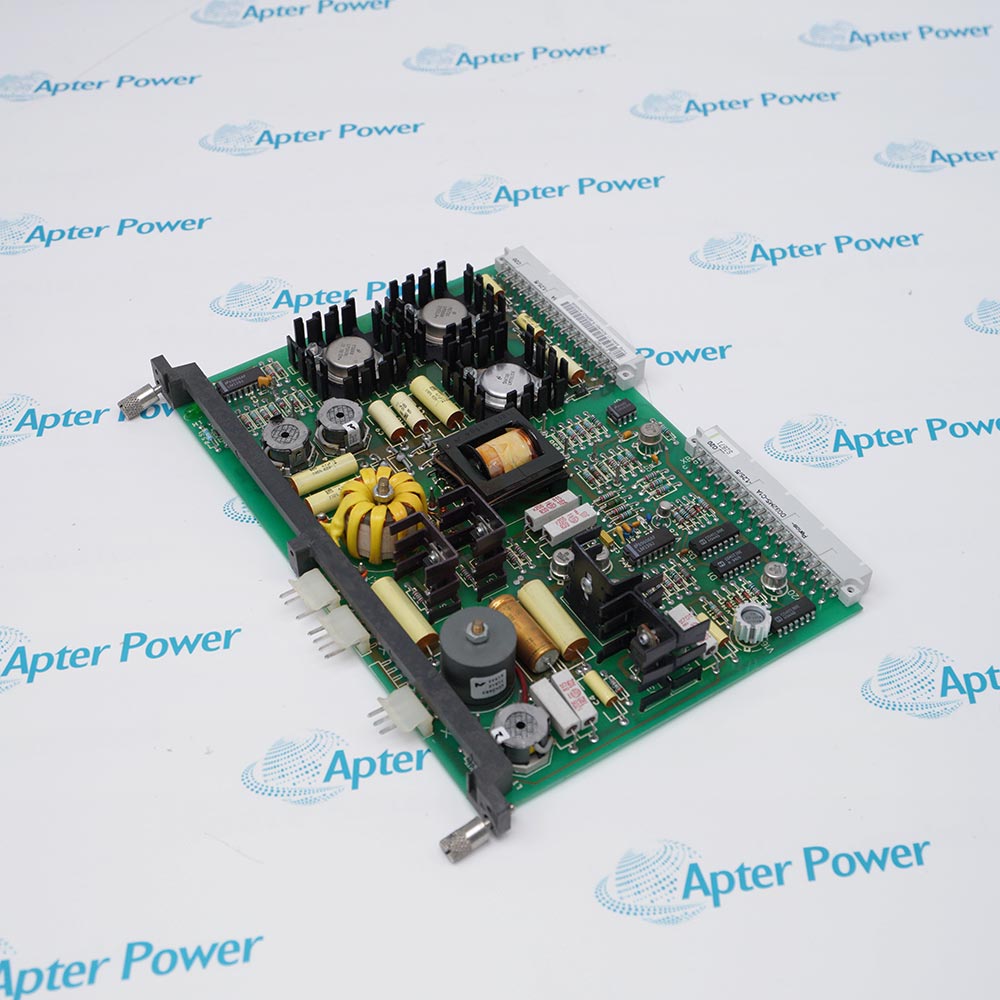

ABB SAMC 11 POW is the documented power-supply card identified by code 57171847 and part number 104750 in the official TBU renewal-parts list.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for SAMC 11 POW
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for SAMC 11 POW

  • Manufacturer:
    ABB
  • Part Number:
    SAMC 11 POW
  • Product Family:
    ABB Drives
  • Product Type:
    Legacy Drive Power Supply Card
  • Stock:
    1
  • Official designation:
    SAMC 11 POW
  • Documented function:
    Power supply card
  • Input:
    30–55 V DC
  • Stabilized output rails:
    +12 V, +5 V, 0 V and -12 V
  • Firing-pulse supply:
    25 V at 35 kHz
  • Supervision signals:
    FLTA auxiliary voltage, FLTX control-card presence and UCM1 DC-link undervoltage
  • Fault-memory backup:
    Approximately 10 hours
  • TBU code:
    57171847
  • TBU part number:
    104750
  • Quantity in documented TBU:
    1
  • Dimensions:
    3.5 × 18.5 × 24.8 cm
  • Weight:
    0.52 kg
  • Tariff Code:
    8504409999
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Part Identification Power Functions Supervision Checks Application
  • Power-supply card officially designated SAMC 11 POW
  • Documented TBU code 57171847 and part number 104750
  • Generates stabilized control rails and the 25 V, 35 kHz firing supply

SAMC 11 POW supplies the auxiliary voltages required by legacy drive control electronics and pulse-amplifier circuits.

That card generates stabilized control-electronics rails and the 25 V, 35 kHz supply used by pulse amplifiers, with auxiliary and DC-link supervision.

Match the original label, code 57171847, part number 104750, host unit, connectors and input supply before replacement.

Availability, condition, price, and shipping time for SAMC 11 POW are confirmed during quotation.

ABB SAMC 11 POW Legacy Drive Power Supply Card Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Match SAMC 11 POW on the original label.
  • Cross-check code 57171847 and part number 104750.
  • Confirm the host system and board position before substitution.
  • Confirm the 30–55 V DC input before energizing.
  • Check the stabilized +12 V, +5 V, 0 V and -12 V rails.
  • Verify the 25 V, 35 kHz firing-pulse supply under load.
  • Test FLTA auxiliary-voltage supervision.
  • Verify FLTX control-card presence and UCM1 undervoltage behavior.
  • Check the backup battery and retained fault indication after service.
  • Auxiliary power generation for legacy drive control electronics
  • 25 V, 35 kHz firing-pulse supply to pulse amplifiers
  • Power-supply service in documented thyristor braking units
Description
ABB SAMC 11 POW is a power-supply card for legacy drive-control electronics and pulse-amplifier circuits.

It generates stabilized control voltages together with the documented 25 V, 35 kHz firing supply and monitors auxiliary and DC-link conditions.

Replacement requires confirmation of TBU code 57171847, part number 104750, the host drive, connector arrangement and input supply.
Alternative Names
SAMC 11 POW SAMC11 POW SAMC11POW ABB SAMC 11 POW ABB SAMC11 POW
Technical notes
ABB SAMC 11 POW must be matched to code 57171847 or part number 104750, the host-system assignment, 30–55 V DC input, connector layout, control-rail load and firing-pulse requirements.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be checked if ABB SAMC 11 POW does not energize the control electronics after installation?
Verify the 30–55 V DC input, polarity, connector seating, rack position and upstream protection, then check for a short or excessive load on the stabilized control-voltage outputs.
What should be checked before installing ABB SAMC 11 POW in a legacy drive or braking unit?
Verify the 30–55 V DC input, connector and rack position, control-electronics load and firing-pulse supply requirements of the installed unit.
What fault indications depend on ABB SAMC 11 POW?
The official circuit supervises auxiliary voltage through FLTA, control-card presence through FLTX and intermediate DC-link undervoltage through UCM1.
Why can ABB SAMC 11 POW appear powered while firing circuits still fail?
The stabilized logic rails can be present while the separate 25 V, 35 kHz supply to the pulse amplifiers is missing or loaded incorrectly.
What happens to fault memory if ABB SAMC 11 POW loses auxiliary power?
The documented backup battery maintains fault memory and the LED for about ten hours; battery condition must still be verified during service.
What should be reviewed before reconnecting option cards to ABB SAMC 11 POW?
Confirm the option-card type, connector assignment and total auxiliary load against the original configuration; the card provides capacity for documented options but does not make every additional load compatible.
What should be tested after replacing ABB SAMC 11 POW?
Test the stabilized rails, auxiliary-voltage supervision, DC-link undervoltage signal, firing-pulse supply and any option-card loads before return to service.
