YPH108B/SPC

/ 4.9
1001 reviews | Need a Specific Revision?

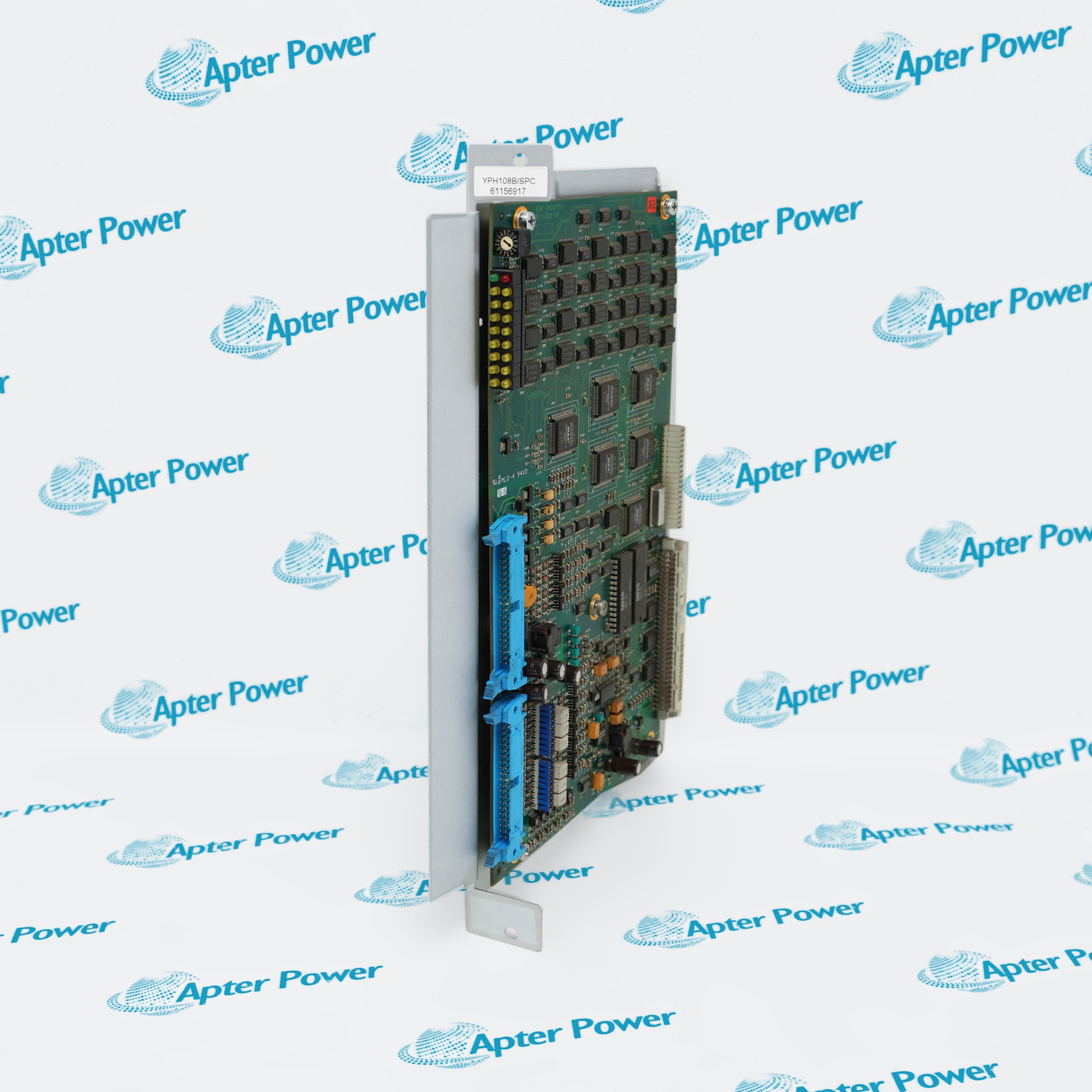

ABB YPH108B/SPC is an extended speed measuring card for ACV 700 drive-control systems with two incremental-encoder inputs, synchronization inputs, and a CDC-board interface.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for YPH108B/SPC
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for YPH108B/SPC

  • Manufacturer:
    ABB
  • Part Number:
    YPH108B/SPC
  • Product Family:
    ABB Drives
  • Product Type:
    Extended Speed Measuring Card
  • Stock:
    1
  • Encoder Inputs:
    2
  • Encoder Channels:
    A, B, Z
  • Encoder Input Connection:
    Differential or single-ended
  • Maximum Encoder Frequency:
    300 kHz
  • Nominal Encoder Signal Levels:
    24 V, 12 V, or 5 V
  • Encoder Supply Capacity:
    500 mA maximum
  • Synchronization Inputs:
    2
  • Synchronization Input Voltage:
    24 V DC
  • Selectable Input Filtering:
    100 µs or 5 ms
  • Analog Outputs:
    2
  • Analog Output Range:
    ±10 V
  • Analog Output Resolution:
    12 bit
  • Analog Output Accuracy:
    ±1%
  • Board Supply:
    +24 V DC from backplane
  • Weight:
    0.84 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Encoder Interface Timing and Synchronization Commissioning Checks Application
  • Two incremental-encoder inputs with A, B, and Z channels
  • Two 24 V DC synchronization inputs with selectable input filtering
  • Parallel CDC-board interface with two configurable analog outputs

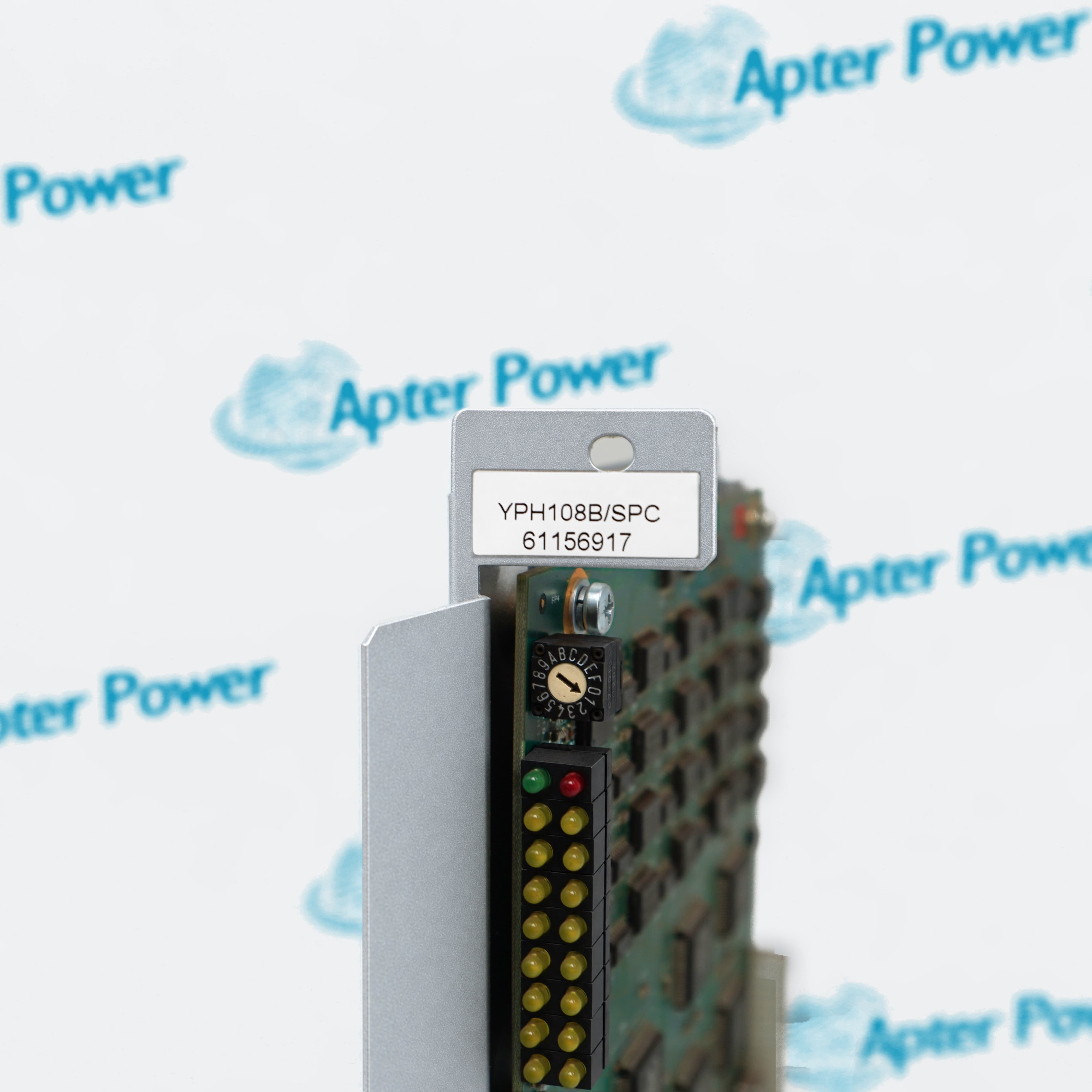

YPH108B/SPC is the ACV 700 extended speed measuring card identified by ABB order number 3AFE 6115 6917.

Its hardware timing logic measures speed and event timing from as many as two incremental encoders while the binary inputs support synchronized measurement events.

Before replacement, record the encoder voltage and wiring mode, synchronization-input filter selection, analog-output use, backplane location, and CDC application settings.

Availability, condition, price, and shipping time for YPH108B/SPC are confirmed during quotation.

ABB YPH108B/SPC Extended Speed Measuring Card Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Two independent A, B, and Z incremental-encoder channels
  • Differential or single-ended input connection is supported
  • Encoder signal levels and shared supply loading must be verified before wiring
  • Hardware logic performs time-critical speed and event measurement
  • Two 24 V DC inputs accept external synchronization events
  • Input filtering must be restored to the documented 100 µs or 5 ms setting
  • Record encoder polarity, shielding, voltage, and supply current before removal
  • Restore analog-output assignments and CDC-board data mapping
  • Verify measured speed, index response, synchronization timing, and fault-free operation
  • ACV 700 dual-encoder speed measurement
  • Hardware-synchronized drive timing and event capture
  • Drive feedback and scaled analog monitoring outputs
Description
YPH108B/SPC is an ABB extended speed measuring card used in documented ACV 700 drive-control hardware.

The card processes two incremental-encoder channels and synchronized binary events through hardware timing logic, then exchanges measurement data with the CDC board and provides two configurable analog outputs.

Before replacement, confirm the board position, encoder signal level and wiring, synchronization filter selection, analog-output assignments, CDC interface, and saved ACV 700 application.
Alternative Names
YPH108B/SPC YPH 108B/SPC YPH108B SPC YPH 108B SPC ABB YPH108B/SPC ABB YPH 108B/SPC 3AFE61156917 3AFE 6115 6917
Technical notes
ABB YPH108B/SPC must match order number 3AFE 6115 6917, encoder signal level, A/B/Z wiring, synchronization filtering, analog-output use, CDC interface, and saved ACV 700 application.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What should be matched before ordering ABB YPH108B/SPC for an ACV 700 drive?
Match ABB order number 3AFE 6115 6917, the installed board position, CDC-board interface, encoder count, encoder voltage, and saved drive application rather than selecting from the YPH108B family name alone.
Can ABB YPH108B/SPC accept both differential and single-ended encoder signals?
Yes, but the actual wiring, nominal signal level, shielding, and encoder supply load must match the installed encoder. Record these details before removing the original card.
What can cause unstable speed feedback after replacing ABB YPH108B/SPC?
Incorrect A/B/Z polarity, a mismatched signal level, excessive encoder-supply load, poor shielding, or an incorrect input-connection mode can produce missing counts or unstable speed data.
Why should the synchronization-input filter be checked on ABB YPH108B/SPC?
The 100 µs and 5 ms filter choices respond differently to short events and noise. Restoring the wrong selection can shift or suppress the timing event used by the drive application.
What must be preserved when ABB YPH108B/SPC analog outputs are used by external equipment?
Preserve the assigned output function, scaling, polarity, receiving-device input range, common reference, and cable routing; the card provides ±10 V outputs but the application determines their meaning.
Can ABB YPH108B/SPC be replaced by YPH108B/SP without an engineering review?
Do not assume interchangeability. ABB lists separate order identities, so confirm the exact board option, terminal use, drive documentation, and application requirements before substitution.
What evidence should be retained after commissioning ABB YPH108B/SPC?
Retain the original and replacement labels, encoder wiring record, filter selections, analog-output assignments, drive backup, and verified speed/timing test results.
