EI802F 3BDH000016R1

/ 4.9
1001 reviews | Need a Specific Revision?

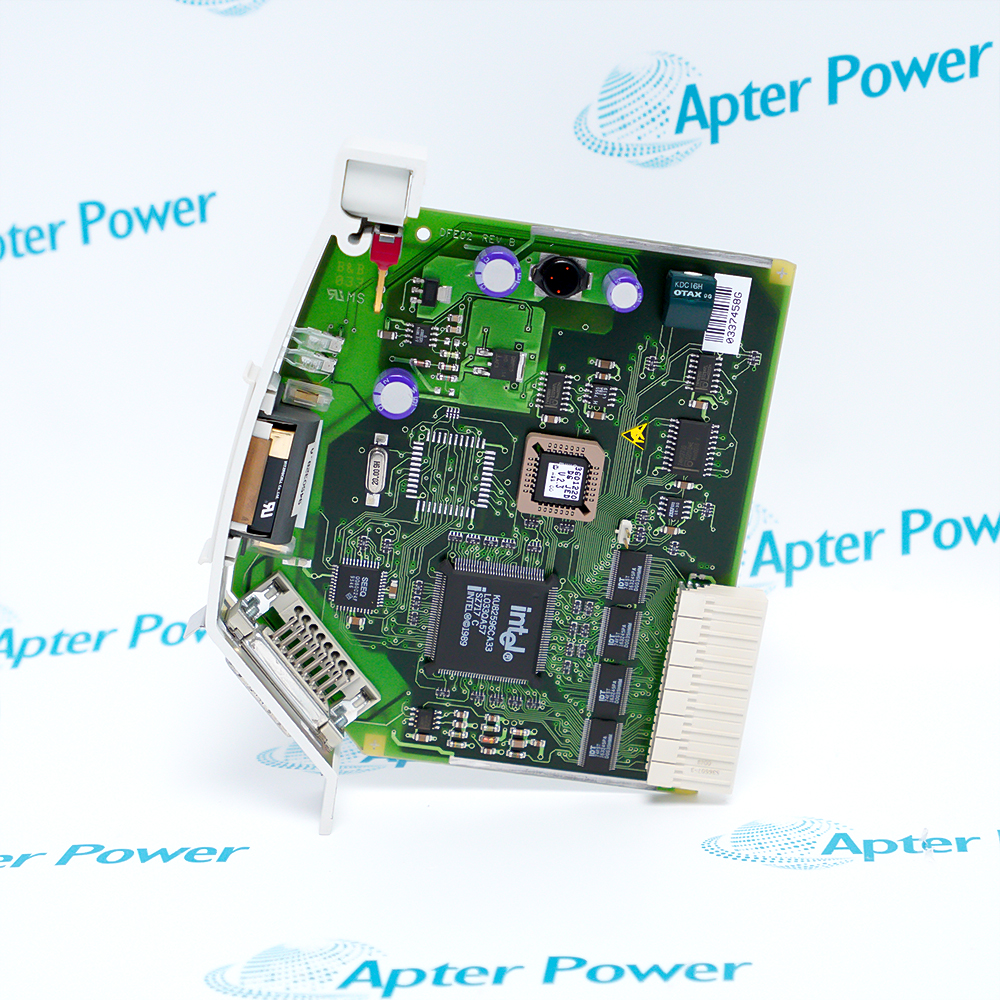

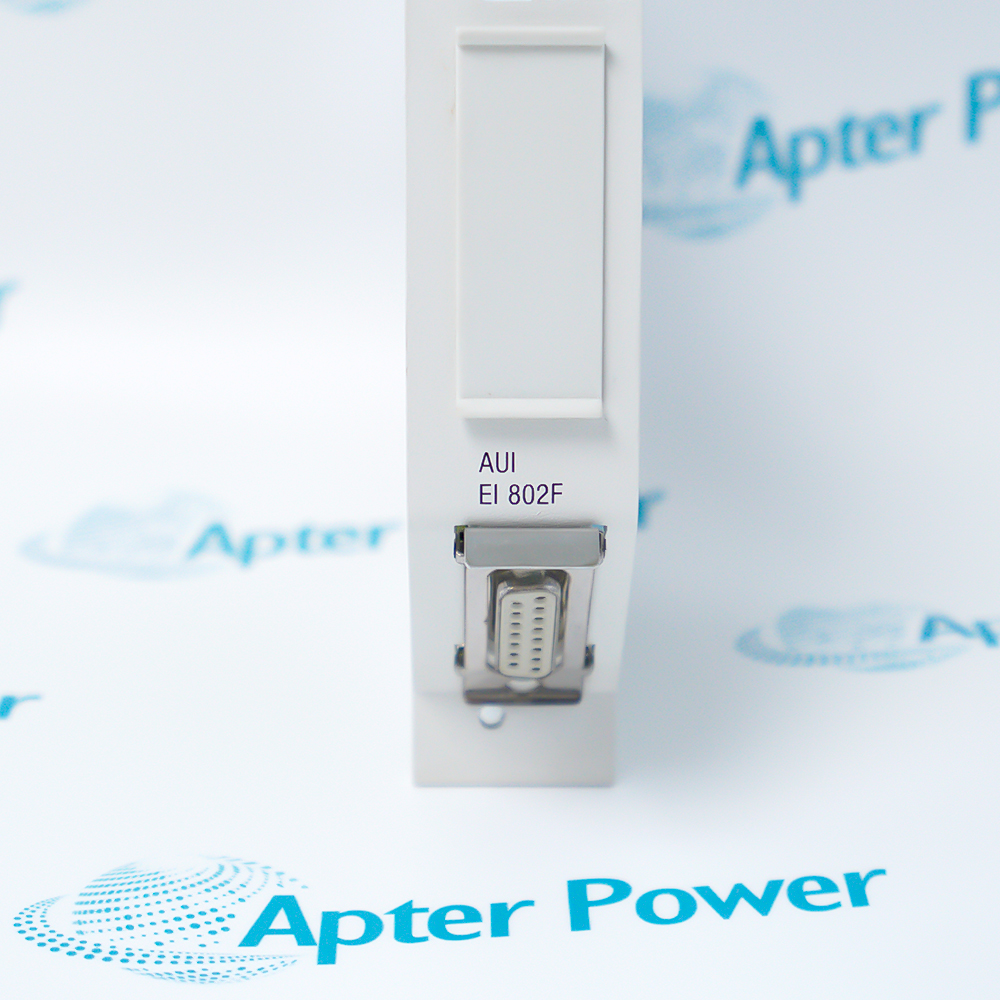

ABB EI802F 3BDH000016R1 is an ethernet module with an AUI interface that connects FieldController systems to Ethernet transceivers and industrial TCP/IP networks, supporting multiple 10Base communication media.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for EI802F 3BDH000016R1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for EI802F 3BDH000016R1

  • Manufacturer:
    ABB
  • Part Number:
    EI802F 3BDH000016R1
  • Product Family:
    ABB H&B Freelance 2000
  • Product Type:
    Ethernet Module AUI
  • Stock:
    4
  • Interface (Port):
    AUI interface (1 port)
  • Protocol:
    TCP/IP Industrial Network
  • Power Supply:
    5V DC
  • Consumption:
    Maximum 2.5W
  • Operating Temperature:
    +5℃ to +55℃
  • Storage Temperature:
    -25℃ to +70℃
  • Humidity:
    Maximum 95% (non-condensing)
  • Mounting:
    Slot-type direct plug-in
  • Protection (IP):
    IP20 (rack-mounted)
  • Weight:
    0.16 kg
  • Estimated shipping dimensions:
    2.8x13.1x15.6cm
  • Tariff Code:
    2942000000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Configuration Applications Diagnostics

Features:

  • Supports connection of transceivers for 10Base5, 10Base2, 10BaseT, 10BaseFL, and star coupler units, enabling flexible network deployment.
  • Specifically intended for installation in FieldController basic units through designated E1 or E2 slots.
  • Combines low power consumption with industrial environmental specifications for dependable long-term communication performance.
ABB EI802F 3BDH000016R1 plays an important role in establishing Ethernet connectivity within FieldController systems. Industrial facilities often require reliable communication between controllers and network infrastructure, and the module provides a dedicated interface to support that requirement. Through the AUI connection, network expansion can be achieved using compatible Ethernet transceivers and communication equipment.

Network flexibility is one of the key advantages of ABB EI802F 3BDH000016R1. Support for several 10Base communication technologies allows engineers to adapt the module to different plant layouts and network architectures. Whether connecting to legacy Ethernet installations or integrating with specialized industrial communication equipment, the module provides a practical communication solution.

The design of ABB EI802F 3BDH000016R1 also supports efficient system implementation. Direct plug-in installation reduces setup complexity, while the compact module structure fits seamlessly into existing controller assemblies. Operating with low power demand and supporting industrial environmental conditions, the module contributes to stable network communication in automation applications.

The EI802F 3BDH000016R1 ABB Ethernet Module AUI may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB EI802F 3BDH000016R1 Ethernet Module AUI Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
ABB EI802F 3BDH000016R1 Ethernet Module AUI Specs

General

  • Manufacturer ABB
  • Model EI802F 3BDH000016R1
  • Condition New Original ready stock
  • Product Family EI801F,EI803F
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Software: Hardware configuration is performed in Control Builder F software.
  • IP Address: Assigns a unique industrial Ethernet IP address in the system network properties.
  • Slot Allocation: Must be inserted into the dedicated communication slot of the AC 800F controller.
  • Parameter Synchronization: Parameters are automatically sent and activated via the control bus after configuration.
  • Backbone Network: Used to build a high-speed peer-to-peer network between AC 800F controllers.
  • HMI Connection: Connects to the DigiVis operator station to achieve real-time screen data refresh.
  • Network Extension: Used with transceivers to connect fiber optic cables for long-distance factory networking.
  • Legacy Upgrade: Replacement and routine maintenance of equipment in older AUI thick cable networks.
  • LEDs: The panel's built-in operation and link status indicators show the communication status.
  • Loopback: Supports internal loop self-testing via control software.
  • Errors: Reports error codes to the main controller via the system bus when communication is interrupted.
  • Link Monitor: Monitors the carrier listener status of the AUI physical interface in real time.
Description
ABB EI802F 3BDH000016R1 is an ethernet Module AUI used as the Ethernet connection module of the FieldController. The module provides an AUI interface for connecting transceivers and enables communication across industrial TCP/IP networks. It is designed to support various Ethernet media options, including 10Base5, 10Base2, 10BaseT, 10BaseFL, and star coupler units.

Within the FieldController architecture, ABB EI802F 3BDH000016R1 must be mounted in every basic unit and installed in slot E1 or E2, which are the second and third slots located on the left side of the basic unit. The module operates from a 5 VDC power supply and has a maximum power consumption of 2.5 W, providing an efficient solution for industrial Ethernet communication requirements.

ABB EI802F 3BDH000016R1 is one of three available ethernet module variants, alongside the EI801F with 10Base2 connectivity and the EI803F with Twisted Pair connectivity. Designed for industrial environments, the module operates at temperatures from +5°C to +55°C, withstands storage temperatures from -25°C to +70°C, and supports humidity levels up to 95% non-condensing. Slot-type direct plug-in mounting and an IP20 protection rating simplify installation inside rack-mounted control systems.
Alternative Names
EI8O2F 3BDHOOOO16R1 EI802F 3BDH0000I6RI EI 802F EI801F EI803F FI830F FI820F FI810F
Technical notes
The ABB EI802F (3BDH000016R1) is a dedicated ethernet Module AUI designed for Freelance AC 800F controllers to establish high-speed TCP/IP networking. This slot-in module features a classic 10Base5 AUI port to deliver stable, interference-free backbone communication across complex industrial topologies.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What communication interface does ABB EI802F 3BDH000016R1 provide?
ABB EI802F 3BDH000016R1 provides one AUI interface port for connecting Ethernet transceivers and establishing industrial TCP/IP network communication.
Why would ABB EI802F 3BDH000016R1 be selected instead of other Ethernet module variants?
The module offers an AUI connection, making it suitable for applications requiring external transceivers for 10Base5, 10Base2, 10BaseT, 10BaseFL, or star coupler configurations.
How should ABB EI802F 3BDH000016R1 be installed in a FieldController?
Installation requires placement in slot E1 or E2 of the basic unit, using the slot-type direct plug-in design specified for the controller platform.
Can ABB EI802F 3BDH000016R1 connect to different Ethernet media types?
Yes. ABB EI802F 3BDH000016R1 supports transceiver connections for multiple Ethernet standards, allowing flexible network integration.
