07 ZE 63 R302

/ 4.9
1001 reviews | Need a Specific Revision?

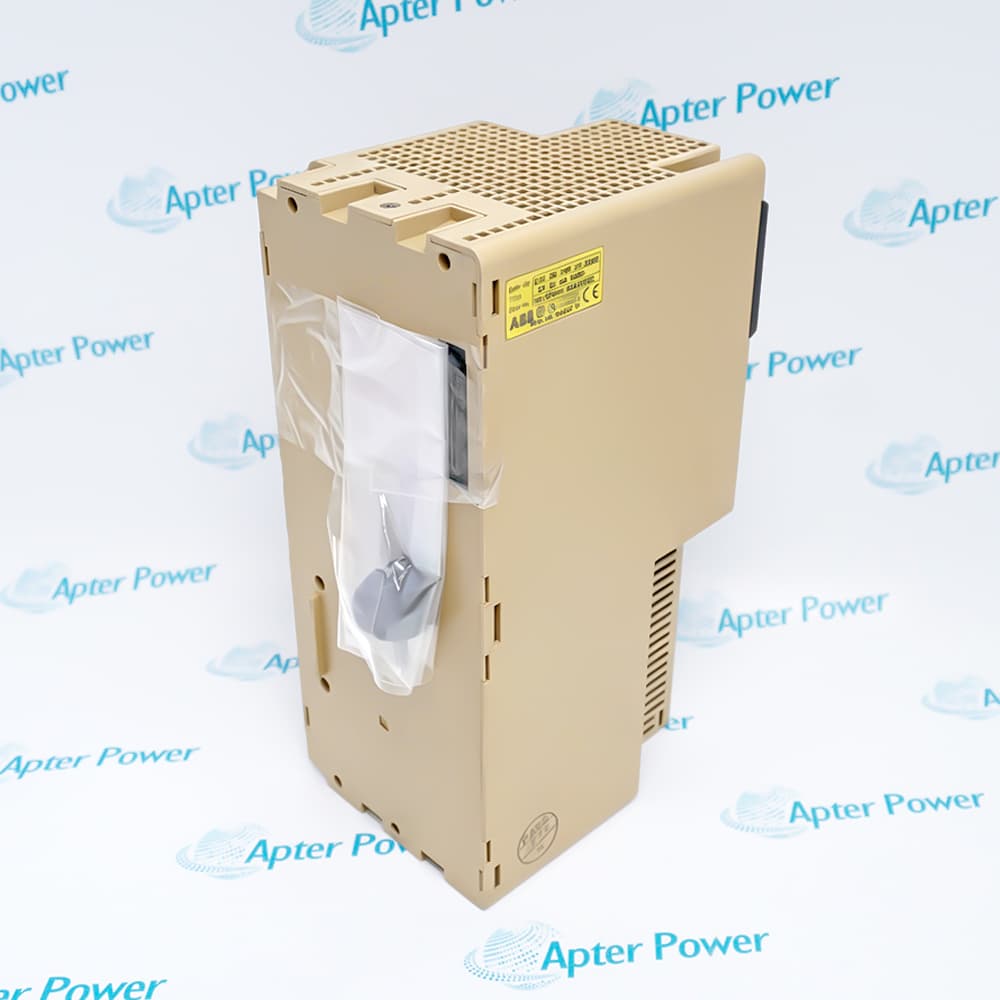

07 ZE 63 R302 is an ABB Procontic central unit documented for 15.7 K user program capacity and extended multi rack I/O configurations.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 07 ZE 63 R302
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 07 ZE 63 R302

  • Manufacturer:
    ABB
  • Part Number:
    07 ZE 63 R302
  • Product Family:
    ABB Procontic
  • Product Type:
    Procontic Central Unit
  • Stock:
    1
  • User program capacity:
    15.7 K
  • Platform:
    ABB Procontic
  • Product platform:
    ABB Procontic T200
  • Instruction set context:
    Common T200 instruction set
  • System feature context:
    Real time clock and online programming with class R3 memory
  • Maximum module racks:
    Six
  • Maximum I/O slots:
    Fifty eight
  • Typical execution figure:
    Approximately 2.5 ms per 1,000 binary instructions
  • Tariff Code:
    8708709900
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Extended Rack Fit Application Backup Return to Service Application
  • 15.7 K user program capacity for ABB Procontic T200 control
  • Extended architecture supporting up to six module racks and fifty eight I/O slots
  • Class R3 memory context with real-time clock and online programming

07 ZE 63 R302 is an ABB Procontic T200 central unit for extended multi-rack installations.

The documented configuration provides a 15.7 K user program, up to six module racks and fifty-eight I/O slots; typical execution is approximately 2.5 ms per 1,000 binary instructions.

Before replacement, record every rack and I/O position, preserve the application program, and verify power distribution, communications and the complete central-unit nameplate.

Availability, condition, price, and shipping time for 07 ZE 63 R302 are confirmed during quotation.

ABB 07 ZE 63 R302 Procontic Central Unit Manuals, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • 07 ZE 63 R302 is intended for an extended T200 rack architecture rather than a single-rack installation
  • The documented ceiling is six module racks with fifty-eight I/O slots
  • Reconcile the actual rack order and slot allocation with the saved Procontic project before fitting a replacement
  • Save the 15.7 K user program before removing 07 ZE 63 R302 from the T200 cabinet
  • Capture the six-rack topology, fifty-eight-slot I/O map and communication assignments with the project archive
  • Use the online-programming and class R3 memory context to validate the restored application

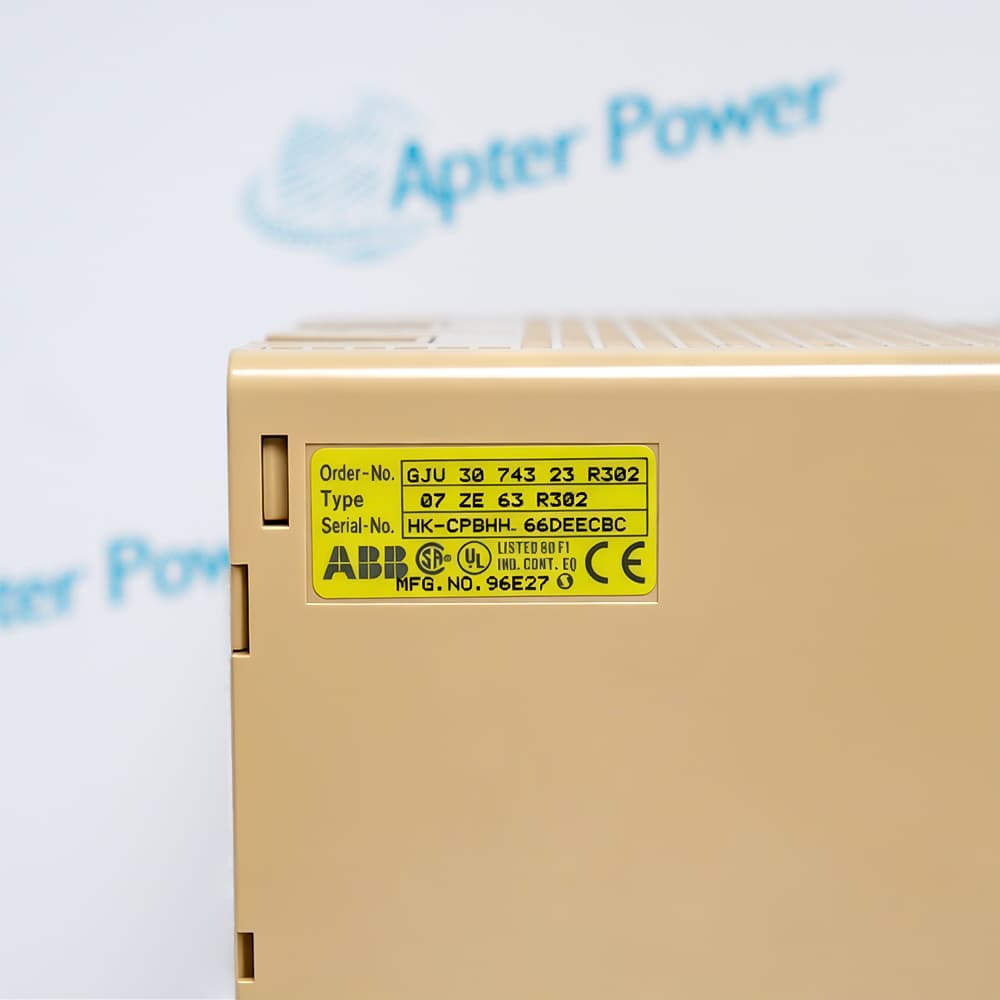

  • Match the complete 07 ZE 63 R302 nameplate and GJV3074321R302 order identity
  • Check rack power, I/O wiring, communications and the saved six-rack project before energizing
  • Restore the program, confirm the slot map and test controller operation before handing the T200 system back
  • Central control of large ABB Procontic T200 installations with distributed I/O
  • Projects requiring up to six module racks and fifty-eight configured I/O positions
  • Online maintenance of an extended control program where the rack topology remains documented
Description
07 ZE 63 R302 is an ABB Procontic central unit documented for 15.7 K user-program capacity and extended multi-rack I/O configurations.

The reviewed catalog evidence lists up to six module racks and fifty-eight I/O slots, with a typical binary-program execution figure of approximately 2.5 ms per 1,000 instructions.

Before replacement, document the entire rack topology, I/O order, application backup, power-distribution arrangement, and communication connections, then compare the full nameplate.
Alternative Names
07ZE63R302 07 ZE63 R302 07ZE 63 R302 ABB 07 ZE 63 R302 Procontic 07 ZE 63 R302 Procontic T200 07 ZE 63 R302
Technical notes
07 ZE 63 R302: verify the complete six rack topology, I/O order, power distribution, communication wiring, central unit label, and backed up program before replacement; an incomplete configuration record can prevent successful restoration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can ABB 07 ZE 63 R302 replace a different Procontic central unit simply because it fits?
No. Match rack topology, I/O map, power distribution, communication arrangement, and backed up application before approval.
Which existing installation records should be captured before selecting ABB 07 ZE 63 R302?
Capture every rack and I/O position, power and communication layout, nameplate, and a verified program backup.
Can 07 ZE 63 R302 be started with only the CPU changed?
Not safely as a complete recovery method. Restore the validated application and documented rack, I/O, power, and communication context.
What should be backed up before removing 07 ZE 63 R302?
Back up the user program and record configuration information, I/O order, communications, and power distribution.
What needs checking after 07 ZE 63 R302 is installed?
Validate rack recognition, communications, required I/O behavior, and machine sequence under controlled conditions.
How can I avoid using the wrong central unit for 07 ZE 63 R302?
Compare the complete original nameplate and actual system capacity and rack arrangement rather than a shortened model name.
How should ABB 07 ZE 63 R302 be accepted after commissioning?
Restore the documented configuration, then validate communications, I/O behavior, and the controlled machine sequence section by section.
