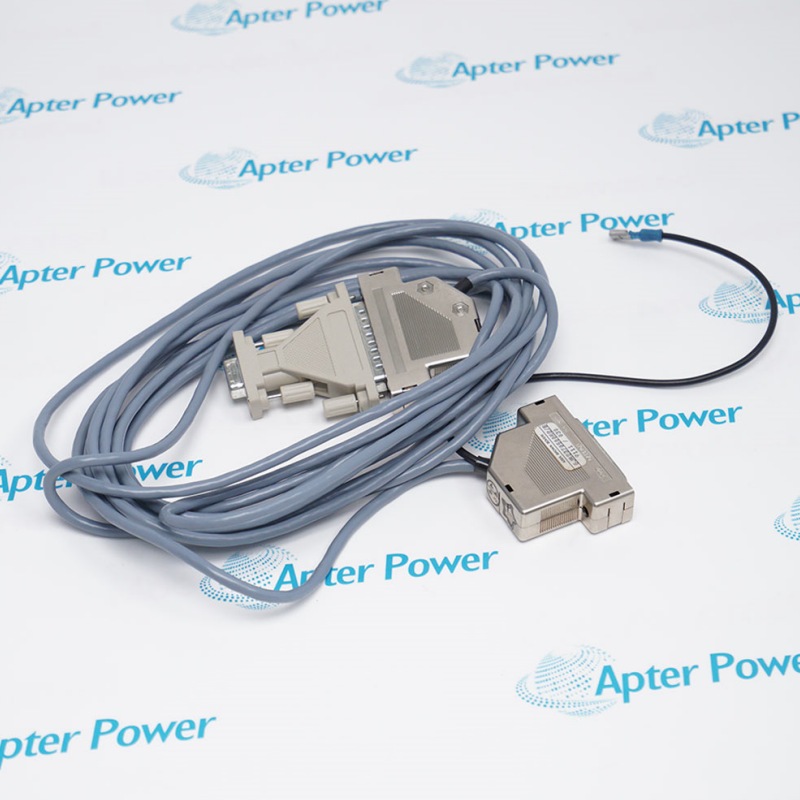

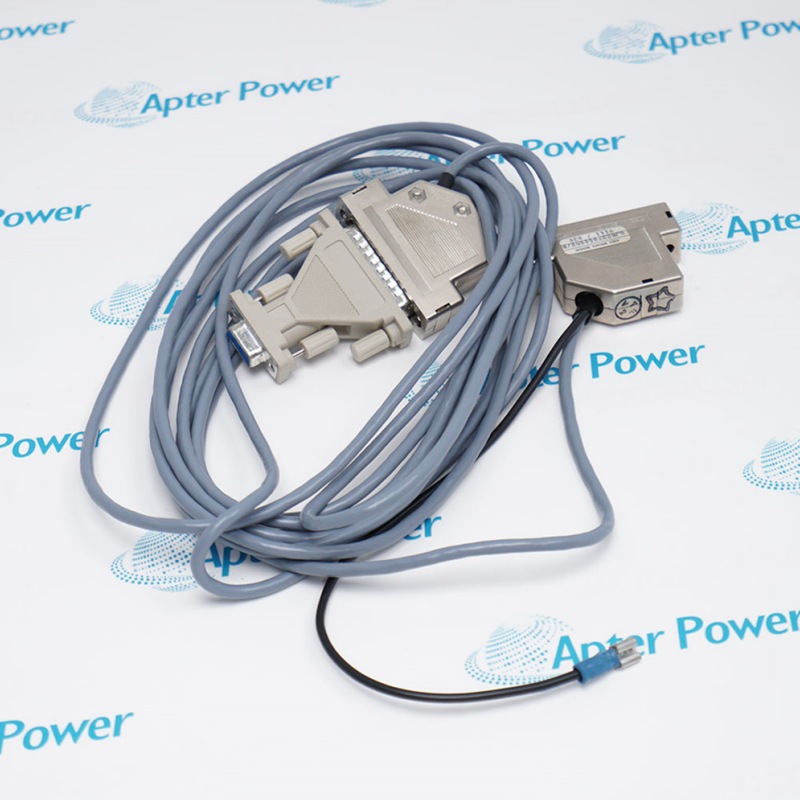

- Programming-unit cable identified by ABB order number GJR2370500R2
- Used between the programming unit and the interface converter in the documented communication path
- Documented for converter-based connections to 07 ZE 86, 07 ZE 88 and 07 IE 84 devices
07 SK 94 R2 GJR2370500R2 is the ABB programming cable used on the programming-unit side of a converter-based communication link. It does not directly replace the separate cable required between the converter and the target controller device.
ABB documents the cable with a Phoenix Contact PSM-V24/V11-P interface converter, the applicable PSM-NT power unit and the converter set to the required DCE operating position. In the documented arrangement, 07 SK 87 R2 serves the device side of the connection.
ABB shows programming connections involving 07 ZE 86, 07 ZE 88 and 07 IE 84, while also documenting a separate 88iso interface arrangement for 07 ZE 88. Before installation or troubleshooting, confirm the target device, converter power, DCE setting and both cable identities.
Availability, condition, price, and shipping time for 07 SK 94 R2 GJR2370500R2 are confirmed during quotation.
ABB 07 SK 94 R2 GJR2370500R2 Programming Connection Cable Manuals and Support Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Connect the programming unit through 07 SK 94 R2 to the interface converter.
- Use the documented converter power unit and operating-mode setting.
- Complete the device side with the ABB-specified cable for the target processor.
- Identify GJR2370500R2 as the programming-unit-side cable.
- Do not substitute the device-side 07 SK 87 R2 for this cable.
- Confirm both cable identities before commissioning the programming link.
- Verify power is available to the interface converter.
- Confirm the converter is set to the ABB-documented DCE position.
- Inspect both connector paths before changing controller or programming settings.
- Programming connections to ABB 07 ZE 86
- Programming connections to ABB 07 ZE 88
- Programming connections to ABB 07 IE 84
